Crystal structure of bis(2,4-dibromo-6-{(E)[(4-fluorobenzyl)imino]methyl}phenolato-κ2N,O) copper(II), C28H18Br4F2N2O2Cu

  • Qiong Lu and KeWei Lei EMAIL logo
Published/Copyright: February 26, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C28H18Br4CuF2N2O2, monoclinic, C2 (no. 5), a = 14.6518(8) Å, b = 9.6738(5) Å, c = 11.1907(6) Å, β = 121.182(8)°, V = 1357.00(17) Å3, Z = 2, Rgt(F) = 0.0632, wRref(F2) = 0.0762, T = 293 K.

CCDC no.:: 1449858

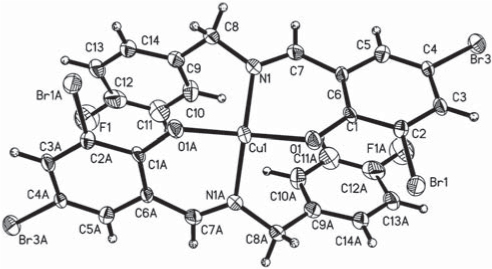

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Blue, block, size 0.12×0.21×0.33 mm
Wavelength:Mo Kα radiation (0.7107 Å)
μ:67.38 cm−1
Diffractometer, scan mode:SuperNova, Eos, ω scans
2θmax:50.48°
N(hkl)measured, N(hkl)unique:6394, 2469
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1994
N(param)refined:177
Programs:CrysAlisPRO [6], SHELX [7], DIAMOND [8]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(3)4c0.48840.34110.84250.043
H(5)4c0.31940.13010.48760.048
H(7)4c0.13690.17260.33400.051
H(8A)4c−0.01980.19860.16700.061
H(8B)4c−0.08360.32450.17450.061
H(10)4c−0.04450.02220.37000.065
H(11)4c−0.1824−0.12380.34620.078
H(13)4c−0.39170.08090.00060.065
H(14)4c−0.25620.22980.03150.051
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Cu(1)2b00.3384(2)0.50.023(1)0.056(1)0.036(1)0.00.0149(8)0.0
Br(1)4c0.3350(1)0.4994(1)0.8793(1)0.0361(7)0.0625(9)0.0434(7)0.0032(7)0.0175(5)−0.0149(6)
Br(3)4c0.5416(1)0.1366(2)0.6959(1)0.0339(7)0.070(1)0.0579(8)0.0161(7)0.0255(6)−0.0012(7)
F(1)4c−0.375(1)−0.114(2)0.160(1)0.083(8)0.12(1)0.113(9)−0.053(8)0.049(7)0.001(8)
O(1)4c0.1422(6)0.3894(9)0.6250(8)0.029(4)0.042(5)0.043(4)0.004(4)0.020(4)−0.003(4)
N(1)4c0.0345(8)0.263(1)0.362(1)0.032(5)0.055(7)0.035(5)−0.002(5)0.019(4)0.002(5)
C(1)4c0.2278(9)0.341(1)0.632(1)0.020(5)0.044(7)0.036(6)0.010(5)0.017(5)0.006(5)
C(2)4c0.3286(9)0.372(1)0.746(1)0.026(6)0.045(8)0.032(6)0.005(5)0.011(5)0.004(5)
C(3)4c0.4227(9)0.317(2)0.765(1)0.022(5)0.044(7)0.043(6)0.000(5)0.018(5)−0.005(6)
C(4)4c0.4151(9)0.226(2)0.665(1)0.019(5)0.057(8)0.033(6)0.003(5)0.014(5)−0.003(5)
C(5)4c0.3216(9)0.193(1)0.552(1)0.033(7)0.047(8)0.035(6)0.003(6)0.014(5)0.001(5)
C(6)4c0.2240(9)0.254(1)0.529(1)0.021(6)0.045(7)0.032(6)0.000(5)0.013(5)−0.009(5)
C(7)4c0.129(1)0.224(2)0.398(1)0.038(7)0.057(9)0.037(6)−0.005(6)0.023(6)−0.011(6)
C(8)4c−0.051(1)0.237(2)0.218(1)0.032(7)0.09(1)0.038(7)−0.013(8)0.021(6)−0.005(7)
C(9)4c−0.137(1)0.141(2)0.202(1)0.039(7)0.053(8)0.042(6)0.003(7)0.025(5)−0.005(6)
C(10)4c−0.114(1)0.036(2)0.297(2)0.037(7)0.06(1)0.059(8)0.003(7)0.018(6)0.006(7)
C(11)4c−0.196(1)−0.053(2)0.283(2)0.07(1)0.049(9)0.08(1)0.008(8)0.043(9)0.018(8)
C(12)4c−0.296(1)−0.028(2)0.173(2)0.07(1)0.08(1)0.07(1)−0.04(1)0.047(9)−0.02(1)
C(13)4c−0.322(1)0.071(2)0.076(2)0.034(7)0.08(1)0.054(8)−0.015(8)0.024(6)−0.009(8)
C(14)4c−0.240(1)0.158(2)0.094(1)0.036(7)0.052(9)0.039(6)−0.003(6)0.018(5)−0.004(6)

Source of material

3,5-dibromo-2-hydroxybenzaldehyde 2.80 g (10 mmol) and (4-fluorobenzyl)methanamine 1.25 g (10 mmol) were dissolved in ethanol and stirred for 2 h at a temperature of 65 °C. After evaporation, a crude product was recrystallized twice from ethanol solution to give a pure yellow product. [2-((E)-(4-fluorobenzylimino)methyl)-4,6-dibromophenol 3.157 g (8.2 mmol)]. 1 mmol (0.3851 g) of this product and 0.5 mmol (0.1221 g) Cu2NO3·3H2O were dissolved in ethanol and stirred for 10 minutes. Evaporation at room temperature yielded blue crystals of C28H18Br4CuF2N2O2.

Experimental details

All H atoms were placed in geometrically idealized positions and constrained to ride on their parent atoms (C—H = 0.93 Å, 0.97 Å). The Uiso values of the hydrogen atoms were set to 1.2Ueq(C).

Discussion

Schiff base complexes, due to the novel structure and many potential applications, have been widely studied for many years [1–4]. Schiff base and its transition metal complexes have become the hot topic of research [5]. Schiff base ligands are formed by amine and carbonyl compounds via condensation and coordinate by a single tooth to multiple teeth, from symmetrical to asymmetrical, from chain to ring.

Schiff base ligands synthesized from 2-hydroxy-3,5-dibromo benzaldehyde and fluorine benzylamine may form Cu complexes to study their inhibitory effect on jack bean urease.

The title Schiff base complex, [Cu(C14H9Br2FNO)2], possesses a crystallographic two fold symmetry, with the CuII atom lying on the rotation axis. The coordination of the metal atom by the two N,O-bidentate ligands results in a flattened CuN2O2 tetrahedron. The six-membered chelate ring is in an envelope conformation, with the metal atom as the flap. The dihedral angle between the planes of the aromatic rings within each ligand is 61.4(2)°. The Cu1—O1 distance of 1.877(8) Å is shorter than the distance of Cu1—N1 distance [1.997(10) Å]. The bond lengths and bond angles in title complex are within normal ranges.

Corresponding author: KeWei Lei, State Key Lab. Base of Novel Functional Materials and Preparation Science, Institute of Solid Materials Chemistry, Faculty of Materials Science and Chemical Engineering, Ningbo University, Ningbo 315211, People's Republic of China, e-mail:

Acknowledgements:

This project was sponsored by K. C. Wong Magna Fund in Ningbo University.

References

1. Dimauro, E. F.; Kozlowski, M. C.: BINOL-Salen metal catalysts incorporating a bifunctional design. Org. Lett. 3 (2001) 1641–1644.10.1021/ol0158213Search in Google Scholar PubMed

2. Yang, X.; Jones, R. A.: Anion dependent self-assembly of tetra-decker and triple-decker luminescent Tb (III) salen complexes. J. Am. Chem. Soc. 127 (2005) 7686–7687.10.1021/ja051292cSearch in Google Scholar PubMed

3. Maurya, M. R.; Kumar, A.; Bhat, A. R.: Dioxo-and oxovanadium (V) complexes of thiohydrazone ONS donor ligands: synthesis, characterization, reactivity, and antiamoebic activity. J. Inorg. Chem. 45 (2006) 1260–1269.10.1021/ic050811+Search in Google Scholar PubMed

4. Sah, A. K.; Tanase, T.; Mikuriya, M.: Tri-and tetranuclear copper (II) complexes consisting of mononuclear Cu (II) chiral building blocks with a sugar-derived Schiff's base ligand. J. Inorg. Chem. 45 (2006) 2083–2092.10.1021/ic051862+Search in Google Scholar PubMed

5. Mukherjee, A.; Dhar, S.; Nethaji, M.: Ternary iron (II) complex with an emissive imidazopyridine arm from Schiff base cyclizations and its oxidative DNA cleavage activity. Dalton Trans. (2005) 349–353.10.1039/b415864dSearch in Google Scholar PubMed

6. Agilent Technologies: CrysAlisPRO Software System, Version 1.171.35.15, Agilent Technologies UK Ltd, Oxford, UK, 2011.Search in Google Scholar

7. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

8. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany, 2012.Search in Google Scholar

Received: 2015-9-1
Accepted: 2016-1-25
Published Online: 2016-2-26
Published in Print: 2016-6-1

©2016 Qiong Lu et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
