Crystal structure of tetraqua((E)-4,4′-(diazene-1,2-diyl)bis(5-oxo-4,5-dihydro-1,2,4-triazol-1-ide)-κ2N:O)barium(II), C4H10N8O6Ba

  • Jiaping Zhu , Shaohua Jin , Li Wan , Lijie Li , Shusen Chen und Qinghai Shu EMAIL logo
Veröffentlicht/Copyright: 13. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 2

Abstract

C4H10BaN8O6, triclinic, P1̅ (No. 2), a = 7.6249(18) Å, b = 7.8460(16) Å, c = 11.723(3) Å, α = 70.520(8)°, β = 85.079(10)°, γ = 64.007(7)°, V = 592.792 Å3, Z = 2, Rgt(F) = 0.0332, wRref(F2) = 0.0734, T = 153 K.

CCDC no.:: 1415595

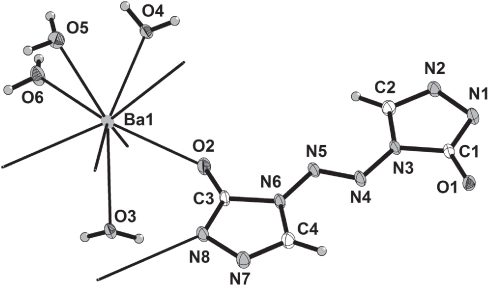

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.08×0.12×0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:33.92 cm−1
Diffractometer, scan mode:CCD, φ and ω scans
2θmax:63°
N(hkl)measured, N(hkl)unique:8849, 3870
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3645
N(param)refined:204
Programs:SHELX [4], Diamond [5], SADABS [6]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(4)2i0.53390.71170.46880.022
H(2)2i−0.09711.37000.49360.021
H(03A)2i0.270(5)0.396(5)1.055(2)0.018(9)
H(03B)2i0.237(5)0.489(6)0.931(2)0.04(1)
H(04A)2i0.056(5)1.229(2)1.045(2)0.06(2)
H(04B)2i0.073(5)1.266(4)0.922(2)0.02(1)
H(05A)2i0.599(5)0.825(4)1.206(3)0.06(2)
H(05B)2i0.429(2)1.002(4)1.180(3)0.04(1)
H(06A)2i−0.012(3)0.927(5)1.241(3)0.05(1)
H(06B)2i0.153(5)0.748(4)1.286(3)0.05(2)
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Ba(1)2i0.31217(2)0.79106(2)1.02878(1)0.01155(9)0.00931(8)0.01247(9)−0.00120(6)0.00051(6)−0.00305(6)
C(1)2i0.0677(4)1.3280(4)0.2443(2)0.014(1)0.013(1)0.010(1)−0.007(1)−0.001(1)0.000(1)
O(1)2i0.1841(3)1.2412(3)0.1767(2)0.018(1)0.0149(9)0.0108(9)−0.0042(8)0.0020(8)−0.0037(8)
C(4)2i0.5127(5)0.6921(4)0.5523(3)0.020(2)0.016(1)0.013(1)−0.003(1)0.002(1)−0.004(1)
O(2)2i0.2719(3)0.8233(3)0.7940(2)0.025(1)0.016(1)0.012(1)−0.0021(9)0.0020(9)−0.0031(8)
N(5)2i0.2156(4)1.0107(4)0.5409(2)0.017(1)0.011(1)0.012(1)−0.0025(9)−0.0016(9)−0.0002(9)
N(4)2i0.2284(4)1.0604(4)0.4288(2)0.015(1)0.011(1)0.012(1)−0.0006(9)−0.0032(9)0.0007(9)
N(3)2i0.0794(4)1.2454(3)0.3701(2)0.015(1)0.010(1)0.010(1)−0.0016(9)−0.0003(9)0.0000(9)
N(6)2i0.3646(4)0.8262(4)0.5979(2)0.016(1)0.011(1)0.010(1)−0.0006(9)−0.0014(9)0.0000(9)
N(1)2i−0.0860(4)1.5074(4)0.2127(2)0.017(1)0.014(1)0.011(1)−0.005(1)0.0007(9)0.0004(9)
N(2)2i−0.1712(4)1.5416(4)0.3193(2)0.017(1)0.013(1)0.014(1)−0.002(1)0.001(1)−0.0030(9)
N(8)2i0.5415(4)0.5593(4)0.7519(2)0.018(1)0.011(1)0.012(1)−0.0009(9)−0.001(1)−0.0011(9)
N(7)2i0.6187(4)0.5345(4)0.6417(2)0.019(1)0.016(1)0.015(1)−0.001(1)0.000(1)−0.004(1)
C(3)2i0.3854(4)0.7382(4)0.7254(3)0.015(1)0.013(1)0.009(1)−0.004(1)−0.003(1)0.001(1)
C(2)2i−0.0710(5)1.3855(4)0.4110(3)0.018(2)0.016(1)0.014(1)−0.004(1)0.003(1)−0.005(1)
O(3)2i0.3119(3)0.4527(3)0.9925(2)0.014(1)0.0125(9)0.0114(9)−0.0042(8)0.0015(8)−0.0005(8)
O(4)2i0.0620(3)1.1850(3)0.9873(2)0.017(1)0.0118(9)0.013(1)−0.0054(8)0.0018(8)−0.0021(8)
O(5)2i0.5191(3)0.9217(3)1.1511(2)0.015(1)0.017(1)0.021(1)0.0014(9)−0.0012(9)−0.0066(9)
O(6)2i0.0996(4)0.8537(4)1.2263(2)0.027(1)0.018(1)0.015(1)0.001(1)0.006(1)−0.0017(9)

Source of material

The title compound was prepared as follows: ZTO (4,4′-azo-bistriazolone) is easily available by a literature known synthesis [1, 2]. ZTO (1.00 g) was suspended in 5 mL of water and to it a solution of Ba(OH)2 · 8H2O (1.61 g, in 10 mL of water) was added dropwise. After a reaction time of 30 min at room temperature, 50 mL of methanol was also added dropwise, and the resulting mixture was slowly cooled to room temperature. The bright yellow precipitate formed, which was filtered, washed with methanol and dried under vacuum, yielding 0.82 g (70.5%). 1H—NMR (d6—DMSO): = 8.14 ppm (CH); IR (KBr pellet): 3184, 3115, 1612, 1507, 1345, 1203, 1032, 936, 854, 820 cm−1, Elemental Analysis (%) calcd. for C4H10N8O6Ba: C, 11.91; H, 2.50; N, 27.77; found: C, 11.89; H, 2.52; N, 27.80.

Experimental details

Single-crystal X-ray diffraction data were collected using a Bruker-AXS SMART APEX2 CCD diffractometer. Absorption correction was performed by multiscan method implemented in SADABS.

Discussion

This contribution is part of our continuing interest in nitrogen-rich coordination compounds [3]. The crystallographic studies reveal that the asymmetric unit is made up of one Ba, one (E)-4,4′-(diazene-1,2-diyl)bis(5-oxo-4,5-dihydro-1,2,4-triazol–1–ide) (ZTO2−) anion and four coordinated water molecules. In crystal structure, Ba1 is coordinated by two adjacent ZTO2− anion through one Ba—O [Ba1—O2 = 2.709(2) Å], one Ba—N [Ba1—N8# = 2.915(3) Å] and seven water ligands (see the figure). Consequently each Ba1 is nine-coordinated. Ba—O distances of the water ligands are: Ba1—O3 = 2.827(2) Å, Ba1—O4 = 2.724(2) Å, Ba1—O5 = 2.895(3) Å and Ba1—O6 = 2.766(2) Å. These connections lead to a two dimensional coodination polymer.

Corresponding author: Qinghai Shu, School of Materials Science and Engineering, Beijing Institute of Technology, P.R. China, e-mail:

Acknowledgements:

I acknowledge support for the publication fee by the Basic Research Found of Beijing Institute of Technology of China (No. 3090012211410) and the Excellent Young Scholar Research Found of Beijing Institute of Technology of China (No. 3090012331542). The authors thank the responsible editor for supplying the figure.

References

1. Zhong, Y. T.; Huang, J.; Song, J. R.; Xu, K. Z.; Zhao, D.; Wang, L. Q.; Zhang, X. Y.: Synthesis, crystal structure and thermal behavior of GZTO·H2O. Chin. J. Chem. 29 (2011) 1672–1676.10.1002/cjoc.201180243Suche in Google Scholar

2. Ma, C.; Huang, J.; Zhong, Y. T.; Xu, K. Z.; Song, J. R.; Zhao, Z.: Preparation, structural investigation and thermal decomposition behavior of two high-nitrogen energetic materials: ZTO·2H2O and ZTO(phen) H2O. Bull. Korean Chem. Soc. 34 (2013) 2086–2092.10.5012/bkcs.2013.34.7.2086Suche in Google Scholar

3. Zhu, J. P.; Jin, S. H.; Yu, Y. H.; Chen, S. S.; Shu, Q. H.: Crystal structure of poly[diaqua-m2-(E)-5-oxo-4-((5-oxo-1,5-dihydro-4H-1,2,4-triazol-4-yl)diazenyl)-4,5-dihydro-1,2,4-triazol-1-ide-k3O:O:N) sodium], C4H7N8O4Na. Z. Kristallogr. NCS 230 (2015) 225–226.10.1515/ncrs-2015-0002Suche in Google Scholar

4. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–C122.10.1107/S0108767307043930Suche in Google Scholar PubMed

5. Brandenburg, K.: DIAMOND. Visual crystal structure information system. Version 3.2i. Crystal Impact, Bonn, Germany, 2012.Suche in Google Scholar

6. Sheldrick, G. M.: SADABS, Program for Empirical Absorption Correction of Area Detector Data, University of Goettingen, Germany, 1996.Suche in Google Scholar

Received: 2015-11-25
Accepted: 2016-1-14
Published Online: 2016-2-13
Published in Print: 2016-6-1

©2016 Jiaping Zhu et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
