Crystal structure of tetrachlorido(1E,1′E)-N,N′-((1,4-phenylenebis(propane-2,2-diyl))bis(4,1-phenylene))bis(1-(pyridin-2-yl-κN)methanimine-κN)dizinc(II), C36H34N4Zn2Cl4

  • Xiaokang Li EMAIL logo , Yangqing Jiang and Guohai Xu
Published/Copyright: February 26, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C36H34N4Zn2Cl4, monoclinic, P21/n, a = 7.4932(15) Å, b = 18.4540(37) Å, c = 12.9670(26) Å, β = 99.862(30)°, V = 1766.57(59) Å3, Z = 2, Rgt(F) = 0.0400, wRref(F2) = 0.1184, T = 293 K.

CCDC no.:: 1451308

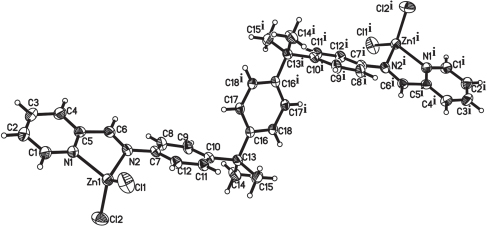

The crystal structure is shown in the figure (symmetry code i: −x , 1 − y , 1 − z). Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.49×0.50×0.53 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:16.92 cm−1
Diffractometer, scan mode:Bruker SMART APEX CCD, ω scan
2θmax:54.96°
N(hkl)measured, N(hkl)unique:4042, 4042
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3058
N(param)refined:208
Programs:Bruker programs [3], SHELX [4]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)4e1.15800.06670.53140.076
H(2)4e1.34780.08890.41360.083
H(3)4e1.32270.19520.32250.085
H(4)4e1.10510.28050.35140.073
H(6)4e0.84780.31320.44690.061
H(8)4e0.74360.39500.54560.064
H(9)4e0.53230.46580.60720.065
H(11)4e0.26900.28910.67500.059
H(12)4e0.48990.21800.62400.060
H(14A)4e0.39930.47170.81550.109
H(14B)4e0.23760.52460.77770.109
H(14C)4e0.40360.52240.71890.109
H(15A)4e0.17710.37050.80310.103
H(15B)4e0.04570.35560.69750.103
H(15C)4e0.01970.42490.76330.103
H(17)4e0.19680.40890.47420.055
H(18)4e−0.00700.54210.66630.055
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)4e1.1478(4)0.1104(2)0.4951(2)0.075(2)0.058(2)0.058(2)0.023(2)0.017(2)0.003(1)
C(2)4e1.2618(5)0.1232(2)0.4242(3)0.071(2)0.074(2)0.067(2)0.020(2)0.023(2)−0.005(2)
C(3)4e1.2469(5)0.1858(2)0.3707(3)0.073(2)0.083(2)0.062(2)0.006(2)0.030(2)−0.005(2)
C(4)4e1.1173(4)0.2368(2)0.3876(2)0.070(2)0.060(2)0.054(2)0.003(1)0.018(1)0.003(1)
C(5)4e1.0086(4)0.2202(2)0.4594(2)0.054(1)0.052(1)0.042(1)0.005(1)0.006(1)−0.002(1)
C(6)4e0.8681(4)0.2694(1)0.4825(2)0.054(1)0.048(1)0.049(1)0.009(1)0.006(1)0.004(1)
C(7)4e0.6386(3)0.2987(1)0.5806(2)0.040(1)0.041(1)0.050(1)0.007(1)0.001(1)0.002(1)
C(8)4e0.6503(4)0.3736(2)0.5737(2)0.041(1)0.045(1)0.076(2)0.003(1)0.013(1)0.008(1)
C(9)4e0.5215(4)0.4156(1)0.6092(2)0.043(1)0.038(1)0.081(2)0.004(1)0.012(1)0.006(1)
C(10)4e0.3761(3)0.3859(1)0.6480(2)0.037(1)0.043(1)0.050(1)0.0061(9)−0.000(1)0.002(1)
C(11)4e0.3660(3)0.3109(1)0.6510(2)0.041(1)0.046(1)0.059(2)−0.002(1)0.006(1)0.004(1)
C(12)4e0.4974(4)0.2682(1)0.6192(2)0.050(1)0.037(1)0.062(2)0.001(1)0.006(1)0.005(1)
C(13)4e0.2336(3)0.4352(1)0.6827(2)0.043(1)0.048(1)0.048(1)0.009(1)0.005(1)0.001(1)
C(14)4e0.3272(5)0.4939(2)0.7555(3)0.065(2)0.074(2)0.071(2)0.020(2)−0.010(2)−0.021(2)
C(15)4e0.1072(4)0.3925(2)0.7422(2)0.072(2)0.074(2)0.069(2)0.028(2)0.034(2)0.025(2)
C(16)4e0.1162(3)0.4693(1)0.5864(2)0.034(1)0.037(1)0.051(1)0.0013(9)0.009(1)0.0011(9)
C(17)4e0.1175(3)0.4456(1)0.4855(2)0.041(1)0.042(1)0.055(1)0.011(1)0.011(1)−0.003(1)
C(18)4e−0.0034(3)0.5246(1)0.5994(2)0.046(1)0.046(1)0.047(1)0.010(1)0.011(1)−0.003(1)
N(1)4e1.0252(3)0.1574(1)0.5137(2)0.054(1)0.054(1)0.050(1)0.010(1)0.011(1)0.002(1)
N(2)4e0.7729(3)0.2521(1)0.5518(2)0.044(1)0.045(1)0.054(1)0.0073(9)0.0061(9)0.0019(9)
Cl(1)4e0.6601(1)0.06869(5)0.6156(1)0.0810(6)0.0612(5)0.164(1)−0.0088(5)0.0119(7)0.0222(6)
Cl(2)4e1.0246(2)0.18354(6)0.77780(7)0.1196(8)0.0787(6)0.0638(5)0.0226(6)−0.0097(5)−0.0091(4)
Zn(1)4e0.85997(4)0.15503(2)0.62656(2)0.0567(2)0.0446(2)0.0546(2)0.0100(1)0.0154(1)0.0059(1)

Source of material

All reagents for synthesis were purchased commercially and used as received. A mixture of ZnCl2 (0.0204 g, 0.15 mmol), and the Schiff-base ligand ((1E,1′E)-N,N′-((1,4-phenylenebis(propane-2,2-diyl))bis(4,1-phenylene))bis(1-(pyridin-2-yl)methanimine) (L)) (0.0796 g, 0.10 mmol) was dissolved in water (10 mL) under stirring. The resulting mixture was left standing for several days to give a colorless crystalline product (Yield: 63% based on the added amounts of ZnCl2).

Experimental details

All H atoms were refined using a riding model, with C—H distances of 0.93 Å and Uiso(H) values of 1.2Ueq(C) for aromatic and Schiff-base groups, and 0.96 Å and Uiso(H) values of 1.5Ueq(C) for methyl groups.

Discussion

There is one Zn(II), two chlorido ligands and one half of the organic ligand L in the asymmetric unit. There is an inversion center that occurs at the centroid of the central benzene ring in the molecule. Therefore, the ligand L uses a meso-configuration to render the structure achiral [1]. The total molecule exhibits a symmetrical Z-shaped structure. For crystallographically unique part of L, two phenyl rings and one pyridyl ring are not coplanar with each other. The metal center (Zn1 atom) is tetrahedrally coordinated by two N atoms from L and two chlorido ligands. The bond angles Zn1 are in the range of 80.25(9)–120.62(5)°, defining a significantly distorted tetrahedron. The Zn–N distances (2.073(2) Å for Zn1–N1 and 2.088(2) Å for Zn1–N2) and the Zn–Cl bond lengths (2.175(1) Å for Zn1–Cl1 and 2.195(1) Å for Zn1–Cl2) are in normal ranges [2]. The most interesting structural feature for title compound is the hydrogen-bonding role in stabilizing open three-dimensional framework. Each chlorido ligand takes part in the formation of weak C—H⋯Cl H-bonding interactions with the C atoms of pyridine rings. The two H-bonding performances result in a complicated supramolecular three-dimensional framework.

Corresponding author: Xiaokang Li, School of Chemistry and Chemical Engineering, Gannan Normal University, Ganzhou, Jiangxi 341000, P. R. China, e-mail:

Acknowledgements:

The authors thank the Natural Science Foundation of China (grant No. 51463002) for supporting this work.

References

1. Xu, X. X.; Na, J. J.; Bao, F. F.; Zhou, W.; Pang, C. Y.; Li, Z. J.; Gu, Z. G.: Dinuclear nickel(II) triple-stranded supramolecular cylinders: Syntheses, characterization and G-quadruplexes binding properties. Spectrochim. Acta A124 (2014) 21–29.10.1016/j.saa.2013.12.102Search in Google Scholar PubMed

2. Wang, X. M.; Chen, S.; Fan, R. Q.; Zhang, F. Q.; Yang, Y. L.: Facile luminescent tuning of ZnII/HgII complexes based on flexible, semi-rigid and rigid polydentate Schiff bases from blue to green to red: structural, photophysics, electrochemistry and theoretical calculations studies. Dalton Trans. 44 (2015) 8107–8125.10.1039/C5DT00057BSearch in Google Scholar

3. SMART, SAINT-Plus and SADABS. Bruker AXS Inc., Madison, Wisconsin, US.Search in Google Scholar

4. Sheldrick, G. M.: Ashort history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-8-13
Accepted: 2016-2-2
Published Online: 2016-2-26
Published in Print: 2016-6-1
