Home Crystal structure of 2-amino-3-cyano-7,7-dimethyl-5-oxo-4-(3,4,5-trifluorophenyl)-4H-5,6,7,8-tetrahydrobenzo[b]pyran, C18H15F3N2O2
Article Open Access

Crystal structure of 2-amino-3-cyano-7,7-dimethyl-5-oxo-4-(3,4,5-trifluorophenyl)-4H-5,6,7,8-tetrahydrobenzo[b]pyran, C18H15F3N2O2

  • Qinghua Meng EMAIL logo and Shuan Zhang
Published/Copyright: March 23, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C18H15F3N2O2, monoclinic P21/n (no. 14), a = 9.5271(8) Å, b = 17.2629(9) Å, c = 10.5560(9) Å, β = 113.526(4)°, V = 1591.8(2) Å3, Z = 4, Rgt(F) = 0.0417, wRref(F2) = 0.1203, T = 293 K.

CCDC no.:: 1447500

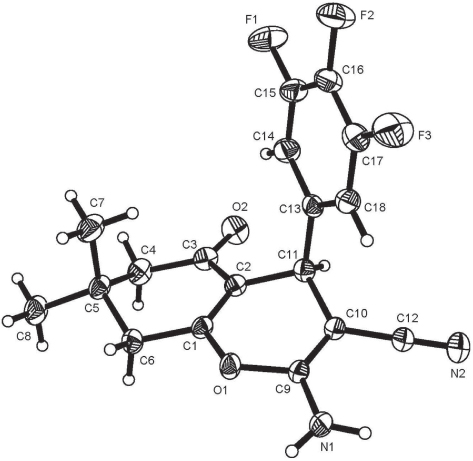

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless, prism, size 0.20×0.20×0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.19 cm−1
Diffractometer, scan mode:Bruker P4, ω scans
2θmax:50°
N(hkl)measured, N(hkl)unique:12968, 2771
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2551
N(param)refined:226
Programs:SHELX [11]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(4A)4e0.27790.19920.18160.059
H(4B)4e0.32120.15630.32290.059
H(6A)4e0.42080.04860.02840.052
H(6B)4e0.33610.1285−0.01120.052
H(7A)4e0.4306−0.02270.23150.091
H(7B)4e0.39530.01910.34730.091
H(7C)4e0.54110.04190.32170.091
H(8A)4e0.17350.01130.05800.088
H(8B)4e0.11940.09790.03620.088
H(8C)4e0.13410.05390.17080.088
H(11A)4e0.76680.26860.32450.044
H(14A)4e0.76710.17590.53330.058
H(18A)4e1.03330.14320.32410.054
H(1A)4e0.87910.1972−0.04790.059
H(1B)4e0.75760.1381−0.11320.059
Table 3:

Fractional atomic coordinates and displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)4e0.5585(2)0.13948(8)0.1206(2)0.0327(7)0.0403(7)0.0378(7)−0.0003(6)0.0205(6)0.0010(6)
C(2)4e0.6112(2)0.18311(8)0.2342(2)0.0340(7)0.0369(7)0.0372(7)0.0028(5)0.0181(6)0.0001(6)
C(3)4e0.5064(2)0.20222(9)0.3002(2)0.0422(8)0.0445(8)0.0449(8)0.0086(6)0.0240(7)0.0002(7)
C(4)4e0.3515(2)0.1642(1)0.2463(2)0.0399(8)0.0562(9)0.062(1)0.0067(7)0.0312(8)0.0015(8)
C(5)4e0.3437(2)0.08667(9)0.1745(2)0.0320(7)0.0447(8)0.0503(9)0.0015(6)0.0213(7)0.0082(6)
C(6)4e0.4084(2)0.0986(1)0.0646(2)0.0363(8)0.0528(9)0.0444(8)−0.0087(7)0.0190(7)−0.0029(7)
C(7)4e0.4362(2)0.0256(1)0.2783(2)0.054(1)0.057(1)0.072(1)0.0057(8)0.0267(9)0.0240(9)
C(8)4e0.1771(2)0.0599(1)0.1032(2)0.0370(9)0.069(1)0.074(1)−0.0063(8)0.0262(9)0.0076(9)
C(9)4e0.7589(2)0.17730(8)0.0569(2)0.0307(7)0.0432(7)0.0371(8)−0.0038(6)0.0165(6)0.0032(6)
C(10)4e0.8176(2)0.22417(8)0.1687(2)0.0345(7)0.0384(7)0.0386(8)−0.0034(6)0.0149(6)0.0023(6)
C(11)4e0.7709(2)0.21649(8)0.2892(2)0.0378(8)0.0355(7)0.0382(8)−0.0024(6)0.0170(6)−0.0063(6)
C(12)4e0.9328(2)0.27755(9)0.1744(2)0.0420(8)0.0459(8)0.0430(8)−0.0078(7)0.0136(7)0.0043(7)
C(13)4e0.8823(2)0.16780(8)0.4088(1)0.0365(7)0.0393(7)0.0327(7)−0.0072(6)0.0130(6)−0.0079(6)
C(14)4e0.8535(2)0.1547(1)0.5264(2)0.0523(9)0.058(1)0.0389(8)−0.0012(7)0.0221(7)−0.0062(7)
C(15)4e0.9525(2)0.1105(1)0.6318(2)0.067(1)0.062(1)0.0331(8)−0.0099(9)0.0200(8)−0.0013(7)
C(16)4e1.0825(2)0.0788(1)0.6262(2)0.053(1)0.053(1)0.0390(9)−0.0052(8)0.0031(7)0.0043(7)
C(17)4e1.1099(2)0.0918(1)0.5102(2)0.0375(8)0.061(1)0.054(1)0.0034(7)0.0128(7)0.0042(8)
C(18)4e1.0122(2)0.1354(1)0.4019(2)0.0390(8)0.0576(9)0.0404(8)−0.0007(7)0.0173(7)0.0026(7)
O(1)4e0.6398(1)0.12793(6)0.0402(1)0.0423(6)0.0533(6)0.0430(6)−0.0159(5)0.0276(5)−0.0143(5)
O(2)4e0.5431(1)0.25053(7)0.3935(1)0.0544(7)0.0680(8)0.0607(8)0.0049(6)0.0337(6)−0.0199(6)
N(1)4e0.8039(2)0.16998(9)−0.0471(1)0.0433(7)0.0721(9)0.0404(7)−0.0157(6)0.0254(6)−0.0061(6)
N(2)4e1.0272(2)0.3202(1)0.1805(2)0.062(1)0.068(1)0.069(1)−0.0282(8)0.0214(8)0.0026(8)
F(1)4e0.9234(2)0.09620(9)0.7443(1)0.115(1)0.111(1)0.0459(6)0.0067(9)0.0433(7)0.0156(6)
F(2)4e1.1782(2)0.03559(8)0.7307(1)0.0810(8)0.0868(9)0.0542(7)0.0090(7)0.0021(6)0.0223(6)
F(3)4e1.2339(1)0.05920(9)0.5017(1)0.0559(7)0.119(1)0.0876(9)0.0369(7)0.0299(6)0.0310(8)

Source of material

The title compound was synthesized according to a reported procedure [10]. A mixture of 1,1-dimethyl-3,5-cyclohexanedione (10 mmol), 3,4,5-trifluorobenzaldehyde (10 mmol), malononitrile (10 mmol) and 4-(dimethylamino)pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2–3 h and then cooled to room temperature. After filtering the precipitates, they were sequentially washed with ice-cooled water and ethanol and then dried under a vacuum.

Discussion

Dihydropyrans represent one of the most active classes of compounds possessing a wide spectrum of biological activities, including anticoagulant, insecticidal, anthelminthic, hypnotic, antifungal, phytoalexin, and HIV protease inhibition [1–5]. The interesting biological activity of these dihydropyrans made these compounds attractive targets in organic synthesis [6–9].

In the crystal structure of the title compound, the new formed pyran ring and the adjacent ketone ring are both basically planar, and the two planes are also essentially parallel each other. However, the phenyl ring makes a torsion angle to the pyran ring in the compound.

Corresponding author: Qinghua Meng, School of Pharmacy, Shaan Xi University of Chinese Medicine, Xi'an 712046, China, e-mail:

References

1. Li, J.; Hou, Z.; Li, F.; Zhang, Z.; Zhou, Y.; Luo, X.; Li, M.: Synthesis, photoluminescent, antibacterial activities and theoretical studies of 4-hydroxycoumarin derivatives. J. Mol. Struct. 1075 (2014) 509–514.10.1016/j.molstruc.2014.07.010Search in Google Scholar

2. Lin, P.-Y.; Yeh, K.-S.; Su, C.-L.; Sheu, S.-Y.; Chen, T.; Ou, K.-L.; Lin, M.-H.; Lee, L.-W.: Synthesis and antibacterial activities of novel 4-hydroxy-7-hydroxy- and 3-carboxycoumarin derivatives. Molecules 17 (2012) 10846–10863.10.3390/molecules170910846Search in Google Scholar PubMed PubMed Central

3. Lambu, M. R.; Kumar, S.; Yousuf, S. K.; Sharma, D. K.; Hussain, A.; Kumar, A.; Malik, F.; Mukherjee, D.: Medicinal chemistry of dihydropyran-based medium ring macrolides related to aspergillides: selective inhibition of PI3 Kα. J. Med. Chem. 56 (2013) 6122.10.1021/jm400515cSearch in Google Scholar PubMed

4. Kostova, I.; Trendafilova, N.; Momekov, G.: Theoretical and spectroscopic evidence for coordination ability of 3,3′-benzylidenedi-4-hydroxycoumarin. New neodymium (III) complex and its cytotoxic effect. J. Inorg. Biochem. 99 (2005) 477–487.10.1016/j.jinorgbio.2004.10.022Search in Google Scholar PubMed

5. Serra, S.; Chicca, A.; Delogu, G.; Vázquez-Rodríguez, S.; Santana, L.; Uriarte, E.; Casu, L.; Gertsch J.: Synthesis and cytotoxic activity of non-naturally substituted 4-oxycoumarin derivatives. Bioorg. Med. Chem. Lett. 22 (2012) 5791–5794.10.1016/j.bmcl.2012.07.099Search in Google Scholar PubMed

6. Iranshahi, M.; Jabbari, A.; Orafaie, A.; Mehri, R.; Zeraatkar, S.; Ahmadi, T.; Alimardani, M.; Sadeghian, H.: Synthesis and SAR studies of mono O-prenylated coumarins as potent 15-lipoxygenase inhibitors. Eur. J. Med. Chem. 57 (2012) 134–142.10.1016/j.ejmech.2012.09.006Search in Google Scholar PubMed

7. Khan, A. T.; Lal, M.; Ali, S.; Khan, Md.M.: One-pot three-component reaction for the synthesis of pyran annulated heterocyclic compounds using DMAP as a catalyst. Tetrahedron Lett. 52 (2011) 5327–5332.10.1016/j.tetlet.2011.08.019Search in Google Scholar

8. Sun, Y. F.; Cui, Y. P.: The synthesis, characterization and properties of coumarin-based chromophores containing a chalcone moiety. Dyes Pigm. 78 (2008) 65–76.10.1016/j.dyepig.2007.10.014Search in Google Scholar

9. Sun, Y. F.; Xu, S. H.; Wu, R. T.; Wang, Z. Y.; Zheng, Z. B.; Li, J. K.; Cui, Y. P.: The synthesis, structure and photoluminescence of coumarin-based chromophores. Dyes Pigm. 87 (2010) 109–118.10.1016/j.dyepig.2010.03.003Search in Google Scholar

10. Eshghi, H.; Zohuri, G. H.; Sandaroos, R.; Damavandi, S.: Synthesis of novel benzo[f]chromene compounds catalyzed by ionic liquid. Heterocycl. Commun. 18 (2012) 67–70.10.1515/hc-2011-0060Search in Google Scholar

11. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-11-27
Accepted: 2016-1-15
Published Online: 2016-3-23
Published in Print: 2016-6-1

©2016 Qinghua Meng et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
