Crystal structure of 5-methoxy-4-methyl-2-(2-methylbenzyl)-2,4-dihydro-3H-1,2,4-triazol-3-one, C12H15N3O2

  • Chao Lei EMAIL logo , Chao Shen-Tu , Hong-Ke Wu and Xing-Hai Liu
Published/Copyright: February 16, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C12H15N3O2, monoclinic, P21/c, a = 10.480(3) Å, b = 14.608(4) Å, c = 8.3398(17) Å, β = 106.753(18)°, V = 1222.6(5) Å3, Z = 4, Rgt(F) = 0.0700, wRref(F2) = 0.1896, T = 296(2) K.

CCDC no.:: 1445902

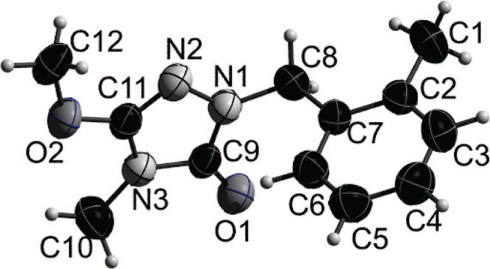

The crystal structure is shown in the Figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.1×0.2×0.3 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.89 cm−1
Diffractometer, scan mode:Bruker APEX-II area-detector diffractometer, φ and ω scans
2θmax:50°
N(hkl)measured, N(hkl)unique:8490, 210
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 988
N(param)refined:155
Programs:SHELX [2, 3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(12A)4e0.88110.14620.33690.109
H(12B)4e0.86480.05480.23450.109
H(12C)4e0.77320.13880.16250.109
H(8A)4e0.7507−0.0417−0.34350.070
H(8B)4e0.8489−0.0209−0.44920.070
H(6A)4e0.74170.1858−0.38130.076
H(10A)4e1.15470.22340.08210.115
H(10B)4e1.14700.2524−0.10150.115
H(10C)4e1.22660.1645−0.02300.115
H(5A)4e0.59050.2778−0.56720.091
H(4A)4e0.43920.2126−0.79810.094
H(1A)4e0.6749−0.1018−0.59150.117
H(1B)4e0.6230−0.0815−0.78400.117
H(1C)4e0.5215−0.1016−0.68230.117
H(3A)4e0.44380.0575−0.84180.089
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(2)4e0.9576(3)0.1525(2)0.1445(3)0.085(2)0.081(2)0.046(1)−0.008(2)0.026(1)−0.007(1)
O(1)4e1.0479(3)0.1083(2)−0.3569(3)0.075(2)0.073(2)0.056(2)−0.001(2)0.026(2)−0.003(1)
N(3)4e1.0295(3)0.1463(2)−0.0912(3)0.059(2)0.060(2)0.048(2)−0.005(2)0.016(2)−0.000(1)
N(2)4e0.8463(3)0.0677(2)−0.0962(4)0.068(2)0.065(2)0.047(2)−0.000(2)0.019(2)0.004(2)
N(1)4e0.8820(3)0.0548(2)−0.2449(3)0.058(2)0.065(2)0.044(2)−0.007(2)0.016(1)−0.000(1)
C(11)4e0.9404(4)0.1214(3)−0.0109(4)0.064(3)0.056(2)0.043(2)0.005(2)0.012(2)0.003(2)
C(7)4e0.6898(4)0.0665(2)−0.5026(4)0.057(2)0.056(2)0.046(2)−0.005(2)0.014(2)−0.004(2)
C(9)4e0.9924(4)0.1037(3)−0.2470(4)0.063(3)0.053(2)0.040(2)0.004(2)0.017(2)0.002(2)
C(2)4e0.5995(4)0.0273(3)−0.6415(4)0.059(3)0.060(3)0.054(2)−0.011(2)0.018(2)−0.003(2)
C(12)4e0.8610(5)0.1203(3)0.2266(5)0.091(3)0.082(3)0.051(2)0.013(3)0.028(2)0.011(2)
C(8)4e0.7950(4)0.0071(3)−0.3855(4)0.064(3)0.053(2)0.055(2)−0.005(2)0.014(2)−0.004(2)
C(6)4e0.6830(4)0.1597(3)−0.4759(5)0.069(3)0.052(2)0.064(2)0.001(2)0.007(2)−0.004(2)
C(10)4e1.1497(4)0.2013(3)−0.0280(5)0.065(3)0.086(3)0.076(3)−0.016(3)0.016(2)−0.014(2)
C(5)4e0.5916(5)0.2150(3)−0.5858(5)0.081(3)0.059(3)0.082(3)0.001(2)0.015(3)0.006(2)
C(4)4e0.5018(5)0.1762(3)−0.7234(5)0.071(3)0.081(3)0.072(3)0.005(3)0.002(2)0.012(2)
C(1)4e0.6053(5)−0.0736(3)−0.6781(5)0.084(3)0.069(3)0.076(3)−0.013(2)0.016(2)−0.024(2)
C(3)4e0.5055(4)0.0834(3)−0.7497(5)0.064(3)0.084(3)0.065(2)−0.010(2)0.004(2)−0.004(2)

Source of material

Reagents and solvents used were of commercially available quality. The title compound was synthesized according references [1]. To a stirred solution of 3-methoxy-4-methyl-1H-1,2,4-triazol-5(4H)-one (0.25 g, 1 mmol) and K2CO3 (0.14 g, 1.1 mmol) in DMF (5 mL), a mixture of 1-(chloromethyl)-2-fluorobenzene (1.1 mmol) was added dropwise. The resulting mixture was stirred at room temperature overnight. The mixture was poured into ice water. The precipitate formed was filtered off and recrystallized from petroleum ether/acetone to give the title compound with the yield of ~88%.

Experimental details

The H atoms bonded to C and N atoms were positioned geometrically and refined using a riding model [aliphatic C–H = 0.97(2) Å and N–H = 0.86 Å, Uiso(H) = 1.2Ueq(C)]. The H atoms bonded to O atoms were located in a difference Fourier maps and refined with O–H distance restraints of 0.85(2) and Uiso(H) = 1.5Ueq(O).

Discussion

In recent years, heterocycles have received significant attention due to their biological importance [4–6], especially 1,2,4-triazole ring. The 1,2,4-triazole derivatives are often exhibited diversity biological activities including herbicidal activity [6, 7], antifungal activity [8] and so on. In view of these facts and in continuation of our interest in the agriculture, we attempted to synthesize a series of 1,2,4-oxadiazole derivatives. Generally, the average bond lengths and bond angles of phenyl ring and triazole ring [9, 10] are normal. The C(8)–N(1), C(11)–N(2), C(9)–N(1) and C(11)–N(3) bonds are significantly shorter than a normal single C–N bond which indicates significant electron delocalization in the triazole system. The bond angle of N(1)–C(8)–C(7) is 114.8(3)°.

Corresponding author: Chao Lei, College of Biology and Environmental Engineering, Zhejiang Shuren University, Hangzhou 310015, Zhejiang, China, e-mail:

Acknowledgements:

The paper was supported by Applied Chemistry Foundation of Zhejiang Shuren University(YH2013S09). The authors thank the responsible editor for supplying the figure.

References

1. Sun, N. B.; Jin, J. Z.; He, F. Y.: Microwave assisted synthesis, antifungal activity, and DFT study of some novel triazolinone derivatives. Biomed Res. Int. 2015 (2015) 916059.10.1155/2015/916059Search in Google Scholar PubMed PubMed Central

2. Sheldrick, G. M.: SHELXS-97. Program for the solution of crystal structures. University of Göttingen, Germany 1997.Search in Google Scholar

3. Sheldrick, G. M.: SHELXL-97. Program for the refinement of crystal structures. University of Göttingen, Germany 1997.Search in Google Scholar

4. Vijesh, A. M.; Isloor, A. M.; Shetty, P.; Sundershan, S.; Fun, H. K.: New pyrazole derivatives containing 1,2,4-triazoles and benzoxazoles as potent antimicrobial and analgesic agents. Eur. J. Med. Chem. 62 (2013) 410–415.10.1016/j.ejmech.2012.12.057Search in Google Scholar PubMed

5. Zhang, L. J.; Yang, M. Y.; Hu, B. Z.; Sun, Z. H.; Liu, X. H.; Weng, J. Q.; Tan, C. X.: Microwave-assisted synthesis of novel 8-chloro-[1,2,4]triazolo[4,3-a]pyridine derivatives. Turk. J. Chem. 39 (2015) 867–873.10.3906/kim-1408-78Search in Google Scholar

6. Liu, X. H.; Weng, J. Q.; Wang, B. L.; Li, Y. H.; Tan, C. X.; Li, Z. M.: Microwave-assisted synthesis of novel fluorinated 1,2,4-triazole derivatives, and study of their biological activity. Res. Chem. Intermed. 40 (2014) 2605–2612.10.1007/s11164-013-1113-4Search in Google Scholar

7. Sun, N.-B.; Fu, J.-Q.; Weng, J.-Q.; Jin, J.-Z.; Tan, C.-X.; Liu, X.-H.: Microwave assisted synthesis, antifungal activity and DFT theoretical study of some novel 1,2,4-triazole derivatives containing the 1,2,3-thiadiazole moiety. Molecules 18 (2013) 12725–12739.10.3390/molecules181012725Search in Google Scholar PubMed PubMed Central

8. Sun, G.-X.; Yang, M.-Y.; Shi, Y.-X.; Sun, Z.-H.; Liu, X.-H.; Wu, H.-K.; Li, B.-J.; Zhang, Y.-G.: Microwave assistant synthesis, antifungal activity and DFT theoretical study of some novel 1,2,4-triazole derivatives containing pyridine moiety. Int. J. Mol. Sci. 15 (2014) 8075–8090.10.3390/ijms15058075Search in Google Scholar PubMed PubMed Central

9. Liu, X. H.; Xu, X. Y.; Tan, C. X.; Weng, J. Q.; Xin, J. H.; Chen, J.: Synthesis, crystal structure, herbicidal activities and 3D-QSAR study of some novel 1,2,4-triazolo[4,3-a]pyridine derivatives. Pest Manag. Sci. 71 (2015) 292–301.10.1002/ps.3804Search in Google Scholar PubMed

10. Liu, X. H.; Tan, C. X.; Weng, J. Q.: Synthesis, dimeric crystal, and fungicidal activity of 1-(4-methylphenyl)-2-(5-((3,5-dimethyl-1H-pyrazol-1-yl)methyl)-4- phenyl-4H-1,2,4-triazol-3-ylthio)ethanone. Phosphorus Sulfur Silicon Relat. Elem. 186 (2011) 558–564.10.1080/10426507.2010.508060Search in Google Scholar

Received: 2015-8-15
Accepted: 2016-1-8
Published Online: 2016-2-16
Published in Print: 2016-6-1

©2016 Chao Lei et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
