Rainfall-induced transportation embankment failure: A review

2.1 Keywords investigation

In our search to identify current and critical issues in the field of transportation embankment failure research, we employed the keywords “Rainfall,” “transportation,” and “embankment failure,” along with the synonymous term “slope failure,” as our search criteria to collect data.

We retrieved statistics on journal and article publications from the Web of Science (WOS) database on July 25, 2023, encompassing all related articles published between 2002 and 2022. Ultimately, we identified 2,873 published articles. Subsequently, we utilized the VOSviewer tool to analyze the most frequently used author keywords, keywords plus, and title keywords, which serve as a guide in understanding the current issues related to the field of transportation embankment failure as identified from previous studies. Author keywords, selected by authors in their published articles, were used to capture the content accurately (Wang et al. [38]). “Keywords plus” refers to words generated automatically by a machine-aided algorithm and picked from the article titles of previously cited references. All keywords used were derived from a combination of “keywords plus” and author keywords. Table 1 displays the top 30 most frequently used words and key terms related to transportation embankment failure research during the period from 2002 to 2022. Through the analysis of these keywords, we identified “landslides,” “slope stability/failure,” and “Safety factor” as the most frequently occurring key terms in current research within the field.

The keywords also revealed that “infiltration,” “flow,” “erosion,” and “Progressive failure” indicate that transportation embankment infrastructures are currently facing geohazard disasters such as seepage flow, debris flow, cuttings, sliding, scour, earthquake, and liquefaction. Additionally, the keywords “rainfall” and “water” suggest that embankment failures may be increasing due to rainfall variability and snowmelt. Moreover, “Monte Carlo simulation,” “GIS,” and “Numerical simulation” were identified as the most widely used approaches in slope failure research. The bibliometric analysis also highlighted limited research on “early warning,” “spatial variability analysis,” and “progressive failure mechanisms.” Methods such as “machine learning” and “remote sensing” will play a crucial role in understanding spatial variability, progressive failure, and determining early warning parameters for monitoring transportation embankment failure.

2.2 Research terms evolution

The bibliometric analysis provides a better understanding of research trends and highlights areas with limited studies. In this study, the powerful network analysis instrument, Citespace, was utilized to identify key terms with the strongest citation bursts, assessing the research trends and historical progression of transportation embankment failures within the 2,873 publications we selected from WOS between 2002 and 2022. The term “citation burst” in Citespace denotes the most active aspects of related research key terms and hot issues that are trending in embankment failure. This term’s strongest citation bursts in Citespace refer to the most frequently cited terms with a visually represented outcome from the start to the end periods, indicating strong influence. Table 2 depicts the top 25 key terms with the “strongest citation bursts.” It reveals that “debris flow” is the term with the strongest citation bursts, with bursts beginning in 2002 and ending in 2014. The next strongest citation bursts were observed in “margin flow/seepage flow,” “morphology,” and “landslides,” which were areas of strong concern that evolved over approximately 9 years.

Table 2

Top 25 Key-terms with the Strongest Citation Bursts

Key-terms	Strength	Begin	End	2002–2022
Debris flow	10.6	2002	2014
Sea	5.44	2002	2015
Deposits	4.85	2002	2009
Continental margin	6.35	2004	2010
Morphology	10.25	2005	2014
Evolution	6.31	2005	2011
Margin flow	7.48	2006	2015
Landslides	7.21	2006	2013
Slope failure	7.2	2006	2009
Basin	4.79	2006	2010
Landslide	12.97	2007	2015
Sea-flood	6.24	2007	2009
Slope stability	6.92	2010	2012
Stability	5.35	2010	2011
GIS	4.79	2012	2016
Pore pressure	4.78	2012	2015
Slopes	4.9	2014	2016
Infiltration	9.62	2017	2019
Rock slope	5.8	2019	2020
Numerical simulation	5.27	2019	2022
Early warning	5.27	2020	2022
Performance	5.01	2020	2022
Spatial variability	6.01	2021	2022
Reliability	5.41	2021	2022
Finite element method	5.28	2021	2022

The bibliometric analysis provides a better understanding of the research trend and highlights areas with limited studies. Table 2 shows that recent trends in transportation embankment research include early warning, finite element analysis, spatial variability data analysis, reliability analysis, and performance evaluation, among others, which have gained significant attention starting in 2021. Furthermore, it can be inferred that embankment failure analysis is evolving, and more studies are needed to understand the progressive failure mechanism. The review studies were guided by these trends in the research area.

3.1 Need for embankment stability observation

Previous studies on embankment instability due to the effects of rainfall and their related impacts were identified, highlighting increased failures. The focus has been on addressing these long-standing embankment issues. Most embankments for railway or road networks regularly remain in unsaturated conditions due to their elevated position above the ground level. During sudden precipitation events (such as rainfall or snow), soil conditions change abruptly, influenced by the intensity of the rainfall. For instance, both railways and highways in China exhibit similar trends of rapid changes in soil conditions [42,43], which have been reported elsewhere [44,45]. Consequently, the water table shifts from a lower position towards the ground surface, subjecting the embankment to cyclic wetting and drying. As pore-water pressure rises significantly, void spaces expand considerably, resulting in soil particle displacement and ultimately disrupting the soil arrangement. Over time, this affects the shear strength of the soil and amplifies embankment instability, as the cohesive strength of the soil diminishes due to liquefaction. However, the stability of an embankment depends on several factors such as embankment slope, material composition, construction methods, water infiltration, climatic exposure (rainfall, snow, etc.), maintenance procedures, pore-water pressure, and cyclic loading. Some factors that induce embankment instabilities have been extensively discussed in the literature, but are often confined to experimental studies rather than observed information [46]. Hence, there is a need to observe how embankment instability develops and identify its major drivers, considering various geohazard conditions. Many of the identified factors enhancing embankment instabilities vary from one geographical location to another, particularly within China [47,48].

However, a lack of specific information on what triggers embankment instability and how it develops over time has led to continued embankment failures despite several attempts to understand their consequences [49,50]. The inability to provide comprehensive procedures for addressing this phenomenon creates difficulties in improving reactive maintenance practices [51], including selecting suitable materials for embankment blankets and determining the optimal geometry resistant to climatic interference [52]. This knowledge gap arises from a poor understanding of the individual triggering factors’ frequency in initiating embankment instability and the changes in embankment shape caused by different geohazards. To address this, understanding how embankments transform over their lifespan, focusing on construction materials, embankment slope, signs of physical failure, and maintenance history, will provide valuable insights into mitigating instabilities and preventing failures. While numerous attempts have been made to avert instabilities both in the short and long term [53,54], agreed-upon preventive measures are yet to be ascertained, and an accepted protocol remains to be developed by the scientific community. To successfully develop a model or framework, routinely observed records of embankment transformations and their relationships with climatic conditions (such as slope changes and soil conditions at specific saturation levels) need to be given due consideration [55]. Additionally, observing embankment behavior under different loading conditions and serviceability requirements is crucial, as the impact of rainfall intensity, spatial distribution, and angle of impact on infrastructure across various events (return periods) remains unclear. While many scientists acknowledge that embankment instability is a complex process [40,56], collaborative efforts in enhancing observed field data will significantly contribute to unraveling the intricacies of embankment instabilities [57].

3.2 Assessment of embankment susceptibility

Transportation embankment susceptibility assessment involves evaluating the temporal and spatial likelihood of failure caused by various harmful processes like debris flow, soil loss, floods, landslides, earthquakes, etc., at a specific time or in the future. However, the vulnerability of transportation embankment structures to damage from rainfall-induced geohazards is a global observation. For instance, China’s railway networks, a vital infrastructure, particularly highlight the importance of railway embankment susceptibility assessment due to the region’s intricate geo-environmental conditions encompassing landscape, lithology, hydrology, and climate. This issue is expected to intensify as China’s railway tracks exceed 170,000 km by the end of 2021, leading to diverse embankment constructions with varying fill materials, geometries, and configurations exposed to dynamic climatic conditions. Notably, numerous natural disasters in China have impacted transportation infrastructures, often attributed to intense rainfall events [24], resulting in significant incidents like the Subgrade collapse along the Longhai railway in 2010 (Figure 1(b)) and the Neikun railway closure in 2013 (Figure 1(a)). Literature has identified global geohazards triggering embankment failure [45,58]. In China, major geohazards include snow, earthquake, tropical cyclone, gale, and rainfall [59]. However, rainfall-related disasters accounted for 72.05% of all railway disasters between 2000 and 2016 as depicted in Figure 2.

Figure 1

(a) Extreme precipitation-induced Landslide along Neikun Railway, 2013 (http://www.gov.cn/jrzg/2013-08/26/content_2474285.htm). (b) Subgrade collapse induced by extreme rainfall event along Longhai railway, 2010 (http://news.sohu.com/20100724/n273729529. shtml).

Figure 2

A trend showing the different geohazard-related disasters on railway lines from 2000 to 2016 in China. (a Replot) [59].

Prior to the recent findings [59], it had been notably discovered that 90% of geohazards in China, including debris flows, landslides, and floods, are triggered or induced by rainfall events [60]. The majority of these rainfall-related geohazard events in China typically occur between May and September, corresponding to the period of historically highest rainfall, and they account for approximately 94% of all incidents [61]. Notably, due to the impact of climate change in China, there has been a significant increase in average annual precipitation from 2010 to 2016, leading to an escalation in extreme precipitation. The heightened susceptibility of railway networks is closely linked to these changing climate patterns. Southern China regions like Sichuan, Jiangxi, Chongqing, and Hunan, characterized by extreme rainfall events, have observed the most severe impacts of rainfall-related geohazards, as depicted in Figure 2 [61].

The vulnerability of transportation embankments worldwide could be reduced through a comprehensive comprehension of the interconnections among these constituent elements. Consequently, a greater emphasis is necessary on enhancing the understanding of transport infrastructure vulnerability to rainfall-induced geohazards. Conversely, owing to limited observed data, gauging the susceptibility degree of a soil structure poses a formidable challenge. Inadequate data concerning the vulnerability of these pertinent elements often confines assessment scope to peripheral risk analysis of infrastructure. Accurate data, including rainfall events, failure inventory, and soil characteristics, are imperative for the assessment of rainfall-induced transportation infrastructure failures.

Several studies have employed deterministic techniques to assess the susceptibility of infrastructure to geo-hazards. However, these models are often specific to particular sites and rely on geo-environmental factors such as weather, geology, and hydrology to validate their outcomes [16] Conversely, accurately determining the complexity of geo-hazards susceptibility assessments for transportation embankment systems using numerical and analytical methods is hindered by data characterization requirements and the need for robust computational capacity [17,58]. Additionally, researchers frequently utilize susceptibility maps to depict individual geo-hazards and employ soft computing techniques, including artificial neural networks [62], logistic regression [63], Bayesian network [64], statistical [65], random forest, support vector machine [66], and machine learning methods.

However, only limited efforts have been directed toward assessing multi-hazards induced by rainfall on railway infrastructure. This scarcity of data prevents the formation of conclusive judgments. Despite the promising technique known as RFA, challenges persist in result interpretation, overfitting of datasets, and accounting for geo-environmental variability. Consequently, conducting susceptibility assessments for railway infrastructure remains a formidable task. Therefore, new methodologies must be developed, alongside a priority placed on short and long-term data collection for understanding the susceptibility of transportation infrastructure globally. This effort should be coupled with the use of data-driven tools such as GEP (Gene Expression Programming) and machine learning methods to generate a generalized model for susceptibility mapping that can be applied in similar conditions.

4.1 Need to determine rainfall threshold that results in embankment failures

While attempting to comprehend water-related geo-hazards, numerous studies have been conducted [74,75,76,77,78]. However, distinct rainfall patterns can have varying impacts on embankment hazards. Thus, a comprehensive understanding of rainfall distribution and patterns becomes imperative due to its geo-dependent nature. Consequently, numerous efforts have been made to establish a connection between rainfall patterns and geo-hazard occurrences, including embankment failures [15], landslides [79,80], and debris flows [81], among others. It has been noted that diverse geo-hazards exhibit distinct responses to a given rainfall event, attributed to varying rainfall thresholds that trigger different embankment failure mechanisms [82]. These thresholds hinge on factors such as location, soil type, characteristics, initial moisture level, infiltration rate, and the type of fill material, among others. Additionally, site topology, geology, and anthropogenic activities also exert an influence. Moreover, the duration of continuous rainfall exerts a more substantial impact on initiating embankment failure than the respective rainfall intensities [83]. During rainfall events, changes in pore-water pressure within embankment fill material occur at a slower pace than rainfall infiltration. These changes are influenced by moisture conditions, reduced soil suction, and diminished shear strength of the soil.

In order to comprehensively grasp the potential impact of a given rainfall event in causing embankment failure, certain conditions must be met: (a) A constant rainfall of a given duration and intensity that changes the safety factor of the slope, independent of the type of fill material used for the embankment structure. (b) The rate of rainfall distribution across the embankment area should be assumed to be uniform for both pore-water pressure and depend on soil permeability, considering uncertainties in soil hydraulic properties. (c) An increase in the duration and intensity of rainfall would lead to a reduction in shear strength, consequently influencing the stability of the embankment slope. (d) As the rainfall event progresses, the effects of wetted band suction gradually diminish, potentially leading to embankment failure due to the advancement of a deep wetted front.

Based on these outlined conditions drawn from existing literature, we propose the local and global development of a relationship between rainfall and embankment fill material. This endeavor would provide unique insights into how rainfall events alter the behavior of fill material and the extent to which they trigger failure and these required further laboratory and validation.

4.2 Observed failures under different rainfall conditions

Based on the information gathered from the existing literature (Table 3), the following classification of rainfall conditions is presented to provide a summary of how different rainfall patterns affect embankment stability. It is important to note that varying perspectives exist regarding the thresholds that define low or high rainfall intensities in hydrology [90]. However, for the purpose of this review, rainfall intensity equal to or less than 25 mm/h will be categorized as low intensity, while any intensity exceeding 25 mm/h will be classified as high intensity. This categorization is based on the assessment of the impact of different rainfall intensities on embankment fill material, as documented in various sources [41,91,92,93].

1. High rainfall intensity with short duration

   Although it depends on the fill material, this condition often leads to slow infiltration and rapid overland flow. Consequently, embankment cracks, soil desiccation, and weakened side slopes can occur. In such cases, progressive failure may develop in the embankment.

2. High rainfall intensity with long duration

   This situation is highly detrimental as both internal and external failure mechanisms become evident in the embankment structure. When coupled with the high rainfall intensity described in (a) above, but with an extended duration, rapid infiltration occurs due to rapid changes in soil permeability and other hydromechanical properties. This leads to swift and complete failure.

3. Low rainfall intensity with long duration

   In this scenario, the infiltration rate remains high, and runoff is expected to be lower compared to conditions (a) and (b). However, the presence of perched water can vary, influenced by soil characteristics and seasonal fluctuations. Failures in this case typically initiate with internal expressions of failure.

4. Low rainfall intensity with low duration

This situation illustrates how soil characteristics evolve based on the soil–water relationship. A gradual reduction in soil shear strength occurs, with minimal changes in soil properties. As a result, failure initiation is anticipated, but its manifestation occurs gradually over an extended period.

It is important to note that the extent of embankment failure is also influenced by the fill material, regardless of the type and magnitude of rainfall. For instance, embankment slopes with a low coefficient of permeability require prolonged rainfall to fail, irrespective of rainfall intensity, unlike slopes with a high coefficient of permeability [74].

In each scenario, rainfall has consistently been identified as a significant triggering factor in embankment failure. However, the degree of failure is contingent upon the specific conditions under which the rainfall event occurs [25], which our future research aims to explore.

4.3 Soil–water relationship

There are various analytical approaches used to assess the interaction between rainfall and embankment fill materials. These methods include the limit equilibrium technique [94], smoothed particle hydrodynamics [95], point estimation method [96], FEMs [97], and others. Many of these techniques, along with related approaches, incorporate soil–water relationship curves that integrate fundamental theories like Mohr–Coulomb, Drucker–Prager model, viscoelasticity, hardening soil, modified elastoplasticity, and viscoplastic modeling to elucidate the mechanisms behind rainfall-induced embankment failures. The underlying concept is that rainfall increases soil saturation, weakening the cohesive forces between soil particles by reducing shear strength, consequently leading to increased porosity [98]. This process results in elevated water content and reduced hydraulic conductivity and bulk density. The soil–water characteristic curve (Figure 3) illustrates the nonlinear interaction between soil and water by plotting volumetric water content against matric suction under saturated conditions. These curves delineate the correlation between water content and suction, portraying the concept of unsaturated behavior in soils with varying conductivity.

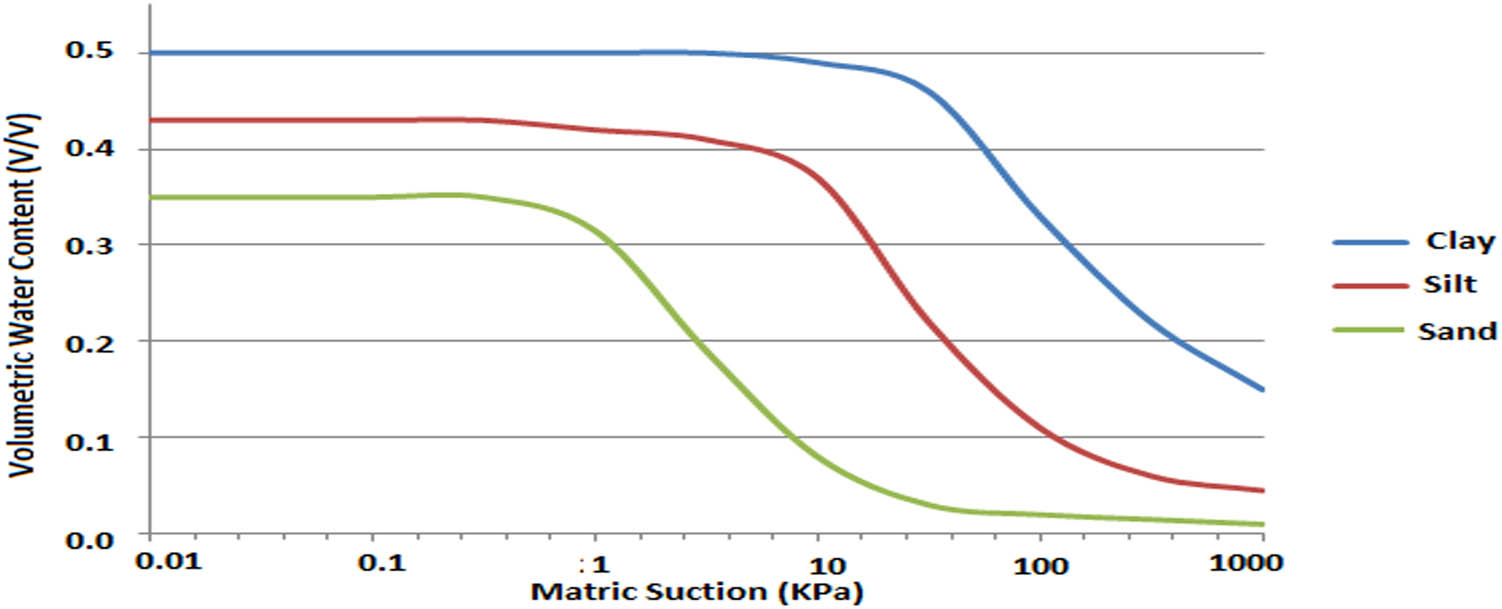

Figure 3

Example of the generalized soil–water characteristics curve for clay, silt, and sand.

This relationship appears complex, given the involvement of other factors. Under saturated conditions, soil–water interaction undergoes continuous changes compared to semi-saturated and unsaturated conditions [99]. Consequently, embankment fill materials often contain more sand than clay [39] and silt, leading to variations in soil structure and bearing capacity [100]. Observations indicate that during intense rainfall, as volumetric water content increases due to higher intensity and depth, metric suction rises with increased infiltration rate, while pore water pressure decreases [89]. This underscores the necessity of developing a soil-saturation curve to enhance soil–water interaction across different rainfall scenarios, as cycles of wetting and drying cause shifts in the soil–water retention curve [101]. At times, the soil loses its ability to generate the same level of suction at a given water content, signifying inconsistency in the soil structure’s response to rainfall infiltration.

Furthermore, embankment characteristics such as side slopes, crest width, bottom width, and height influence the matric suction and volumetric water content patterns under varying rainfall conditions [5]. These features lead to alterations in the water-soil relationship for each embankment during rainfall-induced situations, regardless of soil homogeneity. This complexity challenges the reliance on this relationship to derive conclusive insights into the embankment failure mechanism triggered by rainfall. Therefore, a comprehensive approach is needed, involving alternative parameters that capture the general soil behavior with water, such as rainfall intensity, duration, and the soil’s long-term strength [75].

4.4 Infiltration and moisture content contributions to embankment weakening

The understanding of rainwater infiltration and its effect on moisture content, particularly in unsaturated fill materials, is crucial for slope stability assessment. As rainwater infiltrates the soil, especially near the ground surface, soil suctions gradually decrease, approaching zero as the soil becomes saturated [102]. This significant reduction in soil suction can lead to decreased soil shear strength and subsequent weakening of the soil microstructure, potentially resulting in failure [103]. Additionally, the cyclic wetting and drying cycles, which cause shifts in the positions of soil particles, contribute to ongoing disruption of the soil microstructure, promoting internal erosion, soil sliding, debris flow, and other phenomena. Hence, the relationship between changes in moisture content and the effects of dynamic loads on the microstructure is complex yet critical in determining the extent of embankment weakening. Studies suggest that the presence of moisture content between soil particles reduces the effective friction angle, leading to a decrease in soil resilient modulus and strength, whether or not pore water pressure is generated [104].

On the other hand, the embankment profile is also affected by an increase in water content, which greatly influences the deformation of the subgrade. This effect was observed in a model test on slab track-subgrade material deformation characteristics with varying water content [60,105]. Additionally, liquefaction can occur in embankment materials due to rainfall infiltration, altering the cohesive properties of the soil and significantly reducing embankment stability [106]. This notion was further supported by [107], indicating that soil with reasonable stiffness and sufficient cohesion contributes to embankment stability. Thus, the mechanism of embankment failures is primarily attributed to fluctuating moisture content, which leads to a reduction in matric suction within the soil, subsequently weakening the soil microstructure and exacerbating the failure processes [108]. Understanding these components is crucial, as their related consequences encompass a wide range of issues, including diminished serviceability, disruptions in transportation services, compromised human safety, and economic losses. For instance, in China, an average of 0.52 billion US dollars is expended to mitigate infrastructural disasters arising from rainwater-induced railway failures [61,109].

There is limited literature available on real-time railway embankment weakening resulting from infiltration and variability in moisture content. Therefore, it is undeniable that a comprehensive understanding of the underexplored relationship between these factors, leading to embankment weakening, is essential for preparedness and mitigating their impact.

5.1 Hydro-mechanical properties

The dynamic state of soil moisture content, transitioning from an unsaturated to a fully saturated state due to hydrological changes induced by periodic rainfall and related events, is a matter of concern. These variations in saturation rates lead to significant alterations in the hydromechanical characteristics of the soil’s vadose zone [121,122,123]. Within the soil’s vadose zone, the suction stress parameter is used to elucidate the relationship between mechanical properties and hydrological variations. Suction stress governs the mechanical behavior of vadose soil zones, considering the saturation degree and suction head. Hydrological variations subject the soil to cyclic wetting and drying, resulting in seasonal fluctuations in soil suction stress, which in turn affects the mechanical properties of the soil.

Numerous studies across the globe on hydro-mechanical properties propose constitutive models for the vadose soil zone and employ modeling to simulate the hydromechanical behavior of compacted soil [39], incorporating density and initial conditions [124,125,126]. These studies indicate that anticipating the volumetric behavior patterns of vadose soil zones poses challenges in Geotechnical engineering, especially in terms of responses under soaking (swelling and collapse) and drying conditions (shrinkage and cracking) [127]. The characteristics of compacted soil and its mechanical behavior are not comprehensively covered in the highway earthwork and embankment handbooks [32].

Soil suction holds significant sway over the shear strength of soil in vadose soil zones, a context where highway embankments are often located. Conversely, moisture content and the saturation degree of vadose soil zones increase due to rainfall infiltration. Rainfall events alter water content distribution, subsequently impacting the mechanical behavior of embankment materials [128]. Simulation of real-time hydro-mechanical behavior of vadose zones and its stability analysis requires volumetric moisture content prediction and matric suction to be able to accurately predict the incremental soil deformation [129], as the increase in moisture content affects FOS as shown in Figure 5 [130]. An attempt was made [121] to predict the incremental soil deformation of hillslope using a modified Sheng, Fredlund, and Gens model by incorporating limited predicted hydrological data. However, there is scarce literature to substantiate the results of this study. Euler’s backward algorithm was coupled into the ABAQUS to generate a model that tried to mimic the hydromechanical behavior of soil and found that an increase in rainfall duration or rainfall intensity amplifies the pore water pressure, fluid velocity, horizontal displacement, and vertical strain of the slope [131], and on the other hand, unable to give details on the effects of short-duration rainfall with high intensity.

Figure 5

Relationship between volume water content and FOS.

The vadose zone undergoes progressive deformation as a result of changes in climatic conditions before reaching its final strength. Shear strength prediction methods, on the other hand, do not take progressive soil deformation into account. To simulate incremental soil deformation, constitutive models are widely used [132]. A variety of models have been developed to characterize the hydromechanical characteristics of the vadose zone. However, most models are unable to account for many properties of the vadose zone of soils, including slurry soil incremental deformation during the drying process, the transition stage from soil-soaked state to vadose zone, and the influence of changes in matric suction on the yield stress [121,133]. Thus, more effort is necessary to enhance the understanding of the mechanisms of rainfall-induced geo-hazard in hydromechanical behavior in complex regions such as China.

5.2 Wetting and drying cycles under rainfall events

Rainfall events impact the gradual degradation of soil mechanical performance due to wetting and drying processes. However, it is worth noting that drying exhibits a higher recovery in tensile strength compared to wetting conditions. The active processes during these cycles weaken the tensile strength generated within the soil structure. As strength diminishes due to wet-dry cycles, micro-cracks begin to form during the initial desiccation phase. These micro-cracks initiate a chain reaction, leading to subsequent microstructural changes [134]. The deteriorated material transforms into silt-sized particles, indicating a weathering process on the soil microstructure. Furthermore, the fill material’s deterioration can lead to settlement at various points along the embankment, such as the crest, toe, or foundation. This settlement alters the shear stress, influenced by the macro-porosity of the embankment, potentially triggering internal erosion [135]. Importantly, one of the consequences of the wet-dry cycle is that the effectiveness of fill material pre-treatment tends to diminish, jeopardizing the embankment’s stability [6].

5.3 Rainfall-induced cracks

The mechanisms behind embankment failure due to soil cracking are inherently complex. Understanding this phenomenon requires a solid grasp of vadose zone soil mechanics. Throughout climatic cycles, soils develop four types of cracks [136], wetting and drying cycles, tension cracks, desiccation cracks, and weathering cracks. The formation and extent of these cracks are contingent upon soil characteristics. Soil cracking poses a significant challenge, particularly in regions with soft or loess soils and other soil types prone to climate-induced variability. Numerous critical infrastructures are situated on such soils globally, including the 2016 Rio Olympic village in Brazil [137]. Major highways are in Texas, USA (along with Paris districts, Randell lake road, etc.) [138], UK highways in the Galston region [139], structures and roads around Willnis, Netherlands [140], highways and railways along Yangtze and Pearl Rivers [141], infrastructures in Regina region in Canada [29], rail and road networks connecting Tibetan Plateau and central China [142]. These soils exhibit high compressibility, making them susceptible to post-construction settlement and periodic cracking [141]. The consequences of cracking are twofold. First, cracks create pathways for preferential water movement in the future, altering both macro- and microstructures of the fill materials. This increased seepage and infiltration lead to rising pore water pressure and a reduction in soil shear strength [116,143]. While various methods have been employed to determine the width and depth of cracks, most of these studies have focused on highway cracks, with limited attention to railway cracks, particularly at greater depths [140]. Presently, the hydro-mechanical models used for slope stability are derived from continuum modeling techniques, which struggle to accurately represent the cracking process at the structural level and preferential water movement [140]. Some researchers have suggested soil modifications and treatments to reduce compressibility and minimize cracking [138,142,144]. However, certain critical aspects remain unaccounted for, including the stress fields triggered during shrinkage [145], changes in shear-induced pore-water pressures after cracking within the vadose zone of the embankment, and the intrusion of contaminants into the fill during seepage post-cracking-factors that influence embankment soil shear strength [7]. Furthermore, phenomena such as desiccation and tension cracking may result in the progressive degradation of embankment structures, an area that has received limited attention in railway networks. As a result, there is a pressing need to assess the initiation, evolution, patterns, and magnitudes of cracks, along with their mechanical behaviors at greater depths. This evaluation should also consider the impact of spatial variability on serviceability and ultimate limits states.

5.4 Sliding and finite slopes

In the engineering infrastructure design process, having an estimate of the FOS against sliding for the embankment slope and other pertinent information regarding the finite slope’s failure mode is of paramount importance. Typically, embankment slope failures are attributed to an increase in shear stress forces at the surface of the infrastructure, often triggered by rainfall [146]. The stability of the slope hinges on a comparison between resisting forces that prevent failure and forces that induce failure. Consequently, the FOS for an embankment serves to ensure the stability of the fill material against potential failures. Several factors are scrutinized to safeguard the FOS from being impacted by failure mechanisms, with the most critical ones being shear stress characteristics (cohesion and friction angle) and water level [147]. In the analysis of embankment slope stability, the surface of the slope is particularly susceptible to sliding, with the soil mass treated as a homogeneous unit (Figure 6). It is postulated that the soil at the surface of the slope can be segmented into slices that act vertically and parallel to each other. The stability of the slope surface relies on the stability of these individual slices, irrespective of the type of soil used as fill material [148]. However, it is important to note that while sliding failure can be mitigated using a FOS, if the finite slope surface undergoes alterations due to rainfall events, the sliding wedge might exceed the FOS threshold, resulting in failure. Rahimi et al. [86] observed that the FOS decreases regardless of the duration of rainfall, but its capacity to recover is slower for delayed rainfall patterns compared to normal and advanced patterns. This suggests that the potential for failure due to sliding is more pronounced during rainfall-induced embankment failures than with other geo-hazards. Therefore, there is a pressing need to assess the impact of rainfall on the sliding behavior of transportation embankments under various geometric conditions

Figure 6

Example of Sliding of transportation embankment.

5.5 Cutting and scours

Increasing runoff discharges resulting from changes in rainfall patterns have led to a growing number of embankment failures related to scouring and cutting around the world. For instance, China has experienced its share of these issues in its transportation systems, resulting in substantial costs for replacement and maintenance. Studies have shown that soils with high silt content are more susceptible to scouring compared to soils with lower silt content under similar rainfall conditions [149], often leading to cutting-related failures. Scouring refers to localized erosion that occurs in the vicinity of support structures for roads, railways, or other types of infrastructure. In the context of railway embankments, scouring can be categorized into three types:

Type I – crest scour: this usually happens under the ballast due to runoff flow buildup that may result in piping and seepage into the subgrade. This can over time cause surface cutting and soil subsidence which with changes in loading conditions may trigger failure.

Type II – slope scour: this is a result of overflow from the top of the crest when runoff carries fine particles down the slope creating pathways for future flow and gradually modifying the surface particle arrangement leading to soil softening and changes in surface microspores.

Type III – toe scour: this is the movement of toe materials due to runoff discharges around the toe leading to the development of void and holes that will eventually cause the redistribution of microstructures. This may result in progressive deterioration of the embankment toe, which may encourage fill cutting and sliding of part of the toe materials due to particle migrations.

Type I scouring can be challenging to detect early because ballast often covers the surface until obvious cutting and soil subsidence occur. Therefore, there is a need for physical and numerical modeling of these dynamic processes to gain a better understanding of their effects on the progressive deterioration of embankments [150]. It is also crucial to comprehend how active processes such as scour, cutting, sliding, etc., influence the reorientation of particles and their impact on permeability, shear modulus, and shear strength. Addressing these knowledge gaps is especially important in the context of the growing global rail industry, particularly in high-speed rail systems.

5.6 Erosion and debris flows

It is a well-known fact that erosion and debris flows are the aftermath of rainfall events, both of which have been identified in numerous studies for their destructive consequences on rail and road infrastructure embankments, leading to increased maintenance costs. However, a detailed analysis of embankment failure manifested through erosion and debris flows is not readily available [13]. The recent expansion of rail networks worldwide, including mountainous regions like China, has faced growing threats from external and internal erosion, resulting in soil loss and sediment movement. Nevertheless, an assessment of the erosive impact of soil loss in railway and road embankments due to rainfall remains unclear [151]. The intensity of rainfall plays a crucial role in determining the rate of soil erosion and the magnitude of debris flow. Soil particle loss from erosion can lead to changes in soil properties, such as structure, stiffness, density, settlement, and strength, ultimately weakening the soil microstructure and potentially causing slope failure propagated through debris flow. This erosion and sediment movement may disrupt the internal arrangement of the soil due to increased pore water pressure and the erodibility of embankment materials, although areas of mass movement, such as landslides, have received significant attention [152,153,154],

Understanding the rearrangement of microstructures due to water ingress, leading to erosion and dynamic loads on the tracks and its influence on hydromechanical behaviors, represents a potential knowledge gap for railway professionals. This is particularly important given the rapid development of high-speed railway networks. While water-induced properties and strength deterioration have been studied numerically and experimentally, with mechanisms of strength reduction identified [98], there are several potential research areas that need further exploration:

1. Investigating the real-time impact of progressive erosion conditions, and deformation of embankment structures nexus.

2. Advancing the weakening processes that trigger debris flow and subsequent embankment failure.

3. Studying erosion types and their effects under diverse dynamic loading conditions on engineered slopes that result in failure.

4. Determine the magnitude of erosion due to the impact of rainfall intensity that amplified debris flow and sudden embankment structural failure.

5. Examine the effect of live loads on embankments during progressive erosion processes, an aspect with limited contributions in the existing literature.

Conducting more physical and numerical modeling studies to assess the speed of traffic that may cause failure during gradual erosion conditions for both ballastless and ballasted tracks, considering different soil layers. Addressing these research areas can significantly contribute to our understanding of the complex interactions between erosion, embankment stability, and rail infrastructure, particularly in the context of high-speed rail systems.

5.7 Vegetation cover

The impact of vegetation on embankment stability has been explored extensively, as vegetation can influence slope stability in two primary ways: hydrological impacts and mechanical impacts. Hydrological impacts arise from processes like evapotranspiration, where vegetation removes soil water by pressure, leading to an increase in soil shear strength. Additionally, plant roots reinforce the soil by enhancing soil cohesion through mechanical means [155]. Vegetation plays a crucial role in sustainable soil management, helping to reduce soil erosion and minimize the impacts of land use [156]. Railway embankments, especially those consisting of loess soil, face various challenges due to the effects of rainstorms, such as soil loss, erosion, landslides, and sediment movement [157]. Various studies have investigated the use of vegetation cover to mitigate these effects. For instance, research has shown that the FOS of embankments may either decrease or increase depending on the density and weight of trees [158]. Recent work in China examined the influence of vegetation cover on landslide occurrence, particularly in response to extreme rainfall events and found that vegetation cover can reasonably control landslide distribution [159]. However, there are knowledge gaps in understanding the full extent of vegetation’s influence on embankment stability:

1. Root moisture abstraction and its relationship with soil water movement in the vadose zone, especially regarding soil layer discontinuities, need further exploration and quantification [159].

2. The influence of vegetation on the distribution of embankment pore water pressures over time and space, particularly during dormant vegetation periods, remains poorly studied [15].

3. It is essential to comprehend the effects of vegetation-induced suction and climate-induced cracking in embankments prone to progressive failures, given that vegetation can generate soil suctions of up to 1,500 kPa [160].

4. While the performance of herbaceous and tree vegetation in slope stability has been tested, the mechanisms of stabilization by herbaceous plants, including their horizontal and vertical root geometry, distribution, and tensile strength, require further investigation [161] (Figure 7).

Figure 7

Soil-root reinforcement system: (a) tree vegetation and (b) herbaceous vegetation.

In conclusion, there is a need for more comprehensive research to understand the ecological and mechanical aspects of vegetation’s role in embankment stability. Such studies can help develop effective strategies to enhance the stability of transportation embankments, especially in regions prone to soil erosion and landslides [161].

5.8 Loading conditions

When constructing transportation embankments, ensuring stability under various traffic load conditions is of utmost importance to guarantee their safety [162]. Embankment instability can result in failure, which can occur due to even minor geo-hazard impacts or loads exceeding the initial design specifications. Typically, design considerations prioritize loading conditions, as they determine the embankment’s geometry and foundation type [51]. However, other factors that can influence the load-bearing capacity, geometry, and foundation stability of the embankment are often overlooked. Higher loading rates lead to increased stresses within the soil mass, causing the propagation of compression and the generation of pre-consolidation pressure [163]. Excess pore pressure in this context is influenced by the applied load’s magnitude, volumetric content, and grain size distribution. When water from rainfall infiltrates the embankment, it becomes vulnerable to failure due to shear stress and, in some cases, bending or buckling of the transportation asset [164]. To enhance embankment stability, it is crucial to include other potential hazards in the design considerations for transportation embankments. As the design safety factor of the infrastructure changes with rainfall infiltration, the limit state is expected to fluctuate accordingly.

6.1 EWS for pore water pressure-induced failure

Initially, most transportation embankments meet the compaction criteria, but over time, many of them become susceptible to damage due to changing properties influenced by various factors. These embankment failures are catastrophic events that pose threats to lives and economic systems worldwide. Natural and engineered slopes alike are periodically affected by these failures due to numerous factors. In a changing climate, soil can undergo cycles of shrinkage and swelling [165,166], gradually softening and reducing its effective shear strength, ultimately decreasing the FOS [130]. Prolonged rainfall events can alter soil structures, making rail or road embankments more vulnerable to failure. An effective tool for mitigating the consequences of embankment failure is the EWS, which provides timely alerts for prompt action. However, different soil types behave uniquely in response to changes in saturation and pore water pressure during rainfall [167]. Recent efforts to develop EWSs for rainfall-induced railway embankment fill-related failures have been commendable, focusing on monitoring hydrological responses of the embankment slope under the influence of infiltration in saturated and unsaturated conditions, with an emphasis on pore water pressures [75,131,168]. These studies have revealed that most EWSs rely on empirical thresholds based on historical rainfall records and pore water pressure measurements, often overlooking crucial hydrogeological and geotechnical parameters, which are site-specific [136]. Recent research conducted in the state of Texas attempted to incorporate both hydrogeological and geotechnical parameters into slope failure modeling, achieving a prediction rate of about 70% [136]. However, this study faced challenges in accounting for vegetation and evaporation effects in slope failure analysis and lacked three-dimensional seepage and slope stability analysis, which is essential due to its influence in terms of curvatures. Additionally, many EWSs are based on 30 m × 30 m pixels in Digital Elevation Models, which may not accurately capture shallow slope failures. To address these issues, it is crucial to develop a Web-Geographical Information System-based EWS using real-time data from weather stations and machine learning tools. This approach can accurately create susceptibility maps for embankment failure, enhancing the effectiveness of EWSs.

Certain limitations still exist in the devices used for measuring pore water pressure [169]. For instance, tensiometers lack accuracy and have slow response times, making predictions challenging. Piezometers, while commonly used, can face issues like filter clogging and hydrodynamic time lag caused by changes in groundwater pressure. Other equipment, such as inclinometers and extensometers, are employed to measure horizontal displacement, evaluate vertical settlement of tracks, and monitor vertical deformations in embankments, but they also have their limitations. In recent times, remote sensing methods have made significant strides in monitoring and predicting environmental variables related to rainfall-induced slope failures. These methods include the use of displacement and 3D Laser Scanner Sensors [130,170], pipe strain gauges, tilt sensors, water level gauges, and more [171,172] to assess fill slope deformation characteristics during rainfall events. However, remote sensing approaches face several challenges: (a) direct automated techniques have a low acquisition frequency, (b) they can be affected by atmospheric disturbances, and (c) they lack the ability to penetrate underground [172]. These challenges cast doubt on the reliability of field and laboratory tests in providing useful information for engineers designing EWSs for railway embankments. Errors in these devices translate to errors in the results of the warning systems. Addressing embankment failures in areas prone to instability due to China’s complex geo-environment, characterized by 69.4% mountainous landmass [173], is of paramount importance. This necessitates the development of temporal and spatial approaches to tackle these issues.

6.2 Uncertainties in embankment constructions

Various factors influencing the stability of transportation embankments are associated with inevitable uncertainties. These uncertainties arise from changes in rainfall characteristics, soil strength, soil structure, and soil hydraulic properties [174]. They stem from the degree of heterogeneity in fill materials, which can affect the certainty and quality of embankment construction. The unpredictable nature of soil properties, foundation types, embankment geometry, and the complex interaction between water and soil can complicate embankment construction procedures [175]. Uncertainties in embankment construction begin with the design phase but become more pronounced during the actual construction process. During construction, it is imperative to accurately determine the compaction and strength of the filled soil; otherwise, the progressive effects of rainfall can lead to failure. Other critical factors include the slope’s inclination, the compatibility of fill soil permeability, the management of surface water runoff from the slope, and the flow of groundwater beneath the embankment’s foundation, all of which increase the risk of embankment failure [176]. Therefore, onsite engineers must carefully assess each of these factors during construction to instill confidence, ensure the embankment meets its design specifications, and achieves its intended service life. It is worth noting that uncertainties can be minimized if engineers proactively control these factors while considering external geo-hazards like rainfall, snow, and earthquakes that can further amplify uncertainties [45]. Practitioners must ensure that the impact of rainfall on fill soil is effectively managed during the construction process to prevent sudden changes in soil properties that could disrupt construction procedures and potentially lead to delays in infrastructure completion. Therefore, a comprehensive understanding of existing geo-hazards is essential to mitigate and manage uncertainties in embankment construction effectively.

6.3 Research trend in embankment stability analysis

Slope stability analysis is a fundamental process in civil engineering, vital for assessing the stability of slopes, embankments, dams, and other earth structures. In line with the key-terms from the strongest citation bursts in Table 2 and the keyword analysis in Table 1, various methods for analysing slope stability have shown evolving trends, which can be categorized into two phases: before and after the year 2002. Several publications before the year 2002 utilized methodologies centred on analytical and mathematical solutions. Afterward, there was a notable shift towards the use of numerical and simulation techniques, by integrating FEM, which emerged as the most widely accepted approach. It is important to recognize that the quality and reliability of the results in slope stability analysis are influenced by the data sources employed. These data sources are typically based on information derived from laboratory soil experiments, climatic data, and remote sensing data, all of which have inherent limitations. Drawing from the collective experience of the authors, an integration of synthetic aperture radar (SAR) as a replacement for the conventional GIS technique is proposed. This recommendation stems from the advantages offered by SAR data, which are invulnerable to weather conditions and cloud cover. Moreover, SAR data exhibit sensitivity to terrain configurations, making them a valuable addition to different research methodologies. The framework illustrating this proposed modification is depicted in Figure 8, although incorporating SAR data into the analysis aims to enhance the reliability and robustness of slope stability assessments, mitigating the limitations associated with conventional data sources.

Figure 8

Multi-scale framework for transportation embankment slope stability analysis.
