Effectiveness of microwave ablation using two simultaneous antennas for liver malignancy treatment

Nikola Bošković; Branislav Radjenović; Srdjan Nikolić; Marija Radmilović-Radjenović

doi:10.1515/phys-2024-0079

Article Open Access

Effectiveness of microwave ablation using two simultaneous antennas for liver malignancy treatment

Nikola Bošković , Branislav Radjenović , Srdjan Nikolić and Marija Radmilović-Radjenović

Published/Copyright: September 13, 2024

Published by

Become an author with De Gruyter Brill

Submit Manuscript Author Information Explore this Subject

From the journal Open Physics Volume 22 Issue 1

Abstract

Microwave ablation is becoming an increasingly important minimally invasive procedure that uses dielectric hysteresis to generate heat and destroy cancer cells. Tissue damage depends on the input power, procedure duration, and antenna position. Therefore, one of the essential problems is determining parameters that ensure the destruction of the tumor with the desired margins and minimal damage to the healthy tissue. In addition to experimental methods, computer modeling has been proven to be an effective approach for improving the performance of microwave ablation (MWA). Moreover, since the thermal spread in biological tissue is difficult to measure, the development of a predictive model from procedural planning to execution may have a great impact on patient care. This study focuses on determining the optimal parameters for MWA treatment of liver tumors using two identical parallel-positioned multi-slot coaxial antennas. The simulation results suggest that an input power of 20 W or 15 W per antenna suffices for complete tumor ablation with a sufficient safety margin for 600 and 900 s, respectively. In both cases, the created ablation zones were similar. The ablation zones for 15 W per antenna were more spherical, invading a smaller amount of healthy tissue than those for 20 W per antenna. This study may represent a step forward in planning MWA treatment for individual patients.

Keywords: microwave radiation; microwave ablation; necrotic tissue

1 Introduction

Liver cancer is one of the most common causes of cancer-related deaths worldwide, accounting for over 700,000 deaths annually [1,2,3,4]. Among the various therapeutic options used to treat liver cancer [5,6,7,8], microwave ablation (MWA) is a minimally invasive modality based on the destruction of cancer cells by microwave radiation-induced hyperthermia [9,10,11,12]. MWA can operate at different frequencies, but the most common frequency is 2.45 GHz, which allows the use of compact antennas and good radiation penetration into tissues [13]. In terms of efficiency and safety, high-temperature, short-duration MWA is the standard of care [14]. Assessing the distribution of heating damage is the most challenging task in MWA because it highly depends on the time, tissue type, and blood vessel distribution [15,16,17].

The antenna design responsible for the formation of ablation zones strongly affects the MWA efficiency. Over the years, various antenna designs have been developed to minimize thermal damage to healthy tissue [18,19,20]. A specially designed AngioDynamic Solero MWA system can rapidly ablate soft tissue, improving procedural outcomes [21]. MWA systems based on “thermosphere technology” create spherical ablation zones by adding small saline irrigation channels to the antennas [22]. However, the cooling system significantly increased the complexity and size of the probe. Novel compact multi-slot coaxial antennas are specially designed to work inside tissues without requiring a cooling system [23].

There are differences between ablation performed using a single probe and ablation performed using multiple probes simultaneously. In spite of some disadvantages, such as complication rates, multiple antenna configurations have been proposed for efficient ablation of large tumors [24,25]. This can be achieved by placing the same probe sequentially at multiple points or using multiple probes placed at multiple points simultaneously. Ablation performed using multiple probes is larger, more symmetrical and requires less treatment time [26,27]. In a multi-antenna configuration, the antennas usually have a parallel orientation; however, it is possible to change the ablation shape to a non-parallel orientation. The two-antenna configuration is the simplest, cheapest, and easiest to implement, producing more uniform thermal profiles and causing less damage to healthy tissues [28,29,30].

In addition to clinical studies, computational models have played a significant role in predicting MWA outcomes, especially three-dimensional (3D) models of an antenna and targeted tissue without assumptions of homogeneity [31,32,33]. This study aimed to provide optimal parameters for treating a real large tumor (from a database [34]) using two identical 10-slot coaxial antennas [17,23,35]. The simulations presented in this article were realized using an in-house developed SimSurgery simulation environment based on several open-source libraries widely used in scientific computing [35]. The obtained simulation results revealed that MWA treatment of large tumors using a two-antenna configuration causes less damage to the healthy tissue compared with using a single antenna. Furthermore, the two-antenna configurations produce more uniform thermal profiles and peripheral tissue temperatures.

2 Methodology

2.1 Physics of the MWA procedure

The equations governing the calculation of the electric-field distribution through the tissue and heat generated by the electromagnetic field during the MWA procedure have already been described in previous publications [11,33,35], so only the main equations are listed here. The first part is the wave equation for the electric field in the frequency domain:

(1) ∇ 2 E → − μ r k 0 2 ε r − j σ ω ε 0 E → = 0 ,

where μ r is the relative permeability (its value is 1 for a non-magnetic environment), ω = 2 π f is the angular frequency, E → is the electric field vector generated by the antenna, σ is the electric conductivity, ε ₀ is the permittivity of the vacuum, and k 0 is the vacuum propagation constant.

The change in temperature over time can be calculated using Pennes’ bio-heat equation [33,36,37]:

(2) ρ c ∂ T ∂ t = ∇ ⋅ ( k ∇ T ) + ρ b ω b c b ( T b − T ) + Q ext + Q met ,

where t is the time, ρ , c , and T are the density, specific heat capacity, and temperature of tissue, respectively. ρ b , c b , and ω b are the density, specific heat capacity, and perfusion rate of blood, respectively. T b = 37°C denotes the arterial blood temperature, Q met is the metabolic heat, and Q ext represents the external heat source generated from MWA, and Q ext ≫ Q met , Q met can be neglected. The bio-heat equation must be solved in the time domain.

Soft tissues, such as the liver, have a very high water concentration. At steady state, the water content of liver tissue is ∼78% water by mass, whereas at temperatures >100°C, the tissue water content may decrease to 20% by mass due to evaporation. An increase in temperature leads to a significant change in water content, affecting tissue parameters [15]. The temperature dependence of the water content can be mathematically expressed as follows [33,35,38]:

(3) W ( T ) = 0.778 ⋅ 1 − e T − 106 3.42 , 70 ° C ≤ T ≤ 100 ° C 7.053 − 0.064096 ⋅ T , 1 0 0 ° C ≤ T ≤ 104 ° C 0.778 ⋅ e − T − 80 34.37 , T > 104 ° C .

This function can be implemented into the specific heat capacity c in Eq. (2) as effective specific heat capacity c′ = c – ∂ W ∂ T [36]. The material parameters of the tissues used in this study are summarized in Table 1.

Table 1

Thermophysiological parameters corresponding to tumor tissues, healthy tissues, and blood used in this study

Parameter	Tissue
	Liver	Tumor	Blood
Density (kg/m³)	1,079	1,040	1,060
Specific heat (J/kg/°C)	3,540	3,960	3,600
Thermal conductivity (W/m/°C)	0.52	0.57	0.5

The dielectric constant of the tissue ε r and electrical conductivity σ are considered temperature-dependent functions [17,33,35]:

(4) ε r = a 1 ⋅ 1 − 1 1 + e ( a 2 − a 3 T ) ,

(5) σ = b 1 ⋅ 1 − 1 1 + e ( b 2 − b 3 T ) ,

with coefficients listed in Table 2.

Table 2

Values of the coefficients used in the calculation of ε r and σ for the liver tissue and tumors

Coefficients	Tissue
	Liver	Tumor
a 1	44.3	54.8
a 2	5.223	5.223
a 3	0.0524	0.0524
b 1	1.69	2
b 2	6.583	6.583
b 3	0.0598	0.0598

The blood perfusion ω _b also depends on the temperature T [17]:

(6) ω b = 2.1 × 10 − 5 T + 3.5 × 10 − 3 .

The difference in temperature between blood and tissue results in convective heat transfer.

The specific absorption rate (SAR) is a measure of the radiation absorbed by the tissue [33,35]:

(7) SAR = σ 2 ρ ∣ E → ∣ 2 ,

where E → is the electric field vector, σ is the electric conductivity, and ρ is the density of the observed domain. It can identify the tissue that is most affected by radiation and how the electric field propagation interacts with the tissue. The total power loss in the targeted tissue can be estimated from the SAR as follows [39]:

(8) P LOSS = ∫ V ρ SAR d V = 1 2 ∫ V σ ∣ E → ∣ 2 d V .

The relative to the input power ratio (in %) is (P _LOSS/P _IN)·100%.

Estimation of the temperature damage Ω as a function of time can be performed using the Arrhenius equation [33,40]:

(9) ∂ Ω ∂ t = A e − Δ E RT ,

where A = 7.39 × 10³⁹ 1/s and ΔE = 2.577 × 10⁵ J/mol represent the frequency factor and activation energy for the irreversible damage reaction, respectively, T is the temperature, and R is the universal gas constant. The most common parameter for the expression of tissue necrosis caused by MWA is the fraction of necrotic tissue [33,35]:

(10) θ d = 1 − e − Ω ,

ranging from 0 (no damage) to 1 (total tissue necrosis). Numerical values of θ _d > 0.99 are acceptable as the total tissue necrosis.

The extent of damage to healthy tissue during MWA should be minimal relative to tumor size. Volumetric damage (VD) is defined as the ratio of the volume of damaged healthy tissue (V _DAMAGED) to that of tumor tissue [41]:

(11) VD = V DAMAGED V TUMOR ⋅ 100 % .

The amount of damaged healthy tissue (DT) was calculated as the ratio of the volume of the damaged healthy tissue to the total volume of the liver (V _LIVER) without tumor tissue (V _TUMOR) [42,43]. The mean volume of the human liver is approximately 1,750 cm³ [44]. V _TUMOR = 13 cm³.

(12) DT = V DAMAGED V LIVER − V TUMOR ⋅ 100 % .

The total delivered energy (TDE) is associated with the input power and duration of the MWA: TDE = Time · P _in [45]. A higher TDE can result in higher temperatures and ablation zones.

2.2 Geometric model

As the first step in modeling, it is necessary to determine the optimal number and position of antennas, depending on the tumor shape. The use of a single antenna in MWA is recommended for the treatment of tumors up to 3 cm in diameter, whereas multiple antenna designs are more useful for larger tumors. Figure 1 illustrates two identical parallel antennas that create spherical ablation zones approximately 3 cm in diameter with a mutual spacing of 3 cm, leading to complete tumor ablation. Although the part of the tumor between the red circles is outside the ablation zones, with the simultaneous use of multiple antennas, closely spaced ablation zones tend to merge, making the overall combined ablation larger than a simple combination of the two ablation zones.

Figure 1

Stereolithography (STL) representation of the liver tumor (taken from a database [34]) from different perspectives. The dimensions of the tumor were 56.8 mm × 27.6 mm × 22.4 mm, with a total volume of approximately 13 cm³. Red circles denote 30 mm in diameter.

Figure 2a shows a 3D simulation model of the tumor (56.8 mm × 27.6 mm × 22.4 mm) (red surface), which was acquired from a 54-year-old male [34], and its position in the liver (gray surface). The 3D-IRCADb-01 database [34] contains enhanced 3D CT images of 10 women and 10 men with hepatic tumors in 75% of cases. The 3D medical images and masks of the segmented structures of interest are available as DICOM files, and the representation of segmented zones is provided as surface meshes in the VTK format, which can be converted to the STL format. The STL surface representation of the tumor was then used to co-create the solid geometry volume in STEP format, which could be directly used in our 3D finite-element method (FEM) simulation. In this study, a configuration of two coaxial antennas with 10 slots was used. As mentioned in previous publications, a 10-slot antenna offers higher heating efficiency for tissues and more near-spherical ablation zones than a 1-slot antenna [11,23].

Figure 2

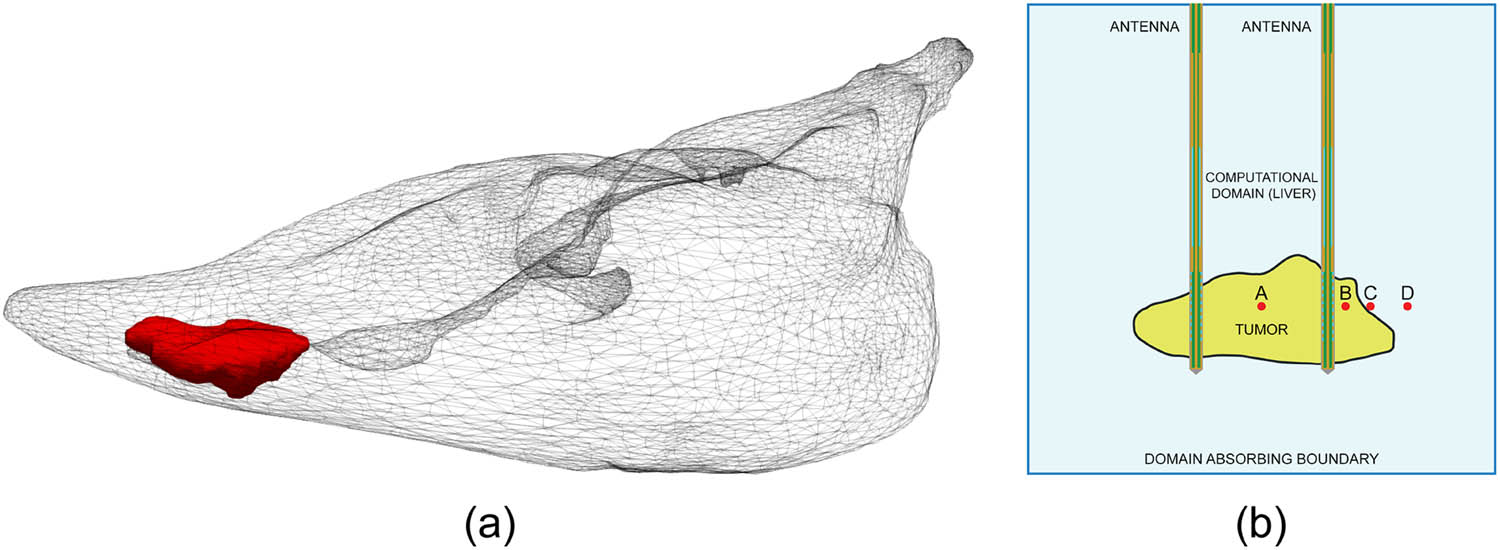

A schematic view of (a) 3D model of the liver (gray surface) and tumor (red surface) [34] and (b) planar cross-section of the 3D geometry of the problem with two multi-slot antennas with control points.
