Abstract

A model describing the transmission dynamics of cholera is considered in this article. The concerned model is investigated under the Caputo-Fabrizio fractal fractional derivative. The objective of this article is to study theoretical and numerical results for the model under our consideration. Classical fixed point approach is used to obtain sufficient conditions for the existence of solution to the proposed model. Adam’s Bashforth numerical method is utilized for the numerical interpretation of the suggested model. The considered technique is a powerful mathematical tool, that provides a numerical solution for the concerned problem. To discuss the transmission dynamics of the considered model, several graphical presentations are given.

Keywords: transmission dynamics; CFFFD; fixed point approach; Adam’s Bashforth numerical method

1 Introduction

Fractional calculus (FC) is a mathematical discipline that investigates integrals and derivatives with orders that are not whole numbers. Leibnitz and L-Hospital have already wondered what would be a derivative of noninteger order [1]. Although the concept of FC was first developed in pure mathematics and is now considered to be a component of applied mathematics as well. The concept of FC has been used in various real-world problem investigations. FC has attracted attention in the fields of science and engineering, such as signal processing. Researchers have used tools of FC to model nonlinear systems in signal processing [2]. Many scholars have analyzed FC in control theory to design controllers for complex systems that cannot be modeled using classical techniques [3,4]. Awadalla and Yameni [5] have discussed FC in the field of physics to model the behavior of materials and systems that exhibit anomalous diffusion, such as porous media and biological tissues. Kumar et al. [6] have studied FC for designing of complex systems such as memristive and memcapacitive and nonlinear systems such as robotics and power systems. Some mathematicians have studied the behavior of stock prices, interest rates, the dynamics of market fluctuations and risk management using FC concepts [7]. Most researchers have investigated fractional derivatives to extract features and information from image contents such as edges, corners, and textures [8]. In the field of biology, scholars have examined FC to model the behavior of biological systems such as the cardiovascular system and neural networks. Researchers have presented a more comprehensive overview of the dynamics of these systems and help in the development of treatments and therapies [9–11]. Many researchers have applied tools of FC in chemistry to model the diffusion of molecules and chemical reactions in porous materials. In addition, they presented a more detailed description of the transport and reaction phenomena, which help in the design of catalysts and porous materials for chemical applications [9].

Khan et al. [13] introduced a ground-breaking concept regarding differential and integral operators, referred to as fractal fractional differential and integral operators. The aforesaid operators contain the traditional fractional order operators as special cases. Hence, the mentioned operators characterized by two parameters: first, the fractional order denoted as δ , followed by the fractal dimension denoted as κ . The motivation behind these novel operators lies in their capacity to address nonlocal phenomena in natural systems that also exhibit fractal behavior, as evidenced in previous works [14–16]. Numerous authors have studied these operators and used them in various fields. Qureshi and Atangana [17] have used fractal-fractional derivatives (FFDs) to model and analytically analyze the fluctuations in diarrheal transmission that occurred in Ghana during the period from 2008 to 2018. Likewise, Srivastava and Saad [18] have conducted a similar study. They used FFD to give the mathematical form to Ebola virus disease. In addition, the mentioned operators have potential applications in all other fields. Overall, the concept of fractal fractional provides a powerful tool for understanding and modeling complex systems that exhibit fractal patterns or properties. One of the most essential aspects of describing nonlinear physical phenomena is finding exact solutions for fractal fractional differential equations. The theory of derivatives and integrals of fractal fractional order can be used to successfully solve various physical phenomena [12].

In recent times, numerous researchers have directed their focus toward utilizing FFD for modeling real-world phenomena. The concept of FFD has significant applications in modeling and studying the dynamics of mentioned phenomena. Among the issues that have been recently investigated, cholera stands out prominently. Cholera, an infection causing gastroenteritis is acquired when an individual ingests an infectious dose or inoculum of the pathogenic Vibrio cholera. The transmission of cholera occurs through two main routes. Both the primary and secondary source in which people ingest contaminated food or water containing pathogenic virion that has come from an infected person, commonly known as person-to-person contact–involve people consuming the pathogen through contaminated seafood and water [19].

Formulations of real-world process in terms of mathematical models play a significant role. With the help of models, we can understand and predict the transmission of infectious diseases [20,21]. Cholera is also one of the major diseases due to which thousands of people lose their lives worldwide each year. Researchers have investigated the said disease via mathematical models involving classical differential equations extensively. Also, some researchers have used FC for investigations of various infectious diseases models [22,23]. The use of mathematical models has significantly contributed to our understanding of the dynamics of cholera epidemics and the effectiveness of control measures. Hailemariam Hntsa and Nerea Kahsay [25] have modeled the cholera transmission dynamic via mathematical formulation as follows:

(1) d S d t = b N + ( 1 − p ) ζ R − ( 1 − p ) ϱ B B + K + p α + ρ S , d I d t = ( 1 − p ) ϱ B S B + K − ( γ + d + ρ ) I , d R d t = γ I − ( ζ + ρ ) R , d U d t = p α S + p ζ R − ρ U , d B d t = ϕ I − ϕ θ I − b ( ρ B − b B ) B ,

where ρ = ρ i + ρ d N and S ( 0 ) = S 0 ≥ 0 , I ( 0 ) = I 0 ≥ 0 , R ( 0 ) = R 0 ≥ 0 , U ( 0 ) = U 0 ≥ 0 , and B ( 0 ) = B 0 ≥ 0 . At a given time t , the population denoted by N ( t ) is categorized based on their infection status: S ( t ) represents susceptible individuals, I ( t ) denotes infected individuals, R ( t ) signifies recovered individuals, and U ( t ) refers to prevented individuals. In addition, B ( t ) quantifies the concentration of Vibrio cholera in the aquatic environment at time t . In addition, the nomenclatures of the model is provided in Table 1.

Table 1

Parameters for a system of (1)

Parameters	Parameters definition
b	A consistent rate of new individuals joining
ρ i	Mortality rate of an individual unaffected by population density
ρ d	Density-dependent death rate of an individual
d	Mortality rate of an individual resulting from a disease
ϱ	Individuals ingestion rates of Vibrio cholera from polluted water
γ	Ratio of infected class to the recovered class
α	Rate at which susceptible individuals transition from the susceptible class to the protected class as a result of applying a preventive method
ζ	The speed at which individuals who have recovered from an illness gradually lose their immunity
ϕ	The rate of individual infected from Vibrio cholera pathogens
K	The level of Vibrio cholera concentration in food and water
p	The proportion of hygienic compliance, ingestion of cholera bacterium
θ	The proportion of compliance with sanitation measures within the infected group
b B	Rate at which new instances of Vibrio cholera are generated
ρ B	Rate at which instances of Vibrio cholera are eliminated

The authors have discussed the global and local stability analysis and also discussed boundedness and approximate solutions for various compartments using traditional derivative. Since the aforesaid model has not yet investigated via fractal FC to understand the complex geometry of the mentioned dynamical system. Since fractional differential operators are categorized in subbranches of local and nonlocal kernels. Those operators that involve power law kernels are called singular kernels. Moreover, those operators involve exponential and Mittag-Leffler kernels are called nonsingular kernels. Both kinds of operators have their own merits and demerits. Here, we remark that in general fractional differential operators are nonlocal because they involve integrals. On the other hand, time fractional derivatives have memory effects because these operators include information about the function at prior times. The mentioned operators take into account history and nonlocal dispersed effects, which are necessary for a more precise and accurate description of and understanding of the behavior of complex dynamical systems. A proper geometrical interpretation still do not exist for the aforesaid operators. Therefore, various definitions have been defined by researchers in which we cannot differentiate which one be the most notable and best. Due to this fact, researchers are continuously investigating the area for selecting the most better (we refer to the study by Rosales et al. [26]). In this regards, keeping in mind the importance of fractals fractional concept, researchers have used the said area to investigate epidemiological problems for more sophisticated analysis. To the best of our information, model (1) was studied under the classical derivatives for global and local stability analysis. But to understand the complex geometry of the adynamic of the aforesaid model, still the problem has not been investigated by using the concept of fractals FC. Therefore, keeping in mind the importance of non singular nonlocal FFD with exponential kernel, we investigate model (1) as follows:

(2) D t δ , κ 0 CFFFD S ( t ) = b N + ( 1 − p ) ζ R − ( 1 − p ) ϱ B B + K + p α + ρ S , D t δ , κ 0 CFFFD I ( t ) = ( 1 − p ) ϱ B S B + K − ( γ + d + ρ ) I , D t δ , κ 0 CFFFD R ( t ) = { γ I − ( ζ + ρ ) R } , D t δ , κ 0 CFFFD U ( t ) = { p α S + p ζ R − ρ U } , D t δ , κ 0 CFFFD B ( t ) = { ( 1 − θ ) ϕ I + b ( b B − ρ B ) B } ,

where D t δ , κ 0 CFFFD stands for Caputo-Fabrizio fractal fractional derivative (CFFFD), δ is fractional order, κ is the fractal dimension, and 0 < δ ≤ 1 , 0 < κ ≤ 1 . In addition, if we put δ = κ = 1 in model (2), we obtain the traditional model (1). Hence, the model studied in (1) is a special case of our proposed model (2). We establish the existence theory and numerical results for the aforementioned model using some fixed point theorems [31]. In addition, in case of numerical analysis, we apply the method used already in the study by Khan and Atangana [32] for other problems. Several graphical presentations and CPU time for various fractals fractional orders are tabulated. In addition, this is remarkable that using exponential kernel instead of power law kernel makes the process easy for the theoretical analysis and numerical calculations in investigation of many practical applications.

Our article is organized as follows: Introduction is given in Section 1. In Section 2, we give some basic results. The existence theory is given in Section 3. The numerical scheme is developed in Section 4. The numerical simulations are given in Section 5. Section 6 is devoted to conclusion.

2 Background results

Here, we recollect some definitions and theorems that we use in our analysis in this article. If 0 ≤ t ≤ T < ∞ , and Z = C [ 0 , T ] = C ( I ) be the Banach space with norm ‖ G ‖ ∞ = max t ∈ I ∣ G ( t ) ∣ .

Definition 2.1

[31] Suppose that ϒ be continuous and differentiable both fractionally and in fractal sense on ( 0 , b ) , then we define CFFFD as follows:

D t δ , κ 0 CFFFD ( ϒ ( t ) ) = M ( δ ) 1 − δ d d t κ ∫ 0 t ϒ ( η ) exp − δ ( t − η ) 1 − δ d η ,

where 0 < δ , κ ≤ 1 , and M ( 0 ) = M ( 1 ) = 1 .

Definition 2.2

[31] If ϒ is continuous function on ( 0 , b ) , then fractals fractional integral (FFI) is given by

I t δ , κ 0 FFI ( ϒ ( t ) ) = δ κ M ( δ ) ∫ 0 t η δ − 1 ϒ ( η ) d η + κ ( 1 − δ ) t κ − 1 ϒ ( t ) M ( δ ) .

Lemma 2.2.1

[32] If ϒ be continuous and differentiable both fractionally and in fractal sense on ( 0 , b ) , and g ∈ L [ 0 , b ] , such that g vanishes when t → 0 , then the solution of

D t δ , κ 0 CFFFD ( ϒ ( t ) ) = g ( t ) , with ϒ ( 0 ) = ϒ 0

is given by

ϒ ( t ) = ϒ 0 + δ κ M ( δ ) ∫ 0 t η δ − 1 g ( η ) d η + κ ( 1 − δ ) t κ − 1 g ( t ) M ( δ ) .

Theorem 2.3

[32] If Q 1 and Q 2 be two operators such that the first one is contraction and the second one is completely continuous over a closed bounded subset B of a Banach space Z , then the operator equation Q G + Q 2 G = G has at least one solution.

3 Existence and uniqueness of solution

This section is devoted to the main results of the article. We use Banach and Krasnoselskii’s fixed point theorem [31] to elaborate the required theory of existence of solution. To proceed further, we can write the proposed model (2) in the sense of Caputo–Fabrizio fractional (CF) differential equations form as follows:

(3) D t δ 0 C F S ( t ) = κ t κ − 1 Φ 1 ( S , I , R , U , B , t ) , D t δ 0 C F I ( t ) = κ t κ − 1 Φ 2 ( S , I , R , U , B , t ) , D t δ 0 C F R ( t ) = κ t κ − 1 Φ 3 ( S , I , R , U , B , t ) , D t δ 0 C F U ( t ) = κ t κ − 1 Φ 4 ( S , I , R , U , B , t ) , D t δ 0 C F B ( t ) = κ t κ − 1 Φ 5 ( S , I , R , U , B , t ) , S ( 0 ) = S 0 , I ( 0 ) = I 0 , R ( 0 ) = R 0 , U ( 0 ) = U 0 , B ( 0 ) = B 0 ,

where the right-hand sides of proposed model (2) can be written as follows:

Φ 1 ( S , I , R , U , B , t ) = b N + ( 1 − p ) ζ R − ( ( 1 − p ) ϱ B B + K + p α + ρ ) S , Φ 2 ( S , I , R , U , B , t ) = ( 1 − p ) ϱ B S B + K − ( γ + d + ρ ) I , Φ 3 ( S , I , R , U , B , t ) = γ I − ( ζ + ρ ) R , Φ 4 ( S , I , R , U , B , t ) = p α S + p ζ R − ρ U , Φ 5 ( S , I , R , U , B , t ) = ( 1 − θ ) ϕ I + b ( b B − ρ B ) B .

One of the alternative forms of (3) by using G = ( S , I , R , U , B ) and G 0 = ( S 0 , I 0 , R 0 , U 0 , B 0 ) to develop the existence theory can be obtained by considering the following

(4) D t δ 0 C F G ( t ) = κ t κ − 1 F ( t , G ( t ) ) , G ( 0 ) = G 0 .

Equivalently, we can write the integral form of (4) as follows:

(5) G ( t ) = G 0 + κ t κ − 1 ( 1 − δ ) M ( δ ) F ( t , G ( t ) ) + δ κ M ( δ ) ∫ 0 t ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ ,

where G ( t ) is given as follows:

G ( t ) = S ( t ) I ( t ) R ( t ) U ( t ) B ( t ) , F ( t , G ( t ) ) = Φ 1 ( S , I , R , U , B , t ) Φ 2 ( S , I , R , U , B , t ) Φ 3 ( S , I , R , U , B , t ) Φ 4 ( S , I , R , U , B , t ) Φ 5 ( S , I , R , U , B , t ) .

The following hypothesis hold.

For G , G ¯ ∈ Z , one has K F > 0 , such that
∣ F ( t , G ( t ) ) − F ( t , G ¯ ( t ) ) ∣ ≤ K F ∣ G ( t ) − G ¯ ( t ) ∣ .
For real values M 0 , M 1 > 0 , one has
∣ F ( t , G ( t ) ) ∣ ≤ M 0 + M 1 ∣ G ( t ) ∣ .

Let define the operator by

(6) P G ( t ) = G 0 + κ t κ − 1 ( 1 − δ ) M ( δ ) F ( t , G ( t ) ) + δ κ M ( δ ) ∫ 0 t ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ .

Theorem 3.1

Under the assumption ( D 1 ) and if T κ − 1 ( κ + δ T ) K F M ( δ ) < 1 holds, then problem (4) has a unique solution.

Proof

Taking G , G ¯ ∈ Z , we have from (6)

(7) ‖ P G ( t ) − G ¯ ( t ) ‖ ∞ = max t ∈ I κ t κ − 1 ( 1 − δ ) M ( δ ) [ F ( t , G ( t ) ) − F ( t , G ¯ ( t ) ) ] + δ κ M ( δ ) ∫ 0 t ξ κ − 1 [ F ( ξ , G ( ξ ) ) − F ( ξ , G ¯ ( ξ ) ) ] d ξ ≤ κ t κ − 1 ( 1 − δ ) M ( δ ) K F ∥ G − G ¯ ∥ ∞ + δ κ M ( δ ) ∫ 0 T ξ κ − 1 K F ∥ G − G ¯ ∥ ∞ d ξ ≤ κ T κ − 1 ( 1 − δ ) M ( δ ) K F + δ T κ M ( δ ) K F ∥ G − G ¯ ∥ ∞ ≤ T κ − 1 ( κ + δ T ) K F M ( δ ) ∥ G − G ¯ ∥ ∞ .

Therefore, one concludes that P fulfills the criteria of Banach contraction. Hence, P has a unique fixed point. Consequently, we can claim that the considered model (2) has a unique solution.□

Theorem 3.2

If assumptions ( D 1 , D 2 ) , and the condition κ T κ − 1 M ( δ ) K F < 1 hold, then the problem (4) has at least one fixed point. From which we conclude that the proposed model (2) has at least one solution.

Proof

From (5), we define two operators Q 1 and Q 2 as follows:

(8) Q 1 [ G ( t ) ] = G 0 + κ t κ − 1 ( 1 − δ ) M ( δ ) F ( t , G ( t ) )

and

(9) Q 2 [ G ( t ) ] = δ κ M ( δ ) ∫ 0 t ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ .

Considering G , G ¯ ∈ Z , and from (10), one has

(10) ‖ Q 1 ( G ) − Q 1 ( G ¯ ) ‖ ∞ = max t ∈ I κ t κ − 1 ( 1 − δ ) M ( δ ) [ F ( t , G ( t ) ) − F ( t , G ¯ ( t ) ) ] ≤ κ T κ − 1 M ( δ ) K F ∥ G − G ¯ ∥ ∞ .

Thus, Q 1 is contraction. Also, if B = { G ∈ Z : ‖ G ‖ ∞ ≤ ℛ } , be closed bounded subset of Z , where ℛ ≥ δ M 0 T κ M ( δ ) − δ M 1 T κ , then Q 2 is completely continuous operator over B . Obviously Q 2 is continuous as F is continuous. Also

‖ Q 2 ( G ) ‖ = max t ∈ I δ κ M ( δ ) ∫ 0 t ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ ≤ δ κ M ( δ ) max t ∈ I ∫ 0 T ∣ T κ − 1 F ( ξ , G ( ξ ) ) ∣ d ξ ≤ δ κ M ( δ ) ( M 0 + M 1 ℛ ) T κ κ ≤ ℛ .

Hence, Q 2 is bounded. Let t 1 < t 2 ∈ I , then

(11) ∣ Q 2 ( G ( t 2 ) ) − Q 2 ( G ( t 1 ) ) ∣ = δ κ M ( δ ) ∫ 0 t 2 ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ − δ κ M ( δ ) ∫ 0 t 1 ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ + δ κ M ( δ ) ∫ t 1 t 2 ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ ≤ δ κ M ( δ ) [ M 0 + M 1 ℛ ] ∫ t 1 t 2 ξ κ − 1 d ξ ≤ δ κ M ( δ ) [ M 0 + M 1 ℛ ] t 2 κ − t 1 κ κ = δ [ M 0 + M 1 ℛ ] M ( δ ) [ t 2 κ − t 1 κ ] .

With the use of t 2 → t 1 in right-hand side of (11) implies that ∣ Q 2 ( G ( t 2 ) ) − Q 2 ( G ( t 1 ) ) ∣ → 0 . Also boundedness of Q 2 yields that

‖ Q 2 ( G ( t 2 ) ) − Q 2 ( G ( t 1 ) ) ‖ ∞ → 0 , if t 2 → t 1 .

Thus, all conditions of Arzelá–Ascoli theorem hold. Therefore, by using Krasnoselskii’s fixed point theorem, problem (4) has at least one fixed point. Consequently, we can claim that the proposed model (4) has at least one solution.□

4 Numerical method

Following the numerical scheme constructed for general system in the study by Khan and Atangana [32], the solution of (4) can be expressed as follows:

G ( t ) = G 0 + κ t κ − 1 ( 1 − δ ) M ( δ ) F ( t , G ( t ) ) + δ κ M ( δ ) ∫ 0 t ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ ,

which on using t = t i + 1 can be expressed as follows:

(12) G ( t i + 1 ) = G ( t i ) + κ t i κ − 1 ( 1 − δ ) M ( δ ) F ( t i , G ( t i ) ) + δ κ M ( δ ) ∫ 0 t i + 1 ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ .

From (4) implies that

G ( t i + 1 ) = G ( t i ) + κ t i κ − 1 ( 1 − δ ) M ( δ ) F ( t i , G ( t i ) ) − κ t i − 1 κ − 1 ( 1 − δ ) M ( δ ) F ( t i − 1 , G ( t i − 1 ) ) + δ κ M ( δ ) ∫ 0 t i + 1 ξ κ − 1 F ( ξ , G ( ξ ) ) d ξ .

On simplification of the integral, we have

(13) G ( t i + 1 ) = G ( t i ) + κ t i κ − 1 ( 1 − δ ) M ( δ ) F ( t i , G ( t i ) ) − κ t i − 1 κ − 1 ( 1 − δ ) M ( δ ) F ( t i − 1 , G ( t i − 1 ) ) + h 2 δ κ M ( δ ) [ 3 t i κ − 1 F ( t i , G ( t i ) ) − t i − 1 κ − 1 F ( t i − 1 , G ( t i − 1 ) ) ] .

(14) Q 1 ( ξ ) = ξ − t i − 1 t i − t i − 1 t n κ − 1 F ( t i , G ( t i ) ) − ξ − t i t i − t i − 1 t n − 1 κ − 1 F ( t i − 1 , G ( t i − 1 ) ) .

Finally, we obtain the formula for numerical simulation on further simplification by using the interpolation formula (14) and evaluating the integral of (13):

(15) G ( t i + 1 ) = G ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 F ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 F ( t i − 1 , G ( t i − 1 ) ) .

Now, in view of formula (15), we deduce the numerical scheme for our proposed model as follows:

(16) S ( t i + 1 ) = S ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 Φ 1 ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 Φ 1 ( t i − 1 , G ( t i − 1 ) ) , I ( t i + 1 ) = I ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 Φ 2 ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 Φ 2 ( t i − 1 , G ( t i − 1 ) ) , R ( t i + 1 ) = R ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 Φ 3 ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 Φ 3 ( t i − 1 , G ( t i − 1 ) ) , U ( t i + 1 ) = U ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 Φ 4 ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 Φ 4 ( t i − 1 , G ( t i − 1 ) ) , B ( t i + 1 ) = B ( t i ) + κ t i κ − 1 M ( δ ) 1 − δ + 3 δ Δ t 2 Φ 5 ( t i , G ( t i ) ) − κ t i − 1 κ − 1 M ( δ ) 1 − δ + δ Δ t 2 Φ 5 ( t i − 1 , G ( t i − 1 ) ) .

The proposed numerical method has some advantages, and for instance, it evaluates one extra function per step and produces high-order accuracy. The aforesaid numerical method also called the explicit type numerical scheme. In addition, the Adams–Bashforth method demonstrates excellent computational efficiency in low-dimensional systems simulation. Recently, some researchers have confirmed experimentally and theoretically that the aforesaid numerical method poses better numerical stability as compared to original predictor–corrector numerical method [33].

5 Numerical simulations

In the preceding section, we apply the previous section numerical scheme and use the parameters values given in Table 2. Moreover, taking S ( 0 ) = 8,000 , I ( 0 ) = 3,000 , R ( 0 ) = 1,000 , U ( 0 ) = 4,000 , and B ( 0 ) = 25,000 as initial data from [25].

Table 2

Parameters values taken from [25]

Parameters	Values	Parameters	Values
b	0.00082	ρ i	4.21 × 1 0 ‒ 5
ρ d	3.245 × 1 0 ‒ 8	d	0.01
ϱ	1	γ	0.2
α	0.1	ζ	0.01
ϕ	10	K	1 0 6
p	0.7	θ	0.8
b B ‒ ρ B	‒ 0.33

The solution are presented graphically in Figures 1, 2, 3, 4, 5, 6 using various values of fractals and fractional orders.

$Figure 1 Presentation of numerical solution of S , I , R , U S,I,R,U for different values of δ \delta and κ = 0.82 . \kappa =0.82.$

Figure 1

Presentation of numerical solution of S , I , R , U for different values of δ and κ = 0.82 .

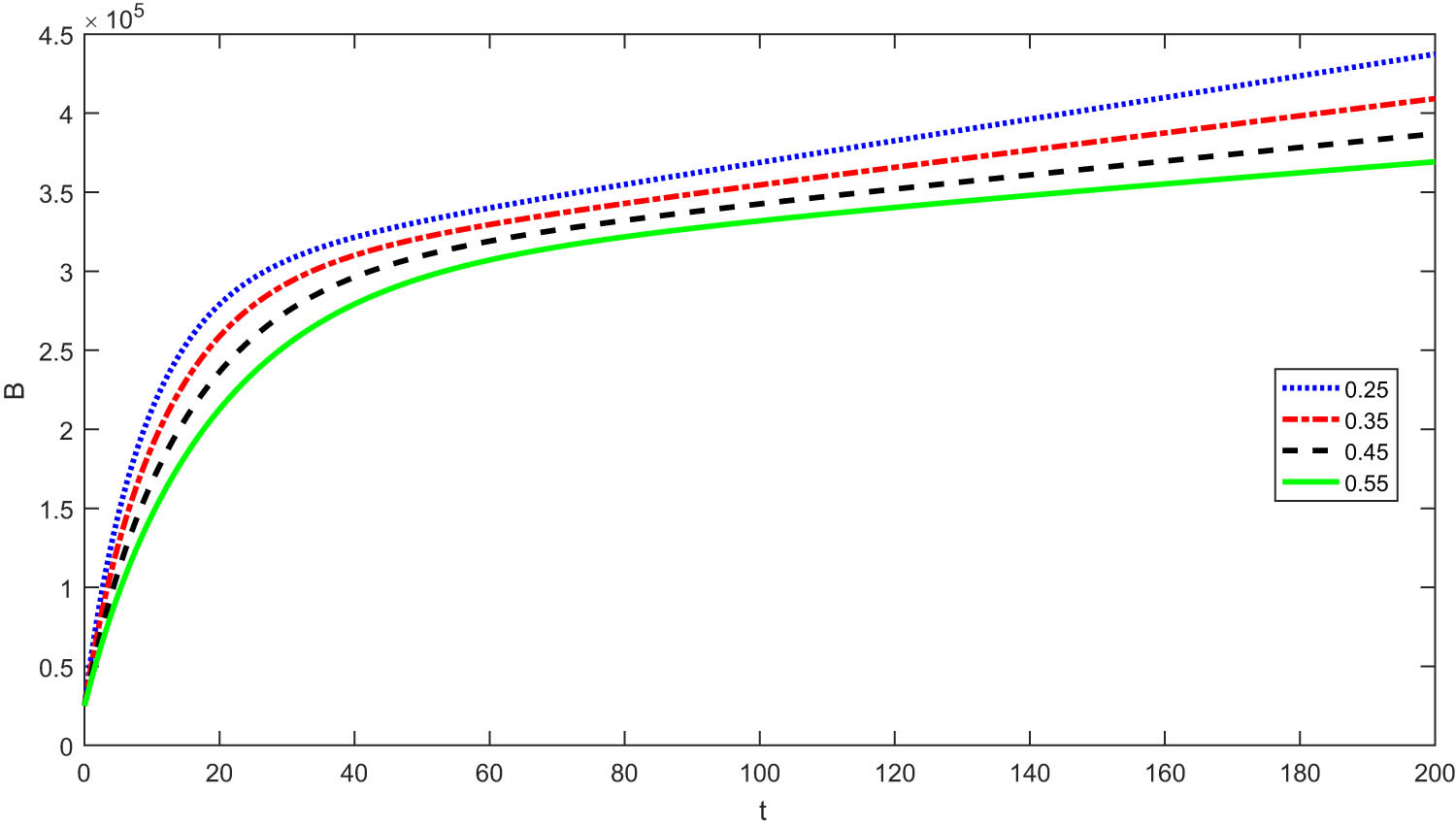

$Figure 2 Presentation of numerical solution of B B for different values of δ \delta and κ = 0.82 \kappa =0.82 .$

Figure 2

Presentation of numerical solution of B for different values of δ and κ = 0.82 .

$Figure 3 Presentation of numerical solution of S , I , R , U S,I,R,U for different values of δ \delta and κ = 0.99 . \kappa =0.99.$

Figure 3

Presentation of numerical solution of S , I , R , U for different values of δ and κ = 0.99 .

$Figure 4 Presentation of numerical solution of B B for different values of δ \delta and κ = 0.99 \kappa =0.99 .$

Figure 4

Presentation of numerical solution of B for different values of δ and κ = 0.99 .

$Figure 5 Presentation of numerical solutions of S , I , R , U S,I,R,U for different values of δ \delta and κ = 1.0 . \kappa =1.0.$

Figure 5

Presentation of numerical solutions of S , I , R , U for different values of δ and κ = 1.0 .

$Figure 6 Presentation of numerical solution of B B for different values of δ \delta and κ = 1.0 \kappa =1.0 .$

Figure 6

Presentation of numerical solution of B for different values of δ and κ = 1.0 .

In Figures 1–6, we have presented the approximate solution for the proposed model using distinct values of fractals-fractional orders. The concerned dynamics have been demonstrated for very small as for large values of fractals order different fractional orders. The fractals orders have a significant impact on the dynamics of different classes. In the same way, smaller fractional order derivatives play significant roles in the decay process as with the mentioned the process become faster than greater orders. Moreover, here in Figures 7, 8, 9, 10, we simulate the results for the proposed model using various fractals fractional orders. Here, one thing we can see that when κ → 1 and δ → 1 , the convergence in curves of solution is obtained.

$Figure 7 Presentation of numerical solutions of S , I , R , U S,I,R,U for different values of δ \delta and κ . \kappa .$

Figure 7

Presentation of numerical solutions of S , I , R , U for different values of δ and κ .

$Figure 8 Presentation of numerical solution of B B for different values of δ \delta and κ \kappa .$

Figure 8

Presentation of numerical solution of B for different values of δ and κ .

$Figure 9 Presentation of numerical solutions of S , I , R , U S,I,R,U for different values of δ \delta and κ . \kappa .$

Figure 9

Presentation of numerical solutions of S , I , R , U for different values of δ and κ .

$Figure 10 Presentation of numerical solution of B B for different values of δ \delta and κ \kappa .$

Figure 10

Presentation of numerical solution of B for different values of δ and κ .

Here, in Table 3, we compute the CPU time for different fractals fractional orders of various compartments. The time computational cost is much more small although the system is nonlinear. This indicates the numerical efficiency of the proposed method.

Table 3

CPU time time for different fractals fractional orders of various compartments taking t = 100

Class	δ = 0.25 , κ = 0.05	δ = 0.45 , κ = 0.25	δ = 0.65 , κ = 0.75	δ = 0.95 , κ = 0.99	δ = 1.0 , κ = 1.0
S	51 s	60 s	90 s	123 s	100 s
I	53 s	62 s	89 s	124 s	99 s
R	55 s	63 s	91 s	122 s	98 s
U	56 s	59 s	88 s	120 s	101 s
B	57 s	58 s	85 s	118 s	102 s

6 Conclusion

Mathematical models have been considered powerful tools to investigate various natural and environmental phenomenons from different perspectives. Therefore, epidemiology has been very well considered under the mentioned tools for further explorations and investigations. The bacterial illness cholera is typically transmitted by tainted water that cause dehydration from infected human. If this is not properly treated, then cause death within few hours. By keeping in mind the importance of the aforesaid illness, we have considered a compartmental mathematical model for the aforesaid disease to investigate it from mathematical perspectives. We have used the concept of nonlocal fractals FC concept to elaborate some theoretical and numerical results. By considering the proposed model under the CFFFD, we have deduced necessary and sufficient conditions for the existence theory of solution using the fixed point theory due to Krasnoselskii and Banach. In addition, for numerical simulation, we have extended the Adam–Bashforth method and constructed a numerical algorithm to present our results graphically. We have presented the numerical results graphically for various fractals and fractional orders. Moreover, the CPU time to record the efficiency of the method has also been computed and tabulated. We observed that the two-step Adams–Bashforth approach has the ability to produce best numerical results for fractals fractional problems. Moreover, the mentioned scheme is also better in cost computation compared to other such type numerical method. On the other hand, FFDs have significance applications in the description of real-world problems. In the future, the concept and methodology we have used can be extended to more complex dynamical systems in physical as well as biological sciences.

kshah@psu.edu.sa

Acknowledgments

Prince Sultan University is appreciated for APC and support through TAS research lab.

Funding information: The authors acknowledge Prince Sultan University for APC and support through TAS research lab.
Author contributions: All authors have accepted responsibility for the entire content of this manuscript and approved its submission.
Conflict of interest: The authors state no conflict of interest.

References

[1] Almeida R, Malinowska AB, Monteiro MT. Fractional differential equations with a Caputo derivative with respect to a kernel function and their applications. Math Methods Appl Sci. 2018;41(1):336–52. 10.1002/mma.4617Search in Google Scholar

[2] Das S, Pan I. Fractional order signal processing: introductory concepts and applications. Berlin: Springer and Business Media; 2011. 10.1007/978-3-642-23117-9Search in Google Scholar

[3] Araz SI. Analysis of a Covid-19 model: optimal control, stability and simulations, Alexandria Eng. J. 2021;60(1):647–58. 10.1016/j.aej.2020.09.058Search in Google Scholar

[4] Debnath L. Recent applications of fractional calculus to science and engineering. Int J Math Math Sci. 2003;2003:3413–42. 10.1155/S0161171203301486Search in Google Scholar

[5] Awadalla M, Yameni Y. Modeling exponential growth and exponential decay real phenomena by Caputo fractional derivative. J Adv Math Comput Sci. 2018;28(2):1–3. 10.9734/JAMCS/2018/43054Search in Google Scholar

[6] Kumar S, Chauhan RP, Momani S, Hadid S. A study of a modified nonlinear dynamical system with fractal-fractional derivative. Int J Numer Method Heat Fluid Flow. 2022;32(8):2620–39. 10.1108/HFF-03-2021-0211Search in Google Scholar

[7] Atangana A, Igret Araz S. Mathematical model of COVID-19 spread in Turkey and South Africa: theory, methods, and applications. Adv Differ Equ. 2020;2020(1):1–89. 10.1186/s13662-020-03095-wSearch in Google Scholar PubMed PubMed Central

[8] Ahmed S, Ahmed A, Mansoor I, Junejo F, Saeed A. Output feedback adaptive fractional-order super-twisting sliding mode control of robotic manipulator. Iran J Sci Technol Trans Electr Eng. 2021;45:335–47. 10.1007/s40998-020-00364-ySearch in Google Scholar

[9] Ahmed S, Wang H, Tian Y. Fault tolerant control using fractional-order terminal sliding mode control for robotic manipulators. Stud Inform Control. 2018;27(1):55–64. 10.24846/v27i1y201806Search in Google Scholar

[10] Shah K, Jarad F, Abdeljawad T. On a nonlinear fractional order model of dengue fever disease under Caputo-Fabrizio derivative, Alexandria Eng. J. 2020;59(4):2305–13. 10.1016/j.aej.2020.02.022Search in Google Scholar

[11] Ahmed S, Wang H, Aslam MS, Ghous I, Qaisar I. Robust adaptive control of robotic manipulator with input time-varying delay. Int J Cont Automat Syst. 2019;17(9):2193–202. 10.1007/s12555-018-0767-5Search in Google Scholar

[12] Atangana A. Fractal-fractional differentiation and integration: connecting fractal calculus and fractional calculus to predict complex system. Chaos Solitons Fractals. 2017;102:396–406. 10.1016/j.chaos.2017.04.027Search in Google Scholar

[13] Khan H, Alzabut J, Shah A, He ZY, Etemad S, Rezapour S, et al. On fractal-fractional waterborne disease model: A study on theoretical and numerical aspects of solutions via simulations. Fractals. 2023;31(4):2340055. 10.1142/S0218348X23400558Search in Google Scholar

[14] He JH. Fractal calculus and its geometrical explanation. Results Phys. 2018;10:272–6. 10.1016/j.rinp.2018.06.011Search in Google Scholar

[15] Fan J, He J. Fractal derivative model for air permeability in hierarchic porous media. Abst Appl Anal. 2012;2012:11pp. 10.1155/2012/354701Search in Google Scholar

[16] Hu Y, He JH. On fractal space time and fractional calculus, Therm Sci. 2016;20(3):773. 10.2298/TSCI1603773HSearch in Google Scholar

[17] Qureshi S, Atangana A. Fractal-fractional differentiation for the modeling and mathematical analysis of nonlinear diarrhea transmission dynamics under the use of real data. Chaos Solitons Fractals. 2020;136:109812. 10.1016/j.chaos.2020.109812Search in Google Scholar

[18] Srivastava HM, Saad KM. Numerical simulation of the fractal-fractional Ebola virus. Fractal Fract. 2020;4(4):49. 10.3390/fractalfract4040049Search in Google Scholar

[19] Mukandavire Z, Liao S, Wang J, Gaff H, Smith DL, Morris Jr JG. Estimating the reproductive numbers for the 2008-2009 cholera outbreaks in Zimbabwe. Proc National Acad Sci. 2011;108(21):8767–72. 10.1073/pnas.1019712108Search in Google Scholar PubMed PubMed Central

[20] Lemos-Paião AP, Silva CJ, Torres DF, Venturino E. Optimal control of aquatic diseases: A case study of Yemenas cholera outbreak. J Optim Theo Appl. 2020;185(3):1008–30. 10.1007/s10957-020-01668-zSearch in Google Scholar

[21] Miller Neilan RL, Schaefer E, Gaff H, Fister KR, Lenhart S. Modeling optimal intervention strategies for cholera. Bull Math Bio. 2010;72:2004–18. 10.1007/s11538-010-9521-8Search in Google Scholar PubMed

[22] Boukhouima A, Lotfi EM, Mahrouf M, Rosa S, Torres DF, Yousfi N. Stability analysis and optimal control of a fractional HIV-AIDS epidemic model with memory and general incidence rate. Europ Phys J Plus. 2021;136(1):1–20. 10.1140/epjp/s13360-020-01013-3Search in Google Scholar

[23] Sidi Ammi MR, Tahiri M, Torres DF. Global stability of a Caputo fractional SIRS model with general incidence rate. Math Comput Sci. 2021;15:91–105. 10.1007/s11786-020-00467-zSearch in Google Scholar

[24] Arik IA, Sari HK, Araz SI. Numerical simulation of Covid-19 model with integer and non-integer order: the effect of environment and social distancing. Results Phys. 2023;51:106725. 10.1016/j.rinp.2023.106725Search in Google Scholar

[25] Hailemariam Hntsa K, Nerea Kahsay B. Analysis of cholera epidemic controlling using mathematical modeling. Int J Math Math Sci. 2020;2020:1–3. 10.1155/2020/7369204Search in Google Scholar

[26] Rosales JJ, Filoteo JD, González A. A comparative analysis of the RC circuit with local and non-local fractional derivatives. Revista mexicana de fiiisica. 2018;64(6):647–54. 10.31349/RevMexFis.64.647Search in Google Scholar

[27] He JH. A tutorial review on fractal spacetime and fractional calculus. Int J Theo Phy. 2014;53:3698–718. 10.1007/s10773-014-2123-8Search in Google Scholar

[28] Kwasi-Do Ohene Opoku N, Afriyie C. The role of control measures and the environment in the transmission dynamics of cholera. Abs Appl Anal. 2020;2020:1–16. 10.1155/2020/2485979Search in Google Scholar

[29] Codeço CT. Endemic and epidemic dynamics of cholera: the role of the aquatic reservoir. BMC Infec Dis. 2001;1(1):1–4. 10.1186/1471-2334-1-1Search in Google Scholar PubMed PubMed Central

[30] Liao S, Yang W. On the dynamics of a vaccination model with multiple transmission ways. Int J Appl Math Comput Sci. 2013;23(4):761–72. 10.2478/amcs-2013-0057Search in Google Scholar

[31] Burton TA. A fixed-point theorem of Krasnoselskii. Appl Math Lett. 1998;11(1):85–8. 10.1016/S0893-9659(97)00138-9Search in Google Scholar

[32] Khan MA, Atangana A. Numerical methods for fractal-fractional differential equations and engineering: Simulations and modeling. New York: CRC Press; 2023. 10.1201/9781003359258Search in Google Scholar

[33] Tutueva A, Butusov D. Stability analysis and optimization of semi-explicit predictor-corrector methods. Mathematics. 2021;9(19):2463. 10.3390/math9192463Search in Google Scholar

Received: 2023-08-31

Revised: 2023-10-11

Accepted: 2023-11-12

Published Online: 2024-01-11

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

https://doi.org/10.1515/phys-2023-0165

Keywords for this article

transmission dynamics; CFFFD; fixed point approach; Adam’s Bashforth numerical method

Creative Commons

BY 4.0
