Crystal structure of dimethyl 5-(benzylamino)isophthalate, C17H17NO4

  • Weixuan Sun , Xuedong Fang and Hu Zang EMAIL logo
Published/Copyright: May 31, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C17H17NO4, monoclinic, C2/c (no. 15), a = 24.367(3) Å, b = 6.2556(6) Å, c = 20.854(2) Å, β = 110.016(2)°, V = 2986.9(5) Å3, Z = 8, Rgt(F) = 0.0539, wRref(F2) = 0.1578, T = 293(2) K.

CCDC no.:: 1479133

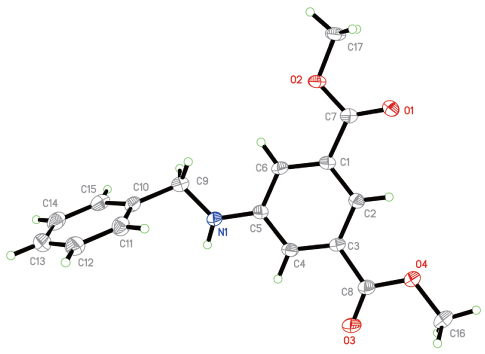

The asymmetric unit of the title structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless blocks Size 0.24 × 0.22 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.0 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:52.2°, >99%
N(hkl)measured, N(hkl)unique, Rint:7987, 2967, 0.053
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1560
N(param)refined:203
Programs:SHELX [8], Bruker programs [9]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.34995(11)0.5846(4)0.09648(12)0.0333(6)
C20.31264(11)0.6926(4)0.12233(12)0.0350(6)
H20.30450.63890.15970.042*
C30.28745(11)0.8829(4)0.09159(13)0.0329(6)
C40.29978(11)0.9628(4)0.03631(13)0.0367(6)
H40.28271.09050.01650.044*
C50.33739(11)0.8552(4)0.00958(12)0.0343(6)
C60.36203(11)0.6620(4)0.04058(13)0.0349(6)
H60.38670.58550.02340.042*
C70.37853(11)0.3877(4)0.13251(13)0.0364(6)
C80.24811(12)1.0105(4)0.11774(13)0.0381(6)
C90.39338(13)0.8644(4)−0.06946(15)0.0467(7)
H9A0.37690.7476−0.10070.056*
H9B0.42630.8090−0.03220.056*
C100.41442(11)1.0365(4)−0.10614(13)0.0392(7)
C110.44597(12)1.2083(4)−0.07008(14)0.0448(7)
H110.45371.2170−0.02330.054*
C120.46594(13)1.3660(5)−0.10215(16)0.0537(8)
H120.48711.4799−0.07690.064*
C130.45491(15)1.3568(5)−0.17120(18)0.0600(9)
H130.46881.4631−0.19280.072*
C140.42320(15)1.1893(5)−0.20788(16)0.0585(9)
H140.41511.1830−0.25480.070*
C150.40305(12)1.0285(5)−0.17555(14)0.0473(8)
H150.38180.9150−0.20090.057*
C160.20417(14)1.0426(5)0.20164(15)0.0606(9)
H16A0.20190.96780.24090.091*
H16B0.16571.05570.16830.091*
H16C0.22031.18240.21500.091*
C170.44606(13)0.1127(4)0.13856(14)0.0494(8)
H17A0.47090.06120.11480.074*
H17B0.41860.00340.13910.074*
H17C0.46940.14910.18460.074*
N10.35033(11)0.9438(4)−0.04324(13)0.0508(7)
O10.37096(9)0.3148(3)0.18229(10)0.0532(6)
O20.41500(8)0.2996(2)0.10431(9)0.0412(5)
O30.22432(9)1.1732(3)0.09224(10)0.0591(6)
O40.24119(8)0.9249(3)0.17264(9)0.0493(5)
H10.3316(13)1.050(4)−0.0597(14)0.050(9)*

Source of material

5-(benzylamino)isophthalic acid (0.2 mmol, 0.052 g) was added to 20 mL methanol. The mixture was stirred and refluxed for twenty minutes. After filtration, the clear solution was left to slowly evaporate in air to give colorless block crystals of the title compound suitable for X-ray diffraction.

Experimental details

The C-bound H atoms were positioned with idealized geometry and were refined with Uiso(H) = 1.2Ueq(C) using a riding model with C—H = 0.93 Å for aromatic H atoms, C—H = 0.96 Å for methyl H atoms and C—H = 0.97 Å for methylene H atoms.

Discussion

It is well known that carboxylates are excellent building blocks for the construction of coordination polymers because the carboxylate groups may induce core aggregation and link clusters into extended frameworks by its bridging ability [1–7]. The title compound was unintentionally synthesized during the recrystallisation of 5-(benzylamino)isophthalic acid from methanol. This compound may be a good candidate for artificial eye vitreous. The values of the geometric parameters of the title structure are within normal ranges and experimental errors. The dihedral angle between the two arene moieties is 69.74°. In the crystal structure, molecules are linked via pairs of N—H⋯O hydrogen bonds between the NH group and the carbonyl O atom. Furthermore, the interactions between the arene rings [centroid-centroid distance = 3.7576(16) Å] connect the molecules to a three-dimensional network, which may be effective in the stabilization of the structure.

Acknowledgements:

The project was supported by the Pharmaceutical industry Promotion Project of Jilin Province (20140311015YY).

References

1. Garudachari, B.; Islor, A. M.; Satyanarayan, M. N.; Gerber, T.; Hosten, E.; Betz, R.: Crystal structure of ethyl 6-methyl-4-oxo-1,4-dihydroquinoline-3-carboxylate, C13H13NO3. Z. Kristallogr. NCS 228 (2013) 301–302.10.1524/ncrs.2013.0102Search in Google Scholar

2. Song, X. Z.; Song, S. Y.; Zhao, S. N.; Hao, Z. M.; Zhu, M.; Meng, X.; Wu, L. L.; Zhang, H. J.: Single-cystal-to-single-crystal transformation of a europium(III) metal-organic framework producing a multi-responsive luminescent sensor. Adv. Funct. Mater. 24 (2014) 4034–4041.10.1002/adfm.201303986Search in Google Scholar

3. Chennat, T.; Eisner, U.: A new synthesis of 1,4-dihydropyridines. J. Chem. Soc., Perkin Trans. 1 (1975) 926–929.10.1039/p19750000926Search in Google Scholar

4. Isloor, A. M.; Kalluraya, B.; Shetty, P.: Regioselective reaction: Synthesis, characterization and pharmacological studies of some new Mannich bases derived from 1,2,4-triazoles. Eur. J. Med. Chem. 44 (2009) 3784–3787.10.1016/j.ejmech.2009.04.038Search in Google Scholar PubMed

5. He, J. Y.; Yao, Q. G.; Liu, J. J.; Jia, H. Z.; Yu, H. W.: Crystal structure of dimethyl 4-(4-chlorophenyl)-1,4-dihydropyridine-3,5- dicarboxylate, C15H14ClNO4. Z. Kristallogr. NCS 229 (2014) 123–124.10.1515/ncrs-2014-0065Search in Google Scholar

6. Zhu, M.; Song, X. Z.; Song, S. Y.; Meng, X.; Zhao, S. N.; Wu, L. L.; Wang, C.; Zhang, H. J.: A temperature-responsive smart europium metal-organic framework switch for reversible capture and release of intrinsic Eu3+ ions. Adv. Sci. 2 (2015) 1500012.10.1002/advs.201500012Search in Google Scholar PubMed PubMed Central

7. Zhao, S. N.; Li, L. J.; Song, X. Z.; Zhu, M.; Hao, Z. M.; Meng, X.; Wu, L. L.; Feng, J.; Song, S. Y.; Wang, C.; Zhang, H. J.: Lanthanide ion codoped emitters for tailoring emission trajectory and temperature sensing. Adv. Funct. Mater. 25 (2015) 1463–1469.10.1002/adfm.201402061Search in Google Scholar

8. Sheldrick, G.M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

9. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

Received: 2016-2-1
Accepted: 2016-5-10
Published Online: 2016-5-31
Published in Print: 2016-9-1

©2016 Weixuan Sun et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
