Crystal structure of tetraethylammonium 4-aminobenzenesulfonate, C14H26N2O3S

  • Ning Sun and Yuanyuan Cai EMAIL logo
Published/Copyright: April 7, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C14H26N2O3S, monoclinic, Pc (no. 7), a = 7.1396(4) Å, b = 9.2946(5) Å, c = 13.4298(7) Å, β = 115.688(4)°, V = 803.12(8) Å3, Z = 2, Rgt(F) = 0.0341, wRref(F2) = 0.0961, S = 1.054, T = 296(2) K.

CCDC no.:: 1465307

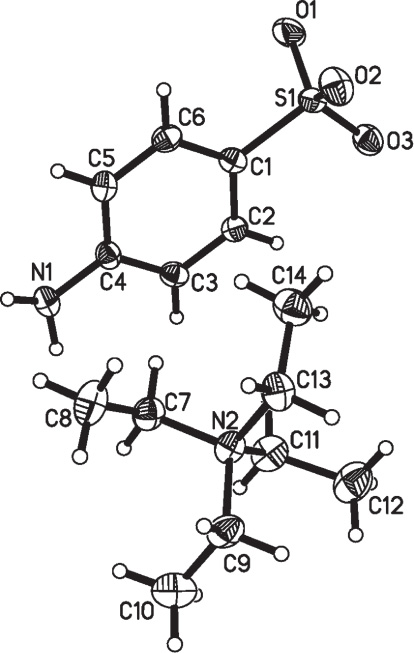

The figure shows the asymmetric unit of the title salt. Tables 1–3 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.18×0.22×0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.11 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.02°
N(hkl)measured, N(hkl)unique:2621, 1823
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1719
N(param)refined:187
Programs:BRUKER SHELX [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)2a0.213(3)0.608(5)0.053(4)0.075
H(1B)2a0.421(6)0.650(3)0.052(4)0.075
H(2A)2a0.36260.32860.35240.044
H(3A)2a0.19390.45240.18900.048
H(5A)2a0.74100.53010.18320.052
H(6A)2a0.90760.40070.34410.049
H(7A)2a0.19100.84660.18600.060
H(7B)2a0.37890.74890.25900.060
H(8A)2a0.48840.92240.17270.107
H(8B)2a0.60050.94760.30070.107
H(8C)2a0.41191.04480.22650.107
H(9A)2a0.15241.03240.40710.067
H(9B)2a0.29871.09240.35750.067
H(10A)2a−0.04291.15430.24600.123
H(10B)2a−0.10510.99120.22890.123
H(10C)2a0.04121.05470.18020.123
H(11A)2a0.18060.66520.34550.069
H(11B)2a−0.00260.76980.27820.069
H(12A)2a−0.03330.68890.43440.116
H(12B)2a0.00100.85590.44270.116
H(12C)2a0.18600.75240.51060.116
H(13A)2a0.44210.88750.51710.064
H(13B)2a0.57180.93490.45400.064
H(14A)2a0.70350.72040.54780.098
H(14B)2a0.61890.69350.42050.098
H(14C)2a0.48760.64550.48270.098
Table 3

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
S(1)2a0.7844(1)0.25528(8)0.49051(9)0.0361(4)0.0373(4)0.0385(6)0.0050(3)0.0122(4)0.0000(4)
O(1)2a0.8906(5)0.1364(3)0.4677(3)0.091(2)0.068(2)0.056(2)0.045(2)0.032(2)0.013(2)
N(1)2a0.3492(5)0.5824(3)0.0718(3)0.053(2)0.056(2)0.041(2)0.006(2)0.020(2)0.012(2)
C(1)2a0.6529(5)0.3505(3)0.3650(3)0.037(2)0.030(1)0.037(2)0.000(1)0.012(2)−0.003(1)
O(2)2a0.9277(4)0.3581(3)0.5679(2)0.052(2)0.069(2)0.044(2)−0.016(1)0.007(1)−0.006(2)
C(2)2a0.4389(5)0.3682(3)0.3180(3)0.037(2)0.033(2)0.042(3)−0.001(1)0.018(2)0.000(2)
N(2)2a0.2774(4)0.8729(3)0.3498(3)0.048(2)0.035(1)0.043(2)−0.010(1)0.021(2)−0.013(1)
O(3)2a0.6277(4)0.2087(3)0.5242(2)0.051(1)0.049(1)0.052(2)−0.002(1)0.020(1)0.009(1)
C(3)2a0.3379(5)0.4437(3)0.2207(3)0.037(2)0.039(2)0.039(3)0.002(1)0.011(2)−0.003(2)
C(4)2a0.4508(5)0.5068(3)0.1697(3)0.050(2)0.034(2)0.033(3)0.001(2)0.018(2)−0.001(2)
C(5)2a0.6641(5)0.4893(4)0.2168(3)0.048(2)0.046(2)0.042(3)−0.003(2)0.024(2)0.002(2)
C(6)2a0.7641(5)0.4118(3)0.3134(3)0.034(2)0.043(2)0.047(3)−0.004(1)0.018(2)−0.005(2)
C(7)2a0.3216(6)0.8450(4)0.2521(3)0.056(2)0.050(2)0.044(3)−0.002(2)0.021(2)−0.012(2)
C(8)2a0.4690(7)0.9495(5)0.2366(4)0.078(3)0.086(3)0.066(4)−0.016(3)0.045(3)−0.006(3)
C(9)2a0.1901(7)1.0227(4)0.3462(4)0.066(2)0.040(2)0.067(3)0.001(2)0.036(2)−0.010(2)
C(10)2a0.0041(8)1.0590(6)0.2408(5)0.074(3)0.076(3)0.094(5)0.016(3)0.034(3)0.002(3)
C(11)2a0.1226(6)0.7592(4)0.3466(4)0.058(2)0.045(2)0.074(3)−0.017(2)0.032(2)−0.011(2)
C(12)2a0.0637(8)0.7646(5)0.4424(5)0.081(3)0.073(3)0.100(4)−0.013(3)0.060(3)−0.002(3)
C(13)2a0.4746(6)0.8633(4)0.4560(4)0.058(2)0.053(2)0.044(3)−0.011(2)0.017(2)−0.007(2)
C(14)2a0.5809(7)0.7172(4)0.4789(4)0.059(2)0.061(2)0.074(4)−0.003(2)0.025(2)0.013(2)

Source of material

Sulfanilic acid (98%, A. R.) and tetraethylammonium hydroxide (25% aqueous solution, C. R.) were solved in small quantites of water/alcohol with a molar ratio of 1:2. The mixture was stirred for an hour and set aside to yield colorless crystal after about 7 days.

Experimental details

The hydrogen atoms bonded to carbon were idealized and refined using a riding model (AFIX 23, 33 or 43 option). The N—H distances were fixed at 0.93(1) Å (DFIX instruction).

Discussion

Sulfanilic acid is an aromatic molecule with two different functional groups (—NH2 and —SO3H). Obviously, the —SO3H group of the acid is easy to lose its proton under basic conditions and can be regarded as a good hydrogen bond donor due to the three oxygen atoms. At the same time, the amino group can be thought of as a good hydrogen bond acceptor. Searching in CSD database [1], it can be found that sulfanilic acid can interact with various compounds, such as varied organic cations [2–6] and metal ions [7, 8], to form complicated crystal structures. As part of a systematic study of the related crystal structures, the title compound was synthesized and its crystal structure is reported here.

There are one independent sulfanilate and one tetraethylammonium in the asymmetric unit of the title structure (Figure). Clearly, the only sulfanilate anion can be used as both hydrogen bond donor and acceptor due to its amino group and deprotonated sulfonate group. The tetraethylammonium cation, which keeps its tetrahedral configuration, is the counter cation. The sulfanilate ions are connected with each other to a wavy two-dimensional hydrogen-bonded layers parallel to the ac plane. Between the layers, tetraethylammonium ions are regularly assigned.

Acknowledgements:

We thank for the support from Henan University of Traditional Chinese Medicine.

References

1. Groom, C. R.; Allen, F. H.: The cambridge structural database in retrospect and prospect. Angew. Chem., Int. Ed. 53 (2014) 662–671.10.1002/anie.201306438Search in Google Scholar PubMed

2. Schreuer, J.: Crystal structure of ammonium sulfanilate hydrate, NH4H2NC6H4SO3. H2O. Z. Kristallogr. NCS, 214 (1999) 315–316.10.1515/ncrs-1999-0311Search in Google Scholar

3. Schreuer, J.: Crystal structure of methylammonium sulfanilate hydrate, (CH3NH3)H2NC6H4SO3. Z. Kristallogr. NCS 214 (1999) 317–318.10.1515/ncrs-1999-0312Search in Google Scholar

4. Schreuer, J.: Crystal structure of hydroxylammonium sulfanilate hydrate, (NH3OH)H2NC6H4SO3. Z. Kristallogr. NCS, 214 (1999) 319–320.10.1515/ncrs-1999-0313Search in Google Scholar

5. Russell, V. A.; Etter, M. C.; Ward, M. D.: Guanidinium para-substituted benzenesulfonates: competitive hydrogen bonding in layered structures and the design of nonlinear optical materials. Chem. Mat. 6 (1994) 1206–1217.10.1021/cm00044a019Search in Google Scholar

6. Li, J.; Liang, Z. P.; Guo, H. M.: Triethylammonium 4-aminobenzenesulfonate. Acta Crystallogr. E63 (2007) 2884–2884.10.1107/S1600536807022027Search in Google Scholar

7. Starynowicz, P.: Structure of bis (4-aminobenzenesulfonato-O) heptaaquaneodymium 4-aminobenzenesulfonate hydrate. Acta Crystallogr. C48 (1992) 1414–1416.10.1107/S0108270192000593Search in Google Scholar

8. Zhao, J.; Dang, Z. H.; Wang, Y. J.; Ye, Y. Z.; Xu, L.: Bis(4-aminobenzenesulfonato-κN)tetraaquanickel(II). Acta Crystallogr. E63 (2007) 1773–1773.10.1107/S1600536807025512Search in Google Scholar

9. Bruker: SAINT-Plus, SHELXTL and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2004.Search in Google Scholar
