Crystal structure of 1-(2,3-dihydro-4-methyl-3-phenyl-2-thioxothiazol-5-yl)-1-ethanone, C12H11NOS2

  • Yahia N. Mabkhot EMAIL logo , Hazem A. Ghabbour , Faiz A. Al-Aizari and Salim Al-Showiman
Published/Copyright: April 21, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

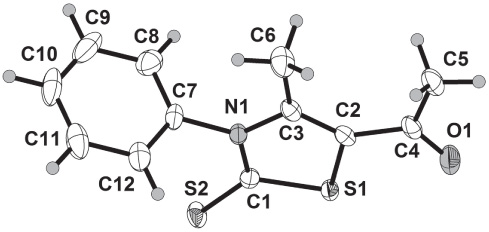

C12H11NOS2, monoclinic, P21/n (no. 14), a = 12.4674 (6) Å, b = 6.7357 (3) Å, c = 14.0709 (6) Å, β = 98.189 (2)°, V = 1169.58 (9) Å3, Z = 4, Rgt(F) = 0.0316, wRref(F2) = 0.0802, T = 100.

CCDC no.:: 1444405

Tables 1 and 2 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow blocks size 0.49 × 0.45 × 0.13
Wavelength:Mo Kα radiation (0.71073 Å)
μ:4.31
Diffractometer, scan mode:Bruker Apex-II φ and ω
2θmax, completeness:65,56°, >99%
N(hkl)measured, N(hkl)unique:16903, 2049
Rint:0.0554
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ (Iobs), 1679
N(param)refined:147
Programs:SHELX [8], Bruker programs [9]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.71608 (4)0.28622 (7)0.84497 (3)0.01236 (14)
S20.49533 (4)0.28767 (8)0.90468 (3)0.01677 (15)
O10.91334 (11)0.2919 (2)0.76908 (10)0.0222 (3)
N10.54533 (12)0.2873 (2)0.72320 (11)0.0119 (3)
C10.57605 (15)0.2869 (3)0.82127 (13)0.0123 (4)
C20.72826 (15)0.2867 (3)0.72273 (13)0.0126 (4)
C30.62924 (15)0.2865 (3)0.66783 (13)0.0137 (4)
C40.83983 (16)0.2879 (3)0.70054 (14)0.0153 (4)
C50.86423 (17)0.2856 (3)0.59957 (15)0.0201 (4)
H5A0.94280.27850.60000.030*
H5B0.83620.40710.56670.030*
H5C0.82970.16990.56580.030*
C60.60242 (17)0.2860 (4)0.56090 (14)0.0238 (5)
H6A0.64450.38920.53390.036*
H6B0.52490.31230.54270.036*
H6C0.62020.15600.53600.036*
C70.43146 (15)0.2935 (3)0.68402 (13)0.0150 (4)
C80.37913 (17)0.1191 (3)0.65377 (14)0.0230 (5)
H8A0.4172-0.00340.65710.028*
C90.26913 (18)0.1276 (4)0.61828 (15)0.0320 (6)
H9A0.23150.01000.59600.038*
C100.21436 (18)0.3068 (4)0.61538 (15)0.0310 (6)
H10A0.13930.31140.59120.037*
C110.26791 (17)0.4785 (4)0.64726 (14)0.0273 (5)
H11A0.22960.60060.64550.033*
C120.37804 (16)0.4732 (3)0.68194 (13)0.0201 (5)
H12A0.41570.59090.70380.024*

Source of material

The synthesis of 1-(2,3-dihydro-4-methyl-3-phenyl-2-thioxothiazol-5-yl)-1-ethanone was not carried out by our reported procedure [10–12]. 1-(2,3-dihydro-4-methyl-3-phenyl-2-thioxothiazol-5-yl)-1-ethanone was synthesis with a new and different way: to aniline (4 mmol) and 10 mL CS2 was slowly added 3-chloro-pentane-2,4-dione (4 mmol). The reaction mixture was stirred for 4–5 h. The residue was recrystallized from ethanol to form yellow crystals; yield (75%); m.p.: 175–177°C. 1H-NMR 400 MHz, CDCl3): : δ(ppm) 1.18 (s, CH3), 2.35 (s, CH3), 7.14–7.16 (m, 2 CH), 7.50–7.52 (m, 3 CH) ppm; 13C NMR (100 MHz, CDCl3): d = 16.1 (CH3), 30.2 (CH3), 120.9 (C), 128.0 (2 CH), 130.1 (CH), 130.2 (2 CH), 137.3 (C—N), 147.3 (C), 188.1 (C), 190.5 (C) ppm.

Discussion

Compounds of thiazoline-2-thiones are important for photographic materials [1], and in synthesis of heterocyclic compounds [2–4]. Thiazoline-2-thiones derivatives are present in the heterocyclic units of many biomolecules and sulphur coordination compounds [5]. They are also powerful inhibitors of carbonic anhydrase activity [6, 7].

The molecules packing in the crystal structure is at least stabilized via one intermolecular non-classical hydrogen bond, of which O1 work as hydrogen bond acceptor and C12 work as hydrogen bond donor. The distance of the interaction between C12—H12A⋯O1i is 2.51 Å, and the angle is 150°. Symmetry codes: (i) −x+3/2, y+1/2, −z+3/2.

Acknowledgements:

The authors extend their sincere appreciation to the Deanship of Scientific Research at king Saud University for its funding this Prolific Research group (PRG-1437-29).

References

1. Hirano, S.; Takagi. Y.: A photographic image. US Patent 4429036, Chem. Abstr. 99 (1984) 46004b.Search in Google Scholar

2. Cristiani, F.; Devillanova, F. A.; Diaz, A. ; Verani, G.: Thio-amido and seleno-amido groups as reducing agents towards OsO4. A kinetic study with some imidazolidine-2-selones. Phosphorus, Sulfur Relat. Elem. 12 (1982) 305-315..10.1080/03086648208078963Search in Google Scholar

3. Cox, P. J.; Aslanidis, P.; Karagiannidis, P.; Hadjikakou, S.: Dinuclear complexes of silver(I) bromide: the crystal structure of bis[bromo-(pyrimidine-2-thione)(triphenylphosphine) silver(I)], Inorg. Chim. Acta 310 (2000) 268–272.10.1016/S0020-1693(00)00286-3Search in Google Scholar

4. Toplak, R. B; Rocherulle, P.; Lorcy. D: Unexpected reaction of dimethoxycarbonyl dithiole-2-thione or tetramethoxycarbonyl TTF as dipolarophiles. Tetrahedron Lett. 43 (2002) 3879–3882.10.1016/S0040-4039(02)00672-XSearch in Google Scholar

5. Raper, E. S.: Complexes of heterocyclic thione donors. Coord. Chem. Rev. 61 (1985) 115—185.10.1016/0010-8545(85)80004-7Search in Google Scholar

6. Supuran, C.; Briganti, T.; Scozzafava, F. A.: Sulfenamido-sulfonamides as inhibitors of carbonic anhydrase isozymes I, II and IV. J. Enzyme Inhib. 12 (1997) 175–190.10.3109/14756369709029313Search in Google Scholar PubMed

7. Brezeanu, M. R.; Olar, G.; Manole, C.T.; Supuran, C. T.: 1,3,4-Thiadiazole derivatives .1. Zn(II) and Hg(II) coordination-compounds of 2-amino-5-mercapto-1,3,4-thiadiazole as enzyme-inhibitors. Rev. Roum. Chim. 37 (1992) 425–431.Search in Google Scholar

8. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

9. Brucker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA, 2009.10.1097/IAE.0b013e3181ad255fSearch in Google Scholar PubMed

10. Yavari, I.; Sirouspour, M.; Souri, S.: A one-pot synthesis of N-Alkylthiazoline-2-Thiones from CS2, primary amines, and 2-chloro-1,3-dicarbonyl compounds in water. Monatsh. Chem. 141 (2010) 49–52.10.1007/s00706-009-0227-2Search in Google Scholar

11. Bellec, N.; Guerin, D.; Lorcy, D.; Robert, A.; Carlier, R.; Tallec, A.: Chemical and electrochemical investigations on thiazolium salts: a route to powerful donors in the dithiadiazafulvalene series. Acta Chem. Scand. 53 (1999) 861–866.10.3891/acta.chem.scand.53-0861Search in Google Scholar

12. Mohareb, R. M.; Sherif, S. M.: The reaction of carbon-disulfide with 2-aminoprop-1-ene-1,1,3-tricarbonitrile - one-pot synthesis of thiophenes and their condensed derivatives. J. Chem. Res. Synop. 4 (1994) 484–485.10.1002/chin.199522119Search in Google Scholar

Received: 2016-1-3
Accepted: 2016-3-21
Published Online: 2016-4-21
Published in Print: 2016-9-1

©2016 Yahia N. Mabkhot et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
