Crystal structure of ((1-((1-benzylpyrrolidin-2-yl)methyl)-3-ethyl-1H-imidazol-2(3H)-ylidene)-κ2C,N)dichloridopalladium(II), C17H23Cl2N3Pd

  • Peng-Cheng Qian EMAIL logo
Published/Copyright: March 19, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C17H23Cl2N3Pd, orthorhombic, P212121 (no. 19), a = 9.6460(18) Å, b = 13.883(3) Å, c = 14.520(3) Å, V = 1944.4(6) Å3, Z = 4, Rgt(F) = 0.0373, wRref(F2) = 0.0917, T = 298(2) K.

CCDC no.:: 1457018

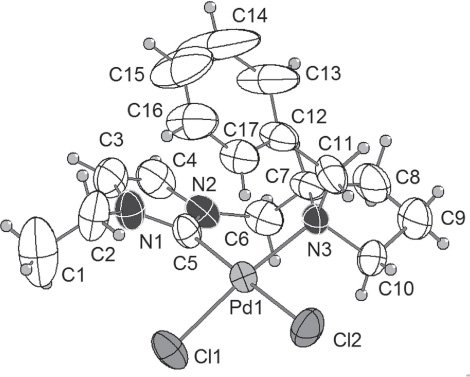

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow, block, size 0.14×0.22×0.36 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:12.31 cm−1
Diffractometer, scan mode:Bruker APEX, φ and ω scan
2θmax:50.04°
N(hkl)measured, N(hkl)unique:10216, 3433
N(param)refined:209
Programs:SHELX [2], Platon [3], Bruker programs [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)4a1.34350.4425−0.22340.227
H(1B)4a1.21710.4521−0.29060.227
H(1C)4a1.22970.3619−0.22620.227
H(2A)4a1.21270.5416−0.14660.097
H(2B)4a1.07530.4939−0.18210.097
H(3)4a1.36230.4217−0.03100.086
H(4)4a1.27660.33470.10350.087
H(6A)4a1.03260.29180.16540.074
H(6B)4a0.92700.26680.08670.074
H(7)4a0.95070.45510.15970.069
H(8A)4a0.82110.41430.27620.105
H(8B)4a0.82670.30600.24400.105
H(9A)4a0.60030.32300.21840.117
H(9B)4a0.61070.43650.21600.117
H(3A)4a0.58100.40400.06370.086
H(3B)4a0.66870.30840.06940.086
H(11A)4a0.73830.54720.14110.080
H(11B)4a0.67520.54840.04170.080
H(13)4a0.96020.62240.16950.153
H(14)4a1.13930.72020.11730.245
H(15)4a1.14670.7655−0.03510.183
H(16)4a0.99080.7083−0.13490.121
H(17)4a0.82440.6024−0.08810.075
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Pd(1)4a0.84672(4)0.39686(2)−0.07110(2)0.0427(2)0.0438(2)0.0389(2)0.0045(2)0.0039(2)0.0009(2)
Cl(1)4a0.9000(2)0.3355(1)−0.21418(9)0.0781(9)0.0807(9)0.0368(6)0.0240(7)−0.0009(6)−0.0067(6)
Cl(2)4a0.6147(1)0.4210(1)−0.1225(1)0.0420(7)0.090(1)0.077(1)−0.0058(6)−0.0019(6)0.0029(8)
N(1)4a1.1585(5)0.4248(4)−0.0749(3)0.046(2)0.077(3)0.059(3)0.014(2)0.005(3)0.004(2)
N(2)4a1.0834(5)0.3499(3)0.0442(3)0.058(3)0.058(3)0.044(3)0.019(2)−0.007(2)−0.004(2)
N(3)4a0.7924(4)0.4304(3)0.0662(3)0.053(2)0.044(2)0.047(2)−0.006(2)0.016(2)−0.004(2)
C(1)4a1.246(1)0.430(1)−0.2311(8)0.110(8)0.22(2)0.125(9)0.046(9)0.040(7)0.039(8)
C(2)4a1.1680(7)0.4805(6)−0.1596(5)0.050(4)0.121(6)0.073(4)0.006(4)0.010(3)0.031(4)
C(3)4a1.2706(6)0.4051(6)−0.0193(5)0.043(3)0.091(5)0.081(4)0.015(3)−0.003(3)−0.006(4)
C(4)4a1.2239(7)0.3578(5)0.0546(5)0.063(4)0.085(4)0.070(5)0.030(3)−0.013(3)−0.011(4)
C(5)4a1.0425(5)0.3905(4)−0.0350(3)0.042(2)0.058(3)0.045(2)0.014(3)0.002(2)−0.002(3)
C(6)4a0.9838(7)0.3177(4)0.1125(4)0.086(4)0.052(3)0.047(3)0.000(3)−0.002(3)0.009(3)
C(7)4a0.8925(6)0.4000(4)0.1427(3)0.079(4)0.051(3)0.043(3)−0.008(3)−0.001(2)−0.007(3)
C(8)4a0.8042(9)0.3711(6)0.2249(5)0.123(7)0.093(5)0.048(3)−0.026(4)0.028(4)−0.002(3)
C(9)4a0.653(1)0.3771(6)0.1950(5)0.125(7)0.095(5)0.074(5)−0.047(5)0.051(5)−0.004(4)
C(10)4a0.6621(7)0.3743(5)0.0911(4)0.071(4)0.087(4)0.058(4)−0.031(3)0.025(3)−0.006(3)
C(11)4a0.7584(7)0.5344(4)0.0768(5)0.078(4)0.057(3)0.065(4)0.013(3)0.023(3)−0.005(3)
C(12)4a0.8712(7)0.6009(4)0.0459(4)0.091(4)0.042(2)0.050(3)−0.008(3)0.001(3)−0.007(2)
C(13)4a0.967(1)0.6377(6)0.1073(5)0.23(1)0.092(6)0.057(4)−0.091(7)−0.028(6)0.006(4)
C(14)4a1.073(2)0.6978(9)0.0764(8)0.35(2)0.152(9)0.114(8)−0.17(1)−0.10(1)0.029(7)
C(15)4a1.078(1)0.7237(8)−0.0147(7)0.21(1)0.142(9)0.103(7)−0.125(9)−0.025(8)0.037(7)
C(16)4a0.987(1)0.6898(5)−0.0734(5)0.158(8)0.084(5)0.061(4)−0.049(5)−0.011(5)0.014(4)
C(17)4a0.8855(7)0.6275(4)−0.0448(4)0.085(4)0.053(3)0.051(3)−0.003(3)−0.006(3)0.006(2)

Source of material

According to a previously reported method the title compound can be easily obtained [1]. Single crystals of the title complex were achieved by crystallization of the solids from the mixture of dichloromethane and ethyl acetate.

Experimental details

All hydrogen atoms were introduced using the HFIX command in the SHELXL program [2]. The C—H distances in CH2 were restrained to 0.97 Å with Uiso values to be 1.2Ueq(C). The C—H distances in CH3 were restrained to 0.96 Å with Uiso values to be 1.5Ueq(C). All vinylic and aromatic C—H distances were restrained to 0.93 Å with Uiso values to be 1.2Ueq(C).

Discussion

According to the recent contributions from Shao's group, the conclusion can be drawn that N-heterocyclic carbene-palladium and -rhodium complexes derived from the commercially available proline skeleton are useful catalysts in the C—C bond formations performed in neat water under mild conditions [5–8]. The central palladium atom in the title complex is coordinated by four ligand atoms: one carbene moiety, the N atom in the pyrrolidine moiety and two chlorido ligands to give a very slightly twisted square planar coordination mode. The bond angles of C(5)—Pd(1)—N(3) is 89.78(18)°, C(5)—Pd(1)—Cl(1) is 90.56(15)°, N(3)—Pd(1)—Cl(2) is 91.80(13)°, and Cl(1)—Pd(1)—Cl(2) is 88.82(6)°, which are all around 90°. In addition, the bond angles of N(3)—Pd(1)—Cl(1) is 170.96(12)°, C(5)—Pd(1)—Cl(2) is 173.78(18)°.

Corresponding author: Peng-Cheng Qian, College of Chemistry and Materials Engineering, Wenzhou Universty, Chashan University Town, Wenzhou Zhejiang Province, 325035, China, e-mail:

Acknowledgements:

I acknowledge Wenzhou University for its financial support for this research.

References

1. Tang, Y.-Q.; Lu, J.-M.; Wang, X.-R.; Shao, L-X.: Palladium(II)-N-heterocyclic carbene complexes derived from proline: synthesis and characterization. Tetrahedron 66 (2010) 7970–7974.10.1016/j.tet.2010.08.021Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3. Spek, A. L.: Structure validation in chemical crystallography. Acta Crystallogr. D65 (2009) 148–155.10.1107/S090744490804362XSearch in Google Scholar PubMed PubMed Central

4. Bruker: Bruker AXS SADABS, Version 2.03, SAINT, Version 6.02, Bruker AXS Inc. Madison, Winsonsin, USA, 2002.Search in Google Scholar

5. Shen, X.-B.; Gao, T.-T.; Lu, J.-M.; Shao, L.-X.: Imidazole-coordinated monodentate NHC-Pd(II) complex derived from proline and its application to the coupling reaction of arylboronic acids with carboxylic acid anhydrides in water at room temperature. Appl. Organometal. Chem. 25 (2011) 497–501.10.1002/aoc.1792Search in Google Scholar

6. Tang, Y.-Q.; Lv, H.; He, X.-N.; Lu, J.-M.; Shao, L.-X.: N-Heterocyclic carbene-rhodium(I) complexes from proline for the 1,4-conjugate addition of arylboronic acids to enones in neat water. Catal. Lett. 141 (2011) 705–708.10.1007/s10562-011-0563-9Search in Google Scholar

7. Tang, Y.-Q.; Lv, H.; Lu, J.-M.; Shao, L.-X.: Palladium(II)-N-heterocyclic carbene complex derived from proline towards Suzuki-Miyaura coupling reaction in neat water at room temperature. J. Organomet. Chem. 696 (2011) 2576–2579.10.1016/j.jorganchem.2011.03.045Search in Google Scholar

8. Tang, Y.-Q.; Chu, C.-Y.; Zhu, L.; Qian, B.; Shao, L.-X.: N-Heterocyclic carbene-Pd(II) complex derived from proline for the Mizoroki-Heck reaction in water. Tetrahedron 67 (2011) 9479–9483.10.1016/j.tet.2011.10.033Search in Google Scholar

Received: 2015-11-26
Accepted: 2016-3-2
Published Online: 2016-3-19
Published in Print: 2016-9-1
