Crystal structure of 2-(4-(4-bromophenyl)thiazol-2-yl)isoindoline-1,3-dione, C17H9BrN2O2S

  • Hazem A. Ghabbour EMAIL logo , Adnan A. Kadi and Hussein I. El-Subbagh
Published/Copyright: April 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

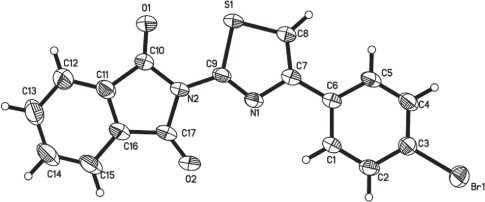

C17H9BrN2O2S, monoclinic, P21/c (no. 14), a = 11.2908(2) Å, b = 8.3281(2) Å, c = 16.1037(3) Å, β = 94.453(1)°, V = 1509.67(5) Å3, Z = 4, Rgt(F) = 0.0348, wRref(F2) = 0.1204, T = 296 K.

CCDC no.:: 945593

Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow, block, size 0.05×0.16×0.40 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:51.03 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω scans
2θmax:139.8°
N(hkl)measured, N(hkl)unique:10104, 2809
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2577
N(param)refined:212
Programs:Bruker programs [7], SHELX [8]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1A)4e0.1322−0.15450.54660.043
H(2A)4e0.30140.00020.54950.045
H(4A)4e0.24070.08240.30440.050
H(5A)4e0.0712−0.07070.30150.049
H(12A)4e−0.4852−0.73830.60600.063
H(13A)4e−0.4826−0.81600.74520.075
H(14A)4e−0.3288−0.73770.83970.071
H(15A)4e−0.1758−0.57880.79880.062
H(8)4e−0.086(4)−0.241(6)0.300(3)0.09(1)
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Br(1)4e0.42712(2)0.18105(3)0.42873(2)0.0381(2)0.0563(2)0.0514(2)−0.0079(1)0.0020(1)0.0068(1)
S(1)4e−0.21243(6)−0.38848(9)0.38389(3)0.0515(4)0.0669(4)0.0225(3)−0.0200(3)−0.0100(2)0.0034(2)
O(1)4e−0.3603(2)−0.5734(2)0.4711(1)0.0467(9)0.058(1)0.0310(8)−0.0135(8)−0.0069(7)−0.0005(7)
O(2)4e−0.0676(2)−0.3978(2)0.6641(1)0.053(1)0.065(1)0.0257(7)−0.013(1)−0.0098(7)0.0003(7)
N(1)4e−0.0519(2)−0.3016(2)0.4968(1)0.035(1)0.040(1)0.0238(8)0.0000(8)−0.0030(7)0.0010(7)
N(2)4e−0.1989(2)−0.4664(2)0.5496(1)0.0377(9)0.0430(9)0.0208(8)−0.0027(8)−0.0044(7)0.0004(7)
C(1)4e0.1540(2)−0.1072(3)0.4978(1)0.041(1)0.042(1)0.0230(9)−0.002(1)−0.0016(8)0.0031(8)
C(2)4e0.2552(2)−0.0149(3)0.4997(1)0.038(1)0.047(1)0.026(1)0.000(1)−0.0030(8)−0.0008(9)
C(3)4e0.2876(2)0.0551(3)0.4271(1)0.032(1)0.040(1)0.034(1)−0.0005(9)0.0024(8)0.0020(9)
C(4)4e0.2186(2)0.0343(3)0.3530(1)0.044(1)0.054(1)0.027(1)−0.000(1)0.0017(9)0.0087(9)
C(5)4e0.1175(2)−0.0575(3)0.3513(1)0.043(1)0.054(1)0.024(1)−0.002(1)−0.0045(8)0.0055(9)
C(6)4e0.0833(2)−0.1312(3)0.4235(1)0.034(1)0.038(1)0.0231(9)0.0036(9)−0.0022(8)0.0002(8)
C(7)4e−0.0236(2)−0.2325(3)0.4230(1)0.036(1)0.038(1)0.026(1)0.004(1)−0.0020(8)0.0007(8)
C(8)4e−0.0993(3)−0.2664(4)0.3561(1)0.050(1)0.057(1)0.024(1)−0.015(1)−0.0049(9)0.002(1)
C(9)4e−0.1473(2)−0.3845(3)0.4853(1)0.037(1)0.037(1)0.0216(9)−0.000(1)−0.0035(8)0.0011(8)
C(10)4e−0.3049(2)−0.5549(3)0.5377(1)0.039(1)0.042(1)0.027(1)−0.003(1)0.0000(8)−0.0017(9)
C(11)4e−0.3311(2)−0.6153(3)0.6208(1)0.048(1)0.041(1)0.029(1)−0.002(1)0.0048(9)−0.0023(9)
C(12)4e−0.4235(3)−0.7075(4)0.6443(2)0.057(2)0.062(2)0.039(1)−0.013(1)0.008(1)−0.004(1)
C(13)4e−0.4215(3)−0.7530(4)0.7274(2)0.076(2)0.067(2)0.047(2)−0.021(2)0.024(1)−0.001(1)
C(14)4e−0.3287(4)−0.7052(4)0.7845(2)0.088(2)0.062(2)0.029(1)−0.007(2)0.015(1)0.002(1)
C(15)4e−0.2372(3)−0.6111(3)0.7607(2)0.072(2)0.058(2)0.025(1)−0.001(2)0.002(1)0.002(1)
C(16)4e−0.2398(2)−0.5660(3)0.6777(1)0.050(1)0.043(1)0.025(1)0.002(1)0.0010(9)−0.0017(9)
C(17)4e−0.1547(2)−0.4666(3)0.6354(1)0.045(1)0.041(1)0.0203(9)0.004(1)−0.0025(8)−0.0013(8)

Source of material

4-(4-Bromophenyl)thiazol-2-amine (0.01 mol) were triturated and mixed with phthalic anhydride (1.48 g, 0.01 mol). The mixture was heated with occasional stirring for 2 h. The crude product was dissolved in hot EtOAc and filtered to remove any undissolved particles, and the 2-(4-(4-bromophenyl)thiazol-2-yl)isoindoline-1,3-dione was precipitated by cooling. The resulting precipitate was crystallized from ethanol to give crystals. Mp: 186–188°; yield: 82% [1].

Experimental details

Cell refinement and data reduction were carried out by Bruker SAINT [7]. The hydrogen atoms were placed on calculated positions with the help of the SHELX program (AFIX 43 option) [8].

Discussion

The combination between thiazoles and phthalimides was founded in many biologically active compounds, which may act anticonvulsant, anticancer, antimicrobial, anti-inflammatory and antifungal [1–6]. In proceeds of our work, we report the crystal structure of the title compound (C17H9BrN2O2S). In the crystal structure the phenyl ring (C1—C6) and isoindoline-1,3-dione ring (N2/C10—C17) form 0.60(2)° and 1.96(3)° dihedral angles, respectively, with the central thiazole ring (C7/N1/C8/S1/C9), which make the whole molecule nearly planar (figure). In the crystal structure, molecules are at least linked by one non-classical hydrogen bond between C8—H8⋯O2i with the symmetry code: i = x, −y−1/2, z−1/2.

Funding source: King Saud University

Award Identifier / Grant number: RGP-1436–038

Funding statement: The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project NO (RGP-1436–038).

Acknowledgements:

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project NO (RGP-1436–038).

References

1. Ghabbour, H. A.; Kadi, A. A.; ElTahir, K. E.; Angawi, R. F.; El-Subbagh, H. I.: Synthesis, biological evaluation and molecular docking studies of thiazole-based pyrrolidinones and isoindolinediones as anticonvulsant agents. Med. Chem. Res. 24 (2015) 1–8.10.1007/s00044-015-1371-3Search in Google Scholar

2. Rostom, S. A.; El-Ashmawy, I. M.; El Razik, H. A. A.; Badr, M. H.; Ashour, H. M.: Design and synthesis of some thiazolyl and thiadiazolyl derivatives of antipyrine as potential non-acidic anti-inflammatory, analgesic and antimicrobial agents. Bioorg. Med. Chem. 17 (2009) 882–895.10.1016/j.bmc.2008.11.035Search in Google Scholar PubMed

3. Fhid, O.; Saad, S. E.; Zeglam, T. H.; Eswayah, A.; Elmoug, T.; Alnnas, E.; Haroon, N.; Eldep, A. A.; Ebzabez, A.: Synthesis, characterization and antiepileptic activity of some new N-substituted phthalimide analogs. J. Life Sci. 8 (2014) 373–377.Search in Google Scholar

4. Bondock, S.; Naser, T.; Ammar, Y. A.: Synthesis of some new 2-(3-pyridyl)-4,5-disubstituted thiazoles as potent antimicrobial agents. Eur. J. Med. Chem. 62C (2013) 270–279.10.1016/j.ejmech.2012.12.050Search in Google Scholar PubMed

5. Zia, M.; Akhtar, T.; Hameed, S.; Al-Masoudi, N. A.: New aryl-1,3-thiazole-4-carbohydrazides, their 1,3,4-oxadiazole-2-thione,1,2,4-triazole, isatin-3-ylidene and carboxamide derivatives. Synthesis and anti-HIV activity, Z. Naturforsch. B67 (2012) 747–451.10.5560/znb.2012-0095Search in Google Scholar

6. Kashyap, S. J.; Garg, V. K.; Sharma, P. K.; Kumar, N.; Dudhe, R.; Gupta, J. K.: Thiazoles: having diverse biological activities. Med. Chem. Res. 21 (2012) 2123–2132.10.1007/s00044-011-9685-2Search in Google Scholar

7. Bruker: APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

8. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-12-19
Accepted: 2016-3-23
Published Online: 2016-4-12
Published in Print: 2016-9-1

©2016 Hazem A. Ghabbour et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
