Crystal structure of pentacalcium tetranitridovanadate(V) mononitride based on a powder diffraction study, Ca5[VN4]N

  • Alexander Ovchinnikov and Peter Höhn EMAIL logo
Published/Copyright: April 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

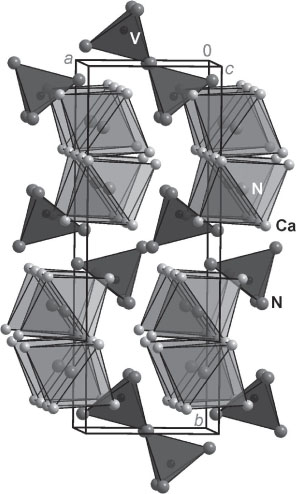

Ca5N5V, orthorhombic, Pbcm (no. 57), a = 6.0371(3) Å, b = 16.6146(7) Å, c = 6.7815(3) Å, V = 680.21(5) Å3, Z = 4, R(P) = 0.0100, RF(all) = 0.0348, T = 293 K.

CCDC no.:: 431041

Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Sample, setting:Yellow powder, transmission geomety
Wavelength, μ:Cu Kα radiation (1.54056 Å), 450.05 cm−1
Diffractometer, scan mode:Huber Guinier G670, step scan (0.005°)
2θ range / data points:8.0-100.3°, 18461
Background funtion:26 Legendre polynoms
Profile function:Pseudo-Voigt
N(hkl), N(param.):334, 61
Programs:JANA2006 [6], Diamond [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
Ca(1)8e0.2914(9)0.5750(3)0.510(1)0.018(2)
Ca(2)4d0.190(2)0.4176(6)0.250.018(3)
Ca(3)4d0.514(1)0.2625(5)0.250.009(3)
Ca(4)4c0.045(1)0.250.000.017(3)
V(1)4d0.287(1)0.0937(4)0.250.011(2)
N(1)8e0.367(3)0.153(1)0.030(3)0.007(3)
N(2)4d0.000(4)0.050(1)0.250.007(3)
N(3)4d0.488(5)0.005(2)0.250.007(3)
N(4)4d0.138(4)0.829(2)0.250.007(3)

Source of material

Calcium nitride, Ca3N2, was prepared from calcium lumps and nitrogen gas at 1023 K. The resulting red single phase material was mixed with vanadium powder in the ratio Ca:V = 5:1. The mixture was pelletized and annealed under nitrogen stream at 1000 K for 60 h and then at 1323 K for 48 h. The yellow microcrystalline product was identified as a new phase according to PXRD.

Discussion

Although isolated [VN4]7− units were found in different crystal modifications of Li7VN4 [1], only crystal structures with one-dimensional anions represented by infinite chains of corner sharing 1∞(VN2/2N24−) tetrahedra have been reported so far for nitridovanadates(V) of alkaline earth metals [2, 3]. Inspection of the PXRD pattern and further Rietveld refinement revealed that the title phase is isotypic with another group V element ternary nitride, Sr5NbN5 [4], and belongs to the Na5OAsO4 structure type [5]. The structure can be described as consisting of isolated [VN4]7− tetrahedra and zigzag chains of corner-sharing 1∞(NCa4Ca2/27+) octahedra running along the c direction as shown in the figure. A distortion of the tetrahedra lowers the local symmetry down to Cs. Refined V—N distances lie in the range 1.85(2) Å – 1.91(3) Å, which is close to the values observed for other nitrides bearing tetrahedrally coordinated V(V) [1–3]. Band-structure calculations revealed an insulating ground state in accordance with the crystal structure.

Acknowledgements:

Dr. Horst Borrmann and Mr. Steffen Hückmann are acknowledged for collecting PXRD data.

References

1. Niewa, R.; Zherebtsov, D.; Hu, Z.: Polymorphism of heptalithium nitridovanadate(V) Li7[VN4]. Inorg. Chem. 42 (2003) 2538–2544.10.1021/ic020653bSearch in Google Scholar

2. Gregory, D. H.; Barker, M. G.; Edwards, P. P.; Siddons, D. J.: Synthesis and structure of Sr2VN3 and Ba2VN3, two new nitridovanadates. Inorg. Chem. 34 (1995) 3912–3916.10.1021/ic00119a012Search in Google Scholar

3. Zherebtsov, D. A.; Akselrud, L. G.; Niewa, R.: Crystal structure of dicalcium trinitrido monovanadate(V), Ca2[VN3]. Z. Kristallogr. NCS 217 (2002) 469–469.10.1524/ncrs.2002.217.jg.469Search in Google Scholar

4. Höhn, P.; Kniep, R.: Sr5[NbN4]N - A nitridoniobate(V) nitride containing isolated [NbN4]7− tetrahedra and octahedral chains 1∞(Sr4Sr2/2N7+). Z. Anorg. Allg. Chem. 628 (2002) 463–467.10.1002/1521-3749(200202)628:2<463::AID-ZAAC463>3.0.CO;2-2Search in Google Scholar

5. Haas, H.; Jansen, M.: Synthese und charakterisierung von Na5AsO5. Z. Anorg. Allg. Chem. 627 (2001) 1013–1016.10.1002/1521-3749(200105)627:5<1013::AID-ZAAC1013>3.0.CO;2-CSearch in Google Scholar

6. Petříček, V.; Dušek, M.; Palatinus, L.: Crystallographic computing system JANA2006: General features. Z. Kristallogr. 229 (2014) 345–352.10.1515/zkri-2014-1737Search in Google Scholar

7. Brandenburg, K.: DIAMOND. Visual crystal structure information system. Version 3.2i. Crystal Impact, Bonn, Germany, 2012.Search in Google Scholar

Received: 2015-11-25
Accepted: 2016-3-18
Published Online: 2016-4-12
Published in Print: 2016-9-1

©2016 Alexander Ovchinnikov et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
