Crystal structure of tetrabutylammonium 4-aminobenzenesulfonate 2/3 hydrate, C22H42N2O3S · 2/3 H2O

  • Yuanyuan Cai EMAIL logo and Ning Sun
Published/Copyright: March 23, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C22H43.33N2O3.67S, monoclinic, P21/c, a = 9.5273(1) Å, b = 14.8850(2) Å, c = 17.5820(2) Å, V = 2492.84(5) Å3, Z = 4, Rgt(F) = 0.0526, wRref(F2) = 0.1459, T = 296.

CCDC no.:: 1458689

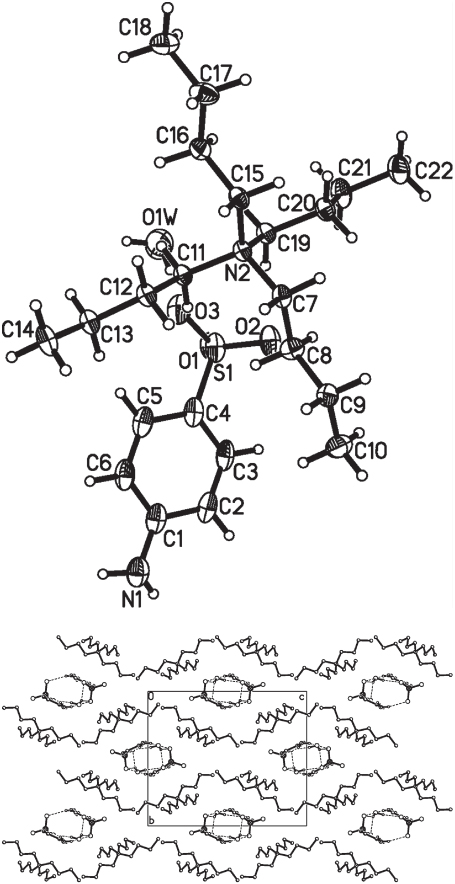

The upper part of the figure shows the asymmetric unit of the title structure, whereas the lower part shows the packing with a view agains [100]. Tables 1–3 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless, block, size 0.15×0.15×0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.56 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:55.14°
N(hkl)measured, N(hkl)unique:15237, 5669
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3814
N(param)refined:274
Programs:SHELX [9], BRUKER SHELXTL [10]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2); * occupancy = 2/3.

AtomSitexyzUiso
H(1A)4e−0.284(3)0.617(2)−0.0169(6)0.098
H(1B)4e−0.338(3)0.583(2)0.056(2)0.098
H(1WA)*4e0.581(6)0.403(3)0.0176(6)0.121
H(1WB)*4e0.590(6)0.454(1)0.081(2)0.121
H(2)4e−0.19660.54440.16030.074
H(3)4e0.02660.51460.20510.072
H(5)4e0.18280.61400.01310.070
H(6)4e−0.03960.6475−0.02990.072
H(7A)4e0.47120.85190.28430.045
H(7B)4e0.39700.89240.21190.045
H(8A)4e0.32910.72640.27820.055
H(8B)4e0.26140.75930.2010.055
H(9A)4e0.16240.88300.26320.064
H(9B)4e0.23160.85160.34040.064
H(10A)4e−0.00450.80840.33610.107
H(10B)4e0.08980.72200.33820.107
H(10C)4e0.02020.75390.26120.107
H(11A)4e0.55320.74430.07820.041
H(11B)4e0.40300.73300.11120.041
H(12A)4e0.50880.89480.05220.047
H(12B)4e0.36100.88750.08960.047
H(13A)4e0.43380.7882−0.04130.053
H(13B)4e0.28430.7883−0.00560.053
H(14A)4e0.28480.8817−0.11170.088
H(14B)4e0.40590.9393−0.07480.088
H(14C)4e0.25650.9395−0.03910.088
H(15A)4e0.62420.91780.16380.044
H(15B)4e0.69590.87090.23400.044
H(16A)4e0.74930.82900.08090.058
H(16B)4e0.81330.77340.14920.058
H(17A)4e0.86770.9580.12620.068
H(17B)4e0.93330.90150.19330.068
H(18A)4e1.09640.91800.09740.120
H(18B)4e0.99270.87190.03900.120
H(18C)4e1.05890.81600.10630.120
H(19A)4e0.50890.66440.21860.042
H(19B)4e0.65890.68080.18680.042
H(20A)4e0.72490.75250.30190.051
H(20B)4e0.57560.73210.30190.051
H(21A)4e0.76890.59820.29290.071
H(21B)4e0.61960.57780.32450.071
H(22A)4e0.78780.56290.4220.098
H(22B)4e0.68670.64230.44150.098
H(22C)4e0.83600.66250.40980.098
Table 3:

Fractional coordinates and atomic displacement parameters (Å2); * occupancy = 2/3.

AtomSitexyzU11U22U33U12U13U23
S(1)4e0.29728(7)0.52409(3)0.14614(3)0.0948(5)0.0320(3)0.0430(3)−0.0126(3)−0.0006(3)−0.0039(2)
C(1)4e−0.1439(3)0.5973(1)0.0588(1)0.098(2)0.030(1)0.043(1)0.007(1)0.012(1)−0.0066(9)
N(1)4e−0.2782(3)0.6161(1)0.0322(1)0.097(2)0.049(1)0.052(1)0.012(1)0.008(1)−0.006(1)
O(1)4e0.2987(2)0.42622(9)0.13803(8)0.090(1)0.0323(8)0.0458(8)−0.0043(7)−0.0072(8)−0.0046(6)
O(1W)*4e0.5777(3)0.3999(2)0.0654(2)0.066(2)0.123(3)0.054(1)0.036(2)0.001(1)0.023(2)
C(2)4e−0.1204(3)0.5583(2)0.1303(1)0.102(2)0.042(1)0.042(1)0.006(1)0.019(1)0.002(1)
N(2)4e0.5390(2)0.79495(9)0.18601(8)0.0397(9)0.0267(8)0.0314(7)−0.0006(6)−0.0041(6)0.0012(6)
O(2)4e0.3136(2)0.5516(1)0.22487(9)0.113(2)0.0463(9)0.0478(9)−0.0148(9)−0.0061(9)−0.0120(7)
C(3)4e0.0138(3)0.5402(2)0.1572(1)0.105(2)0.040(1)0.035(1)0.005(1)0.010(1)0.0045(9)
O(3)4e0.3983(2)0.5667(1)0.09634(9)0.095(1)0.055(1)0.061(1)−0.0210(9)0.0056(9)0.0036(8)
C(4)4e0.1294(3)0.5597(1)0.1139(1)0.092(2)0.0248(9)0.040(1)−0.003(1)0.006(1)−0.0022(8)
C(5)4e0.1066(3)0.6000(1)0.0431(1)0.100(2)0.033(1)0.044(1)−0.005(1)0.017(1)0.0023(9)
C(6)4e−0.0273(3)0.6192(1)0.0169(1)0.101(2)0.037(1)0.041(1)0.008(1)0.007(1)0.0065(9)
C(7)4e0.4281(2)0.8367(1)0.2355(1)0.047(1)0.032(1)0.0328(9)0.0062(8)−0.0029(7)−0.0008(7)
C(8)4e0.3011(2)0.7792(1)0.2493(1)0.045(1)0.038(1)0.054(1)0.0040(9)0.0039(9)0.0037(9)
C(9)4e0.1910(2)0.8307(2)0.2926(1)0.048(1)0.070(2)0.043(1)0.007(1)−0.0006(9)−0.011(1)
C(10)4e0.0622(3)0.7734(2)0.3085(2)0.050(1)0.098(2)0.066(2)0.010(1)0.012(1)0.015(1)
C(11)4e0.4808(2)0.7745(1)0.10660(9)0.040(1)0.0318(9)0.0313(8)−0.0005(8)−0.0044(7)−0.0014(7)
C(12)4e0.4305(2)0.8548(1)0.0611(1)0.047(1)0.036(1)0.0349(9)−0.0006(8)−0.0066(8)−0.0001(8)
C(13)4e0.3664(2)0.8250(1)−0.0148(1)0.053(1)0.041(1)0.0367(9)−0.0020(9)−0.0089(8)−0.0006(8)
C(14)4e0.3246(3)0.9035(2)−0.0647(1)0.083(2)0.053(1)0.038(1)0.004(1)−0.018(1)0.004(1)
C(15)4e0.6601(2)0.8609(1)0.1827(1)0.044(1)0.0312(9)0.0352(9)−0.0067(8)−0.0088(8)0.0023(7)
C(16)4e0.7811(2)0.8326(2)0.1336(1)0.046(1)0.059(1)0.041(1)−0.011(1)−0.0036(8)−0.0006(9)
C(17)4e0.9012(2)0.8988(2)0.1406(1)0.042(1)0.050(1)0.076(2)−0.005(1)−0.011(1)0.019(1)
C(18)4e1.0234(3)0.8739(2)0.0913(2)0.046(2)0.118(3)0.075(2)−0.022(2)−0.001(1)0.014(2)
C(19)4e0.5877(2)0.7056(1)0.2194(1)0.042(1)0.0278(9)0.0362(9)0.0025(8)−0.0029(7)0.0044(7)
C(20)4e0.6473(2)0.7103(1)0.3000(1)0.053(1)0.038(1)0.037(1)0.0013(9)−0.0070(8)0.0057(8)
C(21)4e0.6975(3)0.6198(2)0.3268(1)0.089(2)0.045(1)0.044(1)0.015(1)−0.010(1)0.008(1)
C(22)4e0.7575(3)0.6221(2)0.4074(1)0.085(2)0.065(2)0.047(1)0.012(1)−0.012(1)0.018(1)

Source of material

Sulfanilic acid (98%, A. R.) and tetrabutylammonium hydroxide (25% aqueous solution, C. R.) were solved in small quantites of water/alcohol with a molar ratio of 1:2. The mixture was stirred for an hour and set aside to yield two different kinds of colorless crystal after about 7 days. The block-shape ones are identified as the title compound whereas strip-like ones are also tested, but unfortunately no structural result was obtained.

Experimental details

The hydrogen atoms bonded to carbon were idealized and refined using a riding model with the help of the SHELX program (AFIX 23, 33 or 43 option) [9]. The N—H distances were fixed at 0.86(1) Å, the O—H distances were fixed at 0.85(1) Å and the H—H distances (water) were fixed at 1.39 Å (DFIX instruction).

Discussion

Sulfanilic acid is an interesting aromatic molecule with two different functional groups. Obviously, the −SO3H group of the acid is easy to lose its proton under basic conditions and can be regarded as a good hydrogen bond donor due to the three external oxygen atoms. At the same time, the amino group is a hydrogen bond acceptor. Searching in CSD database [1], it can be found that sulfanilic acid can interact with various compounds, such as varied organic cations [2–6] and metal ions [7, 8], to form complicated crystal structures. However, the title structure has not been reported before.

There are one independent sulfanilate, one tetrabutylammonium and one water molecule (occupancy factor: 0.667) present in the asymmetric unit (upper part of the figure). It is obvious that the sulfanilate anion can act as both hydrogen bond donor and acceptor due to its amino group and deprotonated sulfonate moiety. The water molecule is a linking unit among the anions. The sulfanilate and water molecules connect with each other to be the pillar-like hydrogen-bonded ribbons along the a axis by N—H⋯O and O—H⋯O hydrogen bonds. Among the ribbons, tetrabutylammonium cations are located in the cavities to yield the stable crystal structure. In fact, it also can be regarded that each four tetrabutylammonium cations can generate a pseudo-channel, in which the anionic ribbon is contained among the channel to obtain the final structure (lower part of the figure). IN the title structure, classical N—H⋯O and O—H⋯O contacts and Van der Waals interactions are the main driving force of constructing the anionic ribbons and tetrabutylammonium is the counterion of the sulfanilate.

Corresponding author: Yuanyuan Cai, Scientific Research Department, Henan University of Traditional Chinese Medicine, Zhengzhou, 450046, China, e-mail:

Acknowledgements:

We thank for the support from Henan University of Traditional Chinese Medicine.

References

1. Groom, C. R.; Allen, F. H.: The cambridge structural database in retrospect and prospect. Angew. Chem., Int. Ed. 53 (2014) 662–671.10.1002/anie.201306438Search in Google Scholar PubMed

2. Schreuer, J.: Crystal structure of ammonium sulfanilate hydrate, NH4H2NC6H4SO3. H2O. Z. Kristallogr. NCS 214 (1999) 315–316.10.1515/ncrs-1999-0311Search in Google Scholar

3. Schreuer, J.: Crystal structure of methylammonium sulfanilate hydrate, (CH3NH3)H2NC6H4SO3. Z. Kristallogr. NCS 214 (1999) 317–318.10.1515/ncrs-1999-0312Search in Google Scholar

4. Schreuer, J.: Crystal structure of hydroxylammonium sulfanilate hydrate, (NH3OH)H2NC6H4SO3. Z. Kristallogr. NCS 214 (1999) 319–320.10.1515/ncrs-1999-0313Search in Google Scholar

5. Russell, V. A.; Etter, M. C.; Ward, M. D.: Guanidinium para-substituted benzenesulfonates: competitive hydrogen bonding in layered structures and the design of nonlinear optical materials. Chem. Mat. 6 (1994) 1206–1217.10.1021/cm00044a019Search in Google Scholar

6. Li, J.; Liang, Z. P.; Guo, H. M.: Triethylammonium 4-aminobenzenesulfonate. Acta Crystallogr. E63 (2007) 2884–2884.10.1107/S1600536807022027Search in Google Scholar

7. Starynowicz, P.: Structure of bis (4-aminobenzenesulfonato-O) heptaaquaneodymium 4-aminobenzenesulfonate hydrate. Acta Crystallogr. C48 (1992) 1414–1416.10.1107/S0108270192000593Search in Google Scholar

8. Zhao, J.; Dang, Z. H.; Wang, Y. J.; Ye, Y. Z.; Xu, L.: Bis(4-aminobenzenesulfonato-κN)tetraaquanickel(II). Acta Crystallogr. E63 (2007) 1773–1773.10.1107/S1600536807025512Search in Google Scholar

9. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Cryst. A71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

10. Bruker: SAINT-Plus, SHELXTL and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2004.Search in Google Scholar

Received: 2015-12-11
Accepted: 2016-3-7
Published Online: 2016-3-23
Published in Print: 2016-9-1

©2016 Yuanyuan Cai et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
