Crystal structure of diaquabis(2-(3-bromophenyl)-5-carboxy-1H-imidazol-4-carboxylato-κ2O,N) cobalt(II) trihydrate, C22H22Br2CoN4O13

  • Rui-Fang Ding EMAIL logo and Shan-Shan Sun
Published/Copyright: April 1, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C22H22Br2CoN4O13, monoclinic, C2/c (no. 15), a = 15.2953(19) Å, b = 14.9696(19) Å, c = 12.4221(15) Å, β = 92.725(2)°, V = 2841.0(6) Å3, Z = 4, Rgt(F) = 0.0356, wRref(F2) = 0.0967, T = 296 K.

CCDC no.:: 1461806

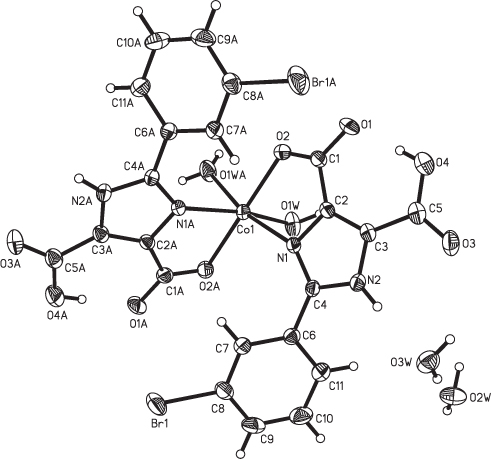

The figure shows the title complex located on a two-fold axis. Tables 1–3 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Purple, block, size 0.16×0.20×0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:34.89 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.1°
N(hkl)measured, N(hkl)unique:7112, 2510
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1990
N(param)refined:192
Programs:SHELXTL-2008 [13]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)8f0.77550.59680.34040.044
H(4)8f0.65310.68680.61370.097
H(1WC)8f0.62570.88740.32080.071
H(1WD)8f0.59720.93370.23000.071
H(2W)8f0.98250.71200.30030.081
H(3WC)8f0.89970.54830.39970.074
H(3WD)8f0.93320.57800.30090.074
H(7)8f0.57340.59690.09510.049
H(9)8f0.74660.6061−0.13770.069
H(10)8f0.85300.6524−0.01310.074
H(11)8f0.82150.67240.16520.061
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Co(1)4e0.50.78544(4)0.250.0296(3)0.0408(3)0.0301(3)0.0−0.0014(2)0.0
O(2W)4e10.6789(3)0.250.081(3)0.071(2)0.054(2)0.00.030(2)0.0
Br(1)8f0.56399(3)0.55623(3)−0.13376(3)0.0825(4)0.0965(4)0.0466(3)0.0127(2)−0.0182(2)−0.0219(2)
N(1)8f0.6038(2)0.6927(2)0.2975(2)0.030(1)0.041(1)0.027(1)−0.001(1)−0.002(1)0.001(1)
N(2)8f0.7269(2)0.6250(2)0.3453(2)0.031(1)0.040(2)0.039(2)0.004(1)−0.003(1)−0.001(1)
O(1)8f0.5618(2)0.7417(2)0.5723(2)0.061(2)0.077(2)0.026(1)0.008(1)0.005(1)−0.003(1)
O(2)8f0.4941(1)0.7862(2)0.4190(2)0.038(1)0.059(1)0.035(1)0.008(1)0.003(1)−0.004(1)
O(3)8f0.8070(2)0.5960(2)0.5494(2)0.054(2)0.067(2)0.056(2)0.006(1)−0.021(1)0.000(1)
O(4)8f0.6969(2)0.6577(2)0.6312(2)0.065(2)0.086(2)0.042(2)0.006(2)−0.008(1)0.003(1)
O(1W)8f0.5961(2)0.8833(2)0.2614(2)0.062(2)0.056(2)0.057(2)−0.021(1)−0.022(1)0.014(1)
O(3W)8f0.8948(2)0.5471(2)0.3312(2)0.054(2)0.055(2)0.075(2)0.007(1)0.004(1)−0.004(1)
C(1)8f0.5519(2)0.7433(2)0.4710(3)0.038(2)0.048(2)0.031(2)−0.006(2)0.002(1)−0.003(1)
C(2)8f0.6146(2)0.6931(2)0.4080(2)0.035(2)0.035(2)0.027(2)−0.004(1)−0.001(1)0.000(1)
C(3)8f0.6911(2)0.6505(2)0.4387(2)0.039(2)0.038(2)0.032(2)−0.004(1)−0.004(1)−0.001(1)
C(4)8f0.6732(2)0.6513(2)0.2612(2)0.027(2)0.036(2)0.034(2)−0.003(1)−0.002(1)−0.001(1)
C(5)8f0.7355(2)0.6320(2)0.5445(3)0.049(2)0.046(2)0.044(2)−0.007(2)−0.008(2)0.002(2)
C(6)8f0.6939(2)0.6367(2)0.1487(3)0.035(2)0.037(2)0.037(2)0.003(1)0.002(1)0.001(1)
C(7)8f0.6300(2)0.6079(2)0.0742(3)0.038(2)0.048(2)0.036(2)0.004(1)0.002(2)−0.001(1)
C(8)8f0.6510(2)0.5956(2)−0.0314(3)0.054(2)0.047(2)0.037(2)0.007(2)−0.003(2)−0.006(2)
C(9)8f0.7339(3)0.6132(3)−0.0657(3)0.069(3)0.065(2)0.040(2)0.010(2)0.019(2)−0.001(2)
C(10)8f0.7967(3)0.6412(3)0.0086(3)0.052(2)0.075(3)0.060(3)−0.004(2)0.025(2)−0.001(2)
C(11)8f0.7780(2)0.6533(2)0.1156(3)0.040(2)0.063(2)0.049(2)−0.003(2)0.005(2)−0.002(2)

Source of material

A mixture of CoCl2 · 6H2O (0.1 mmol), 2-(3-bromophenyl)-1H-imidazole-4,5-dicarboxylic acid (0.2 mmol), Et3N (0.1 mL), and H2O (10 mL) was sealed in a 15 mL Teflon-lined stainless-steel reactor, heated to 433 K for three days under autogenous pressure, and then slowly cooled to room temperature. Good quality purple, block-shaped crystals were obtained by filtration.

Experimental details

The water H atoms were refined with distance restraints of O—H = 0.85 Å and with Uiso(H) = 1.2 Ueq(O). The remaining H atoms were placed in calculated positions and refined using a riding model [13]. For those bound to C and N, Uiso(H) = 1.2 Ueq(C, N), while for those bound to Ocarboxy, Uiso(H) = 1.5 Ueq(O).

Discussion

In the last two decades, metal-organic frameworks (MOFs) have attracted tremendous interest because of their fascinating structures and potential applications as functional materials [1–8]. Imidazole-4,5-dicarboxylates d are excellent ligands and widely used in construction of coordination polymers as they possess both nitrogen and oxygen atoms [9–12]. In order to search for new coordination polymers based on such ligands, the title compound was synthesized. In the title compound, the CoII atom exhibits a distorted octahedral coordination geometry coordinated by two nitrogen atoms and two oxygen atoms from two symmetry related carboxylate ligands, and two oxygen atoms from two symmetry related water ligands. The Co—O and Co—N bond lengths are between 2.075(2) and 2.105(2) Å, and 2.169(2) Å, respectively, which are within the normal ranges. There exist various O—H⋯O and N—H⋯O hydrogen bonds forming a three-dimensional framework.

Corresponding author: Rui-Fang Ding, Department of pharmacy, Jining medical college, 276826, Rizhao, Shandong, People's Republic of China

Acknowledgements:

This work was financial supported by the Foundation of Shandong Educational Committee No. J15LC23, NSFS No. ZR2015BL005 and Jining medical college (Grant No. Jyp2011km030).

References

1. Li, H.; Eddaoudi, M.; O'Keeffe, M.; Yaghi, O. M.: Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 402 (1999) 276–279.10.1038/46248Search in Google Scholar

2. Wang, Z.; Chen, G.; Ding, K. L.: Self-supported catalysts. Chem. Rev. 109 (2009) 322–359.10.1021/cr800406uSearch in Google Scholar PubMed

3. Li, J. R.; Sculley, J.; Zhou, H. C.: Metal-organic frameworks for separations. Chem. Rev. 112 (2012) 869–932.10.1021/cr200190sSearch in Google Scholar PubMed

4. Kreno, L. E.; Leong, K.; Farha, O. K.; Allendorf, M. R.; Van Duyne, R. P.; Hupp, J. T.: Metal-organic framework materials as chemical sensors. Chem. Rev. 112 (2012) 1105–1125.10.1021/cr200324tSearch in Google Scholar PubMed

5. Cu, Y.; Yue, Y.; Qian, G.; Chen, B.: Luminescent functional metal-organic frameworks. Chem. Rev. 112 (2012) 1126–1162.10.1021/cr200101dSearch in Google Scholar PubMed

6. Zhang, M. D.; Zheng, B. H.; Jiao, Y.; Chen, M. D.: A trilaminar cobalt coordination network with coexistence of trinuclear and uninuclear building units, Medeleev Commun. 24 (2014) 180–181.10.1016/j.mencom.2014.04.020Search in Google Scholar

7. Aresta, M.; Dibenedetto, A.; Angelini, A.: Catalysis for the valorization of exhaust carbon: from CO2 to chemicals, materials, and fuels. Technological use of CO2. Chem. Rev. 114 (2014) 1709–1742.10.1021/cr4002758Search in Google Scholar PubMed

8. Zhang, M. D.; Shi, Z. Q.; Chen, M. D.; Zheng, H. G.: Chiral crystallization and optical properties of three metal complexes based on two non-centrosymmetric tripodal ligands. Dalton Trans. 44 (2015) 5815–5825.10.1039/C5DT00292CSearch in Google Scholar PubMed

9. Zhang, Y.; Guo, B.; Li, L.; Liu, S.; Li, G.: Construction and properties of six metal-organic frameworks based on the newly designed 2-(p-bromophenyl)imidazole dicarboxylate ligand. Cryst. Growth Des. 13 (2013) 367–376.10.1021/cg301570pSearch in Google Scholar

10. Xiong, Z.; Shi, B.; Li, L.; Zhu, Y.; Li, G.: Construction of transition-metal coordination polymers using multifunctional imidazole dicarboxylates as spacers. CrystEngComm 15 (2013) 4885–4899.10.1039/c3ce40511gSearch in Google Scholar

11. Zhang, Y.; Luo, X.; Yang, Z.; Li, G.: Metal-organic frameworks constructed from imidazole dicarboxylates bearing aromatic substituents at the 2-position. CrystEngComm 14 (2012) 7382–7397.10.1039/c2ce25912eSearch in Google Scholar

12. Cao, X.; Zhang, J.; Wang, C.; Zhu, Y.; Li, G.: Design and construction of six metal-organic frameworks with 2-p-methoxyphenyl-1H-imidazole-4,5-dicarboxylate, CrystEngComm 14 (2012) 4357–4368.10.1039/c2ce25081kSearch in Google Scholar

13. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-11-23
Accepted: 2016-3-9
Published Online: 2016-4-1
Published in Print: 2016-9-1
