Crystal structure of bis(ethanaminium) poly[bis(hexaselenido-κ2Se1,Se6)palladate(II)], C4H16N2PdSe12

  • Kang-Woo Kim EMAIL logo and Di Wang
Published/Copyright: April 18, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

C4H16N2PdSe12, monoclinic, C2/c (No. 15), a = 16.8578(5) Å, b = 7.6646(2) Å, c = 16.7440(5) Å, β = 94.7894(15)°, V = 2155.91(11) Å3, Z = 4, Rgt(F) = 0.0351, wRref(F2) = 0.0722, T = 173 K.

CCDC no.:: 1470312

Tables 1 and 2 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Black blocks Size 0.190 × 0.145 × 0.132 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ :211.09 cm−1
Diffractometer, scan mode:Bruker Apex-II CCD, φ and ω
2θmax, completeness,54.992°, >99 %,
N(hkl)measured, N(hkl)unique, Rint:9719, 2462, 0.0463
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2108
N(param)refined:90
Programs:Bruker programs, SHELX [6], WinGX [7], Diamond [8]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Pd10.25000.75000.00000.01527(15)
Se10.31090(3)0.76904(7)0.13701(3)0.01807(15)
Se20.24174(3)0.97838(7)0.20654(3)0.01847(15)
Se30.11291(3)0.86258(8)0.21553(3)0.02135(15)
Se40.10761(3)1.25157(7)−0.15606(4)0.02247(16)
Se50.05917(3)1.02682(8)−0.07800(4)0.02122(15)
Se60.15785(3)0.98087(7)0.02674(3)0.01944(15)
N10.1823(3)1.3972(7)0.0976(3)0.0303(12)
H110.20801.45410.06120.045*
H120.18951.28300.09220.045*
H130.20111.43040.14650.045*
C10.0944(5)1.4385(11)0.0855(6)0.060(2)
H1A0.08701.56370.08060.072*
H1B0.07181.38450.03640.072*
C20.0546(5)1.3751(10)0.1517(7)0.064(3)
H2A−0.00101.40270.14360.097*
H2B0.07701.42920.20020.097*
H2C0.06121.25100.15570.097*

Source of material

K2PdCl4 (0.040 g, 0.12 mmol), K2Se4 (0.145 g, 0.37 mmol) and EtNH3Cl (0.020 g, 0.25 mmol) were charged to a Pyrex tube with diameter of 9 mm under an argon atmosphere and about 0.5 mL MeOH was added. While the solvent was being frozen, the Pyrex tube was evacuated and sealed with the use of a flame. The sealed tube was placed in an oven and heated at 80 °C for 3 days, then cooled to room temperature. Black block crystals were isolated by filtration and washed with MeOH and diethyl ether several times. Crystals of [Et3NH]2[Pd(Se4)2] were obtained in 62% yield, based on the Pd metal used.

Experimental details

H atoms were positioned geometrically and treated as riding, with N—H = 0.89, C—H = 0.97 (CH2) and 0.96 (CH3) Å with Uiso(H) = 1.2 Ueq(N) and 1.2 (1.5 for methyl) Ueq(C). H atoms of the CH3 were positioned to be staggered with respect to the shortest other bond to the atom to which the CH3 is attached.

Discussion

The title compound, (EtNH3)2[Pd(Se6)2] has been prepared by the solvothermal reaction of K2PdCl4, K2Se4 and EtNH3Cl with MeOH as a solvent. The tile compound is composed of a 2D layered polymeric [Pd(Se6)2]2− anion and charge-balancing EtNH3+ cations (upper part of the figure). There exists one previously characterized 2D layered [Pd(Se6)2]2− complex, (CH3)N(CH2CH2)3N2[Pd(Se6)2], which was also prepared by the methanothermal reaction [1]. It is noteworthy to mention that both EtNH3+ and (CH3)N(CH2CH2)3N+ cations, in spite of large difference in their sizes, can stabilize the same 2D layered [Pd(Se6)2]2− anion. Counterion effects in Pd polyselenides have been well manifested and resulted in providing diverse structures from molecules to 3D frameworks [1]. To mention a few Pd polyselenides, K2PdSe10 with 3D [Pd(Se4)2]2− and [Pd(Se6)2]2−, A2[Pd(Se4)2]·Se8 (A = Rb, Cs) with 2D [Pd(Se4)2]2−, and (Et3NH)2[Pd(Se4)2] with molecular [Pd(Se4)2]2− are those with different structures [2–5]. Considering the structural variations of Pd polyselenides upon the size of counter cations, the stabilization of the same 2D [Pd(Se6)2]2− complex in both (EtNH3)2[Pd(Se6)2] and (CH3)N(CH2CH2)3N2[Pd(Se6)2] can be regarded somewhat unusual.

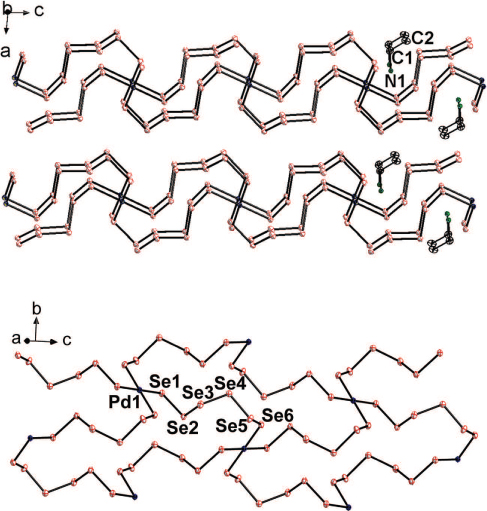

For the structure of the polymeric [Pd(Se6)2]2− in (EtNH3)2[Pd(Se6)2], the square planar geometry around Pd(II), coordinated by four bridging hexaselenide ligands, is quite ideal as Se—Pd—Se angles are in the range of 89.51(2)–90.49(2)°. The Pd—Se and Se—Se distances are also typical, ranging from 2.421(1) to 2.439(1) Å, and from 2.330(1) to 2.362(1) Å, respectively, similar to those found in the other [Pd(Sex)2]2− complexes [1–5]. In the layers of [Pd(Se6)2]2−, hexaselenide ligand chains are connecting Pd metal centers in a helical screw mode, resulting in 28-membered rings composed of four Pd and twenty four Se atoms (lower part of the figure). The distances between two couples of Pd centers faced diagonally in the 28-membered ring are 7.6646(2) and 16.7440(5) Å, respectively. These distances are 10.807(4) and 15.050(5) Å for (CH3)N(CH2CH2)3N2[Pd(Se6)2]. Obviously, the smaller cation, EtNH3+ forces to shrink the 28-membered ring into a much narrower shape, compared to the ring with the larger cation, (CH3)N(CH2CH2)3N+. Flexible and versatile Se6 ligands appeared to be responsible for the stability of the 28-membered ring in two different shapes. As we can see from the side view of the layers, EtNH3+ cations are placed in between [Pd(Se6)2]2− layers to fit snuggly in the pockets (upper part of the figure). Se⋯H-N hydrogen bonds are present with Se⋯H distances as short as 2.6 Å.

Acknowledgements:

This work was supported by the Incheon National University Research Grant in 2014. The authors thank Dr. Ji-Eun Lee at Central Instrument Facility, Gyeongsang National University for the X-ray measurements.

References

1. Kim, K.-W.; Kanatzidis, M. G.: Counterion effects in Pd polyselenides: evolution from molecular to three-dimensional framework structures. J. Am. Chem. Soc. 120 (1998) 8124–8135.10.1021/ja981297sSearch in Google Scholar

2. Kim, K.-W.; Kanatzidis, M. G.: Hydrothermal synthesis of K2PdSe10. coexistence of two large interpenetrating three-dimensional frameworks of [Pd(Se4)2]2− and [Pd(Se6)2]2−. J. Am. Chem. Soc. 114 (1992) 4878–4883.10.1021/ja00038a063Search in Google Scholar

3. Wachhold, M.; Kanatzidis, M. G.: Powerful templating effect in Rb/Pd/Sexpromoted by crown ether-like [Rb(Se8)]+ coordination. Formation of Rb2[Pd(Se4)2]·Se8: A layered Pd polyselenide with "Encapsulated" eight-membered selenium rings. J. Am. Chem. Soc. 121 (1999) 4189–4195.10.1021/ja984053gSearch in Google Scholar

4. Chen, Z.; Wang, R.-J.; Li, J.: Solvothermal synthesis of alkaline metal selenides Cs2PdSe16 and studies of thermal stabilities. Chem. J. Chinese Univ. 22 (2001) 1091–1094.Search in Google Scholar

5. Kim, K.-W.; Kim, J.: Crystal structure of bis(N,N,N-triethylammonium) bis(tetraselenido-κ2Se1,Se4)palladate(II), C12H32N2PdSe8. Z. Kristallogr. NCS 230 (2015) 269–270.10.1515/ncrs-2014-9015Search in Google Scholar

6. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

7. Farrugia, L. J.: WinGX and ORTEP for windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

8. Putz, H.; Brandenburg, K.: DIAMOND - Crystal and molecular structure visualization. Crystal Impact, Bonn, Germany, 2015.Search in Google Scholar

Received: 2016-1-7
Accepted: 2016-3-23
Published Online: 2016-4-18
Published in Print: 2016-9-1
