Crystal structure of N-(5-bromo-4-(p-tolyl)thiazol-2-yl)-4-chlorobutanamide, C14H14BrClN2OS

  • Hazem A. Ghabbour EMAIL logo and Mohamed A. Al-Omar
Published/Copyright: April 18, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

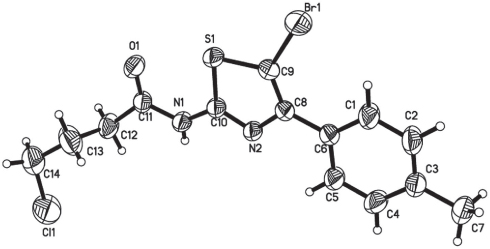

C14H14BrClN2OS, monoclinic, P21/c (no. 14), a = 9.8377(5) Å, b = 9.6008(5) Å, c = 17.5784(11) Å, β = 113.107(4)°, V = 1527.08(15) Å3, Z = 4, Rgt(F) = 0.0665, wRref(F2) = 0.1597, T = 293 K.

CCDC no.:: 1443533

Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless, block, size 0.176×0.236×0.434 mm
Wavelength:CuKα radiation (1.54178 Å)
μ:65.30 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω scans
2θmax:124.97°
N(hkl)measured, N(hkl)unique:9167, 2418
N(param)refined:183
Programs:Bruker programs [6], SHELX [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2N)4e−0.00080.18850.71490.067
H(1A)4e0.35100.15110.46850.100
H(2A)4e0.40540.32560.39590.098
H(4A)4e0.17140.59120.46530.096
H(5A)4e0.11180.41820.53660.087
H(7A)4e0.27090.66940.36820.113
H(7B)4e0.33210.55720.32500.113
H(7C)4e0.43680.62300.40930.113
H(12A)4e−0.14390.14920.78020.087
H(12B)4e−0.09840.01240.83340.087
H(13A)4e−0.32790.03010.67430.125
H(13B)4e−0.2777−0.11110.72150.125
H(14A)4e−0.3549−0.02430.82430.139
H(14B)4e−0.4839−0.05160.73840.139
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Br(1)4e0.30244(9)−0.09798(7)0.51283(5)0.1128(6)0.0578(4)0.1101(6)0.0197(3)0.0788(5)0.0010(3)
Cl(1)4e−0.4562(3)0.1747(3)0.7651(2)0.143(2)0.096(2)0.248(3)0.025(1)0.136(2)0.008(2)
S(1)4e0.1416(2)−0.0652(1)0.62903(8)0.0645(8)0.0380(6)0.0716(8)0.0047(5)0.0387(7)0.0022(5)
O(1)4e−0.0019(5)−0.1108(4)0.7279(3)0.087(3)0.044(2)0.094(3)0.001(2)0.057(2)0.007(2)
N(1)4e0.1163(4)0.2007(4)0.6109(3)0.058(2)0.039(2)0.068(3)0.004(2)0.037(2)0.003(2)
N(2)4e0.0133(5)0.1161(4)0.7008(3)0.070(3)0.039(2)0.075(3)0.005(2)0.048(2)0.001(2)
C(1)4e0.3138(8)0.2401(7)0.4688(5)0.114(5)0.053(3)0.127(6)0.010(3)0.094(5)0.008(3)
C(2)4e0.3468(8)0.3459(7)0.4251(4)0.101(5)0.071(4)0.110(5)0.001(4)0.081(4)0.006(4)
C(3)4e0.2962(6)0.4788(6)0.4234(3)0.057(3)0.060(3)0.058(3)−0.006(2)0.025(2)0.008(2)
C(4)4e0.2088(8)0.5021(6)0.4656(4)0.109(5)0.052(3)0.108(5)0.019(3)0.073(4)0.020(3)
C(5)4e0.1732(8)0.3977(6)0.5092(4)0.093(4)0.056(3)0.100(5)0.016(3)0.071(4)0.015(3)
C(6)4e0.2266(5)0.2647(5)0.5127(3)0.049(2)0.047(3)0.060(3)0.001(2)0.028(2)0.002(2)
C(7)4e0.3378(8)0.5924(7)0.3773(4)0.085(4)0.074(4)0.078(4)−0.007(3)0.044(4)0.014(3)
C(8)4e0.1882(5)0.1569(5)0.5606(3)0.049(2)0.043(2)0.059(3)0.002(2)0.028(2)0.002(2)
C(9)4e0.2116(5)0.0174(5)0.5650(3)0.053(3)0.047(3)0.061(3)0.006(2)0.029(2)0.000(2)
C(10)4e0.0875(5)0.0965(5)0.6486(3)0.054(3)0.040(2)0.065(3)0.000(2)0.033(2)0.000(2)
C(11)4e−0.0344(6)0.0104(5)0.7351(3)0.061(3)0.045(3)0.071(3)−0.005(2)0.039(3)−0.001(2)
C(12)4e−0.1370(8)0.0487(6)0.7774(4)0.098(5)0.060(3)0.086(4)−0.006(3)0.065(4)−0.002(3)
C(13)4e−0.2887(8)−0.0122(9)0.7288(6)0.082(5)0.091(5)0.164(8)−0.009(4)0.075(5)−0.022(5)
C(14)4e−0.399(1)0.007(1)0.7673(7)0.098(6)0.097(6)0.188(9)0.002(5)0.094(6)0.013(6)

Source of material

A mixture of 2-aminothiazole derivatives (1.0 mmol) and K2CO3 (4.0 mmol) was stirred at room temperature with drop-wise addition of 4-chlorobutyryl chloride (4.0 mmol) in chloroform for 48 h. The reaction mixture was monitored by TLC. Ammonia water was added, and the organic layer was separated and dried over anhydrous Na2SO4, and the solvent was removed in vacuum. The resulting precipitate was crystallized from ethanol to give crystals of the title compound, Mp: 163–165° [1].

Experimental details

Cell refinement and data reduction were carried out by Bruker SAINT [6]. The hydrogen atoms were placed on calculated positions with the help of the SHELX program (AFIX 3, 23, 43 or 137 option) [7].

Discussion

Thiazoles were used in drug discovery as anticancer, anticonvulsant, antihypertensive, antimicrobial, antioxidant, antifungal active substances and also for the treatment of pain, schizophrenia, HIV and as inhibitors of bacterial DNA gyrase. 2-Aminothiazole derivatives are generally utilized as structural motifs in medicinal chemistry. Several reviews and papers show the application of 2-aminothiazoles in the treatment of a diverse range of different diseases like Alzheimer's disease, chronic pain, cancer and Huntington's disease [1–5].

In proceeds of our work we report here the crystal structure of the title compound (C14H14BrClN2OS). In the title structure, the phenyl ring (C1—C6) forms a 8.95(2)° dihedral angle with thiazole ring (C8/N1/C9/S1/C10) (figure). In the crystal structure, molecules are linked by one classical intermolecular hydrogen bonds between N2—H2N⋯O1i and at least one non-classical hydrogen bond between C14—H14B⋯Cl1ii with symmetry codes: (i) −x+2, y+1/2, −z−1/2; (ii) −x+3, y−1/2, −z−1/2.

Funding source: King Saud University

Award Identifier / Grant number: RGP-99

Funding statement: The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding the work through the Research Group Project No. RGP-99.

Acknowledgements:

The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding the work through the Research Group Project No. RGP-99.

References

1. Ghabbour, H. A.; Kadi, A. A.; ElTahir, K. E.; Angawi, R. F.; El-Subbagh, H. I.: Synthesis, biological evaluation and molecular docking studies of thiazole-based pyrrolidinones and isoindolinediones as anticonvulsant agents. Med. Chem. Res. 24 (2015) 1–8.10.1007/s00044-015-1371-3Search in Google Scholar

2. Rostom, S. A.; El-Ashmawy, I. M.; Abd el Razik, H. A.; Badr, M. H.; Ashour, H. M.: Design and synthesis of some thiazolyl and thiadiazolyl derivatives of antipyrine as potential non-acidic anti-inflammatory, analgesic and antimicrobial agents. Bioorg. Med. Chem. 17 (2009) 882–895.10.1016/j.bmc.2008.11.035Search in Google Scholar PubMed

3. Kashyap, S. J.; Garg, V. K.; Sharma, P. K.; Kumar, N.; Dudhe, R.; Gupta, J. K.: Thiazoles: having diverse biological activities. Med. Chem. Res. 21 (2012) 2123–2132.10.1007/s00044-011-9685-2Search in Google Scholar

4. Bondock, S.; Naser, T.; Ammar, Y. A.: Synthesis of some new 2-(3-pyridyl)-4,5-disubstituted thiazoles as potent antimicrobial agents, Eur. J. Med. Chem. 62C (2013) 270–279.10.1016/j.ejmech.2012.12.050Search in Google Scholar PubMed

5. Zia, M.; Akhtar, T.; Hameed, S.; Al-Masoudi, N. A.: New aryl-1, 3-thiazole-4-carbohydrazides, their 1,3,4-oxadiazole-2-thione, 1,2, 4-triazole, isatin-3-ylidene and carboxamide derivatives. Synthesis and anti-HIV activity, Z. Naturforsch. B67 (2012) 747–451.10.5560/znb.2012-0095Search in Google Scholar

6. Bruker: APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

7. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-12-20
Accepted: 2016-3-23
Published Online: 2016-4-18
Published in Print: 2016-9-1

©2016 Hazem A. Ghabbour et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
