Crystal structure of poly[(μ4-1-methyl-1H-tetrazole-5-thiolato-κ3S:S:N:N′)copper(I)], C2H3CuN4S

  • Gang Liu EMAIL logo and Shuang Zhang
Published/Copyright: April 7, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

CuC2H3N4S, monoclinic, P21/c (no. 14), a = 8.6567(9) Å, b = 4.9722(5) Å, c = 12.0437(11) Å, β = 112.676(6)°, V = 478.32(8) Å3, Z = 4, Rgt(F) = 0.0246, wRref(F2) = 0.0862, T = 293 K.

CCDC no.:: 1460871

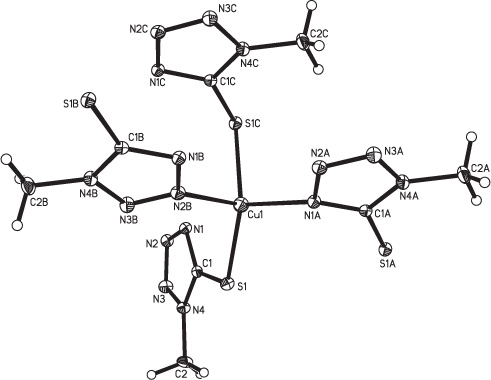

The figure shows a part of the title structure (asymmetric unit and three symmetry related ligands). Tables 1–3 contain details of the methods used and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow, block, size 0.16×0.18×0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:48.63 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:55.04°
N(hkl)measured, N(hkl)unique:2863, 1088
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1041
N(param)refined:74
Programs:SHELXTL-2008 [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2A)4e−0.04060.66070.35660.037
H(2B)4e0.07010.87420.32580.037
H(2C)4e0.08040.84640.45810.037
Table 3

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
C(1)4e0.3008(2)0.4992(3)0.3515(2)0.0156(8)0.0157(9)0.0124(8)−0.0016(5)0.0062(7)−0.0017(5)
C(2)4e0.0658(2)0.7502(4)0.3857(2)0.0220(8)0.0274(8)0.028(1)0.0076(7)0.0138(7)0.0027(8)
Cu(1)4e0.48702(3)0.50503(4)0.16012(2)0.0268(2)0.0243(2)0.0233(2)−0.00094(7)0.0159(2)−0.00137(7)
N(1)4e0.3947(2)0.2868(3)0.4066(1)0.0197(7)0.0163(6)0.0140(7)0.0008(5)0.0090(5)0.0005(5)
N(2)4e0.3488(2)0.2219(3)0.4994(1)0.0216(7)0.0203(7)0.0155(7)0.0000(5)0.0102(6)0.0020(5)
N(3)4e0.2320(2)0.3785(3)0.5031(1)0.0250(8)0.0235(8)0.0170(7)0.0034(6)0.0121(6)0.0049(6)
N(4)4e0.1986(2)0.5524(3)0.4106(2)0.0204(7)0.0196(6)0.0150(7)0.0028(6)0.0107(5)0.0015(6)
S(1)4e0.30390(5)0.68841(8)0.23171(3)0.0220(3)0.0177(3)0.0136(3)0.0016(1)0.0096(2)0.0025(1)

Source of material

A mixture of Cu(CH3COO)2.H2O (0.5 mmol), 1-methyl-1H-tetrazole-5-thiol (0.5 mmol) and H2O (10 mL) was stirred at room temperature for 30 min. When the pH value was adjusted to about 3.0 with dilute hydrochloric acid, the mixture was transferred into a 25 mL Teflon-lined stainless-steel reactor, heated to 393 K for three days. After cooling to room temperature, yellow block crystals of the title coordination polymer suitable for X-ray diffraction analysis were obtained by filtration.

Experimental details

The H atoms were placed in calculated positions and refined using a riding model with C—H = 0.96 Å and with Uiso(H) = 1.5 Ueq(C).

Discussion

Coordination polymers constructed from 1H-tetrazole-5-thiol and its derivatives have received much attention because of the diverse coordination properties of these ligands [1–8]. In order to further develop this branch of coordination chemistry research, the title coordination polymer based on 1-methyl-1H-tetrazole-5-thiol ligand was synthesized and its crystal structure is reported here.

The asymmetric unit of the title coordination polymer contains one crystallographically independent CuI cation and one 1-methyl-1H-tetrazole-5-thioltato ligand. The CuI cation is four-coordinated by two S atoms and two N atoms from four symmetry related 1-methyl-1H-tetrazole-5-thioltato ligands (see the figure), giving a distorted tetrahedral geometry. The Cu—N and Cu—S bond distances fall in the normal range of 2.0740(17)–2.1618(17) Å and 2.2671(6)–2.3732(6) Å, respectively and are comparable to other reported CuI coordination polymers. Each 1-methyl-1H-tetrazole-5-thioltato ligand connects four CuI cations, forming an interesting two-dimensional layered structure along the ac plane.

Acknowledgements:

This work was financial supported by Jilin Engineering Normal University (Grant Nos. 2014002, 2015051).

References

1. Liu, B.; Bai, L.; Lin, X.; Li, K.; Huang, H.; Hu, H.; Liu, Y.; Kang, Z.: Crystal engineering towards the luminescence property trimming of hybrid coordination polymers. CrystEngComm 17 (2015) 1686–1692.10.1039/C4CE02121ESearch in Google Scholar

2. Bharty, M. K.; Dani, R. K.; Kushawaha, S. K.; Singh, N. K.; Kharwar, R. N.; Butcher, R. J.: Mn(II), Ni(II), Cu(II), Zn(II), Cd(II), Hg(II) and Co(II) complexes of 1-phenyl-1H-tetrazole-5-thiol: synthesis, spectral, structural characterization and thermal studies. Polyhedron 88 (2015) 208–221.10.1016/j.poly.2014.12.013Search in Google Scholar

3. Zhang, W.; Gong, J.; Kang, Z.; Hu, H.; Guo, Z.; Li, Y.; Liu, Y.; Zhang, H.; Zhang, L.; Yang, Y.; Lee, S.-T.: Molecule design and isomorphism synthesis towards artificial enzymes. CrystEngComm 15 (2013) 662–665.10.1039/C2CE26820ESearch in Google Scholar

4. Zhou, F.-X.; Yue, C.-Y.; Zhang, H.-P.; Lei, X.-W.: A two-dimensional CuI framework incorporating the 1-phenyl-1H-1,2,3,4-tetrazole-5-thiol ligand. Acta Crystallogr. C69 (2013) 1478–1481.10.1107/S0108270113029065Search in Google Scholar

5. Wang, X.; Hu, H.; Liu, G.; Lin, H.; Tian, A.: Self-assembly of nanometre-scale metallacalix[4]arene building blocks and Keggin units to a novel (3,4)-connected 3D self-penetrating framework. Chem. Commun. 46 (2010) 6485–6487.10.1039/c0cc01412eSearch in Google Scholar

6. Wei, W.; Wu, M.; Gao, Q.; Zhang, Q.; Huang, Y.; Jiang, F.; Hong, M.: A novel supramolecular tetrahedron assembled from tetranuclear copper(I) cluster molecules via aryl embrace interactions. Inorg. Chem. 48 (2009) 420–422.10.1021/ic801972eSearch in Google Scholar

7. Zhao, H.; Qu, Z.-R.; Ye, H. Y.; Xiong, R.-G.: In situ hydrothermal synthesis of tetrazole coordination polymers with interesting physical properties. Chem. Soc. Rev. 37 (2008) 84–100.10.1039/B616738CSearch in Google Scholar

8. Nöth, H.; Beck, W.; Burger, K.: The molecular structure of some transition-metal complexes with 1,2,3,4-tetrazole-5-thiolate anions. Eur. J. Inorg. Chem. (1998) 93–99.10.1002/(SICI)1099-0682(199801)1998:1<93::AID-EJIC93>3.0.CO;2-ISearch in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar
