Crystal structure of bis(μ2-2-fluorobenzoato-κ2O:O:O′) bis(μ2-2-fluorobenzoato-κ2O:O′)dinitrato-κ2O,O′ bis(1,10-phenathroline-κ2N,N′)diterbium(III), C52H32F4N6O14Tb2

  • Wu Wen-Hua EMAIL logo , Lin Du , Yan-Rui Zheng und Ya-Jie Qu
Veröffentlicht/Copyright: 12. April 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 3

Abstract

C52H32F4N6O14Tb2, triclinic, P1̅ (no. 2), a = 10.745(2) Å, b = 10.993(2) Å, c = 11.141(2) Å, α = 84.45(3)°, β = 81.22(3)°, γ = 69.46(3)°, V = 1216.6(4) Å3, Z = 1, Rgt(F) = 0.0345, wRref(F2) = 0.0992, T = 293(2) K.

CCDC no.:: 1470059

Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Light yellow, block, size 0.280×0.330×0.410 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:29.75 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:54.76°
N(hkl)measured, N(hkl)unique:5377, 5377
N(param)refined:362
Programs:Bruker programs [10], PLATON [11], SHELX [12], Diamond [13]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(3)2i−0.20390.2860−0.33580.062
H(4)2i−0.36460.4531−0.42490.079
H(5)2i−0.56910.5508−0.31870.093
H(6)2i−0.60900.4936−0.11450.109
H(10)2i0.1360−0.3535−0.15830.073
H(11)2i0.1700−0.5302−0.26240.108
H(12)2i−0.0082−0.6041−0.26140.126
H(13)2i−0.2132−0.5002−0.14640.108
H(14)2i−0.2291−0.3320−0.03600.073
H(15)2i0.00550.1499−0.40980.061
H(16)2i0.03980.2748−0.58300.072
H(17)2i0.24090.3106−0.62950.080
H(19)2i0.47960.2548−0.58750.079
H(20)2i0.63650.1622−0.46380.079
H(22)2i0.70980.0254−0.27600.066
H(23)2i0.6591−0.0918−0.10600.075
H(24)2i0.4466−0.1063−0.06460.063
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Tb(1)2i0.12758(2)−0.00570(2)−0.15019(2)0.0269(1)0.0344(1)0.0291(1)−0.01116(8)−0.00312(7)0.00009(7)
O(1)2i−0.2328(3)0.1233(3)−0.0133(3)0.033(2)0.053(2)0.042(2)−0.016(1)−0.011(1)0.011(1)
O(2)2i−0.0877(3)0.1369(3)−0.1759(3)0.030(1)0.046(2)0.039(2)−0.006(1)−0.008(1)0.005(1)
O(3)2i−0.1468(4)−0.1830(3)0.0794(3)0.052(2)0.046(2)0.053(2)−0.024(2)0.004(2)−0.010(2)
O(4)2i−0.0020(3)−0.1287(3)−0.0555(3)0.047(2)0.041(2)0.053(2)−0.027(1)−0.015(2)0.006(1)
O(5)2i0.0607(4)−0.0954(4)−0.3195(4)0.057(2)0.060(2)0.054(2)−0.021(2)−0.015(2)−0.009(2)
O(6)2i0.2610(4)−0.1876(4)−0.2739(4)0.043(2)0.058(2)0.058(2)−0.015(2)−0.001(2)−0.017(2)
O(7)2i0.1983(5)−0.2595(5)−0.4206(4)0.086(3)0.097(3)0.058(3)−0.049(3)0.016(2)−0.044(3)
N(1)2i0.1775(4)0.1142(4)−0.3516(3)0.040(2)0.044(2)0.033(2)−0.015(2)−0.003(2)−0.000(2)
N(2)2i0.3709(4)−0.0012(4)−0.2031(4)0.031(2)0.046(2)0.046(2)−0.017(2)−0.004(2)0.002(2)
N(3)2i0.1733(5)−0.1829(4)−0.3410(4)0.051(2)0.055(2)0.040(2)−0.025(2)0.006(2)−0.008(2)
C(1)2i−0.2022(4)0.1734(4)−0.1137(4)0.030(2)0.036(2)0.037(2)−0.012(2)−0.009(2)−0.000(2)
C(2)2i−0.3095(4)0.2848(4)−0.1702(4)0.034(2)0.033(2)0.045(2)−0.009(2)−0.009(2)0.000(2)
C(3)2i−0.2862(6)0.3264(5)−0.2905(5)0.055(3)0.045(2)0.042(3)−0.001(2)−0.012(2)0.004(2)
C(4)2i−0.3828(7)0.4265(6)−0.3443(6)0.074(4)0.059(3)0.054(3)−0.009(3)−0.021(3)0.015(3)
C(5)2i−0.5031(7)0.4860(6)−0.2810(8)0.056(4)0.052(3)0.110(6)0.003(3)−0.032(4)0.019(4)
C(6)2i−0.5281(7)0.4504(7)−0.1605(9)0.046(3)0.074(4)0.116(7)0.008(3)0.011(4)0.023(4)
C(7)2i−0.4311(6)0.3499(6)−0.1093(6)0.047(3)0.060(3)0.072(4)−0.002(3)0.006(3)0.016(3)
C(8)2i−0.0684(4)−0.2034(4)−0.0166(4)0.038(2)0.032(2)0.041(2)−0.015(2)−0.013(2)0.003(2)
C(9)2i−0.0503(5)−0.3196(4)−0.0853(4)0.054(3)0.034(2)0.035(2)−0.016(2)−0.014(2)0.003(2)
C(10)2i0.0652(7)−0.3844(5)−0.1547(6)0.072(4)0.045(3)0.052(3)−0.004(3)−0.009(3)−0.002(2)
C(11)2i0.087(1)−0.4891(7)−0.2186(7)0.136(7)0.052(3)0.056(4)0.005(4)−0.018(4)−0.010(3)
C(12)2i−0.019(1)−0.5332(7)−0.2166(7)0.21(1)0.050(4)0.062(4)−0.041(6)−0.053(6)−0.007(3)
C(13)2i−0.141(1)−0.4724(7)−0.1483(8)0.169(9)0.062(4)0.079(5)−0.075(5)−0.057(6)0.011(4)
C(14)2i−0.1488(7)−0.3707(6)−0.0847(6)0.091(4)0.055(3)0.058(3)−0.044(3)−0.031(3)0.009(3)
C(15)2i0.0866(6)0.1647(6)−0.4275(5)0.051(3)0.062(3)0.037(2)−0.017(2)−0.007(2)0.005(2)
C(16)2i0.1068(6)0.2393(6)−0.5330(5)0.065(3)0.066(3)0.043(3)−0.017(3)−0.018(3)0.015(2)
C(17)2i0.2265(7)0.2591(7)−0.5612(6)0.088(5)0.070(4)0.043(3)−0.035(3)−0.006(3)0.015(3)
C(18)2i0.3263(6)0.2020(6)−0.4877(5)0.068(3)0.056(3)0.041(3)−0.028(3)0.003(2)0.003(2)
C(19)2i0.4592(7)0.2097(7)−0.5166(6)0.083(4)0.082(4)0.050(3)−0.056(4)0.007(3)0.001(3)
C(20)2i0.5527(7)0.1535(7)−0.4439(6)0.066(4)0.083(4)0.063(4)−0.050(3)0.012(3)−0.005(3)
C(21)2i0.5279(5)0.0805(5)−0.3368(5)0.043(2)0.055(3)0.053(3)−0.027(2)0.005(2)−0.010(2)
C(22)2i0.6249(5)0.0187(6)−0.2586(6)0.041(3)0.067(3)0.068(4)−0.031(2)−0.001(2)−0.014(3)
C(23)2i0.5953(6)−0.0503(6)−0.1580(6)0.043(3)0.075(4)0.075(4)−0.025(3)−0.015(3)0.003(3)
C(24)2i0.4661(5)−0.0582(5)−0.1336(6)0.037(2)0.059(3)0.064(3)−0.018(2)−0.016(2)0.012(3)
C(25)2i0.3997(4)0.0684(4)−0.3038(4)0.038(2)0.037(2)0.042(2)−0.020(2)0.004(2)−0.009(2)
C(26)2i0.2977(5)0.1300(4)−0.3815(4)0.042(2)0.041(2)0.035(2)−0.019(2)0.004(2)−0.006(2)
F(1)2i−0.4600(6)0.3232(5)0.0125(5)0.103(4)0.110(4)0.092(3)0.025(3)0.046(3)0.031(3)
F(2)a2i0.179(1)−0.360(1)−0.136(1)0.057(7)0.059(6)0.10(1)−0.001(5)0.017(6)0.002(6)
F(2')b2i−0.2659(6)−0.3216(6)−0.0123(7)0.057(3)0.078(4)0.108(5)−0.043(3)−0.015(3)0.002(3)

aDisordered, occupancy factor: 0.35.

bDisordered, occupancy factor: 0.65.

Source of material

Stoichiometric amounts of Tb(NO3)3 · 6H2O, o-fluorobenzoic acid and 1,10-phenanthroline (1:2:1) were dissolved separately in ethanol solvent. The ethanol solutions of the ligands were mixed and then the mixture was added dropwise to the ethanolic Tb(NO3)3 solution under stirring. The mixture was adjusted to pH 6–7 by adding 0.1 M NaOH solution, while a white precipitate appeared. The reaction mixture was stirred for 4 h at room temperature and filtered. Light yellow transparent crystals were obtained by slow evaporation of the filtrate for several days. Calcd. for C52H32F4N6O14Tb2 (1358.67) (%): C, 45.97; H, 2.37; N, 6.19. Found (%): C, 45.58; H, 2.18; N, 6.67.

Experimental details

All the H atoms of carbon were treated as riding-model, with C—H = 0.93–0.97 Å, and their Uiso = 1.2Ueq (carrier sp2 carbon atom). The fluor atom attached to one benzene ring was disordered at the positions from C10 and C14 with occupancy factors of 0.35 (F2) and 0.65 (F2′), respectively. The C—F2 and the C—F2′ distances were fixed at 1.81 Å.

Discussion

Rare earth complexes with benzoate ligands and its derivatives are intensively investigated for their potential applications on new fluorescent materials, electroluminescent materials and luminescent probes. Binuclear lanthanide complex is the common structure type, which can be formed by the benzoate or its derivatives and diamine ligands (ternary complex), and even by the third ligands (quaternary complex). The reported quantity of the ternary complexes is much more than that of the quaternary complexes, and the quaternary complexes are generally prepared by the lanthanum nitrate. Rare earth complexes with the fluoro benzoate ligand are rarely reported. They are almost ternary complexes, which exhibited the typical binuclear structure [1–7], and some quaternary complexes were reported [8, 9]. This work presented a quaternary binuclear terbium complex synthesized by o-fluorobenzoic acid (o-FBA), 1,10-phenanthroline (Phen) and terbium nitrate.

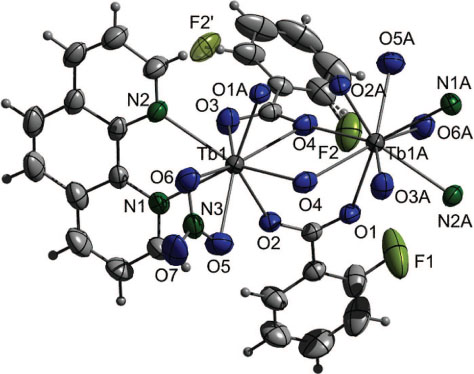

The title complex is binuclear centrosymmetric, which is typical for quaternary lanthanide benzoate complexes. Two Tb3+ ions are linked by four o-FBA ligands, of which two ligands are in bridging-bidentate coordination mode and the other two in bridging-chelating tridentate mode (see the figure). Each Tb3+ ion is nine-coordinated with five oxygen atoms of four o-FBA, two nitrogen atoms of Phen and two oxygen atoms of nitrate. The TbO7N2 coordination polyhedron around the Tb3+ ion can be described as distorted monocapped square-antiprism. Atoms O2, O4, O6, N3 and O1′, O3′, O4′(′ = −x, −y, −z), N2 form the top and bottom planes of the prism, respectively, and the O5 atom acts as the capped site. Dihedral angle between the two square best planes is 3.47°. The title complex has a Tb—Tb distance of 3.9712(14) Å. The Tb—O (carboxyl) distances are in range of 2.327(3)–2.751(4) Å, the Tb—O(nitrate) bonds are 2.423(4)–2.513(4) Å, and the Nd—N separation are 2.572(4)–2.608(4) Å. All of the above bond lengths are consistent with their relative bond in the ternary and quaternary terbium complexes with the o-FBA ligand [1, 4, 8, 9].

There are no classical hydrogen bonds found in the crystal structure of title complex. However, there are some weak intra- and inter C—H⋯F and C—H⋯O hydrogen bonds, which play the roles of stabilizing and assembling the molecules into a supramolecular structure. The two intramolecular hydrogen bonds are C24—H24⋯F1′ with length of 3.1074(6) Å and angle of 137° and C24—H24⋯O1′ with length of 3.0413(6) Å and angle of 127°, and the two intermolecular are C6—H6⋯F2′′(′′ = −1+x, 1+y, z) with length of 3.1109(6) Å and angle of 140° and C20—H20⋯O7′′′ (′′′ = 1−x, −y, −1−z) with length of 3.3781(6) Å and angle of 155°.

Acknowledgements:

All authors acknowledge the support for the publication fee by Beijing Municipal Education Commission. The authors thank the responsible editor for supplying the figure.

References

1. Li, X.; Zhang, Z. Y.; Zou, Y. Q.: Synthesis, structure and luminescence properties of four novel terbium 2-fluorobenzoate complexes. Eur. J. Inorg. Chem. 14 (2005) 2909–2918.10.1002/ejic.200500001Suche in Google Scholar

2. Li, X.; Zhang, Z. Y.; Song, H. B.: Synthesis, crystal structure and properties of three new holmium 2-fluorobenzoato complexes. J. Mol. Struct. 751 (2005) 33–40.10.1016/j.molstruc.2005.05.005Suche in Google Scholar

3. Li, X.; Chu, Y. M.: Synthesis and crystal structure of a gadolinium 2-fluorobenzoate complex with 1,10-phenanthroline. Chin. J. Inorg. Chem. 22 (2006) 145–148.Suche in Google Scholar

4. Xu, L. J.; Wang, S. P.; Wang, R. F.; Zhang, J. J.: Synthesis, structures and properties of ternary rare earth complexes with fluorobenzoic acid and 1,10-phenanthroline. J. Coord. Chem. 61 (2008) 237–250.10.1080/00958970701324036Suche in Google Scholar

5. Li, X.; Zhang, Z. Y.; Song, H. B.: Synthesis and crystal structure of a new dysprosium(III) complex with 2-fluorobenzoato and 1,10-phenanthroline. J. Chem. Cryst. 36 (2006) 99–103.10.1007/s10870-005-9011-3Suche in Google Scholar

6. Li, X.: Synthesis, crystal structure and properties of a novel lanthanum 2-fluorobenzoate complex containing 2,2′-bipyridine. Chin. J. Inorg. Chem. 23 (2007) 489–493.Suche in Google Scholar

7. Li, X.; Zhang, Z. Y.; Song, H. B.: Crystal structure and luminescence property of lanthanide complexes with 2-fluorobenzoic acid and 2,2′-bipyridine. J. Rare Earths 23 (2005) 615–618.Suche in Google Scholar

8. Wu, X. S.; Wang, C. Y.; Li, X.: Synthesis, crystal structure and properties of two terbium complexes with 4-bromobenzoic acid. Chin. J. Inorg. Chem. 24 (2008) 21–26.Suche in Google Scholar

9. Hao, L. J.; Liu, X.: Tetrakis(μ-2,4-difluorobenzoato)-bis[(2,2′-bipyridine)(2,4-difluorobenzoato)terbium(III)]. Acta Crystallogr. E65 (2009) m150.10.1107/S1600536808043936Suche in Google Scholar PubMed PubMed Central

10. Bruker: APEX2, SMART, SAINT: Bruker AXS Inc., Madison, Wisconsin, USA, 2012.Suche in Google Scholar

11. Spek, A. L.: Structure validation in chemical crystallography. Acta Crystallogr. D65 (2009) 148–155.10.1107/S090744490804362XSuche in Google Scholar PubMed PubMed Central

12. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

13. Brandenburg, K.: DIAMOND. Visual crystal structure information system. Version 3.2i. Crystal Impact, Bonn, Germany, 2012.Suche in Google Scholar

Received: 2015-12-14
Accepted: 2016-3-23
Published Online: 2016-4-12
Published in Print: 2016-9-1

©2016 Wu Wen-Hua et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
