Crystal structure of 6-hydroxy-5-((2-hydroxy-6-oxocyclohex-1-en-1-yl)(phenyl)methyl)-1,3-dimethylpyrimidine-2,4(1H,3H)-dione, C19H20N2O5

  • Assem Barakat EMAIL logo , Abdullah Mohammed Al-Majid , M. Ali , Hazem A. Ghabbour , M.S. Al-Marashdah and Mohammed Rafiq Siddiqui
Published/Copyright: April 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 3

Abstract

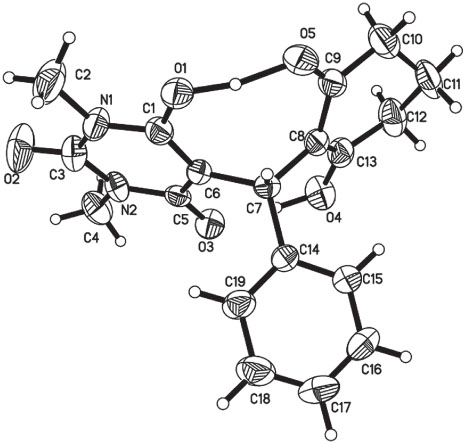

C19H20N2O5, orthorhombic, P212121 (no. 19), a = 10.3920(6) Å, b = 10.7709(8) Å, c = 14.8810(11) Å, V = 1665.6(2) Å3, Z = 4, Rgt(F) = 0.0504, wRref(F2) = 0.1068, T = 100 K.

CCDC no.:: 1443067

The measurement method details and a list of the atoms including atomic coordinates and displacementparameters are listed in Tables 1–3.

Table 1:

Data collection and handling.

Crystal:Block, Colourless, size 0.16×0.18×0.32 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.04 cm−1
Diffractometer, scan mode:Bruker APEX-II D8 venture, φ and ω scans
2θmax:50°
N(hkl)measured, N(hkl)unique:11913, 2923
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1959
N(param)refined:245
Programs:Bruker programs [12], SHELX [13]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2A)4a0.00680.63480.68020.118
H(2B)4a0.09930.65520.59550.118
H(2C)4a0.08130.76370.66790.118
H(4A)4a0.31730.41020.94350.078
H(4B)4a0.23660.32830.87370.078
H(4C)4a0.16630.43390.93120.078
H(7A)4a0.53880.73740.67730.035
H(10A)4a0.71970.57830.44120.068
H(10B)4a0.64840.45290.47020.068
H(11A)4a0.87920.54880.54840.072
H(11B)4a0.86710.42230.49230.072
H(12A)4a0.75500.32560.60610.070
H(12B)4a0.87470.39180.65390.070
H(15A)4a0.81200.66790.75540.054
H(16A)4a0.92090.76980.86920.068
H(17A)4a0.81220.87700.97790.067
H(18A)4a0.58880.88000.97670.071
H(19A)4a0.47560.78010.86170.055
H(1O4)4a0.615(4)0.462(4)0.799(3)0.10(2)
H(1O1)4a0.428(4)0.702(4)0.578(3)0.10(2)
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(1)4a0.3274(2)0.7153(2)0.6108(2)0.042(1)0.056(2)0.034(1)0.000(1)−0.004(1)0.009(1)
O(2)4a0.0577(2)0.5267(3)0.8077(2)0.036(2)0.106(2)0.097(2)−0.002(2)0.014(1)0.034(2)
O(3)4a0.4884(2)0.4766(2)0.8516(1)0.043(1)0.044(1)0.040(1)0.002(1)−0.003(1)0.011(1)
O(4)4a0.6984(2)0.4336(2)0.7634(2)0.053(2)0.048(2)0.051(2)0.008(1)0.007(1)0.010(1)
O(5)4a0.5352(2)0.6699(2)0.5255(1)0.055(2)0.064(2)0.032(1)−0.003(1)−0.001(1)0.006(1)
N(1)4a0.1953(2)0.6246(3)0.7111(2)0.028(2)0.059(2)0.045(2)−0.003(2)−0.001(1)0.011(2)
N(2)4a0.2731(2)0.5010(2)0.8298(2)0.036(2)0.037(2)0.038(2)0.001(1)0.012(1)0.003(1)
C(1)4a0.3182(3)0.6521(3)0.6858(2)0.037(2)0.037(2)0.036(2)−0.002(2)0.003(2)−0.005(2)
C(2)4a0.0867(3)0.6736(5)0.6594(3)0.037(2)0.123(4)0.076(3)0.009(2)−0.010(2)0.026(3)
C(3)4a0.1679(3)0.5495(3)0.7844(2)0.034(2)0.053(2)0.059(2)0.001(2)0.010(2)0.001(2)
C(4)4a0.2461(3)0.4110(3)0.9003(2)0.061(2)0.046(2)0.048(2)−0.001(2)0.017(2)0.007(2)
C(5)4a0.4003(3)0.5296(3)0.8072(2)0.037(2)0.032(2)0.025(2)−0.003(2)0.002(2)−0.007(2)
C(6)4a0.4212(3)0.6150(3)0.7373(2)0.030(2)0.030(2)0.029(2)0.000(2)0.000(1)−0.000(2)
C(7)4a0.5557(3)0.6622(3)0.7149(2)0.033(2)0.028(2)0.026(2)−0.003(2)−0.001(1)0.001(2)
C(8)4a0.6322(3)0.5781(3)0.6523(2)0.031(2)0.027(2)0.035(2)−0.009(2)0.005(1)−0.002(2)
C(9)4a0.6184(3)0.5957(3)0.5584(2)0.041(2)0.042(2)0.035(2)−0.014(2)0.006(2)−0.003(2)
C(10)4a0.6986(3)0.5244(4)0.4930(2)0.061(2)0.060(2)0.049(2)−0.013(2)0.020(2)−0.010(2)
C(11)4a0.8220(4)0.4777(4)0.5351(2)0.058(2)0.060(3)0.063(2)−0.006(2)0.034(2)−0.014(2)
C(12)4a0.7932(3)0.4071(3)0.6213(3)0.049(2)0.051(2)0.074(3)0.007(2)0.020(2)−0.007(2)
C(13)4a0.7025(3)0.4770(3)0.6813(2)0.037(2)0.039(2)0.049(2)−0.009(2)0.006(2)−0.004(2)
C(14)4a0.6313(3)0.7137(3)0.7953(2)0.033(2)0.027(2)0.035(2)−0.003(2)−0.001(2)0.000(2)
C(15)4a0.7646(3)0.7117(3)0.7999(2)0.039(2)0.054(2)0.042(2)−0.008(2)0.001(2)−0.010(2)
C(16)4a0.8296(4)0.7723(4)0.8678(3)0.040(2)0.065(3)0.066(3)−0.012(2)−0.010(2)−0.010(2)
C(17)4a0.7661(4)0.8348(3)0.9320(2)0.064(3)0.047(2)0.056(2)−0.003(2)−0.020(2)−0.013(2)
C(18)4a0.6344(4)0.8373(4)0.9308(3)0.065(3)0.056(3)0.058(3)0.012(2)−0.007(2)−0.023(2)
C(19)4a0.5669(3)0.7772(3)0.8623(2)0.044(2)0.040(2)0.053(2)0.003(2)−0.009(2)−0.012(2)

Source of material

The synthesis of 6-hydroxy-5-((2-hydroxy-6-oxocyclohex-1-en-1-yl) (phenyl)methyl)-1,3-dimethylpyrimidine-2,4(1H,3H)-dione follows a reported protocol [1].

In a round bottom flask (25 mL), a mixture of benzaldehyde (1.5 mmol), cyclohexane-1,3-dione (1.5 mmol), 1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (1.5 mmol), and Et2NH (1.5 mmol, 155 μL) in H2O (3 mL). The resulting reaction mixture was continuing stirring at r.t for 24 h (TLC n.hexane/Ethyl acetate: 8:2). The resulting precipitated product was filtered, dried and recrystallized from EtOH/CH2Cl2/Et2O over 2 days to get cuboid-shaped crystals as the pure product. Yield: 85%; m.p. 127°C; IR (KBr, cm−1) νmax = 3050, 2950, 2661, 1678, 1588, 1450, 1340, 1226; LC/MS (ESI, m/z): 356.38 [M+]; [Anal. calcd. for C19H20N2O5 (%): C, 64.04; H, 5.66; N, 7.86; found (%): C, 64.03; H, 5.66; N, 7.85].

Experimental details

Cell refinement and data reduction were collected by Bruker SAINT [12]. The carbon bonded hydrogen atoms were placed on calculated positions with the help of the SHELX program (AFIX 13, 23, 43 or 137 option) [13]. The oxygen bonded hydrogen atoms were refined freely.

Discussion

Barbituric acid represents the key pharmacophore of several pharmaceutically agents. Thus, several substituted barbituric acid for example bucolome, veronal, phenobarbital, seconal, and sodium pentothal have been used as hypnotic and anti-inflammatory clinical drugs [2–4]. Furthermore, this class of compounds exhibit anti-hypertensive, antitumor, sedative, anticonvulsant, anti-oxidant, anti-diabetic potentials [5–11]. We have synthesized a new compound derived from barbituric acid derivative via Aldol-Michael reactions in the presence of NHEt2 in water. The desired compound was characterized by spectroscopic techniques and by X-ray single crystal analysis.

In the target compound, molecules contain no strong intermolecular hydrogen bonds. Two intramolecular hydrogen bonds between O4, and O1 as donors and O3 and O5 as acceptor are present (figure). According to the short distances these hyrogen bonds must be classified as strong.

Funding source: King Saud University

Award Identifier / Grant number: RG -257–1435-1436

Funding statement: The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding this research group NO (RG -257–1435-1436).

Acknowledgements:

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding this research group NO (RG -257–1435-1436).

References

1. Al-Majid, A. M.; Barakat, A.; Al-Najjar, H. J.; Mabkhot, Y. N.; Ghabbour, H. A.; Fun, H.-K.: Tandem Aldol-Michael reactions in aqueous diethylamine medium: a greener and efficient approach to bis-pyrimidine derivatives. Int. J. Mol. Sci. 14 (2013) 23762–23773.10.3390/ijms141223762Search in Google Scholar

2. Bojarski, J. T.; Mokrocz, J. L.; Barton, H. J.; Paluchowska, M. H.: Recent progress in barbituric acid chemistry. Adv. Heterocycl. Chem. 38 (1985) 229–297.10.1016/S0065-2725(08)60921-6Search in Google Scholar

3. Sans, S. R. G.; Chosaz, M. G.: Historical aspects and applications of barbituric acid derivatives. Pharmazie 43 (1988) 827–829.Search in Google Scholar

4. Taylor, J. B.: Modern medical chemistry. Prentice Hall: New York, NY, USA, 1994.Search in Google Scholar

5. Barakat, A.; Al-Najjar, H. J.; Al-Majid, A. M.; Soliman, S. M.; Mabkhot, Y. N.; Shaik, M. R.; Ghabbour, H. A.; Fun, H.-K.: Synthesis, NMR, FT-IR, X-ray structural characterization, DFT analysis and isomerism aspects of 5-(2,6-dichlorobenzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione. Spectrochim. Acta 147 (2015) 107–115.10.1016/j.saa.2015.03.016Search in Google Scholar PubMed

6. Barakat, A.; Al-Majid, A. M.; Al-Najjar, H. J.; Choudhary, M. I.; Yousuf, S. S.: Crystal structure of 1,3-dimethyl-5-(2,4,6-trimethylbenzylidene)pyrimidine-2,4,6(1H, 3H,5H)-trione. Zeitschrift für Kristallographie – NCS 229 (2014) 269–270.10.1515/ncrs-2014-0128Search in Google Scholar

7. Barakat, A.; Al Majid, A. M. A.; Al-Najjar, H. J.; Mabkhot, Y. N.; Javaid, S.; Yousuf, S.; Choudhary, M. I.: Zwitterionic pyrimidinium adducts as antioxidants with therapeutic potential for nitric oxide scavenger. Euro. J. Med. Chem. 84 (2014) 146–154.10.1016/j.ejmech.2014.07.026Search in Google Scholar PubMed

8. Barakat, A.; Soliman, S. M.; Al-Majid, A. M.; Lotfy, G.; Ghabbour, H. A.; Fun, H.-K.; Yousuf, S.; Choudhary, M. I.; Wadood, A.: Synthesis and structure investigation of novel pyrimidine-2,4,6-trione derivatives of highly potential biological activity as anti-diabetic agent. J. Mol. Struct. 1098 (2015) 365–376.10.1016/j.molstruc.2015.06.037Search in Google Scholar

9. Barakat, A.; Al-Majid, A. M.; Soliman, S. M.; Lotfy, G.; Ghabbour, H. A.; Fun, H-K.; Wadood, A.: New diethyl ammonium salt of thiobarbituric acid derivative: Synthesis, molecular structure investigations and docking studies. Molecules 20 (2015) 20642–20658.10.3390/molecules201119710Search in Google Scholar PubMed PubMed Central

10. Barakat, A.; Islam, M. S.; Al-Majid, A. M.; Al-Othman, Z.; Soliman, S. M.; Ghabbour, H. A.; Fun, H.-K.: Synthesis of novel 5-monoalkylbarbiturates derivatives: New access to 1,2-oxazepines. Tetrahedron Lett. 56 (2015) 6984–6987.10.1016/j.tetlet.2015.10.108Search in Google Scholar

11. Barakat, A.; Islam, M. S.; Al-Majid, A. M.; Ghabbour, H. A.; Fun, H.-K.; Javed, K.; Imad, R.; Yousuf, S.; Choudhary, M. I.; Wadood, A.: Synthesis, in vitro biological activities and in silico study on dihydropyrimidines derivatives. Bioorg. Med. Chem. 23 (2015) 6740–6748.10.1016/j.bmc.2015.09.001Search in Google Scholar PubMed

12. Bruker: APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

13. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-12-18
Accepted: 2016-3-23
Published Online: 2016-4-12
Published in Print: 2016-9-1
