Crystal structure of ethyl 2-amino-5-bromothiazole-4-carboxylate, C6H7BrN2O2S

  • Hazem A. Ghabbour EMAIL logo
Published/Copyright: March 16, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C6H7BrN2O2S, monoclinic, P21/c (no. 14), a = 11.2669(5) Å, b = 8.3859(3) Å, c = 19.4047(8) Å, β = 95.207(2)°, V = 1825.85(13) Å3, Z = 8, Rgt(F) = 0.0556, wRref(F2) = 0.1619, T = 100 K.

CCDC no.:: 1423658

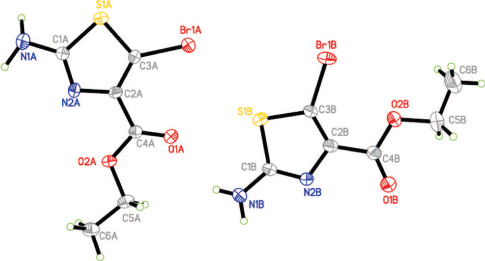

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, plate, size 0.09×0.37×0.65 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:46.92 cm−1
Diffractometer, scan mode:Bruker APEX-II D8 venture, φ and ω scans
2θmax:55°
N(hkl)measured, N(hkl)unique:22203, 4187
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2457
N(param)refined:219
Programs:Bruker programs [8] SHELX [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1AA)4e0.4172−0.56560.54360.059
H(1AB)4e0.3315−0.51570.59610.059
H(5AA)4e0.8875−0.09550.48630.047
H(5AB)4e0.7975−0.01530.42710.047
H(6AA)4e0.9209−0.21240.37990.065
H(6AB)4e0.7826−0.25630.36590.065
H(6AC)4e0.8635−0.34440.42640.065
H(1BA)4e0.92970.35040.47380.058
H(1BB)4e0.83280.23920.49560.058
H(5BA)4e0.99861.02850.73030.083
H(5BB)4e0.90351.09560.67070.083
H(6BA)4e0.85441.20030.77180.109
H(6BB)4e0.86041.02890.80830.109
H(6BC)4e0.75581.06830.74930.109
Table 3

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Br(1A)4e0.51901(6)0.12218(7)0.64873(4)0.0607(5)0.0405(4)0.0639(4)−0.0171(3)0.0343(3)−0.0225(3)
S(1A)4e0.3965(1)−0.2065(2)0.63441(7)0.0427(9)0.0347(7)0.0456(8)−0.0071(6)0.0229(7)−0.0048(6)
O(1A)4e0.7104(4)0.0534(5)0.5430(2)0.056(3)0.036(2)0.061(3)−0.018(2)0.031(2)−0.016(2)
O(2A)4e0.7175(3)−0.1771(4)0.4857(2)0.037(2)0.036(2)0.039(2)−0.007(2)0.021(2)−0.005(2)
N(1A)4e0.3916(4)−0.4936(5)0.5718(2)0.057(4)0.035(3)0.061(3)−0.015(2)0.031(3)−0.014(2)
N(2A)4e0.5341(4)−0.3052(5)0.5436(2)0.041(3)0.022(2)0.036(2)−0.005(2)0.010(2)−0.002(2)
C(1A)4e0.4447(5)−0.3488(6)0.5775(3)0.039(3)0.028(3)0.038(3)−0.005(2)0.014(3)−0.005(2)
C(2A)4e0.5701(5)−0.1516(6)0.5625(2)0.029(3)0.032(3)0.025(3)−0.005(2)0.006(2)0.001(2)
C(3A)4e0.5066(5)−0.0808(5)0.6101(3)0.036(3)0.022(2)0.034(3)−0.003(2)0.010(2)−0.001(2)
C(4A)4e0.6727(5)−0.0786(6)0.5305(3)0.037(3)0.031(3)0.028(3)−0.002(2)0.010(2)0.000(2)
C(5A)4e0.8189(5)−0.1160(6)0.4518(3)0.039(4)0.042(3)0.039(3)−0.005(3)0.017(3)0.003(2)
C(6A)4e0.8491(6)−0.2434(7)0.4016(3)0.051(4)0.047(3)0.036(3)−0.004(3)0.020(3)−0.001(2)
Br(1B)4e0.68953(6)0.61254(7)0.72453(3)0.0603(5)0.0617(4)0.0382(4)−0.0107(3)0.0278(3)−0.0080(3)
S(1B)4e0.7438(1)0.3875(2)0.60831(8)0.0452(9)0.0381(8)0.0439(8)−0.0127(6)0.0204(7)−0.0056(6)
O(1B)4e0.9981(4)0.8580(4)0.6104(2)0.061(3)0.044(2)0.055(3)−0.015(2)0.026(2)−0.012(2)
O(2B)4e0.8758(4)0.8623(5)0.6945(2)0.074(3)0.047(2)0.053(3)−0.024(2)0.031(2)−0.022(2)
N(1B)4e0.8746(4)0.3275(6)0.5017(3)0.042(3)0.043(3)0.062(3)−0.016(2)0.026(3)−0.023(2)
N(2B)4e0.9109(4)0.5611(5)0.5668(2)0.034(3)0.031(2)0.033(2)−0.006(2)0.012(2)−0.006(2)
C(1B)4e0.8540(5)0.4287(6)0.5540(3)0.036(3)0.033(3)0.038(3)−0.001(2)0.014(3)−0.006(2)
C(2B)4e0.8675(5)0.6404(6)0.6224(3)0.035(3)0.034(3)0.029(3)0.000(2)0.010(2)0.001(2)
C(3B)4e0.7786(5)0.5636(6)0.6505(3)0.043(4)0.033(3)0.033(3)−0.003(2)0.016(3)−0.006(2)
C(4B)4e0.9222(5)0.7985(6)0.6404(3)0.037(3)0.043(3)0.028(3)−0.006(3)0.007(3)−0.007(2)
C(5B)4e0.9135(6)1.0270(9)0.7123(4)0.078(6)0.058(4)0.073(5)−0.024(4)0.016(4)−0.035(4)
C(6B)4e0.8400(7)1.0859(8)0.7647(4)0.092(6)0.060(4)0.066(5)−0.007(4)0.011(4)−0.025(4)

Source of material

To 2-aminothiazole (0.1 mol) dissolved in the least amount glacial acetic acid bromine (0.11 mol) also dissolved in glacial acetic acid was added dropwise with continuous stirring at room temperature. The mixture was heated at 80°C for 90 min, stirred for 12 h at room temperature and then filtered and washed with water. The precipitate was heated in an ammoniacal alkaline aqueous solution, filtered, washed with water, dried and crystallized from ethanol to give ethyl 2-amino-5-bromothiazole-4-carboxylate, M.P. 115–17°C [1].

Experimental details

Cell refinement and data reduction were carried out by Bruker SAINT and APEX2 [8]. The hydrogen atoms were placed on calculated position (AFIX 23, 93 or 137 option of the SHELX program [9]).

Discussion

2-Aminothiazole derivatives are often used structural motifs in medicinal chemistry due to their broad application in drug synthesis. Several reviews and papers regarding the applications of 2-aminothiazoles in the treatment of a diverse range of different diseases like alzheimer's disease [2], chronic pain [3], cancer [4] and Huntington's disease [5] appeared over the last few years.

The asymmetric unit of the title structure, contains two independent molecules, which show great similarity in bond lengths and angles. The 2-aminothiazole ring and the ethyl carboxylate group are almost planar. All geometric parameters are in excellent agreement with those found for the 4-phenyl analogues [6, 7]. The similarity of these two structures extends to their hydrogen-bonding motifs. The molecules in the title structure are connected via three intermolecular hydrogen bonds, N1A—H1AA⋯N2Ai, N1B—H1BA⋯O1Bii and N1B—H1BA⋯N2Bii. The H⋯A distances are 2.12, 2.57 and 2.16 Å, respectively and the angles are 165, 122 and 163°, respectively. Symmetry codes: (i) −x+1, −y−1, −z+1; (ii) −x+2, −y+1, −z+1.

Corresponding author: Hazem A. Ghabbour, Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, P. O. Box 2457, Riaydh 11451, Saudi Arabia, e-mail: ; and Faculty of Pharmacy, Department of Medicinal Chemistry, Mansoura University, Mansoura 35516, Egypt

Acknowledgements:

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project NO (RGP-1436–038).

References

1. Ghabbour, H. A.; Kadi, A. A.; ElTahir, K. E. H.; Angawi, R. F.; El-Subbagh, H. I.: Synthesis, biological evaluation and molecular docking studies of thiazole-based pyrrolidinones and isoindolinediones as anticonvulsant agents. Med. Chem. Res. 24 (2015) 3194–3211.10.1007/s00044-015-1371-3Search in Google Scholar

2. Huang, W. H.; Sheng, R.; Hu, Y. Z.: Progress in the development of nonpeptidomimetic BACE 1 inhibitors for Alzheimer's disease. Curr. Med. Chem. 16 (2009) 1806–1820.10.2174/092986709788186174Search in Google Scholar PubMed

3. Matulenko, M. A.; Scanio, M. J.; Kort, M. E.: Voltage-gated sodium channel blockers for the treatment of chronic pain. Curr. Top. Med. Chem. 9 (2009) 362–376.10.2174/156802609788317883Search in Google Scholar PubMed

4. McInnes, C.: Progress in the evaluation of CDK inhibitors as anti-tumor agents. Drug discovery today 13 (2008) 875–881.10.1016/j.drudis.2008.06.012Search in Google Scholar PubMed

5. Heitz, F.; La Rosa, S.; Gonzalez-Couto, E.; Gaviraghi, G.; Terstappen, G. C.: Drug discovery and development for Huntington's disease - an orphan indication with high medical need. IDrugs 11 (2008) 653–660.Search in Google Scholar

6. Ghabbour, H. A.; Chia, T. S.; Fun, H. K.: 5-Bromo-4-(3,4-dimeth-oxy-phen-yl)thiazol-2-amine, Acta Crystallogr. E68 (2012) 1631–1632.10.1107/S1600536812019320Search in Google Scholar

7. Ghabbour, H. A.; Kadi, A. A.; El-Subbagh, H. I.; Chia, T. S.; Fun, H. K.: 1-(5-Bromo-4-phenyl-1,3-thiazol-2-yl)pyrrolidin-2-one, Acta Crystallogr. E68 (2012) 1738–1739.10.1107/S160053681201954XSearch in Google Scholar PubMed PubMed Central

8. Brucker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-1-30
Accepted: 2016-2-15
Published Online: 2016-3-16
Published in Print: 2016-6-1
