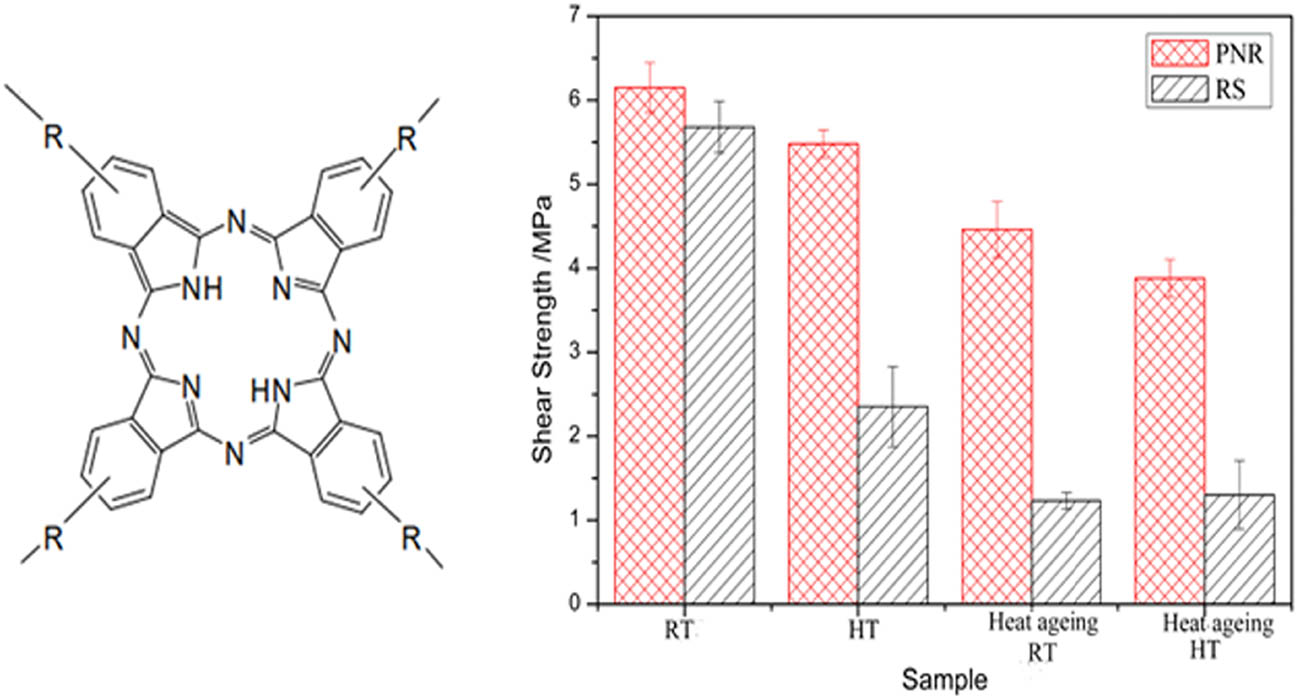

Synthesis, characterization and properties of phthalonitrile-etherified resole resin

2.1 Materials

Phenol and 37% formaldehyde were purchased from Chemical Purity, Shanghai Guoyao Co., Ltd. 4-Nitrophthalonitrile was purchased from Shijiazhuang Aifa Chemical Technology Co., Ltd. N,N-Dimethylformamide (DMF) was purchased from Tianjin Guangfu Fine Chemical Research Institute. Anhydrous potassium carbonate, zinc oxide and butanone were purchased from Chemical Purity, Beijing Chemical Plant.

2.2 Preparation of resins

2.2.2 Preparation of PNR

First, according to the PNR chemical formula, 80 mL of dried DMF and 26 g of 4-nitrophthalonitrile were added to a 250 mL three-neck flask equipped with an agitator, thermometer and reflux condenser. After stirring until reagent dissolution, 30 g of RS was added, and the mixture was stirred to increase the temperature to 60°C. The reaction was carried out in nitrogen atmosphere. Then, 18 g of catalyst was added. Stirring was continued until all the solids had dissolved, and the contents were heated to 80°C and maintained at this temperature for 16 h. After the reaction was completed, the mixture was cooled to room temperature, and the reaction liquid was slowly poured into 1.5 L of cold water while stirring. The product was precipitated, neutralized by adding hydrochloric acid and then extracted with methyl ethyl ketone. Finally, the solvent was removed by distillation under reduced pressure to obtain yellowish brown PNR with a yield of 70–80%. The reaction route is shown in Figure 1.

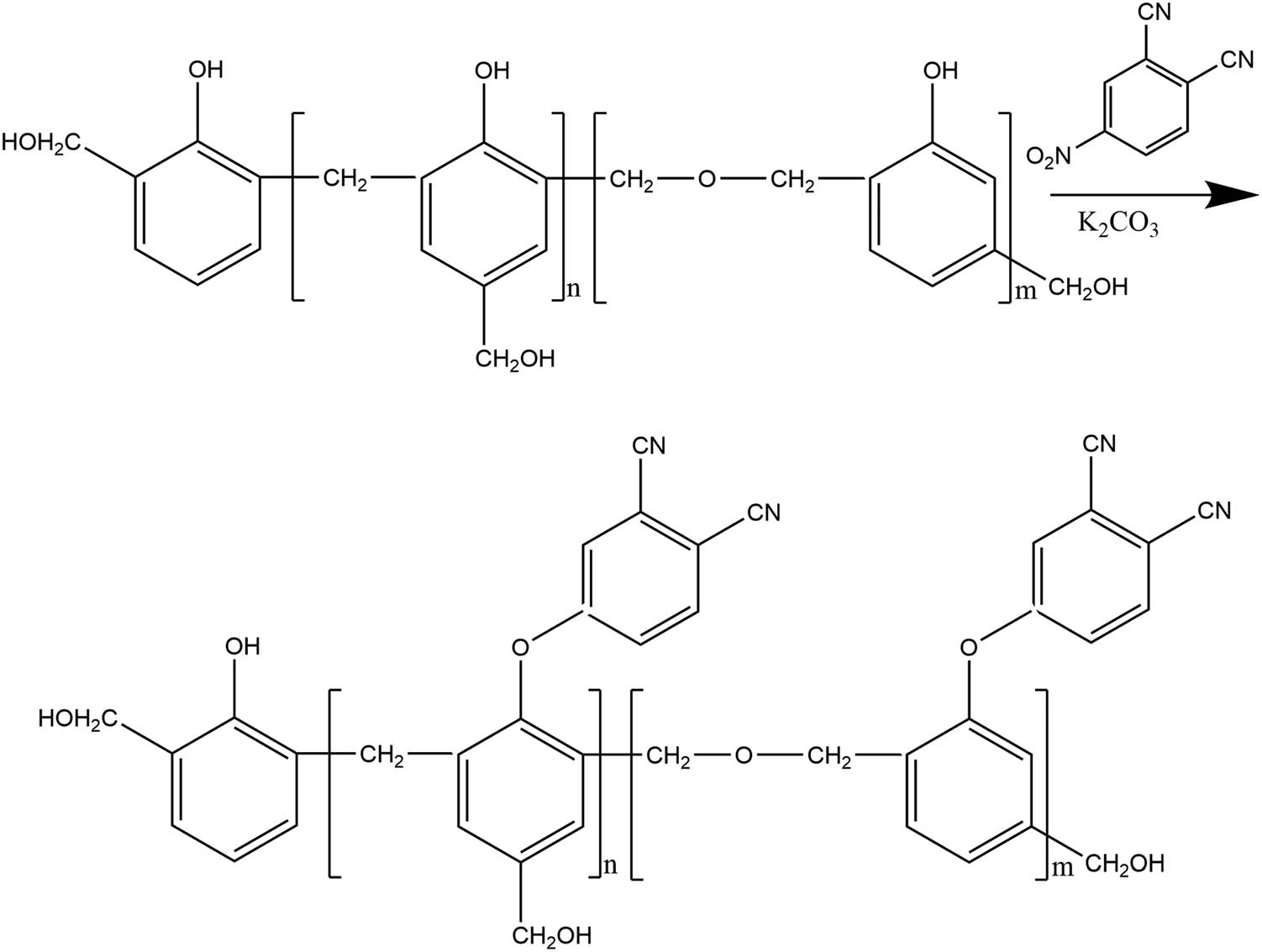

Figure 1

Synthesis of PNR.

2.3 Cure procedure

The PNR was cured by heating in an electric drying oven under air atmosphere at 180°C for 2 h, followed by 220°C for 4 h. The RS was cured by heating in an electric drying oven under air atmosphere at 150°C for 2 h, followed by 180°C for 4 h.

2.4 Characterization

The bond strength of PNR in steel-steel systems was measured by the lap shear method and compared with that of RS following GB/T 7124-2008. The strength was determined as the average value of five test samples. Specimen treatment: steel strips measuring 60 mm × 20 mm × 2 mm were used to test the shear strength. Mechanical polishing was performed with a no. 80 emery cloth, as the surface of the steel to be bonded needs to be smooth and uniform; then, the samples were washed and degreased with acetic acid ethyl acetate and dried at room temperature for 10–15 min. Gluing: a thin layer of resin was applied on the surface of the treated test piece, which was then left at room temperature for 10–15 min. Another thin layer of resin was applied, and the test piece was left at room temperature for 10–15 min. Finally, the test piece was placed in an oven at 80°C. After baking for 10–15 min, when the resin on the test piece could not be drawn or broken, the test piece was joined. The curing stresses ranged from 0.1 to 0.4 MPa, and the bonded test piece was thermally cured by heating in an electric drying oven under air atmosphere at 180°C for 2 h, followed by 220°C for 4 h. Fourier transform infrared (FT-IR) spectra were recorded from KBr discs with a Bruker VECTOR-22 spectrometer and the following parameters were noted: resolution, 4 cm⁻¹; number of scans, 32; and scanning range, 4,000–600 cm⁻¹. Proton nuclear magnetic resonance spectroscopy (¹H-NMR) was performed with a Bruker Advance-400 NMR spectrometer with deuterated dimethyl sulfoxide-d6 as the solvent and tetramethylsilane as the internal standard. Differential scanning calorimetry (DSC) was carried out with a Perkin Elmer PYRIS-1 analyzer from 25 to 400°C at a heating rate of 10°C min⁻¹ under nitrogen. Gel permeation chromatography (GPC) analysis was performed with a Shimadzu LC-20AD pump delivering tetrahydrofuran as the eluent and with polystyrene as the calibration standard. Dynamic mechanical analysis (DMA) was performed on a SEIKO SII Exstar DMA6100 in 3-point bending mode to measure the storage modulus and damping factor (tan δ) of the material in a nitrogen atmosphere from 20°C to 400°C at a heating rate of 5°C min⁻¹ and a frequency of 1 Hz. Thermogravimetric analysis (TGA) was performed on a PerkinElmer Diamond calorimeter at a heating rate of 10°C min⁻¹ under flowing nitrogen or air (flow rate 60 mL min⁻¹). Rheological studies were performed from 40°C to 250°C at a heating rate of 5°C min⁻¹ using a Bohlin rheometer (Gemini 200) with a 25 mm diameter parallel plate fixture. X-ray diffraction (XRD) was conducted with a SHIMADZU (XRD-7000) operating at 40 kV and 40 mA with Ni-filtered Cu Kα radiation (λ = 0.15406 nm) in the reflection mode. The 2θ was collected from 5° to 163° with the interval of 0.02° at a scanning speed of 4° min⁻¹. The morphology of the surfaces of the resins was observed by SEM (JEOL JSM-IT300LV) operating at 20 kV.

3.1 Characterization of the PNR

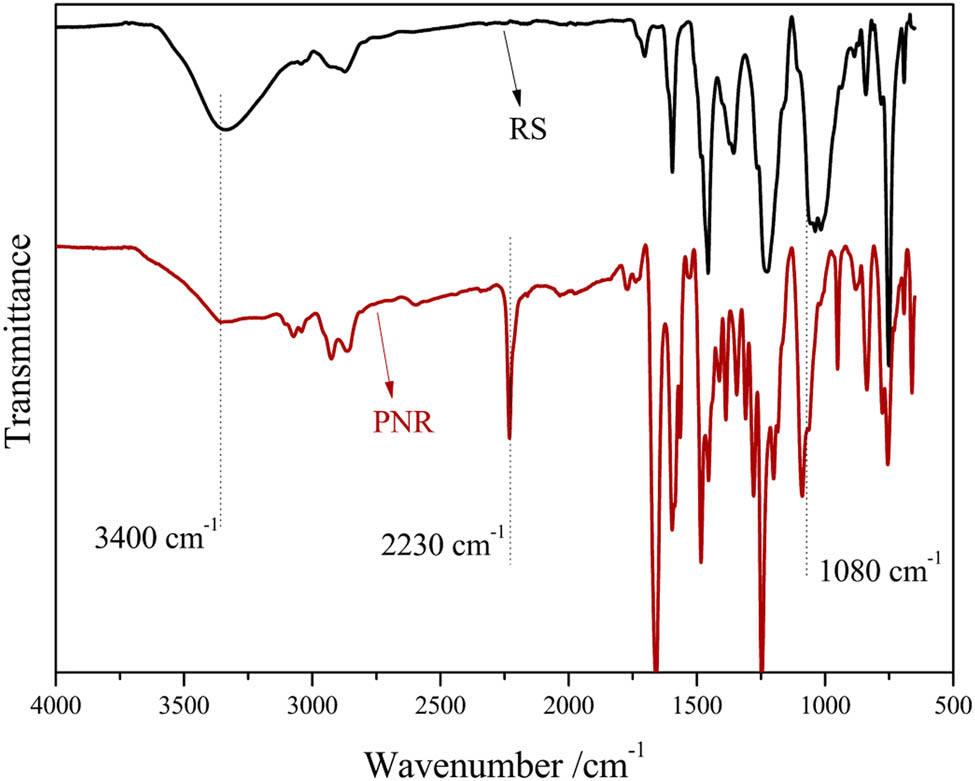

Figure 2 shows the FT-IR spectra of PNR and RS. As shown in Figure 2 (RS), the wide absorption band at 3,400 cm^–1 corresponding to the hydroxyl was observed and the bending vibration band of the methylol group at 1,080 cm⁻¹ was obvious. Compared to the spectrum of RS, the characteristic absorption band of phenolic hydroxyl groups at 3,400 cm⁻¹ in the spectrum of PNR was less intense, and a characteristic absorption band for a cyano (CN) group at 2,230 cm⁻¹ was present. Therefore, the CN bond was successfully introduced into the structure of RS. The bending vibration band of the methylol group at 1,080 cm⁻¹ did not change significantly, indicating that there was no condensation between phenolic methylol groups. Compared with that of phthalonitrile novolac resin (27), there were no methylol groups in its structure.

Figure 2

FT-IR spectra of PNR and RS.

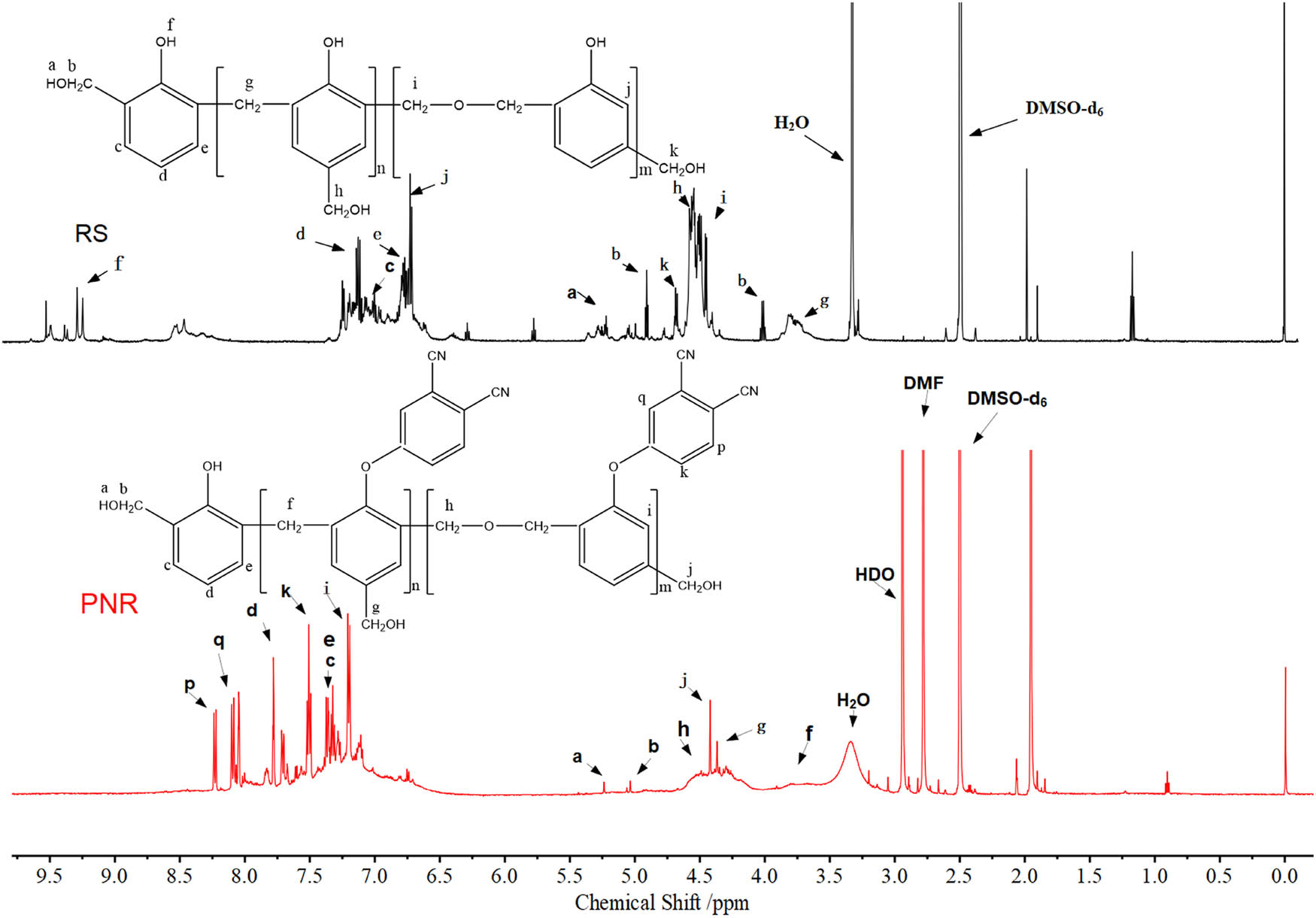

As shown in Figure 3, the resonances at 6.6–7.1 ppm correspond to the benzene ring hydrogen in RS, while the resonances of benzyl hydrogen in PNR are located at 2.7–4.2 ppm. The resonances at 8.5–9.5 ppm, corresponding to the phenolic hydroxyl protons, were present in the spectrum of RS but absent in that of PNR, indicating phenol hydroxyl group reaction, and according to the H-NMR data, degree of phthalonitrile substitution was 69%. The new resonance at a chemical shift of 7.0–8.4 ppm in the PNR spectrum may correspond to the protons in phthalonitrile groups (16), and this result can confirm the occurrence of the etherification reaction of phthalonitrile and RS. The resonance of the methylol hydrogen at a chemical shift of 4.3–4.5 ppm did not change significantly, and there were no resonances at 4.6–4.8 ppm, corresponding to hydrogen on methylene ether moieties, indicating that RS itself did not undergo condensation reactions.

Figure 3

¹H NMR spectra of PNR and RS.

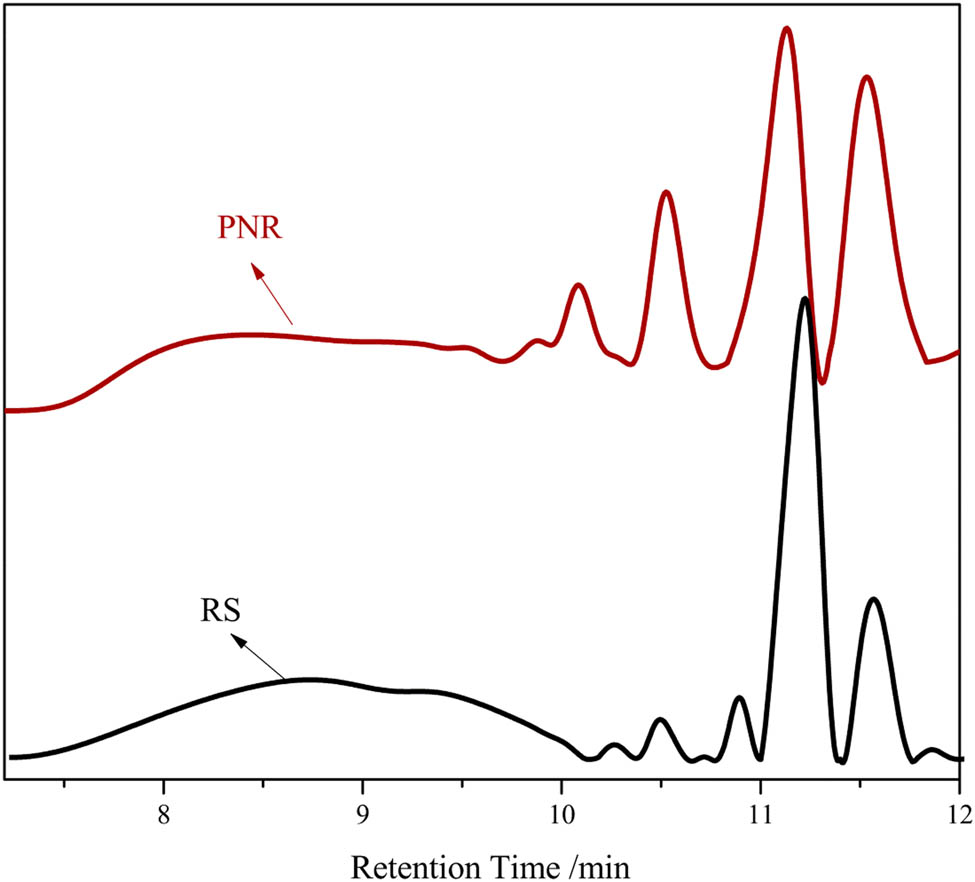

The GPC chromatograms of PNR and RS are shown in Figure 4. The molecular weight characteristics of PNR and RS are presented in Tables 1 and 2. As shown in Figure 4, the GPC curves of RS and PNR had similar profiles, indicating that their molecular weight distribution characteristics are similar. The elution time of PNR is shorter than that of the RS, indicating that the molecular weight of PNR is higher, which was attributed to the etherification reaction between phthalonitrile and RS. As presented in Table 1, it could be seen that RS resin was a mixed polymer with a nonsingle structure, in which the number average molecular weight of the polymer whose main structure accounted for 66% was 1,437 g mol^–1 with a polydispersity index of approximately 2.37. After modification, the number average molecular weight of 41.8% PNR was 3,449 g mol^–1 with a polydispersity index of approximately 1.34. The number average molecular weight of phthalonitrile novolac resin ranges from 1,030 to 1,700 g mol^–1 (27).

Figure 4

GPC results of PNR and RS.

3.2 Curing behavior of the PNR

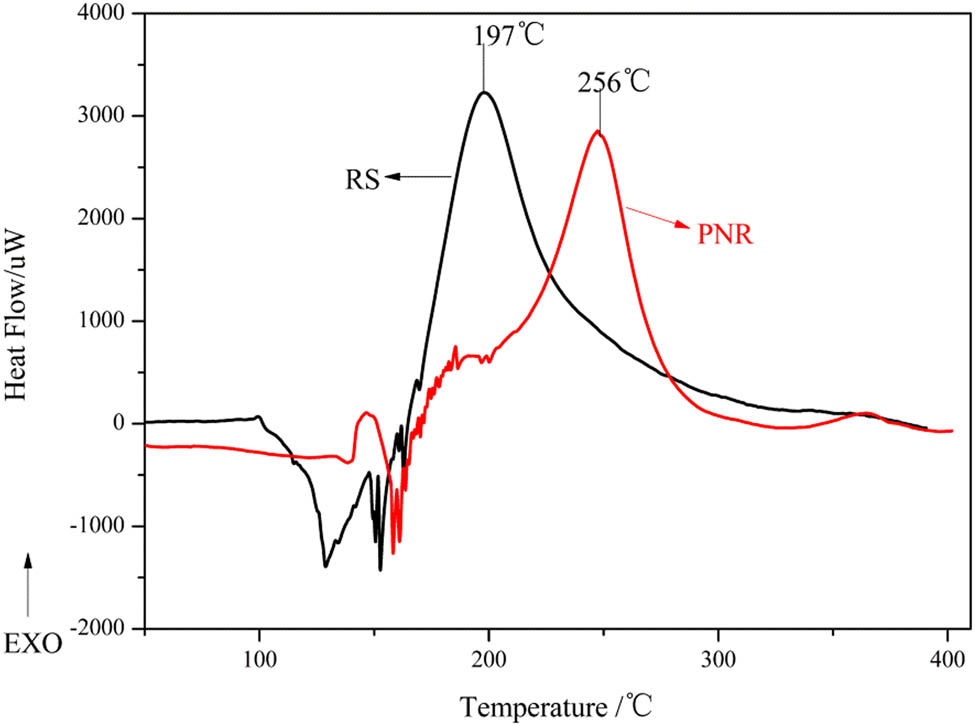

As shown in Figure 5, the thermal cure characteristics of PNR and RS were studied by the DSC analysis. The DSC curve of RS showed an exothermal peak between 150°C and 250°C with a peak value of 197°C. PNR produced several exothermic peaks between 150°C and 300°C with a peak temperature of 256°C. The curing reaction involves methylol condensation and nitrile polymerization, and the two shoulder peaks from 150°C to 200°C should correspond to the exothermic methylol self-condensation. Compared with those of phthalonitrile resins, the curing temperature of PNR was obviously lower, the curing time was significantly shortened, and the curing reaction was accelerated. These changes occurred because the phenolic hydroxyl groups in the PNR structure may promote the cyclization reaction, effectively increasing the content of heat-resistant heterocyclic rings in the cured PNR, as reported in the literature (28). In addition, compared with that of phthalonitrile novolac resin (PN) (16), the maximum exothermic curing temperature of PNR was lower by 28°C because PNR contains more methylol groups, which may accelerate the rate of curing of the nitrile groups.

Figure 5

DSC results of PNR and RS.

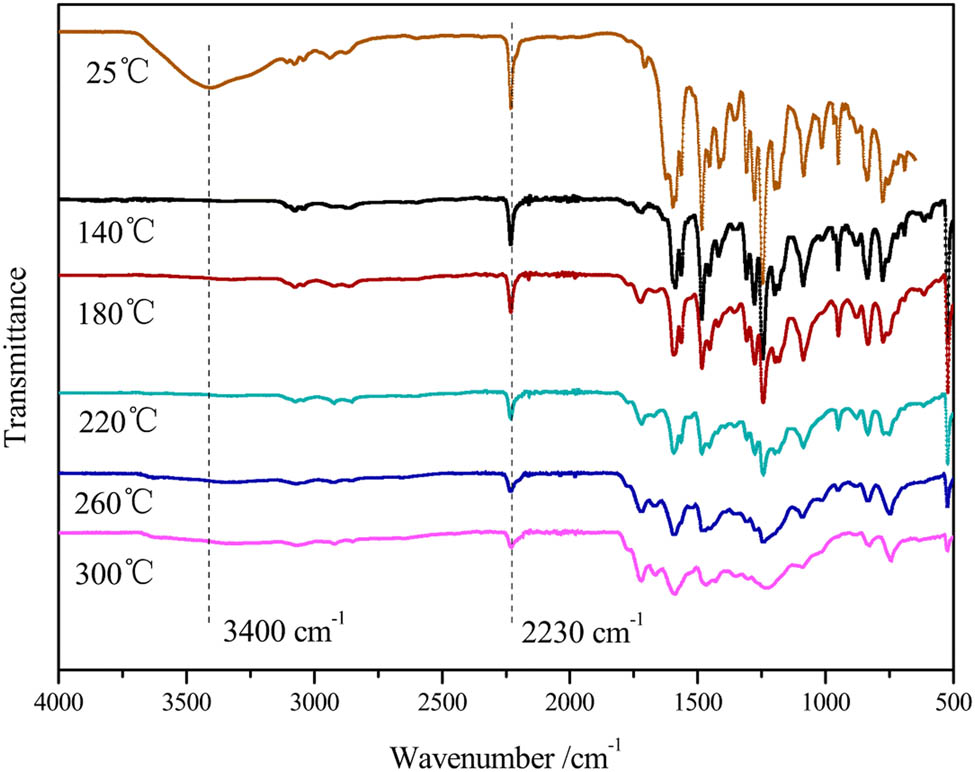

The FT-IR spectra of PNR cured at different temperatures were acquired, and the results are shown in Figure 6. It can be seen from the FT-IR curve of PNR cured at 140°C that the peak of the characteristic absorption band of the methylol groups at 3,400 cm⁻¹ had almost disappeared, indicating that the curing reaction of the methylol groups was almost complete. In addition, with the increasing curing temperature of the PNR, the characteristic peak of the CN groups at 2,230 cm⁻¹ weakens, but the reaction is not complete. The peak heights of the characteristic absorption peaks of the nitrile groups cured at 220°C, 260°C and 300°C are similar. Therefore, the ideal curing process of PNR occurs at 220°C.

Figure 6

FT-IR spectra of PNR at different temperatures.

3.3 Thermal and thermal oxidation analysis

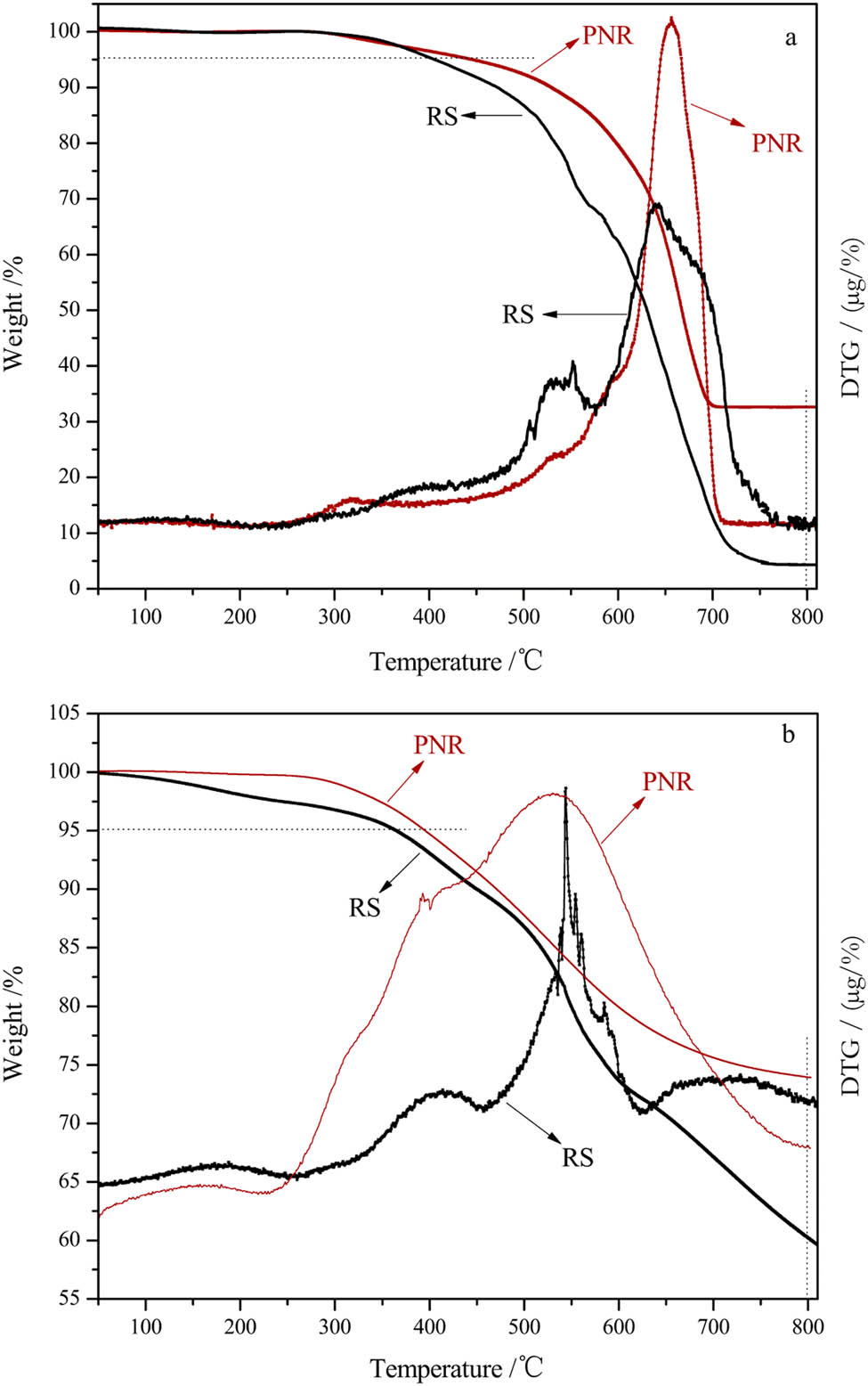

The thermal stability and thermal oxidation performance of the resin are important indexes for its application in a high-temperature environment. Thus, TGA of cured PNR and RS samples was performed in both air and nitrogen atmospheres, and the results are shown in Figure 7. Figure 7a shows that the temperature of the 5% weight loss (T_5%) and char yield at 800°C of cured PNR in an air atmosphere were 446°C and 33%, respectively, which were approximately 41°C and 29% higher than those of cured RS. Furthermore, the T_5% and char yield at 800°C of cured PNR in N₂ atmosphere (Figure 7b) were 380°C and 76%, which were approximately 16°C and 16% higher than those of cured RS, which were 364°C and 60%, respectively. These results indicated that the introduction of phthalonitrile groups increased the content of heterocycles, which should be responsible for the high char yield of PNR (Table 3).

Figure 7

TGA curves of cured PNR and RS: (a) in air and (b) in N₂.

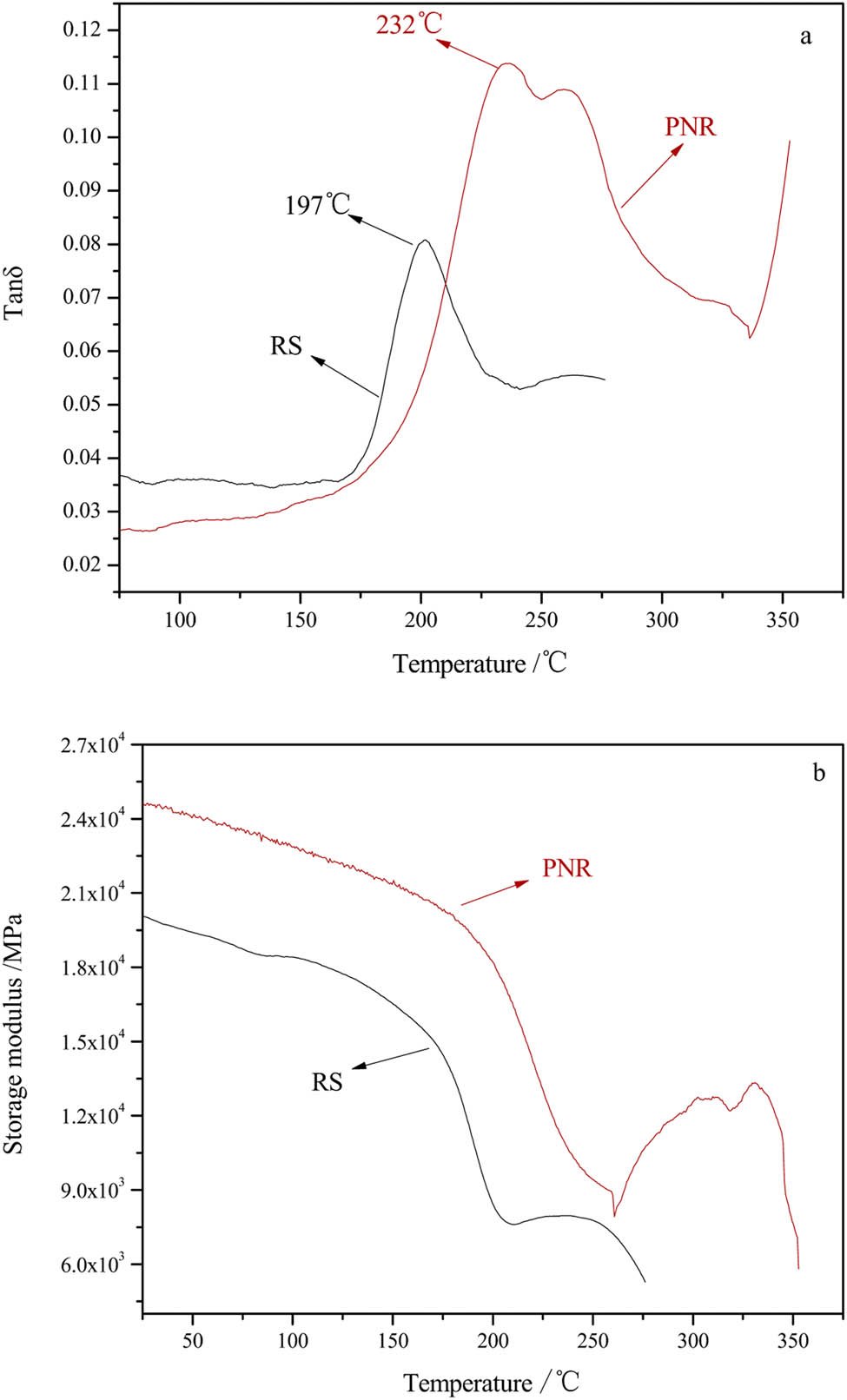

The dynamic mechanical behavior of the cured PNR and RS in terms of storage modulus (E′) and loss tangent (tan δ) is presented in Figure 8. The maximum of the tan δ curve represents the glass transition temperature (T_g), which is particularly an important parameter for polymers. The T_g of the PNR was 232°C, which was higher than the T_g of 197°C of the RS. This difference revealed that the cured PNR resin possessed much better thermal stability than the RS resin, which was due to the appearance of phthalocyanine and triazine rings with excellent heat resistance. However, the storage modulus of the cured PNR decreased dramatically at temperatures above 200°C, which might have been due to the high mobility of the molecular chains of the phenolic structures at high temperatures. Figure 8b shows that the PNR had a higher storage modulus and a higher modulus plateau (appearing after 250°C) than the RS, indicating that the PNR had undergone a secondary curing reaction, further improving its high-temperature performance.

Figure 8

DMA curves of the PNR and RS: (a) tan δ and (b) storage modulus.

3.4 SEM of resins after thermal oxidation

Figure 9 shows the SEM images of the cured RS and PNR resins before and after aging. It could be seen from the figure that after aging of the cured RS resin at 350°C for 2 h, a large number of holes appeared on the surface of the resin due to high-temperature degradation, the resin degraded significantly. After aging at 350°C for 2 h, the surface of cured PNR resin produced fewer holes, indicating that the PNR resin degraded slowly at high temperature, and its heat aging resistance was better than RS resin.

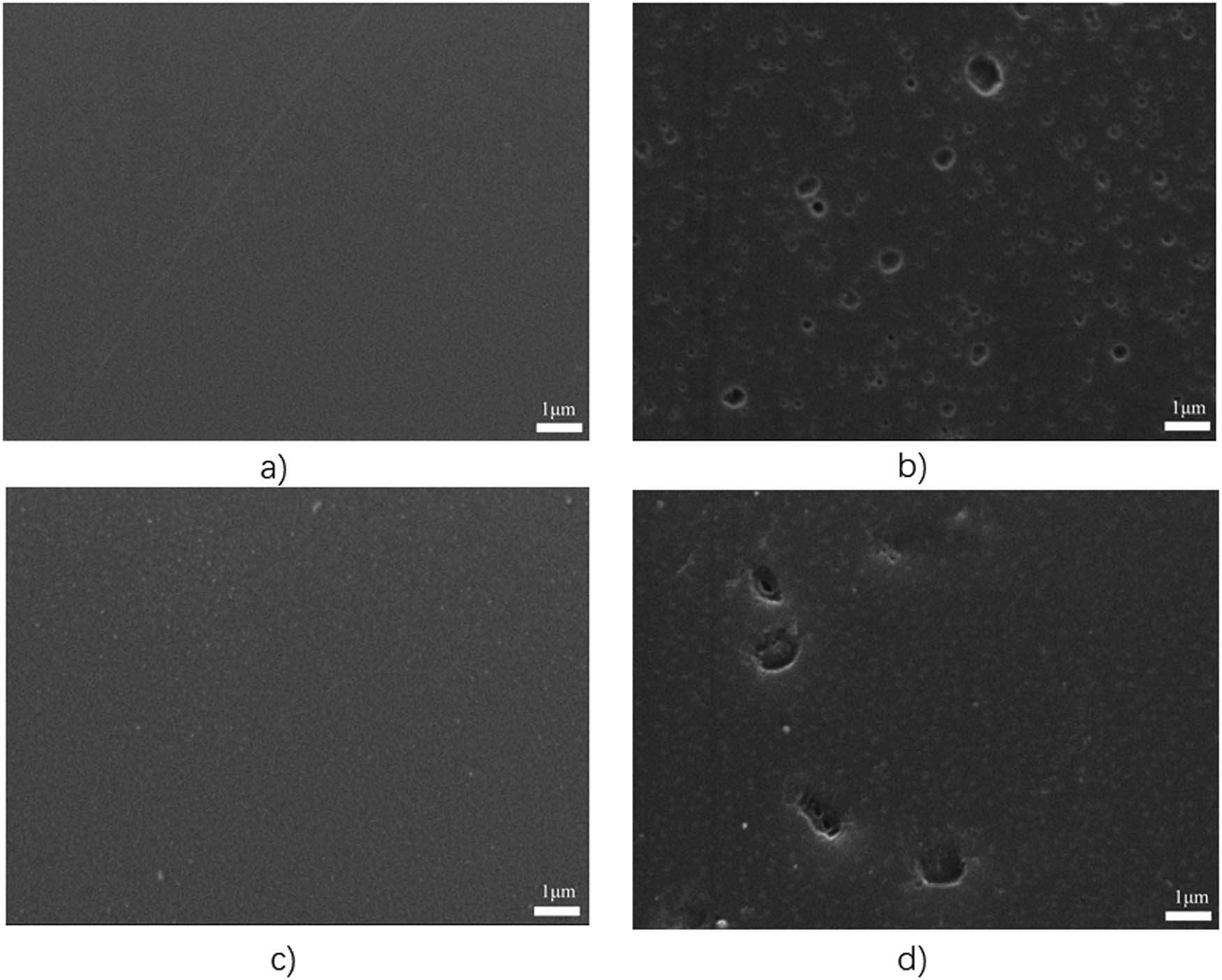

Figure 9

SEM images of cured PNR and RS: (a) cured RS, (b) cured RS/ageing at 350°C, (c) cured PNR and (d) cured PNR, aging at 350°C.

3.5 XRD of cured resins

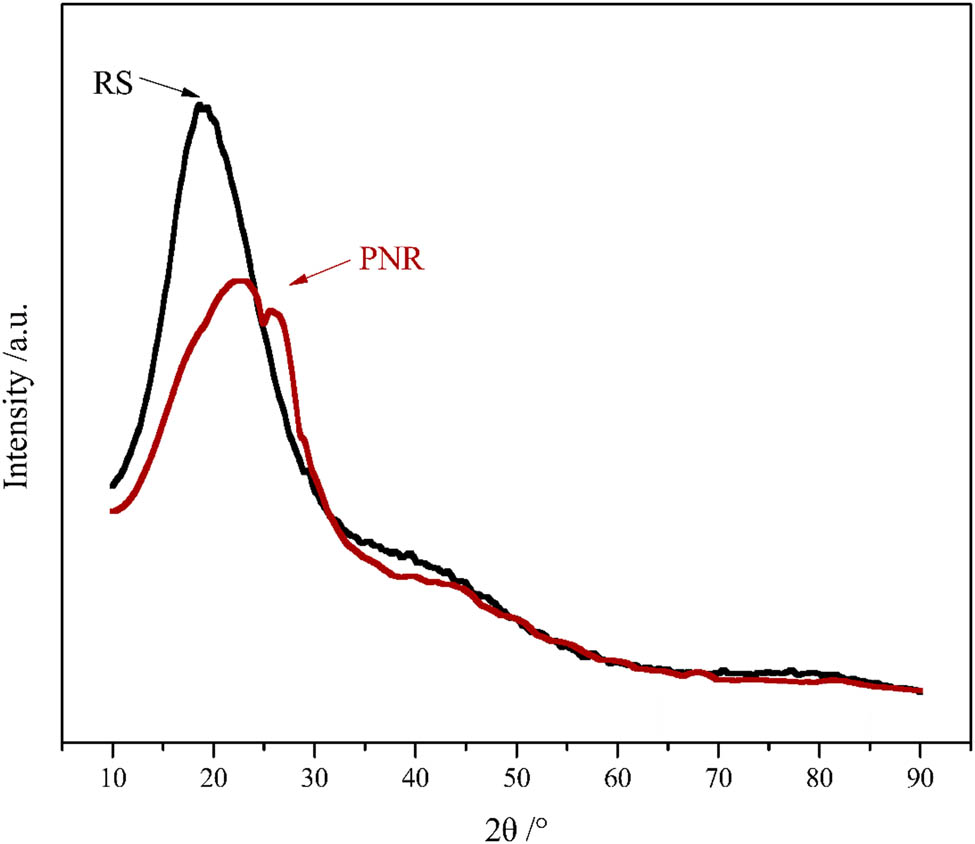

Figure 10 shows the XRD of the cured PNR and RS resins. This figure also shows that the noncrystalline diffraction humps of the resin are 23.0° and 19.3°, respectively. The distance between atoms of the amorphous polymer could be calculated by the following equation:

where λ was the wavelength of the X-ray, 2θ was the diffraction angle, and R was the interatomic distance of the polymer. The atomic distance between the cured PNR and RS resin could be calculated as 0.482 and 0.574 nm. The closer the atomic distance was, the higher the heat resistance was (28). Therefore, the heat resistance of the cured PNR was better than that of RS resin.

Figure 10

XRD patterns of cured PNR and RS.

3.6 Processability

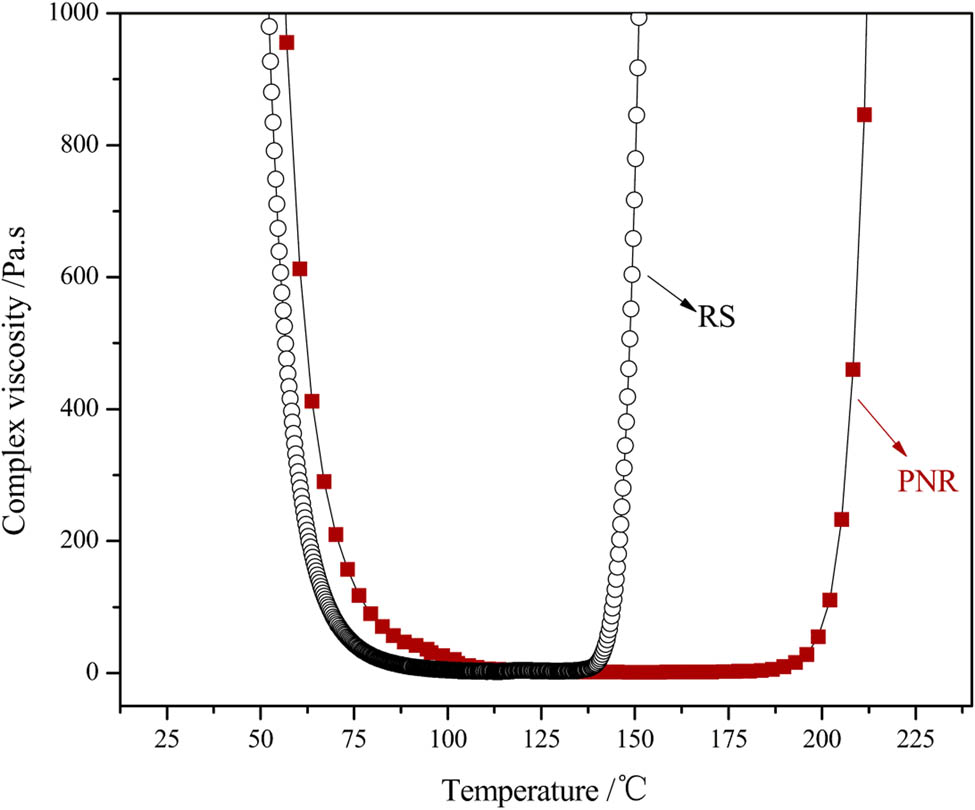

The processability of the resin could be characterized by rheological properties. Therefore, the dynamic melt viscosity of the PNR was determined from 40°C to 250°C and compared with that measured for the RS. The results are presented in Figure 11. The viscosity–temperature curves of PNR and RS were similar. The viscosity of the PNR sharply decreased at 106°C, with the lowest value of 1.3 Pa s at 158°C, and then rapidly increased at 190°C. These results indicated that the RS possesses a narrow processing window of up to 49°C and that the PNR has a processing window of approximately 84°C, indicating that this resin has excellent processability.

Figure 11

Complex viscosity variation with temperature for the PNR and RS.

3.7 Bonding properties of the PNR

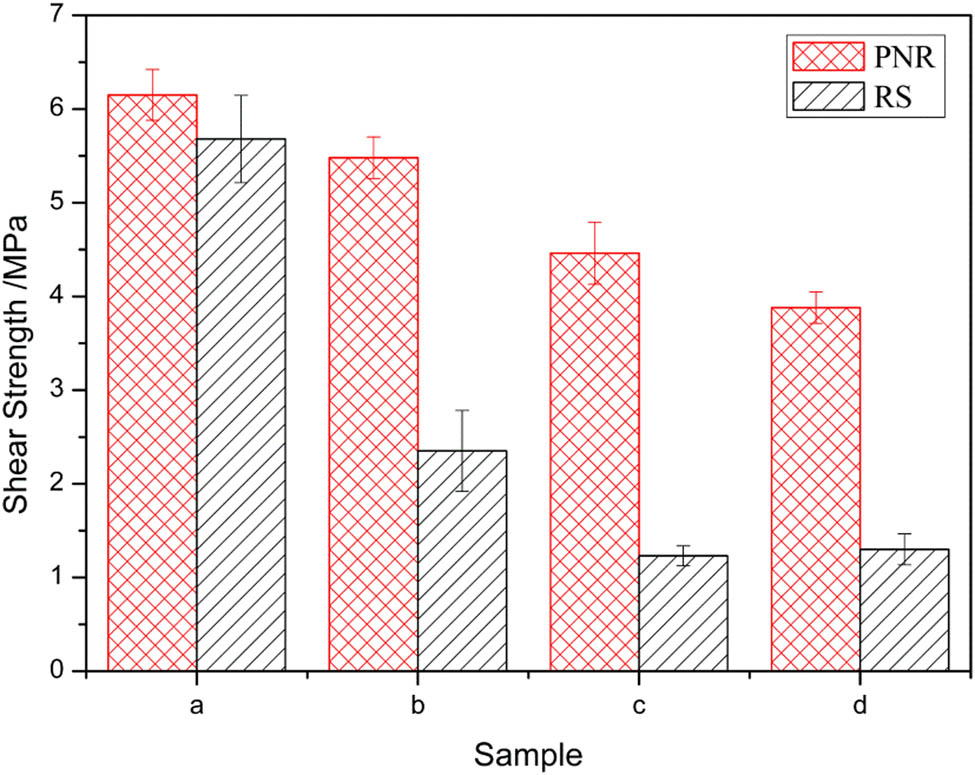

The lap shear strength of the PNR and RS was studied by bonding steel to steel. Figure 12 shows the temperature dependence of the resin shear strength. The shear strength of the PNR and RS was almost the same at the room temperature and then decreased with the increasing temperature. The shear strength decreased after aging for 2 h at 350°C. It was likely that the degradation of methylene at high temperature reduced the cohesive force of the resin. However, the lap shear strength of the PNR decreased less than that of the RS, indicating that the PNR had better heat resistance than the RS. The lap shear strength of the PNR was only slightly affected by temperature. The lap shear strength of the PNR at 350°C was considerably increased (approximately 133%) compared to that of the RS because the cured PNR has a heat-resistant heterocyclic structure. It has been proven that the incorporation of nitrile groups is favorable for increasing high-temperature adhesion strength.

Figure 12

Shear strength of steel-steel bonds: (a) RT, (b) 350°C, (c) RT after 350°C/2 h and (d) 350°C after 350°C/2 h.
