Crystal structure of 4-(chloromethyl)-3-nitrobenzoic acid, C8H6ClNO4

  • Deng Linxin , Liu Hui and Li Song EMAIL logo
Published/Copyright: May 26, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C8H6ClNO4, monoclinic, P21/c (no. 14), a = 7.5316(7) Å, b = 17.0508(15) Å, c = 14.1080(13) Å, β = 100.605(1)°, V = 1780.8(3) Å3, Z = 8, Rgt(F) = 0.0562, wRref(F2) = 0.1692, T = 298 K.

CCDC no.:: 1545065

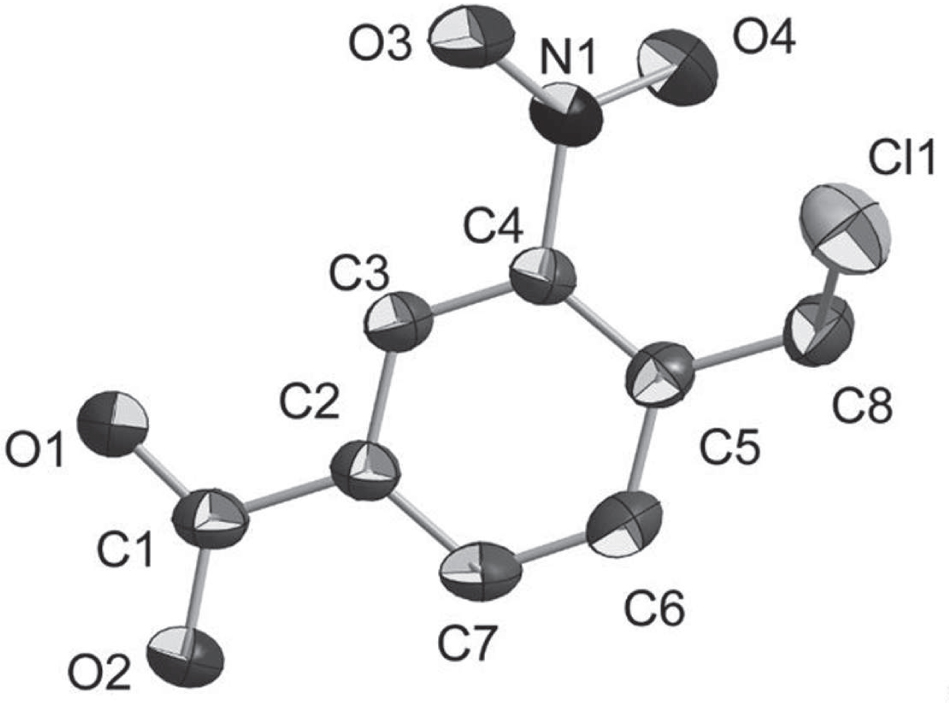

One of two crystallographically independent molecules of the title crystal structure is shown in the figure (hydrogen atoms are omitted). Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless needle
Size:0.48 × 0.45 × 0.44 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:4.2 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:8611, 3133, 0.060
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1891
N(param)refined:272
Programs:SHELX [1], Bruker programs [2], DIAMOND [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl10.16472(18)0.42402(8)0.57674(8)0.0696(4)
Cl2−0.2314(2)0.26840(10)0.31791(10)0.0961(6)
N10.5049(5)0.3612(2)0.4792(2)0.0551(10)
N20.2159(7)0.2186(3)0.2585(3)0.0646(11)
O10.6652(4)0.49873(18)0.1957(2)0.0564(8)
O20.4115(4)0.55254(17)0.11810(19)0.0555(8)
H20.47980.56820.08310.083*
O30.6561(4)0.3842(2)0.5098(3)0.0918(13)
O40.4398(4)0.3034(2)0.5091(3)0.0786(11)
O50.4032(4)0.38874(17)0.00531(19)0.0542(8)
O60.1500(4)0.44530(17)−0.0706(2)0.0572(8)
H60.22150.4670−0.09940.086*
O7a0.1613(10)0.2150(8)0.3334(6)0.090(4)
O8a0.366(2)0.1914(8)0.2496(10)0.077(3)
O7b0.114(2)0.1599(13)0.2839(15)0.084(8)
O8b0.360(5)0.2245(18)0.277(2)0.095(8)
C10.4999(5)0.5120(2)0.1861(3)0.0426(9)
C20.3991(5)0.4789(2)0.2567(2)0.0378(9)
C30.4892(5)0.4382(2)0.3348(3)0.0424(10)
H30.61400.43270.34380.051*
C40.3957(5)0.4056(2)0.3998(3)0.0406(9)
C50.2088(5)0.4125(2)0.3905(3)0.0400(9)
C60.1213(5)0.4543(2)0.3117(3)0.0458(10)
H6A−0.00330.46050.30300.055*
C70.2127(5)0.4869(2)0.2461(3)0.0440(10)
H70.14940.51480.19390.053*
C80.1022(5)0.3800(3)0.4607(3)0.0490(10)
H8A0.12140.32380.46640.059*
H8B−0.02540.38900.43680.059*
C90.2356(5)0.3985(2)−0.0077(3)0.0401(9)
C100.1276(5)0.3541(2)0.0514(2)0.0374(9)
C110.2140(5)0.3066(2)0.1250(3)0.0426(10)
H110.33930.30280.13780.051*
C120.1125(6)0.2652(2)0.1790(3)0.0442(10)
C13−0.0747(6)0.2661(2)0.1611(3)0.0478(10)
C14−0.1566(6)0.3135(3)0.0860(3)0.0526(11)
H14−0.28210.31590.07150.063*
C15−0.0586(6)0.3569(3)0.0324(3)0.0521(11)
H15−0.11790.3886−0.01720.063*
C16−0.1926(7)0.2198(3)0.2140(3)0.0637(13)
H16A−0.13630.16950.23210.076*
H16B−0.30730.21000.17170.076*

  1. aOccupancy: 0.66(2); bOccupancy: 0.34(2).

Source of material

Two hundred and thirty millilitre 96% sulfuric acid were put into a 500 mL flask in a cold water bath at 0 °C. Then 130 mL fuming nitric acid followed by 10 g (0.0580 mol) 4-(chloromethyl) benzoic acid were slowly added under constant stirring. The whole reaction continued 90 min. After all reactants had been dissolved in the mixed acid, the reaction mixture was poured into 700 mL ice water. A white solid precipitation separated out at this point. The residual acid was subsequently filtrated and washed in a beaker. Crystallization was carried out in toluene and colorless crystals were obtained in 90% yield. 1H NMR (200 MHz CDCl3) δ 8.76 (s, 1H); 8.36 (d, 1H); 7.87 (d, 1H); 5.03 (s, 2H).

Experimental details

All hydrogen atoms were included in their calculated positions and treated as riding atoms with the Uiso values assigned to 1.2Ueq of their bonding carbon atoms and to 1.5Ueq of their bonding oxygen atoms, respectively. In one of the two crystallographically independent molecules there is a disorder of the nitro group. The occupancies of the oxygen atoms for the splitted model are 0.66 and 0.34 respectively.

Comment

4-(chloromethyl)benzoic acid is a compound, which can be used in medicine and is known as a intermediate of the synthesis of dye. The 4-(chloromethyl)-3-nitrobenzoic acid is its nitration reaction product which can also be used for the same applications.

This title crystal structure is only built up by the C8H6ClNO4 molecules, in which all bond lengths are in normal ranges. There are two cystallographically independent molecules in the asymmetric unit. In each crystallographically independent molecule the aryl ring and the carboxyl group are basically in the same plane. The chloro methyl group is roughly perpendicular to this plane. The 4-(chloromethyl)-3-nitrobenzoic acid molecules are connected by π-π stacking interactions. The distance between the adjacent molecules is 3.518 Å, which is within the usual range.

Acknowledgement

I acknowledge support for the publication fee by the Scientific Research Foundation of Yunnan Provincial Education Department No. 2017zzx299.

References

1 Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

2 Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, (2012).Search in Google Scholar

3 Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 4.0. Crystal Impact, Bonn, Germany, (2015).Search in Google Scholar

4 Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Search in Google Scholar

Received: 2016-12-6
Accepted: 2017-4-5
Published Online: 2017-5-26
Published in Print: 2017-7-26
