Crystal structure of n-butyl-tris(dicyclo-hexylamido)hafnium(IV), C40H75HfN3

  • Christian Adler , Marc Schmidtmann and Rüdiger Beckhaus EMAIL logo
Published/Copyright: May 4, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C40H75HfN3, monoclinic, P21/n (no. 14), a = 10.7446(3) Å, b = 13.6547(4) Å, c = 26.5464(9) Å, β = 92.2375(15)°, V = 3891.8(2) Å3, Z = 4, Rgt(F) = 0.0195, wRref(F2) = 0.0461, T = 100(2) K.

CCDC no.:: 1542041

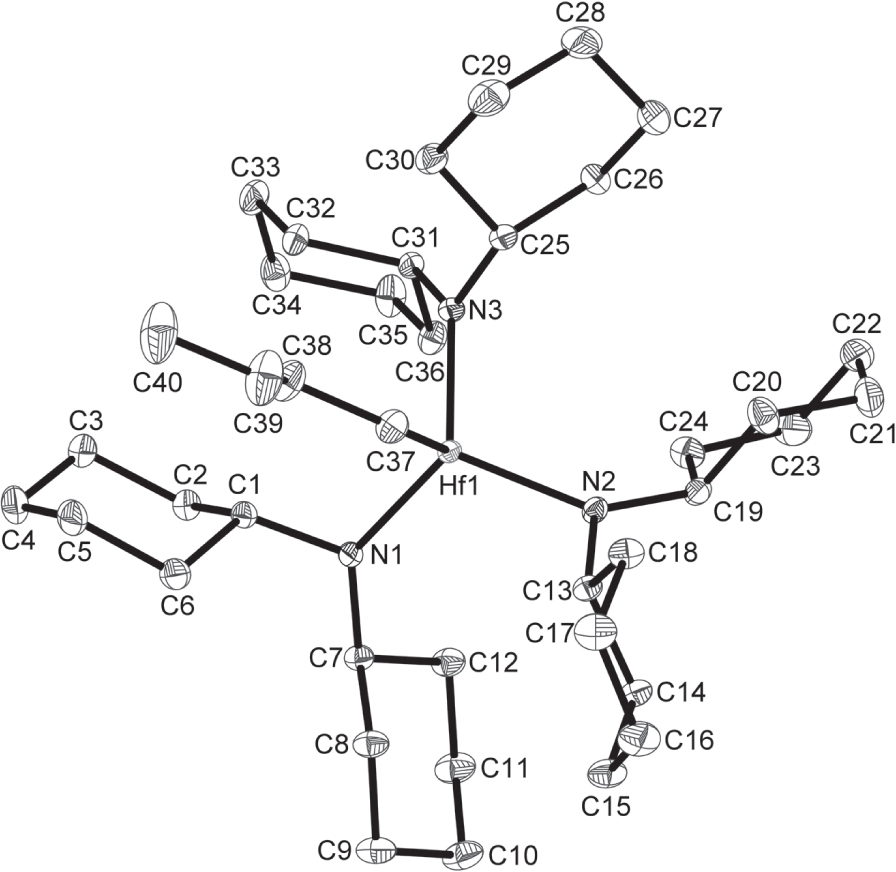

The asymmetric unit of the title crystal structure is shown in the figure (hydrogen atoms are omitted for clarity). Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.36 × 0.36 × 0.32 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:27.1 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:76°, >99%
N(hkl)measured, N(hkl)unique, Rint:225553, 20900, 0.022
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 19301
N(param)refined:398
Programs:SHELX [1], Bruker programs [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Hf10.41335(2)0.76960(2)0.11955(2)0.00992(1)
N10.47000(7)0.62661(6)0.12569(3)0.01208(13)
N20.22680(8)0.78168(6)0.10233(3)0.01219(13)
N30.46600(8)0.85440(6)0.18020(3)0.01237(13)
C10.60777(9)0.62364(7)0.12819(4)0.01329(15)
H10.63610.69320.13120.016*
C20.66360(9)0.57003(8)0.17489(4)0.01623(16)
H2A0.62710.59710.20560.019*
H2B0.64160.49970.17280.019*
C30.80570(10)0.58074(9)0.17898(5)0.0212(2)
H3A0.82740.65030.18490.025*
H3B0.83870.54230.20820.025*
C40.86654(11)0.54538(10)0.13121(5)0.0247(2)
H4A0.95700.55940.13380.030*
H4B0.85560.47360.12790.030*
C50.80913(11)0.59594(9)0.08458(5)0.0221(2)
H5A0.84610.56860.05400.027*
H5B0.82880.66670.08600.027*
C60.66744(10)0.58236(9)0.08089(4)0.01835(18)
H6A0.64740.51180.07750.022*
H6B0.63280.61660.05060.022*
C70.40903(9)0.53027(7)0.12424(4)0.01355(15)
H70.47100.48110.13750.016*
C80.36691(10)0.49809(8)0.07081(4)0.01663(17)
H8A0.30590.54590.05650.020*
H8B0.43960.49740.04900.020*
C90.30760(12)0.39625(9)0.07093(4)0.02057(19)
H9A0.27740.37940.03630.025*
H9B0.37120.34730.08170.025*
C100.19903(12)0.39196(9)0.10627(5)0.0227(2)
H10A0.16820.32380.10800.027*
H10B0.13020.43340.09250.027*
C110.23708(12)0.42695(9)0.15927(4)0.0212(2)
H11A0.29620.37940.17510.025*
H11B0.16250.42950.18000.025*
C120.29799(10)0.52817(8)0.15863(4)0.01693(17)
H12A0.32640.54620.19330.020*
H12B0.23570.57720.14680.020*
C130.21032(9)0.75034(7)0.04917(4)0.01308(15)
H130.28950.71630.04110.016*
C140.10656(10)0.67473(8)0.03891(4)0.01632(16)
H14A0.11550.62060.06360.020*
H14B0.02450.70600.04320.020*
C150.11261(12)0.63366(9)−0.01464(4)0.0212(2)
H15A0.19130.5969−0.01770.025*
H15B0.04270.5875−0.02090.025*
C160.10565(13)0.71478(10)−0.05421(5)0.0248(2)
H16A0.02200.7452−0.05460.030*
H16B0.11790.6862−0.08790.030*
C170.20469(13)0.79331(10)−0.04327(4)0.0231(2)
H17A0.28850.7649−0.04720.028*
H17B0.19360.8475−0.06780.028*
C180.19518(11)0.83334(8)0.01023(4)0.01709(17)
H18A0.11320.86530.01360.021*
H18B0.26070.88320.01670.021*
C190.11512(9)0.81571(8)0.12730(4)0.01483(15)
H190.04320.77520.11450.018*
C200.08316(11)0.92372(9)0.11686(4)0.02080(19)
H20A0.15490.96510.12780.025*
H20B0.06830.93320.08010.025*
C21−0.03235(12)0.95645(11)0.14440(5)0.0276(3)
H21A−0.04921.02640.13710.033*
H21B−0.10540.91800.13200.033*
C22−0.01346(11)0.94214(10)0.20110(5)0.0238(2)
H22A−0.09060.96050.21800.029*
H22B0.05450.98530.21410.029*
C230.01906(12)0.83571(10)0.21313(5)0.0249(2)
H23A−0.05420.79400.20460.030*
H23B0.03820.82930.24980.030*
C240.13045(11)0.79887(8)0.18427(4)0.01809(17)
H24A0.14160.72790.19070.022*
H24B0.20670.83280.19710.022*
C250.44877(9)0.95792(7)0.16540(4)0.01409(15)
H250.40390.95670.13170.017*
C260.36608(10)1.01802(8)0.19989(5)0.01922(18)
H26A0.28680.98270.20440.023*
H26B0.40861.02530.23340.023*
C270.33837(12)1.11967(9)0.17762(6)0.0267(2)
H27A0.28911.11260.14550.032*
H27B0.28821.15770.20120.032*
C280.45894(13)1.17459(9)0.16809(6)0.0289(3)
H28A0.43891.23800.15160.035*
H28B0.50331.18840.20070.035*
C290.54318(13)1.11567(10)0.13491(5)0.0259(2)
H29A0.62251.15130.13110.031*
H29B0.50271.10780.10100.031*
C300.57017(10)1.01465(8)0.15781(4)0.01818(17)
H30A0.61591.02240.19070.022*
H30B0.62360.97700.13520.022*
C310.51963(9)0.83741(7)0.23106(4)0.01325(15)
H310.50510.89760.25140.016*
C320.66064(9)0.81862(8)0.23196(4)0.01644(16)
H32A0.67800.76250.20970.020*
H32B0.70310.87690.21860.020*
C330.71334(10)0.79679(10)0.28522(5)0.02072(19)
H33A0.80310.78130.28380.025*
H33B0.70480.85560.30660.025*
C340.64561(11)0.71081(9)0.30888(4)0.02002(19)
H34A0.66140.65030.28960.024*
H34B0.67810.70090.34390.024*
C350.50579(11)0.73036(10)0.30892(4)0.0213(2)
H35A0.48980.78670.33120.026*
H35B0.46310.67240.32250.026*
C360.45243(10)0.75231(8)0.25595(4)0.01631(16)
H36A0.36290.76850.25780.020*
H36B0.45950.69300.23480.020*
C370.50835(10)0.83298(8)0.05218(4)0.01800(17)
H37A0.47860.79400.02270.022*
H37B0.47370.89960.04720.022*
C380.64836(11)0.84276(11)0.04786(5)0.0240(2)
H38A0.68690.77770.05370.029*
H38B0.68060.88700.07490.029*
C390.68963(13)0.88184(13)−0.00260(6)0.0342(3)
H39A0.65720.8383−0.02990.041*
H39B0.65300.9476−0.00840.041*
C400.83016(14)0.88879(14)−0.00522(8)0.0417(4)
H40A0.85170.9132−0.03850.063*
H40B0.86700.82380.00030.063*
H40C0.86250.93390.02090.063*

Source of material

All reactions were carried out under a dry nitrogen atmosphere using Schlenk-technique. Tris(dicyclohexylamido)hafnium(IV) chloride is easily available by a literature known synthesis [3]. The reaction with n-butyllithium was carried out according to the procedure known for the analogous zirconium complex [4]. To a solution of (Cy2N)3HfCl (500 mg, 0.662 mmol) in 20 mL n-hexane was added a n-butyllithium solution in n-hexane (0.27 mL, 0.662 mmol, 2.5 mol/l). The resulting mixture was stirred at ambient temperature. The mixture was filtered over a pad of celite and concetrated to 10 mL. Colourless crystals were obtained from this solution at −30 °C after three days, identified as the title compound n-butyl-tris(dicyclohexylamido)hafnium(IV).

Experimental details

All hydrogen atoms were located in the difference Fourier syntheses, and subsequently fixed to geometric positions using appropiate riding models.

Comment

The title compound is a rare example of a structural characterized hafnium complex with a terminal n-butyl group. The complex n-BuHf(NCy2)3 is the first structural characterized hafnium-n-butyl complex employing three amido ligands at the electron deficient metal center. It is isostructural to the analogous zirconium compound [4]. There are only three other examples for related hafnium complexes listed in the Cambridge Crystallographic Database [5], [6], [7]. One of them is the recently published crystal structure of Di-n-butylbis(η5-pentamethyl-cyclopentadienyl)hafnium(IV) [5]. Di-n-butylbis(η5-cyclopentadienyl)hafnium(IV) (Cp2Hf(n-Bu)2) is known and used as a Hf(II) source at elevated temperatures (100 °C), analogues to the Negishi System Cp2ZrCl2/n-BuLi which eliminates butane and 1-butene to give the free metallocene [8, 9] . Analogous to Cp2Hf(n-Bu)2 the complex n-BuHf(NCy2)3 is remarkably robust. There are no hints for a β-agostic interaction in the molecular structure. The angle Hf(1)-C(37)-C(38) is 124.84(8)° and thereby within the range for non-agostic compounds [10, 11] . The metal-carbon σ-bond Hf(1)-C(37) (2.2653(11) Å) is within the expected range for such a bond. The hafnium-nitrogen bonds are very similar (Hf(1)-N(1) 2.0497(8) Å, Hf(1)-N(2) 2.0450(8) Å, Hf(1)-N(3) 2.0451(8) Å). These bond lengths are shortened in comparison to a typical single bond due to attractive interactions between the nitrogen lone pair and the electron deficient metal center [12]. All nitrogen atoms are coordinated trigonal planar (sum of all angles: N1 359.8°, N2 359.9°, N3 359.9°).

References

1 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

2 Bruker. SADABS, SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA 2007.Search in Google Scholar

3 Adler, C.; Frerichs, N.; Schmidtmann, M.; Beckhaus, R.: Zwitterionic d0 metal complexes [(Cy2N)3M]+[(μ-Me)B(C6F5)3]− (M = Ti, Zr, Hf) derived from tris(dicyclohexylamido)methyl metal precursors. Organometallics 35 (2016) 3728–3733.10.1021/acs.organomet.6b00688Search in Google Scholar

4 Adler, C.; Tomaschun, G.; Schmidtmann, M.; Beckhaus, R.: Remarkably robust mono-n-butyl group IV dicyclohexylamido complexes {(Cy)2N}3M(n-butyl) (Cy: cyclohexyl [C6H11], M: Ti, Zr). Organometallics 33 (2014) 7011–7014.10.1021/om5008105Search in Google Scholar

5 Arndt, P.; Schubert, K.; Burlakov, V. V.; Spannenberg, A.; Rosenthal, U.: Crystal structure of di-n-butylbis(η5-pentamethylcyclopentadienyl)-hafnium(IV). Acta Crystallogr. E71 (2015) m19–m20.10.1107/S2056989015000092Search in Google Scholar PubMed PubMed Central

6 Amor, F.; Spaniol, T. P.; Okuda, J.: Remarkably robust group 4 metal half-sandwich complexes containing two higher alkyl ligands: X-ray structure and reactivity of the di-n-butyl complex [Hf(η5:η1:η1-C5Me4SiMe2NCH2CH2OMe)nBu2]. Organometallics 16 (1997) 4765–4767.10.1021/om970446xSearch in Google Scholar

7 Miyazaki, T.; Tanabe, Y.; Yuki, M.; Miyake, Y.; Nishibayashi, Y.: Synthesis, structure, and reactivity of group VI metal complexes bearing group IV metallocenyldiphosphine moieties and a pentamethylcyclopentadienyl ligand. Organometallics 32 (2013) 2007–2013.10.1021/om400088dSearch in Google Scholar

8 Burlakov, V. V.; Beweries, T.; Bogdanov, V. S.; Arndt, P.; Baumann, W.; Petrovskii, P. V.; Spannenberg, A.; Lyssenko, K. A.; Shur, V. B.; Rosenthal, U.: Synthesis and isolation of di-n-butylhafnocene and its application as a versatile starting material for the synthesis of new hafnacycles. Organometallics 28 (2009) 2864–2870.10.1021/om900122wSearch in Google Scholar

9 Negishi, E.-I.; Takahashi, T.: Alkene and alkyne complexes of zirconocene. Their preparation, structure, and novel transformations. Bull. Chem. Soc. Jpn. 71 (1998) 755–769.10.1246/bcsj.71.755Search in Google Scholar

10 Dawoodi, Z.; Green, M. L. H.; Mtetwa, V. S. B.; Prout, K.; Schultz, A. J.; Williams, J. M.; Koetzle, T. F.: Evidence for carbon-hydrogen-titanium interactions: synthesis and crystal structures of the agostic alkyls [TiCl3(Me2PCH2CH2PMe2)R](R = Et or Me). Dalton Trans. (1986) 1629–1637.10.1039/DT9860001629Search in Google Scholar

11 Jordan, R. F.; Bradley, P. K.; Baenziger, N. C.; LaPointe, R. E.: β-Agostic interactions in (C5H4Me)2Zr(CH2CH2R)(PMe3)+ complexes. J. Am. Chem. Soc. 112 (1990) 1289–1291.10.1021/ja00159a084Search in Google Scholar

12 Yu, X.; Bi, S.; Guzei, I. A.; Lin, Z.; Xue, Z.-L.: Zirconium, hafnium, and tantalum amide silyl complexes: their preparation and conversion to metallaheterocyclic complexes via γ-hydrogen abstraction by silyl ligands. Inorg. Chem. 43 (2004) 7111–7119.10.1021/ic049023vSearch in Google Scholar PubMed

Received: 2016-11-29
Accepted: 2017-4-5
Published Online: 2017-5-4
Published in Print: 2017-7-26

©2017 Christian Adler et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
