Crystal structure of bis(1,3-bis(diphenylphosphino)propane-κ2P,P′)silver(I) trifluorosulfonate–methanol (1:0.5), [Ag(C27H26P2)]SO3CF3⋅0.5CH3OH

  • Xiao Yu , Yue-Xue Li , Sen Lin , Yang-Zhe Cui and Qiong-Hua Jin EMAIL logo
Published/Copyright: May 8, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C55.50H54AgF3O3.50P4S, triclinic, P1̅ (no. 2), a = 11.7859(10) Å, b = 12.8900(11) Å, c = 18.8971(17) Å, α = 109.742(2)°, β = 92.891(1)°, γ = 100.998(1)°, V = 2631.9(4) Å3, Z = 2, Rgt(F) = 0.0405, wRref(F2) = 0.1129, T = 298(2) K.

CCDC no.:: 1459052

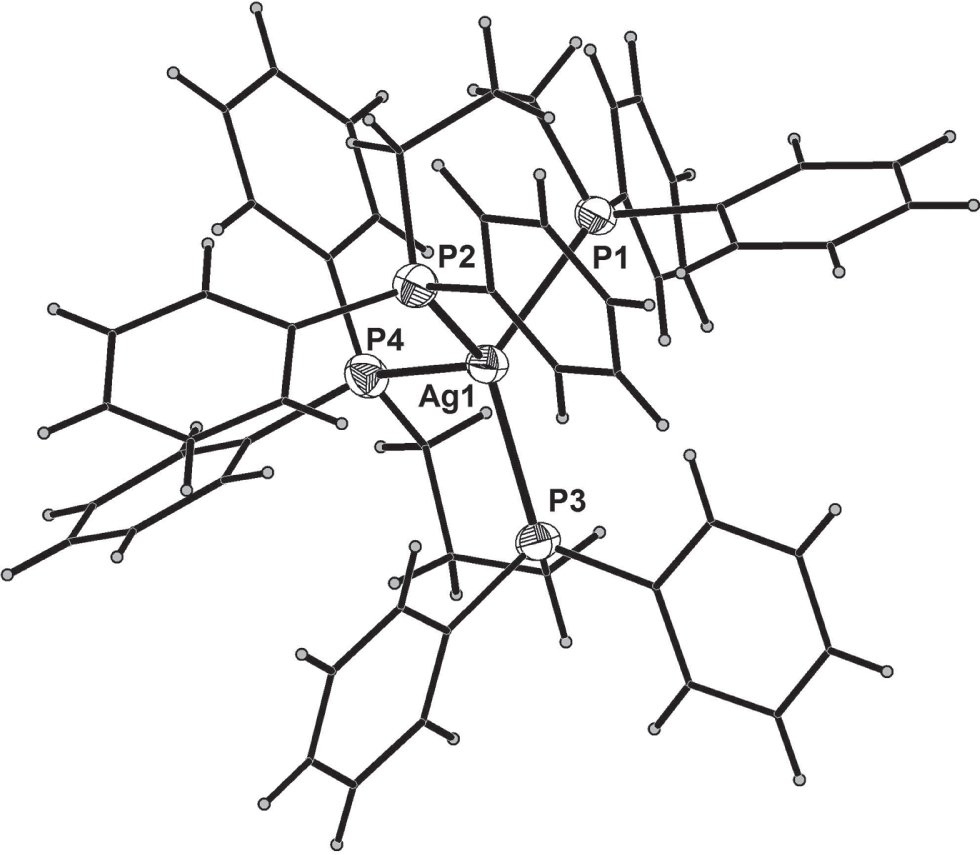

The silver complex of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.48 × 0.45 × 0.44 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.0 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:50°, >98%
N(hkl)measured, N(hkl)unique, Rint:13239, 9148, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7183
N(param)refined:686
Programs:Bruker programs [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.73131(2)0.40116(2)0.710396(15)0.03650(10)
F1a0.3067(14)0.9805(12)0.9439(8)0.143(5)
F2a0.4691(9)1.0002(11)0.9029(5)0.155(4)
F3a0.3806(15)0.8346(8)0.8936(5)0.157(6)
O1a0.3260(12)1.0329(9)0.8026(5)0.120(4)
O2a0.3395(10)0.8411(10)0.7475(4)0.110(4)
O3a0.1680(8)0.8892(10)0.8055(6)0.165(5)
F1′ b0.4602(13)0.8906(18)0.8893(8)0.113(7)
F2′ b0.2816(15)0.8317(12)0.8935(8)0.110(5)
F3′ b0.3654(19)1.0060(18)0.9535(14)0.106(8)
O1′ b0.2435(18)1.0073(17)0.8147(9)0.109(8)
O2′ b0.4123(16)0.946(2)0.7637(10)0.141(7)
O3′ b0.244(2)0.8089(17)0.7576(12)0.154(9)
O4c0.0391(11)0.0147(12)0.9151(9)0.176(5)
H4c0.0817−0.02430.89140.263*
P10.77302(8)0.20748(7)0.65369(5)0.0361(2)
P20.51586(8)0.32974(8)0.68705(6)0.0405(2)
P30.84451(8)0.57410(8)0.69561(6)0.0395(2)
P40.81558(9)0.46875(8)0.84765(5)0.0409(2)
S1a0.2860(8)0.9188(5)0.8038(4)0.097(2)
S1′ b0.3080(12)0.9239(11)0.7974(7)0.085(4)
C10.6620(3)0.1032(3)0.6737(3)0.0506(10)
H1A0.67680.02870.64850.061*
H1B0.67190.11810.72780.061*
C20.5356(4)0.1003(3)0.6498(3)0.0582(11)
H2A0.48850.02770.64610.070*
H2B0.53010.10450.59950.070*
C30.4823(3)0.1937(3)0.7019(2)0.0496(10)
H3A0.50950.20640.75410.059*
H3B0.39830.16680.69470.059*
C40.9099(3)0.1881(3)0.69145(19)0.0381(8)
C51.0091(3)0.2681(3)0.6956(2)0.0487(9)
H51.00320.32860.68050.058*
C61.1179(4)0.2590(4)0.7222(2)0.0583(11)
H61.18420.31270.72420.070*
C71.1268(4)0.1705(4)0.7455(2)0.0586(11)
H71.19920.16440.76350.070*
C81.0294(4)0.0917(4)0.7421(2)0.0581(11)
H81.03560.03190.75800.070*
C90.9213(4)0.1001(3)0.7152(2)0.0493(10)
H90.85550.04570.71310.059*
C100.7785(3)0.1493(3)0.5516(2)0.0410(8)
C110.8539(4)0.0810(3)0.5198(2)0.0522(10)
H110.90240.06060.55070.063*
C120.8575(4)0.0428(4)0.4422(3)0.0670(13)
H120.9078−0.00380.42150.080*
C130.7878(4)0.0729(4)0.3955(2)0.0644(12)
H130.79170.04790.34360.077*
C140.7127(4)0.1396(4)0.4257(2)0.0610(12)
H140.66490.15990.39430.073*
C150.7074(4)0.1776(3)0.5036(2)0.0519(10)
H150.65540.22260.52370.062*
C160.4450(3)0.2981(3)0.5916(2)0.0464(9)
C170.3423(4)0.2175(4)0.5618(3)0.0671(13)
H170.30640.17820.59080.081*
C180.2926(5)0.1955(5)0.4882(3)0.0851(17)
H180.22440.14050.46800.102*
C190.3434(5)0.2539(5)0.4460(3)0.0827(16)
H190.30910.23930.39720.099*
C200.4444(5)0.3338(5)0.4747(3)0.0755(14)
H200.47920.37290.44530.091*
C210.4952(4)0.3569(4)0.5479(3)0.0586(11)
H210.56350.41220.56750.070*
C220.4261(3)0.4144(3)0.7475(2)0.0478(9)
C230.4130(4)0.4133(4)0.8195(3)0.0657(12)
H230.44430.36340.83600.079*
C240.3536(5)0.4859(5)0.8675(3)0.0844(16)
H240.34480.48360.91560.101*
C250.3079(5)0.5604(5)0.8444(4)0.0853(17)
H250.26930.60960.87710.102*
C260.3188(4)0.5630(4)0.7735(3)0.0772(15)
H260.28710.61350.75760.093*
C270.3778(4)0.4895(4)0.7247(3)0.0601(11)
H270.38460.49120.67630.072*
C280.9911(3)0.6154(3)0.7482(2)0.0503(10)
H28A1.03240.55630.72570.060*
H28B1.03250.68340.74150.060*
C290.9964(4)0.6372(3)0.8335(2)0.0538(10)
H29A0.94080.68270.85370.065*
H29B1.07330.68170.85760.065*
C300.9717(3)0.5321(3)0.8570(2)0.0504(10)
H30A1.00500.55330.90920.060*
H30B1.01010.47590.82580.060*
C310.8696(3)0.5765(3)0.6018(2)0.0459(9)
C320.8173(4)0.4824(4)0.5396(3)0.0621(12)
H320.77520.41880.54680.075*
C330.8270(5)0.4817(5)0.4663(3)0.0831(16)
H330.79100.41820.42480.100*
C340.8893(5)0.5741(5)0.4559(3)0.0840(16)
H340.89520.57410.40700.101*
C350.9431(5)0.6663(5)0.5159(3)0.0860(17)
H350.98630.72880.50780.103*
C360.9344(4)0.6689(4)0.5896(3)0.0704(13)
H360.97210.73250.63050.084*
C370.7819(4)0.6973(3)0.7353(2)0.0457(9)
C380.6614(4)0.6814(4)0.7253(3)0.0589(11)
H380.61640.60900.70010.071*
C390.6068(5)0.7702(4)0.7519(3)0.0754(14)
H390.52610.75790.74450.090*
C400.6731(6)0.8770(4)0.7894(3)0.0829(16)
H400.63710.93750.80720.099*
C410.7926(5)0.8951(4)0.8010(3)0.0782(15)
H410.83680.96750.82740.094*
C420.8472(4)0.8060(3)0.7734(3)0.0607(12)
H420.92810.81910.78050.073*
C430.8094(4)0.3611(3)0.8908(2)0.0487(10)
C440.7067(5)0.3262(4)0.9175(3)0.0737(14)
H440.64520.36160.91630.088*
C450.6948(6)0.2391(5)0.9460(3)0.0898(17)
H450.62570.21600.96360.108*
C460.7857(6)0.1871(4)0.9480(3)0.0851(17)
H460.77810.12880.96720.102*
C470.8867(6)0.2205(4)0.9222(3)0.0775(15)
H470.94800.18500.92380.093*
C480.8987(4)0.3071(4)0.8936(2)0.0602(11)
H480.96820.32910.87600.072*
C490.7617(4)0.5793(3)0.9174(2)0.0487(10)
C500.8099(5)0.6229(4)0.9925(3)0.0804(15)
H500.86950.59481.00840.096*
C510.7692(6)0.7083(5)1.0441(3)0.101(2)
H510.80300.73861.09430.121*
C520.6807(6)0.7479(5)1.0218(4)0.0952(19)
H520.65210.80361.05710.114*
C530.6338(6)0.7065(5)0.9482(4)0.0929(18)
H530.57410.73510.93290.111*
C540.6742(4)0.6214(4)0.8952(3)0.0646(12)
H540.64160.59330.84470.078*
C550.3624(9)0.9268(6)0.8888(4)0.102(2)
C56c0.040(2)0.010(3)0.9855(17)0.192(11)
H56Ac−0.0160−0.05510.98510.288*
H56Bc0.02090.07721.01900.288*
H56Cc0.11630.00531.00270.288*

  1. aOccupancy: 0.650(13); bOccupancy: 0.350(13); cOccupancy: 0.50.

Source of material

A mixture of AgSO3CF3 (0.0514 g, 0.2 mmol) and 2,5-dimercapto-1,3,4-thiadiazole (0.0150 g, 0.1 mmol) was dissolved in a mixture of 5 mL CH3OH and 5 mL CH2Cl2 and stirred for 3 h. After 3 h, bis(1,3-bis(diphenylphosphino)propane (dppp) (0.0824 g, 0.2 mmol) was added into the mixture solvent and stirred for 3 h. Then the solvent was filtered and transferred to a beaker. Colourless crystals were obtained by slow evaporation over a week.

Experimental details

The hydrogen atoms were generated geometrically and refined riding on the concerned atoms. The crystallization solvent was lost from the crystal and could not be resolved unambiguously. The trifluorosulfonate anion is disordered with an occupancy ratio of 0.35 : 0.65. The methanol molecule is disordered with an occupancy ratio of 0.5:0.5 near an inversion center.

Discussion

In recent years, the study on coordination chemistry of silver(I) attracts increasing interests because of their intriguing structural diversity [3] and potential application, especially as catalyst and antibacterial materials [4, 5] . P-donor ligands were studied extensively [6]. Bis(1,3-bis(diphenylphosphino)propane (dppp) is a typical diphosphine ligand. It can display rigidity and flexibility due to its length. Hence, it is used as a kind chelating or bridging ligand in self-assembly process. The title complex has been already mentioned [7], however, the crystal structure has not been reported so far.

The structure of the title complex is similar to the complex [Ag(dppp)]NO3 [8]. In the title crystal structure, each Ag atom adopts a four-coordinated and chelated by four P atoms from two dppp ligands. The Ag—P bond lengths (2.4802(9)–2.5211(10) Å) are longer than those in the complex [Ag2(CH3COO)2(C27H26P2)2]⋅ 4 CH3OH (2.424(2) and 2.439(2) Å) [9]. The geometry around each silver atom is best described as seriously distorted tetrahedral since the angles are in the range 91.22(3)°–127.51(3)°. The largest P—Ag—P bond angles in the title structure is smaller than that in the complex of AgO3SMe(dppp) (150.98(2)°) [10]. It is observed that two neighboring phenyl rings form an offset π-π interaction with the center-to-center distance of 3.722(3) Å. The structure of this complex is also stabilized by weak C—H—π interactions.

In the future, we will be interested in studying distinctive structures and silver-diphosphine complexes in self-assembly chemistry.

Acknowledgement

This work has been supported by the Beijing Natural Science Foundation (Grant No. 2172017).

References

1 Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

2 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3 Steel, P. J.; Fitchett, C. M.: Metallosupramolecular silver(I) assemblies based on pyrazine and related ligands. Coord. Chem. Rev. 252 (2008) 990–1006.10.1016/j.ccr.2007.07.018Search in Google Scholar

4 Sekine, K.; Yamada, T.: Silver-catalyzed carboxylation. Chem. Soc. Rev. 45 (2016) 4524–4532.10.1039/C5CS00895FSearch in Google Scholar

5 Pallavicini, P.; Dacarroa, G.; Diaz-Fernandezb, Y. A.; Taglietti, A.: Coordination chemistry of surface-grafted ligands for antibacterial materials. Coord. Chem. Rev. 275 (2014) 37–53.10.1016/j.ccr.2014.04.013Search in Google Scholar

6 Weber, L.: Transition-metal-functionalized homo- and heterocycles with phosphorus atoms. Coord. Chem. Rev. 158 (1997) 1–67.10.1016/S0010-8545(97)90051-5Search in Google Scholar

7 Lumata, L.; Merritt, M. E.; Hashami, Z.; Ratnakar, S. J.; Kovacs, Z.: Production and NMR characterization of hyperpolarized 107,109Ag complexes. Angew. Chem. Int. Ed. 51 (2012) 525–527.10.1002/anie.201106073Search in Google Scholar PubMed PubMed Central

8 Matsumoto, K.; Shindo, T.; Mukasa, N.; Tsukuda, T.; Tsubomura, T.: Luminescent mononuclear Ag(I)-bis(diphosphine) complexes: correlation between the photophysics and the structures of mononuclear Ag(I)-bis(diphosphine) complexes. Inorg. Chem. 49 (2010) 805–814.10.1021/ic900203xSearch in Google Scholar PubMed

9 Qiu, Q.-M.; Yu, Y.; Zhao, Y.-H.; Jin, Q.-H.; Zhang, C.-L.: Crystal structure of bis(μ2-1,3-bis(diphenylphosphino)propane-κ2P,P′)-bis(acetato-κ2O,O′)disilver(I)–methanol (1:4), [Ag2(CH3COO)2(C27H26P2)2]⋅4CH3OH, C62H74Ag2O8P4. Z. Kristallogr. – NCS 228 (2013) 281–283.10.1524/ncrs.2013.0135Search in Google Scholar

10 Pettinari, C.; Ngoune, J.; Marinelli, A.; Skelton, B. W.; White, A. H.: Silver(I) methanesulfonate complexes containing diphosphine ligands: spectroscopic and structural characterization. Inorg. Chim. Acta 362 (2009) 3225–3230.10.1016/j.ica.2009.02.036Search in Google Scholar
