Crystal structure of (E)-1-[1-(3-chloro-4-fluoro-phenyl)ethylidene]-2-(2,4-dinitrophenyl)hydrazine, C28H20Cl2F2N8O8

  • Gang Liu EMAIL logo , Yao-Dong Hu and Yi-Han Wang
Published/Copyright: May 4, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C28H20Cl2F2N8O8, triclinic, P1̅ (no. 2), a = 9.045(3) Å, b = 10.907(4) Å, c = 15.351(5) Å, α = 93.416(7)°, β = 95.771(7)°, γ = 95.915(6)°, V = 1495.0(9) Å3, Z = 4, Rgt(F) = 0.0655, wRref(F2) = 0.1940, T = 293 K.

CCDC no.:: 1543467

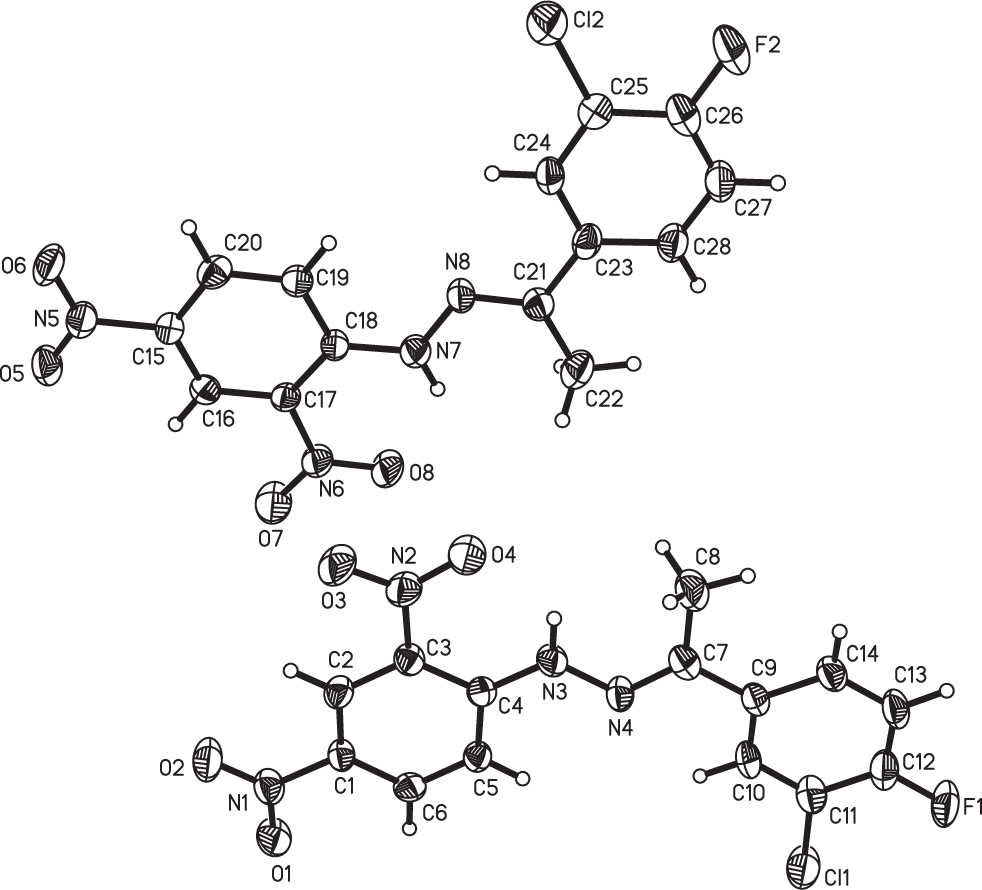

The two crystallographically independent molecules of the title crystal structure are shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red needle
Size:0.22 × 0.18 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.0 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω
2θmax, completeness:50.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:7539, 5100, 0.055
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2028
N(param)refined:435
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C1−0.2575(6)0.5009(5)0.5060(4)0.0455(15)
C2−0.2260(6)0.4888(5)0.5937(4)0.0502(15)
H2−0.26820.53650.63470.060*
C3−0.1299(6)0.4038(5)0.6203(4)0.0481(15)
C4−0.0650(6)0.3303(5)0.5585(4)0.0421(14)
C5−0.1041(6)0.3466(5)0.4701(4)0.0470(14)
H5−0.06480.29860.42780.056*
C6−0.1977(6)0.4301(5)0.4435(4)0.0498(15)
H6−0.22120.43950.38410.060*
C70.1716(6)0.0961(5)0.5509(4)0.0547(16)
C80.2081(8)0.0769(6)0.6470(4)0.090(2)
H8A0.25520.15290.67700.134*
H8B0.27470.01420.65300.134*
H8C0.11770.05160.67200.134*
C90.2348(6)0.0212(5)0.4828(4)0.0491(15)
C100.2080(6)0.0419(5)0.3944(4)0.0570(17)
H100.15270.10580.37820.068*
C110.2614(7)−0.0297(6)0.3304(4)0.0649(18)
C120.3466(7)−0.1225(6)0.3535(5)0.0676(19)
C130.3787(6)−0.1436(5)0.4409(5)0.068(2)
H130.4385−0.20500.45660.082*
C140.3220(6)−0.0738(5)0.5050(4)0.0596(17)
H140.3418−0.08980.56360.071*
C15−0.0364(6)0.7959(5)0.9951(4)0.0470(15)
C16−0.0219(6)0.7811(5)0.9072(4)0.0482(15)
H16−0.06810.83020.86760.058*
C170.0631(6)0.6917(5)0.8790(3)0.0436(14)
C180.1356(6)0.6170(5)0.9363(4)0.0436(14)
C190.1178(6)0.6363(5)1.0264(4)0.0479(15)
H190.16340.58781.06670.057*
C200.0346(6)0.7253(5)1.0552(4)0.0524(16)
H200.02580.73851.11480.063*
C210.3661(6)0.3754(5)0.9437(4)0.0509(16)
C220.3896(7)0.3497(6)0.8496(4)0.081(2)
H22A0.29480.32590.81570.121*
H22B0.45180.28390.84490.121*
H22C0.43730.42270.82790.121*
C230.4331(6)0.3031(5)1.0129(4)0.0489(15)
C240.4136(6)0.3279(5)1.1000(4)0.0548(16)
H240.35630.39061.11460.066*
C250.4757(7)0.2636(6)1.1658(4)0.0586(17)
C260.5619(7)0.1698(6)1.1439(5)0.0645(19)
C270.5837(7)0.1432(6)1.0582(5)0.068(2)
H270.64210.08111.04400.081*
C280.5199(6)0.2077(5)0.9935(4)0.0616(17)
H280.53420.18790.93540.074*
Cl10.2240(2)−0.00958(17)0.22086(12)0.0922(7)
Cl20.4539(2)0.29716(18)1.27382(12)0.0937(7)
F10.3993(4)−0.1930(3)0.2909(3)0.0937(13)
F20.6255(4)0.1072(4)1.2078(3)0.1004(14)
N1−0.3556(5)0.5935(5)0.4779(4)0.0600(14)
N2−0.1010(6)0.3947(5)0.7143(3)0.0627(14)
N30.0292(5)0.2470(4)0.5834(3)0.0535(13)
H30.05210.23860.63830.064*
N40.0886(5)0.1756(4)0.5217(3)0.0517(13)
N5−0.1270(5)0.8909(5)1.0256(4)0.0584(14)
N60.0738(6)0.6797(5)0.7851(3)0.0615(15)
N70.2197(5)0.5274(4)0.9105(3)0.0542(13)
H70.23100.51410.85590.065*
N80.2862(5)0.4587(4)0.9720(3)0.0502(12)
O1−0.3742(5)0.6087(4)0.3993(3)0.0762(14)
O2−0.4125(5)0.6522(4)0.5337(3)0.0817(15)
O3−0.1658(5)0.4570(4)0.7636(3)0.0814(14)
O4−0.0109(5)0.3247(4)0.7405(3)0.0821(15)
O5−0.1789(5)0.9567(4)0.9724(3)0.0714(13)
O6−0.1449(5)0.8961(4)1.1041(3)0.0784(14)
O70.0058(6)0.7455(5)0.7378(3)0.0984(17)
O80.1513(5)0.6030(4)0.7567(3)0.0746(14)

Source of material

The title compound was synthesized by the reaction of (2,4-dinitro-phenyl)hydrazine (1 mmol, 198.1 mg) with 1-(3-chloro-4-fluorophenyl)ethan-1-one (1 mmol, 172.6 mg) in ethanol (30 mL) under reflux conditions (338 K) for 3 h. The solvent was removed and the solid product recrystallized from THF. After three days red single crystals were obtained.

Experimental details

All H atoms were placed in idealized positions (C—H = 0.93-0.96 Å, N—H = 0.86 Å ) and refined as riding atoms. The Uiso values were constrained to be 1.5Ueq of the carrier atom for methyl H atoms and 1.2Ueq for the remaining H atoms.

Discussion

2,4-Dinitrophenylhydrazones are important Schiff bases because of their significant molecular nonlinearities, remarkable ability to crystallize in non-centrosymmetric space groups and their biological activities [2], [3], [4], [5], [6], [7], [8], [9], [10]. As part of our interest in coordination chemistry of 2,4-dinitrophenylhydrazones, we have synthesized the title compound.

In the crystal structure of the title compound, there are two crystallographic independent molecules in the asymmetric unit. All bond lengths and angles are in normal range. The two aromatic rings in each independent molecule are almost coplanar, with the dihedral angle of 4.99(2)° and 1.08(2)°, respectively. The C—N bond lengths in the independent molecules are 1.277(6) Å (C7—N4) and 1.299(6) Å (C21–N7), respectively, which are much shorter than the typical C=N bond length (1.34 Å– 1.38 Å). The C—N—N angles in each independent molecule of 116.4(5)° and 116.9(5)° are smaller than the ideal value of 120° expected for sp2-hybridized N atoms.

Acknowledgement

This work was financial supported by Jilin Engineering Nomal University (Grant nos. X2016014, 2016016, 2016051).

References

1 Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2005.Search in Google Scholar

2 Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3 Fun, H.-K.; Nilwanna, B.; Jansrisewangwong, P.; Kobkeatthawin, T.; Chantrapromma, S.: E-1-(2,4-dinitro-phen-yl)-2-[1-(2-meth-oxy-phen-yl)ethyl-idene]hydrazine. Acta Crystallogr. E67 (2011) o3202–o3203.10.1107/S1600536811045417Search in Google Scholar PubMed PubMed Central

4 Cui, Z.; Li, Y.; Ling, Y.; Huang, J.; Cui, J.; Wang, R.; Yang, X.: New class of potent antitumor acylhydrazone derivatives containing furan. Eur. J. Med. Chem. 45 (2010) 5576–5584.10.1016/j.ejmech.2010.09.007Search in Google Scholar PubMed

5 Angelusiu, M.-V.; Barbuceanu, S.-F.; Draghici, C.; Almajan, G.-L: New Cu(II), Co(II), Ni(II) complexes with aroyl-hydrazone based ligand. Synthesis, spectroscopic characterization and in vitro antibacterial evaluation. Eur. J. Med. Chem. 45 (2010) 2055–2062.10.1016/j.ejmech.2010.01.033Search in Google Scholar PubMed

6 Gokce, M.; Utku, S.; Kupeli, E.: Synthesis and analgesic and anti-inflammatory activities 6-substituted-3(2H)-pyridazinone-2-acetyl-2-(p-substituted/nonsubstituted benzal)hydrazone derivatives. Eur. J. Med. Chem. 44 (2009) 3760–3764.10.1016/j.ejmech.2009.04.048Search in Google Scholar PubMed

7 Ji, N. N.; Shi, Z. Q.: 1-Cyclopentylidene-2-(2,4-dinitrophenyl)hydrazine. Acta Crystallogr. E64 (2008) o2141.10.1107/S1600536808033345Search in Google Scholar PubMed PubMed Central

8 Shi, Z. Q.; Ji, N. N.; Li, X. Y.: 1-(2-Chlorobenzylidene)-2-(2,4-dinitrophenyl)hydrazine. Acta Crystallogr. E64 (2008) o2135.10.1107/S1600536808033357Search in Google Scholar PubMed PubMed Central

9 Khan, S. A.; Saleem, K.; Khan, Z.: Synthesis, characterization and in vitro antibacterial activity of new steroidal thiazolo quinoxalines. Eur. J. Med. Chem. 42 (2007) 103–108.10.1016/j.ejmech.2006.07.006Search in Google Scholar PubMed

10 Okable, N.; Nakamura, T.; Fukuda, H.: Structure of 2,4-dinitrophenylhydrazine. Acta Crystallogr. C49 (1993) 1678–1680.10.1107/S0108270193002550Search in Google Scholar

Received: 2016-11-30
Accepted: 2017-4-18
Published Online: 2017-5-4
Published in Print: 2017-7-26
