Crystal structure of poly[(μ3-2-(pyrazin-2-ylthio)acetato-κ3N:O:S)silver(I)], C6H5AgN2O2S

  • Hui-Tao Fan EMAIL logo , Shu-Guang Qi , Shan-Shan Liu and Ling Zhao
Published/Copyright: May 26, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C6H5AgN2O2S, monoclinic, P21/c (no. 14), a = 10.0546(4) Å, b = 10.7329(5) Å, c = 6.9044(7) Å, β = 99.255(6)°, V = 735.39(9) Å3, Z = 4, Rgt(F) = 0.0422, wRref(F2) = 0.0967, T = 293(2) K.

CCDC no.:: 1524996

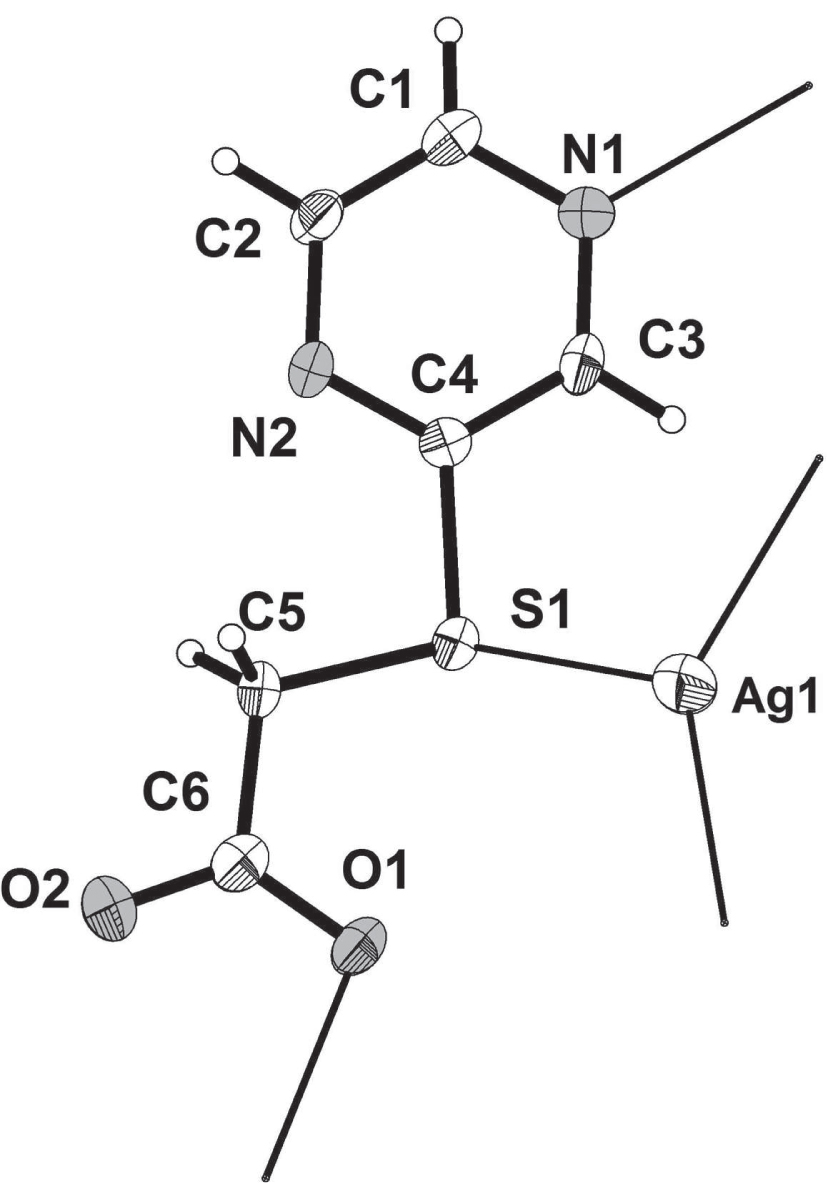

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.20 × 0.18 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:29.7 cm−1
Diffractometer, scan mode:Xcalibur Eos, ω scans
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:2661, 1290, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1067
N(param)refined:109
Programs:SHELX [1], CrysAlisPRO [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag11.07998(5)0.02959(4)0.82878(9)0.0419(2)
S10.84968(14)−0.00186(14)0.6007(2)0.0260(4)
O10.8937(3)−0.2611(4)0.6126(6)0.0326(11)
O20.6941(4)−0.3273(4)0.6726(7)0.0377(11)
N10.7864(4)0.3621(4)0.6046(7)0.0236(11)
N20.6381(4)0.1448(4)0.6435(7)0.0260(12)
C30.8381(5)0.2502(5)0.5909(8)0.0244(14)
H30.92590.24360.56530.029*
C20.6566(5)0.3665(6)0.6347(9)0.0309(15)
H20.61500.44330.64310.037*
C50.7238(5)−0.1110(5)0.6557(9)0.0251(14)
H5A0.7039−0.09470.78620.030*
H5B0.6414−0.09990.56290.030*
C40.7665(5)0.1414(5)0.6134(9)0.0240(13)
C60.7733(5)−0.2448(5)0.6447(9)0.0268(14)
C10.5854(5)0.2583(5)0.6531(9)0.0273(14)
H10.49630.26480.67310.033*

Source of materials

An excess of an aqueous NH3 solution was added dropwise to a suspension of Ag2O (0.023 g, 0.1 mmol) in MeOH/H2O (8 mL, 1:1 v/v), and the mixture was stirred for 15 min. 2-(Pyrazin-2-ylthio)acetic acid (0.018 g, 0.1 mmol) was then slowly added, and stirring was continued for another 30 min. The resultant colorless solution was allowed to stand in the dark at room temperature for a week. Colorless prism crystals of the title complex were obtained.

Experimental details

Absorption corrections were applied by using the multi-scan method [2]. Hydrogen atoms were located in difference electron density maps, and treated as riding atoms. The Uiso values of the hydrogen atoms were set to 1.2Ueq(C).

Comment

In the past few decades, the syntheses of silver(I) complexes attracted great interest because silver(I) principally is known for short Ag⋯Ag contacts. Furthermore Ag(I) has a high affinity for hard donor atoms such as nitrogen, oxygen or sulfur atoms, being a favorable and fashionable building block for MOFs [3], [4], [5], [6], [7]. With the aim of constructing unusual coordination architectures, we have engaged in the synthesis of coordination polymer based on 2-(pyrazin-2-ylthio)acetic acid (HL) with silver HL which comprise a pyrazinyl moiety and a carboxylic groups, may show a rich variety of coordination modes with nitrogen, oxygen and sulfur atoms and help to construct novel coordination polymers. On the other hand, it is a flexible ligand because the carboxylic groups can rotate aroud the C—S single bond.

Single crystal structure analysis reveals that the title structure consists of one crystallographically unique Ag(I) atom, and one L− ligand. All geomtric parameters within the L− ligand are in the expected ranges. The central Ag1 cation adopts Y-shaped coordination with one nitrogen atom [Ag1—N1 = 2.247(4) Å], one oxygen atom [Ag1—O1 = 2.291(4) Å] and one sulfur atom [Ag1—S1 = 2.604(1) Å] (cf. the figure). Both Ag—O and Ag—N bonds are within normal ranges [8]. Each L− ligand links adjacent Ag(I) centers to form infinite double chains along the b axis. Such chains are further interconnected through the weak Ag⋯Ag contact (Ag1⋯Ag1 = 3.131(9) Å) to give rise to a sheet structure.

Acknowledgement

We gratefully acknowledge the financial support by Collaborative Innovation Center of Water Security for Water Source Region of Mid-line of South-to-North Diversion Project, Henan Province, and Key Laboratory of Ecological Security for Water Source Region of Mid-line of South-to-North Diversion Project of Henan Province, the National Natural Science Foundation of China (No. 21401112), the Science and Technology Research Key Project Department of Education in Henan Province (14A150026) and Nanyang Normal University Scientific Research Foundation Project (QN2016015).

References

1 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

2 Oxford Diffraction Ltd., CrysAlisPRO. Abingdon, Oxfordshire, England (2006).Search in Google Scholar

3 Li, B.; Huang, R. W.; Qin, J. H.; Zang, S. Q.; Gao, G. G.; Hou, H. W.; Mak, T. C. W.: Thermochromic luminescent nest-like silver thiolate cluster. Chem. Eur. J. 20 (2014) 12416–12420.10.1002/chem.201404049Search in Google Scholar PubMed

4 Li, B.; Zang, S. Q.; Ji, C.; Du, C. X.; Hou, H. W.; Mak, T. C. W.: Syntheses, structures and properties of two unusual silver-organic coordination networks: 1D → 1D tubular intertwinement and existence of an infinite winding water chain. Dalton Trans. 40 (2011) 788–792.10.1039/C0DT00949KSearch in Google Scholar

5 Li, B.; Zang, S. Q.; Liang, R.; Wu, Y. J.; Mak, T. C. W.: Silver(I)-organic networks assembled with propargyl-functionalized di- and tri-hydroxybenzenes. Organometallics 30 (2011) 1710–1718.10.1021/om2000162Search in Google Scholar

6 Li, B.; Zang, S. Q.; Ji, C.; Liang, R.; Hou, H. W.; Wu, Y. J.; Mak, T. C. W.: Syntheses, structures and properties of silver-organic frameworks constructed with 1,2,3,4-benzenetetracarboxylic acid. Dalton Trans. 40 (2011) 10071–10081.10.1039/c1dt10830aSearch in Google Scholar PubMed

7 Li, B.; Ji, C.; Zang, S. Q.; Hou, H. W.; Mak, T. C. W.: Benzenepolycarboxylate-templated assembly of silver coordination polymers exhibiting argentophilic honeycomb layer and tubular motifs. Dalton Trans. 41 (2012) 9151–9153.10.1039/c2dt31160gSearch in Google Scholar PubMed

8 Li, B.; Huang, R. W.; Yao, H. C.; Zang, S. Q.; Mak, T. C. W.: Silver(I)-organic frameworks assembled with flexible supramolecular synthons with a pendant ethynide arm attached to the heteroaryl skeleton. CrystEngComm. 16 (2014) 723–729.10.1039/C3CE41752BSearch in Google Scholar

Received: 2016-12-30
Accepted: 2017-5-13
Published Online: 2017-5-26
Published in Print: 2017-7-26
