Home Physical Sciences Crystal structure of tetraaqua-bis(3-(4H-1,2,4-triazol-4-yl)benzoato-κN)cobalt(II), C18H20CoN6O8
Article Open Access

Crystal structure of tetraaqua-bis(3-(4H-1,2,4-triazol-4-yl)benzoato-κN)cobalt(II), C18H20CoN6O8

  • Jian-Ge Wang EMAIL logo
Published/Copyright: May 24, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C18H20CoN6O8, monoclinic, P21/c (no. 14), a = 22.012(2) Å, b = 6.8972(12) Å, c = 13.234(2) Å, β = 91.137(11)°, V = 2008.9(5) Å3, Z = 4, Rgt(F) = 0.0436, wRref(F2) = 0.1078, T = 293(2) K.

CCDC no.:: 1545092

The two crystallographically independent cobalt(II) complexes forming the title crystal structure are shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Pink block
Size:0.33 × 0.15 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:9.2 cm−1
Diffractometer, scan mode:Super Nova, ω-scans
2θmax, completeness:52°, >98%
N(hkl)measured, N(hkl)unique, Rint:11538, 3893, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2553
N(param)refined:303
Programs:CrysAlisPRO [1], SHELX [2], OLEX2 [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co10.50000.50000.00000.02258(17)
O10.04645(9)0.5012(4)0.18768(17)0.0339(6)
O20.12021(11)0.3974(5)0.28668(17)0.0501(8)
O30.47490(10)0.3044(4)−0.11901(16)0.0355(6)
H3A0.48600.3519−0.17630.053*
H3B0.43590.2874−0.12160.053*
O40.52641(10)0.2728(3)0.09397(15)0.0319(6)
H4A0.55280.31280.13840.048*
H4B0.50690.17640.11880.048*
N10.41082(11)0.4848(4)0.06043(19)0.0276(6)
N20.31251(11)0.4747(4)0.07692(18)0.0255(6)
N30.33490(12)0.4579(5)0.17265(19)0.0337(8)
C10.35891(14)0.4915(5)0.0120(2)0.0297(8)
H10.35430.5059−0.05760.036*
C20.39354(15)0.4642(5)0.1587(2)0.0325(9)
H20.42160.45530.21200.039*
C30.24871(13)0.4803(5)0.0569(2)0.0240(7)
C40.22848(15)0.5022(6)−0.0410(2)0.0347(9)
H40.25570.5086−0.09380.042*
C50.16701(16)0.5145(6)−0.0590(2)0.0399(10)
H50.15250.5308−0.12490.048*
C60.12556(15)0.5030(5)0.0202(2)0.0319(8)
H60.08410.51420.00640.038*
C70.14602(14)0.4753(5)0.1177(2)0.0233(7)
C80.20798(14)0.4634(5)0.1360(2)0.0257(8)
H80.22270.44400.20160.031*
C90.10142(14)0.4590(5)0.2039(2)0.0301(8)
Co21.00000.50000.50000.02237(17)
O50.62036(11)0.3978(5)0.21332(17)0.0518(8)
O60.54637(10)0.5013(4)0.31224(17)0.0354(6)
O70.97317(9)0.7286(3)0.59376(15)0.0310(6)
H7A0.94730.68740.63730.046*
H7B1.00200.81330.62160.046*
O80.97510(10)0.3052(4)0.61976(16)0.0342(6)
H8A0.94490.23330.60070.051*
H8B0.96450.37130.67190.051*
N40.91085(11)0.4846(4)0.43962(19)0.0272(6)
N50.83499(12)0.4578(4)0.32725(19)0.0328(8)
N60.81270(11)0.4750(4)0.42323(18)0.0242(6)
C100.89373(14)0.4648(5)0.3413(2)0.0309(9)
H100.92120.45700.28890.037*
C110.85863(14)0.4905(5)0.4882(2)0.0307(8)
H110.85500.50350.55780.037*
C120.74869(13)0.4798(5)0.4430(2)0.0237(7)
C130.70810(14)0.4636(5)0.3641(2)0.0256(8)
H130.72180.44450.29880.031*
C140.64606(13)0.4761(5)0.3822(2)0.0238(7)
C150.62555(15)0.5036(5)0.4802(2)0.0316(8)
H150.58420.51440.49210.038*
C160.66682(16)0.5146(6)0.5590(2)0.0405(10)
H160.65340.53000.62470.049*
C170.72832(15)0.5031(6)0.5411(2)0.0342(9)
H170.75620.51100.59470.041*
C180.60140(15)0.4593(5)0.2964(2)0.0293(8)

Source of material

A mixture of Co(OAc)2⋅4H2O (0.0249 g, 0.1 mmol), 3-(4H-1,2,4-triazole-4-yl)benzenecarboxylic acid (0.0378 g, 0.2 mmol), and H2O (10 mL) was sealed in a 25 mL Teflon-lined stainless steel vessel and heated at 120 °C for 3 days. The reaction mixture was slowly cooled to room temperature at a rate of 5 °C/h. The obtained pink block crystals were collected, washed with water, and dried in air.

Experimental details

The title structure shows translational pseudosymmetry. The hydrogen atoms were assigned with isotropic displacement factors Uiso(H) = 1.2 times Ueq(C, aromatic ring), and Uiso(H) = 1.5 times Ueq(O, water). The final refinement by using geometrical restraints, with C—H = 0.93 Å (aromatic ring), and O—H = 0.86 Å (water).

Discussion

Transition metal complexes have been widely studied in coordination chemistry and material chemistry [4], [5], [6]. It is well known that structures and properties of complexes are strongly dependent on both, the nature of the ligands and the metal ions [7]. Among various organic ligands, aromatic polycarboxyl compounds are excellent ligands as they may form diverse coordination modes. Furthermore, 1,2,4-triazole combine the coordination geometry of both pyrazole and imidazole with regard to the arrangement of their three heteroatoms [8, 9] .

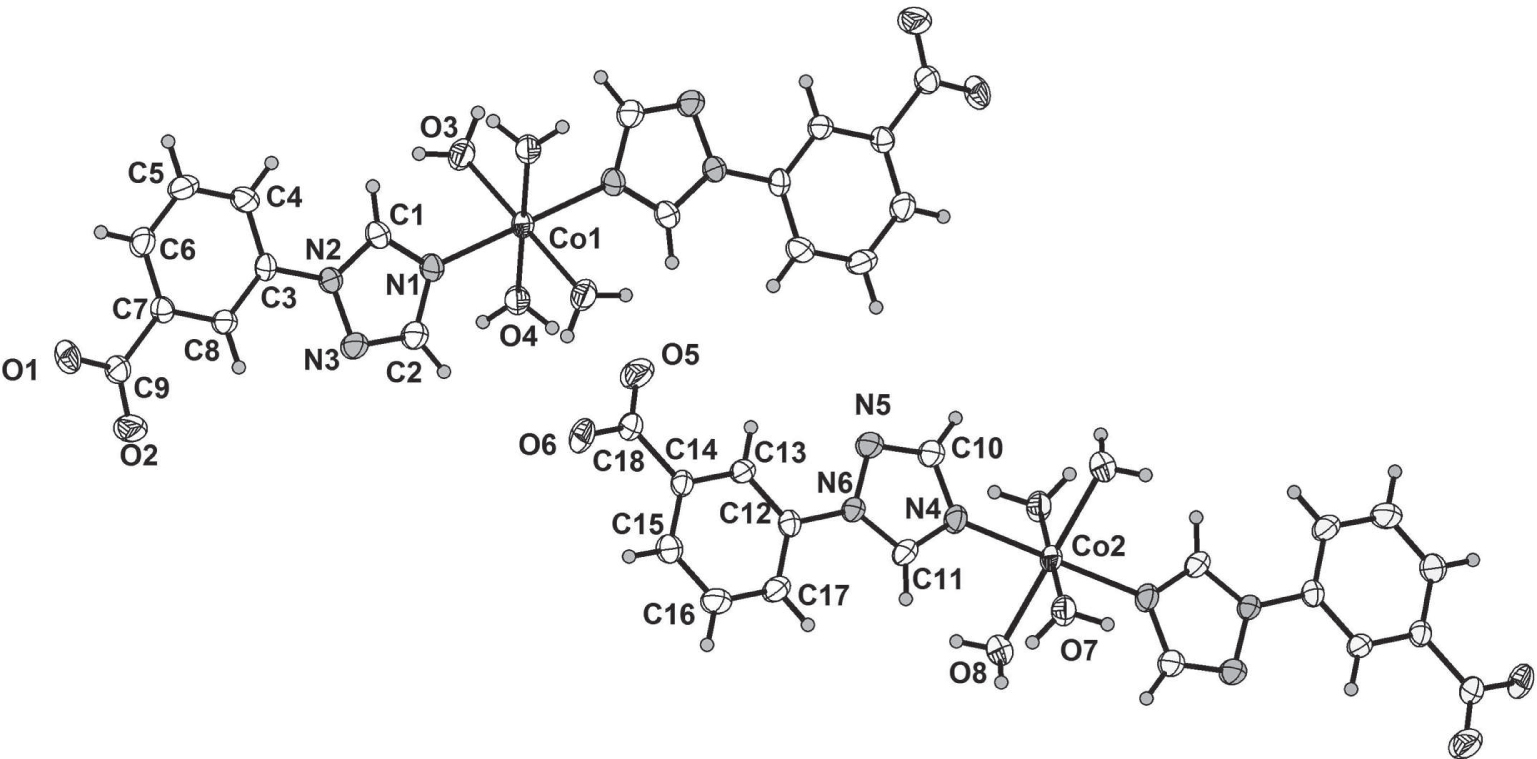

The asymmetric unit of the title compound consists of two crystallographically independent Co(II) ions, each is coordinated by two 3-(4H-1,2,4-triazol-4-yl)benzoato ligands and four aqua ligands (cf. Figure). The [N2O4] coordination is realized by two nitrogen atoms from two organic ligands, and four oxygen atoms from coordinated water molecules. The Co—O bond lengths are in the range of 2.076(2)–2.157(2) Å, and the Co—N bond lengths are 2.137(2) Å and 2.107(2) Å, respectively. There are intermolecular O—H⋯O hydrogen bonds which connect adjacent complexes into a three-dimensional structure.

References

1 Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2015).Search in Google Scholar

2 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3 Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

4 Zhu, D. R.; Song, Y.; Xu, Y.; Zhang, Y.; Raj, S. S. S.; Fun, H. K.; You, X. Z.: Syntheses, crystal structures and properties of the novel Co(II) and Ni(II) complexes with 4-(p-methylphenyl)-3,5-bis(pyridin-2-yl)-1,2,4-triazole. Polyhedron 19 (2000) 2019–2025.10.1016/S0277-5387(00)00501-5Search in Google Scholar

5 Tahli, A.; Maclaren, J. K.; Boldog, I.; Janiak, C.: Synthesis and crystal structure determination of 0D-, 1D- and 3D-metal compounds of 4-(pyrid-4-yl)-1,2,4-triazole with zinc(II) and cadmium(II). Inorg. Chim. Acta 374 (2011) 506–513.10.1016/j.ica.2011.03.072Search in Google Scholar

6 Tian, A. X.; Ying, J.; Peng, J.; Sha, J. Q.; Pang, H. J.; Zhang, P. P.; Chen, Y.; Zhu, M.; Su, Z. M.: Tuning the dimensionality of the coordination polymer based on polyoxometalate by changing the spacer length of ligands. Cryst. Growth Des. 8 (2008) 3717–3724.10.1021/cg800353ySearch in Google Scholar

7 Yang, J.; Ma, J. F.; Liu, Y. Y.; Ma, J. C.; Batten, S. R.: A series of Cu(II) complexes based on different bis(imidazole) ligands and organic acids: formation of water clusters and fixation of atmospheric carbon dioxide. Cryst. Growth Des. 8 (2008) 4383–4393.10.1021/cg701119gSearch in Google Scholar

8 Zhang, J. P.; Lin, Y. Y.; Huang, X. C.; Chen, X. M.: Copper(I) 1,2,4-triazolates and related complexes: studies of the solvothermal ligand reactions, network topologies, and photoluminescence properties. J. Am. Chem. Soc. 127 (2005) 5495–5506.10.1021/ja042222tSearch in Google Scholar PubMed

9 Liu, H. Y.; Wu, H.; Ma, J. F.; Liu, Y. Y.; Yang, J.; Ma, J. C.: Inorganic-organic hybrid compounds based on octamolybdates and metal-organic fragments with flexible multidentate ligand: syntheses, structures and characterization. Dalton. Trans. 40 (2011) 602–613.10.1039/C0DT01024CSearch in Google Scholar

Received: 2016-11-2
Accepted: 2017-4-24
Published Online: 2017-5-24
Published in Print: 2017-7-26
