Crystal structure of (E)-1-(3-((E)-((2-hydroxynaphthalen-1-yl)methylene)amino)phenyl)ethanone O-benzyl oxime, C26H22N2O2

  • Yan-Bin Wang EMAIL logo and Qiong Su
Published/Copyright: May 20, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C26H22N2O2, monoclinic, P21/c (no. 14), a = 21.8152(18) Å, b = 4.3629(2) Å, γ = 22.0099(12) Å, β = 106.951(6)°, V = 2003.8(2) Å3, Z = 4, Rgt(F) = 0.0639, wRref(F2) = 0.1555, T = 298(2) K.

CCDC no.:: 1546077

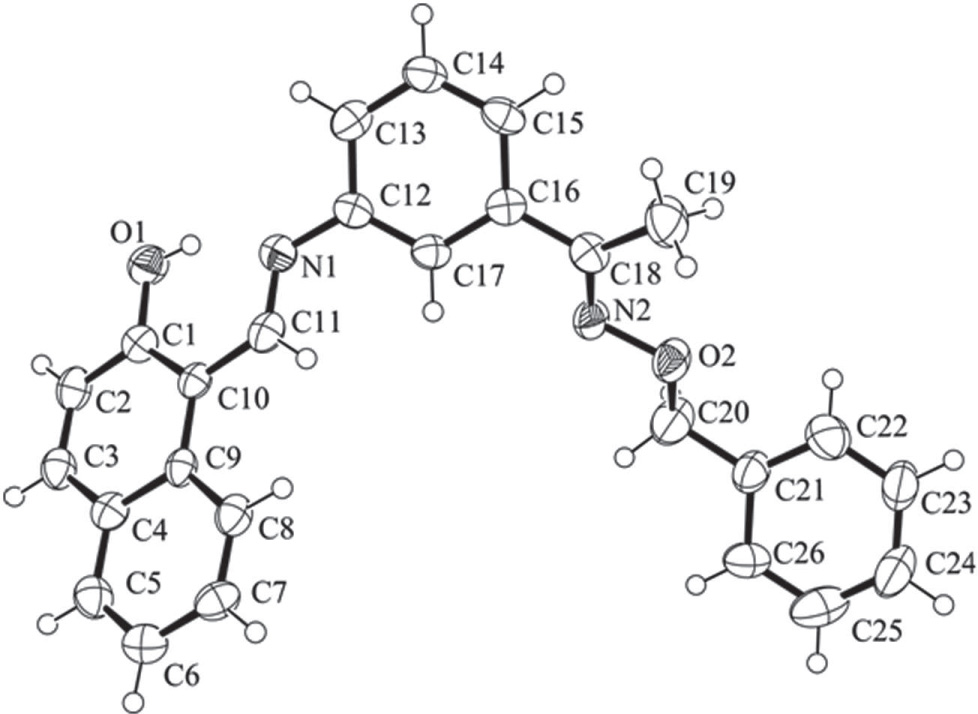

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.34 × 0.14 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.8 cm−1
Diffractometer, scan mode:SuperNova Dual, ω scans
2θmax, completeness:52°, >99%
N(hkl)measured, N(hkl)unique, Rint:7312, 3943, 0.063
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1984
N(param)refined:310
Programs:SHELX [1], CrysAlisPRO [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N10.10605(17)0.1082(8)0.47091(17)0.0346(9)
O10.02905(14)−0.0204(7)0.36222(15)0.0445(9)
H10.04200.06580.39670.067*
O20.34938(15)0.9255(8)0.62052(14)0.0454(9)
C110.1495(2)−0.0493(10)0.4551(2)0.0352(11)
H110.1903−0.06040.48370.042*
C90.1856(2)−0.3908(9)0.38058(19)0.0300(10)
C100.13720(19)−0.2081(9)0.39532(19)0.0293(10)
C40.1705(2)−0.5433(10)0.3206(2)0.0341(11)
C170.1829(2)0.4023(10)0.5546(2)0.0335(10)
H170.21500.36650.53530.040*
C120.1223(2)0.2772(9)0.5279(2)0.0332(10)
C70.2917(2)−0.6147(10)0.4054(2)0.0397(12)
H70.3325−0.63640.43360.048*
N20.28790(17)0.7942(9)0.59236(17)0.0400(10)
C160.1964(2)0.5795(10)0.6093(2)0.0334(10)
C80.2481(2)−0.4389(10)0.4221(2)0.0372(11)
H80.2594−0.34720.46190.045*
C30.1090(2)−0.5039(10)0.2768(2)0.0389(11)
H30.0992−0.60080.23750.047*
C60.2770(2)−0.7651(11)0.3464(2)0.0445(12)
H60.3072−0.88780.33580.053*
C20.0640(2)−0.3267(10)0.2914(2)0.0408(12)
H20.0243−0.29980.26160.049*
C10.0770(2)−0.1830(10)0.3511(2)0.0342(11)
C210.4411(2)1.1474(12)0.5997(2)0.0446(12)
C180.2605(2)0.7239(10)0.6344(2)0.0372(11)
C130.0747(2)0.3352(10)0.5575(2)0.0403(12)
H130.03370.25760.53990.048*
C50.2166(2)−0.7258(11)0.3049(2)0.0418(12)
H50.2062−0.82240.26550.050*
C150.1483(2)0.6304(10)0.6388(2)0.0382(11)
H150.15670.74700.67560.046*
C140.0880(2)0.5052(10)0.6122(2)0.0419(12)
H140.05610.53680.63180.050*
C240.5673(3)1.3328(14)0.6474(3)0.0630(16)
H24a0.61021.38100.66610.076*
H24Aa0.60941.40060.66310.076*
C200.3727(2)1.0456(14)0.5710(2)0.0572(15)
H20A0.34661.21790.55080.069*
H20B0.37070.88940.53910.069*
C190.2897(3)0.7842(13)0.7038(2)0.0588(15)
H19A0.33010.67990.71830.088*
H19B0.26150.71070.72680.088*
H19C0.29621.00050.71070.088*
C26a0.4875(5)1.077(3)0.5672(5)0.048(3)
H26a0.47580.96350.52990.057*
C26′a0.4688(5)1.319(3)0.5665(5)0.060(3)
H26′a0.44541.37790.52570.072*
C25a0.5495(6)1.180(3)0.5917(6)0.064(3)
H25a0.57931.14400.56970.077*
C22a0.4598(6)1.322(3)0.6525(5)0.056(3)
H22a0.42981.37960.67290.067*
C23a0.5223(5)1.417(3)0.6766(5)0.064(3)
H23a0.53401.53870.71290.077*
C25′a0.5320(6)1.416(3)0.5903(7)0.067(3)
H25′a0.54961.54150.56560.080*
C22′a0.4770(5)1.052(3)0.6614(5)0.065(4)
H22′a0.45780.93180.68570.078*
C23′a0.5402(5)1.137(3)0.6852(5)0.058(3)
H23′a0.56481.06930.72490.069*

Source of materials

To a hot ethanolic solution (10 mL) of benzaldehyde (290.4 mg, 1 mmol) was added an ethanolic solution (5 mL) of (E)-1-(((3-(1-aminoethyl)phenyl)imino)methyl)naphthalen-2-ol (106.1 mg, 1.00 mmol). After the mixture had been stirred at 338 K for 4 h, the solvent was partially evaporated under reduced pressure. After cooling to room temperature, the mixture was filtered, washed successively with ethanol and hexane. The isolated compound was dried under reduced pressure to yield 302.1 mg of light yellow solid. Yield: 76.5%. m.p. 331–333 K. Block-shaped single crystals suitable for X-ray diffraction studies were obtained by slow evaporation from an ethanolic solution at room temperature. Elemental analysis: Calcd. for C26H22N2O2 [%]: C, 79.16; H, 5.62; N, 7.10; Found: C, 79.16; H, 5.62; N, 7.10.

Experimental details

Molecular structure was refined using the SHELX package. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. There is a disorder of the phenyl group.

Comment

Oxime-type compounds and their derivatives play an important role in the development of coordination chemistry [3], [4], [5], [6], [7], because they can accommodate one, two or more metal centers and form homo- and heteronuclear metal complexes [8], [9], [10], [11], [12]. Moreover, oxime-type compounds and its metal complexes studied by the group of W. K. Dong have a significant application in the fields of luminescence and magnetic materials, catalysis and supramolecular chemistry [13], [14], [15], [16].

The crystal structure is only built up from C26H22N2O2 molecules, in which all bond lengths are in normal ranges. The aryl ring (C12—C17) and the naphthyl moiety form a dihedral angle of 34.82(11)°. In addition, there is a strong intramolecular O—H⋯N hydrogen bond interaction between the hydroxyl (O1—H1) group and the Schiff base nitrogen (N1) atom, with the distance of d(N1⋯O1) = 2.552(3) Å [17].

References

1 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

2 Oxford Diffraction Ltd. CrysAlisPRO, Abingdon, Oxfordshire, England (2006).Search in Google Scholar

3 Dong, W. K.; Shi, J. Y.; Xu, L.; Zhong, J. K.; Duan, J. G.; Zhang, Y. P.: Synthesis, crystal structure and infrared spectra of Cu(II) and Co(II) complexes with 4,4′-dichloro-2,2′-[ethylenedioxybis(nitrilomethylidyne)] diphenol. Appl. Organomet. Chem. 22 (2008) 89–96.10.1002/aoc.1355Search in Google Scholar

4 Sun, Y. X.; Xu, L.; Zhao, T. H.; Liu, S. H.; Liu, G. H.; Dong, X. T.: Synthesis and crystal structure of a 3D supramolecular copper(II) complex with 1-(3-phenyl)ethanone oxime. Synth. React. Inorg. Metal-Org. Nano-Met. Chem. 43 (2013) 509–513.10.1080/15533174.2012.740756Search in Google Scholar

5 Sun, Y. X.; Liu, G. H.; Wang, J.; Liu, S. H.; Wang, G.: Crystal structure of bis(3-ethoxy-4-hydroxybenzaldehyde) O,O′-(butane-1,4-diyl) dioxime, C22H28N2O6. Z. Kristallogr.-NCS. 227 (2012) 123–124.10.1524/ncrs.2012.0056Search in Google Scholar

6 Chakravorty, A.: Structural chemistry of transition metal complexes of oximes. Coord. Chem. Rev. 13 (1974) 1–46.10.1016/S0010-8545(00)80250-7Search in Google Scholar

7 Dong, W. K.; He, X. N.; Dong, C. M.; Wang, L.; Zhong, J. K.; Chen, X.; Yu, T. Z.: Crystal structure of 2,2′-((1,4-butylene)dioxybis(nitriloethylidyne)diphenol, C20H24N2O4. Z. Kristallogr.-NCS 222 (2007) 289–290.10.1524/ncrs.2007.0122Search in Google Scholar

8 Sun, Y. X.; Zhao, Y. Y.; Li, C. Y.; Yu, B.; Guo, J. Q.; Li, J.: Supramolecular cobalt(II) and copper(II) complexes with Schiff base ligand: syntheses, characterizations and crystal structures. Chin. J. Inorg. Chem. 32 (2016) 913–920.Search in Google Scholar

9 Dong, W. K.; Sun, Y. X.; Yao, J.; Wang, L.; Dong, X. Y.; Gao, X. H.: Synthesis and structure of a trinuclear nickel(II) complex with a salen-type bisoxime ligand. J. Struct. Chem. 54 (2013) 545–550.10.1134/S0022476613030220Search in Google Scholar

10 Sun, Y. X.; Lu, R. E.; Li, X. R.; Zhao, Y. Y.; Li, C. Y.: A Schiff base ligand containing oxime group and its Cu(II) complex: syntheses and supramolecular structures. Chin. J. Inorg. Chem. 31 (2015) 1055–1062.Search in Google Scholar

11 Ma, J. C.; Dong, X. Y.; Dong, W. K.; Zhang, Y.; Zhu, L. C.; Zhang, J. T.: An unexpected dinuclear Cu(II) complex with a bis(Salamo) chelating ligand: synthesis, crystal structure, and photophysical properties. J. Coord. Chem. 69 (2016) 149–159.10.1080/00958972.2015.1108410Search in Google Scholar

12 Dong, W. K.; Sun, Y. X.; Zhang, Y. P.; Li, L.; He, X. N.; Tang, X. L.: Synthesis, crystal structure, and properties of supramolecular Cu(II), Zn(II), and Cd(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 362 (2009) 117–124.10.1016/j.ica.2008.03.128Search in Google Scholar

13 Dong, W. K.; Feng, J. H.; Wang, L.; Xu, L.; Zhao, L.; Yang, X. Q.; Yu, T. Z.: Synthesis and structural characterization of a novel tetranuclear Cu(II) complex: [Cu4L2(pic)4(H2O)2]⋅2H2O. Trans. Met. Chem. 32 (2007) 1101–1105.10.1007/s11243-007-0292-5Search in Google Scholar

14 Dong, W. K.; Duan, J. G.; Guan, Y. H.; Shi, J. Y.; Zhao, C. Y.: Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 362 (2009) 1129–1134.10.1016/j.ica.2008.05.028Search in Google Scholar

15 Dong, W. K.; Ma, J. C.; Dong, Y. J.; Zhu, L. C.; Zhang, Y.: Di- and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: syntheses, structures and magnetic properties. Polyhedron 115 (2016) 228–235.10.1016/j.poly.2016.05.017Search in Google Scholar

16 Dong, X. Y.; Sun, Y. X.; Wang, L.; Li, L.: Synthesis and structure of a penta- and hexa-coordinated trinuclear cobalt(II) complex. J. Chem. Res. 36 (2012) 387–390.10.3184/174751912X13366711594575Search in Google Scholar

17 Dong, W. K.; Zhang, L. S.; Sun, Y. X.; Zhao, M. M.; Li, G.; Dong, X. Y.: Synthesis, crystal structure and spectroscopic properties of a supramolecular zinc(II) complex with N2O2 coordination sphere. Spectrochim. Acta A121 (2014) 324–329.10.1016/j.saa.2013.10.072Search in Google Scholar PubMed

Received: 2017-1-4
Accepted: 2017-5-3
Published Online: 2017-5-20
Published in Print: 2017-7-26

©2017 Yan-Bin Wang et al., published by De Gruyter, Berlin/Boston.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
