Crystal structure of bis-(1-(4-chlorophenyl)-3-phenyl-4-thenoyl-1H-pyrazol-5-ol-κ2O,O′)-(N,N-dimethylformamide)zinc(II), C43H31Cl2N5O5S2Zn

  • Chun-Xiang Zhao , Yong-Jie Ding EMAIL logo , Heng-Qiang Zhang , Chen-Ying Zhou , Quan-Zhong Wang , Xin Wang , Hui Zhao , Ya-Hong Chen , Jian-Ping Xie and Yun-Sheng Wang
Published/Copyright: May 8, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C43H31Cl2N5O5S2Zn, monoclinic, C2/c (no. 15), a =16.9304(8) Å, b = 8.9706(5) Å, c = 27.6764(14) Å, β = 96.701(1)°, V = 4174.7(4) Å3, Z = 4, Rgt(F) = 0.0350, wRref(F2) = 0.094, T = 296 K.

CCDC no.:: 1454728

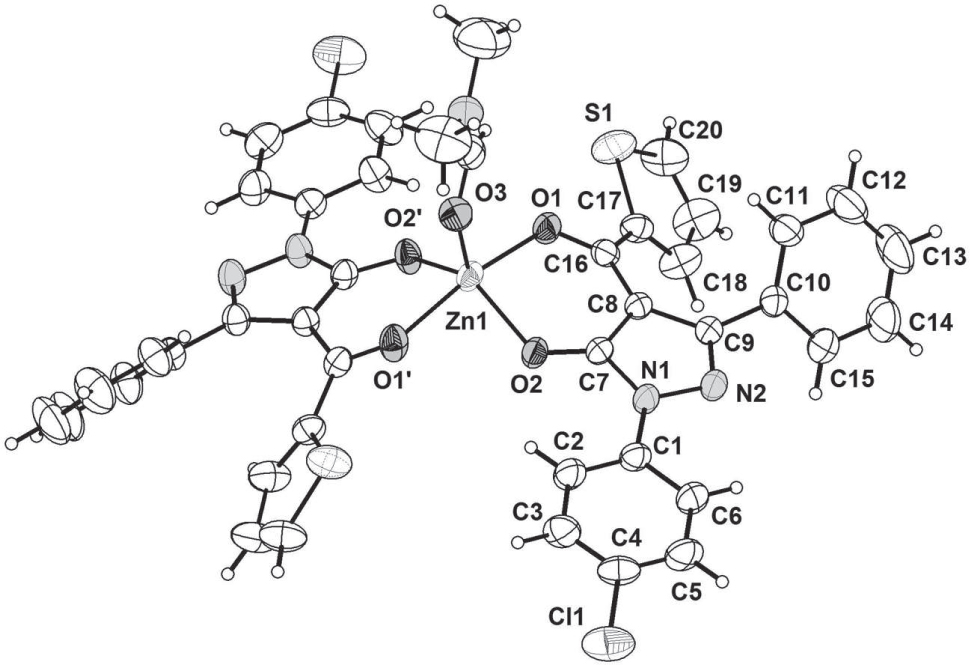

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.37 × 0.37 × 0.30 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.7 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:56.8°, >99%
N(hkl)measured, N(hkl)unique, Rint:13762, 5209, 0.020
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4210
N(param)refined:287
Programs:SHELX [10], DIAMOND [11], WinGX/ORTEP [12], Mercury CSD [13], PLATON [14]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.00000.36164(3)0.75000.03670(9)
Cl10.36329(5)0.13583(9)0.98178(2)0.0793(2)
S10.02402(4)0.27398(7)0.574156(19)0.06162(17)
O10.03391(7)0.33230(17)0.67983(5)0.0462(3)
O20.10167(7)0.27376(16)0.77804(4)0.0417(3)
N10.23408(8)0.21146(19)0.77498(5)0.0398(3)
N20.28709(8)0.1917(2)0.74053(5)0.0437(4)
C10.26317(10)0.1951(2)0.82483(6)0.0392(4)
C20.21463(12)0.2139(3)0.86146(7)0.0491(5)
H20.16120.23750.85370.059*
C30.24610(14)0.1972(3)0.90978(7)0.0544(5)
H30.21390.21050.93440.065*
C40.32466(14)0.1612(2)0.92100(7)0.0511(5)
C50.37321(12)0.1410(3)0.88526(8)0.0550(5)
H50.42650.11680.89340.066*
C60.34251(11)0.1567(2)0.83694(7)0.0487(5)
H60.37510.14160.81250.058*
C70.15967(9)0.2493(2)0.75365(6)0.0341(3)
C80.16363(9)0.24590(19)0.70288(6)0.0338(3)
C90.24516(10)0.2109(2)0.69804(6)0.0368(4)
C100.28666(10)0.2031(2)0.65393(7)0.0408(4)
C110.27269(14)0.3072(3)0.61697(8)0.0540(5)
H110.23730.38500.61980.065*
C120.31138(19)0.2952(3)0.57587(9)0.0775(8)
H120.30200.36530.55110.093*
C130.3636(2)0.1803(4)0.57145(11)0.0885(10)
H130.38880.17170.54350.106*
C140.37867(18)0.0787(3)0.60813(11)0.0812(8)
H140.41480.00200.60520.097*
C150.34057(13)0.0890(3)0.64942(9)0.0574(5)
H150.35100.01950.67420.069*
C160.09436(10)0.2645(2)0.66868(6)0.0356(4)
C170.08951(11)0.1991(2)0.61989(6)0.0408(4)
C180.12664(14)0.0761(3)0.60384(8)0.0570(5)
H180.16310.01850.62340.068*
C190.10313(17)0.0468(3)0.55414(9)0.0713(7)
H190.1230−0.03170.53720.086*
C200.04885(17)0.1447(3)0.53382(8)0.0678(7)
H200.02740.14180.50130.081*
O3a−0.0036(4)0.5806(3)0.76070(12)0.0474(9)
N3a−0.0065(4)0.8201(5)0.73666(17)0.0625(17)
C21a−0.0110(2)0.6755(5)0.72872(17)0.0490(9)
H21Aa−0.02040.64330.69660.059*
C22a−0.0203(8)0.9214(12)0.6947(4)0.123(4)
H22Aa−0.02230.86490.66510.185*
H22Ba0.02230.99250.69590.185*
H22Ca−0.06980.97290.69570.185*
C23a0.0074(8)0.8812(11)0.7833(3)0.113(3)
H23Aa0.02500.80430.80620.169*
H23Ba−0.04090.92420.79200.169*
H23Ca0.04750.95690.78390.169*

  1. aOccupancy: 0.50.

Source of material

The title compound was prepared following the reported procedure [1], [2], [3]. A mixture of a 20 mL of a solvation of 1-(4-chlorophenyl)-3-phenyl-1H-pyrazol-5(4H)-one (HCPTP) (2 mmol, 0.7617 g) in anhydrous ethanol and 20 mL ethanolic solution of Zn(Ac)2⋅2H2O (1 mmol, 0.2195 g) was refluxed for 4 h at 75–80 °C. After filtration, the solvent was removed on a rotary evaporator, the light yellow powder was dried in vacuo to constant weight. Yellow single crystals were obtained by slowly evaporating the solvent from a dimethyl formamide solution at room temperature over a period of two months (yield: 67%).

Experimental details

All H-atoms were positioned with idealized geometry and refined using a riding model.

Discussion

Acylpyrazolones are important targets in coordination chemistry. Their metal complexes have been found to display catalytic performance, biological activity and enhanced luminescence [4], [5], [6], [7], [8], [9]. In recent years, we have been engaged in the preparation of the derivatives of acylpyrazolones. Herein, we report the new crystal structure of a complex of HCPTP containing Zn(II). The title crystal structure is built by the C43H31Cl2N5O5S2Zn molecules, in which all bond lengths and angles are in normal ranges. The complex sits on a 2-fold axis and as a result of this the coordinated DMF molecule is disordered over two equally-occupied positions.

In the zinc complex, Zn(CPTP)2((CH3)2NCHO), the central metal atom displays square-pyramidal coordination, strongly distorted towards trigonal-bipyramidal coordination. Characteristic of the distortion are the angles about the Zn atom: 165.64(8) [O(1)#1-Zn(1)-O(1)], 132.78(9) [O(2)#1-Zn(1)-O(2)], 112.17(19) [O(2)-Zn(1)-O(3)], 114.45(19)° [O(2)#1-Zn(1)-O(3)] (Symmetry codes: #1: − x, y, − z + 3/2). The Zn-O bond lengths were found to range from 1.9684(12) to 2.1049(13) Å. The C—O and C—C bond lengths within the chelating ring system are nearly equal, indicating the presence of delocalized π-electrons.

Acknowledgement

The work was supported by the Natural Science Basic Research Project of Education Department of Henan Province (No. 17 A150057) and the Scientific Research Project of Zhoukou Normal University (ZKNUB115209).

References

1 Jensen, B. S.: The synthesis of 1-phenyl-3-methyl-4-acyl-pyrazolones-5. Acta. Chem. Scand. 13 (1959) 1668–1670.10.3891/acta.chem.scand.13-1668Search in Google Scholar

2 Cingolani, A.; Marchetti, F.; Pettinari, C.; Pettinari, R.; Skelton, B. W.; White, A. H.: Silver coordination chemistry of a new versatile ”Janus”-type N2,O2-bichelating donor, formation of an unprecedented supramolecular network of binuclear silver building locks containing a five-coordinate β-diketonate, and isolation of unexpected silver-tin-silver heterotrimetallic complexes from silver metathesis reactions. Inorg. Chem. Commun. 43 (2004) 4387–4399.10.1021/ic0497376Search in Google Scholar

3 Cingolani, A.; Marchetti, F.; Pettinari, C.; Pettinari R.; Skelton, B. W.; Somers, N.; White, A. H.: Copper(I) monophosphine complexes with functionalized acylpyrazolonate ligands: syntheses of heterobimetallic Cu-Zn and Cu-Ruadducts. Polyhedron 25 (2006) 124–133.10.1016/j.poly.2005.07.020Search in Google Scholar

4 Li, J. M.; Li, J. Z.; Zhang, H. Q.; Xu, L. Y.: A novel cobalt(II) acylpyrazolonate complex with intermolecularhydrogen bond: synthesis, structure and properties. Inorg. Chem. Commun. 13 (2010) 573–576.10.1016/j.inoche.2010.01.023Search in Google Scholar

5 Jadejia, R. N.; Parihar, S.; Vyas, K.; Gupta, V. K.: Synthesis and crystal structure of a series of pyrazolone based Schiff base ligands and DNA binding studies of their copper complexes. J. Mol.Struct. 1013 (2012) 86–94.10.1016/j.molstruc.2012.01.006Search in Google Scholar

6 Qin, J. C.; Cheng, X. Y.; Fang, R.; Wang, M. F.; Yang, Z. Y.; Li, T.R.; Li, Y.: Two Schiff-base fluorescent sensors for selective sensing of aluminum(III): experimental and computational studies. Spectrochim. Acta Part A 152 (2016) 352–357.10.1016/j.saa.2015.07.095Search in Google Scholar

7 Marchetti, F.; Pettinari, C.; Pettinari, R.; Cerquetella, A.; Cingolani, A.; Chan, E. J.; Kozawa, K.; Skelton, B. W.; White, A. H.; Wanke, R.; Kuznetsov, M. L.; Martins, L. M. D. R. S.; Pombeiro, A. J. L.: Arene ruthenium(II) 4-acyl-5-pyrazolonatederivatives: coordination chemistry, redox properties, and reactivity. Inorg.Chem. 46 (2007) 8245–8257.10.1021/ic700394rSearch in Google Scholar

8 Marchetti, F.; Pettinari, C.; Pettinari, R.: Acylpyrazolone ligands: synthesis, structures, metal coordination chemistry and applications. Coordin. Chem. Rev. 249 (2005) 2909–2945.10.1016/j.ccr.2005.03.013Search in Google Scholar

9 Yoshikuni, T.: Cerium complexes with acetato acylbis(pyrazolinone) ligands as an efficient catalyst for the oxidation of cresols by molecular oxygen. J. Mol. Catal. A 187 (2002) 143–147.10.1016/S1381-1169(02)00053-5Search in Google Scholar

10 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

11 Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 2.0f Crystal Impact, Bonn, Germany.Search in Google Scholar

12 Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

13 Macrae, C. F.; Bruno, I. J.; Chisholm, J. A.; Edgington, P. R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P. A.: Mercury CSD2.0- new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 41 (2008) 466–470.10.1107/S0021889807067908Search in Google Scholar

14 Spek, A. L.: Structure validation in chemical crystallography. Acta Crystallogr. D65 (2009) 148–155.10.1107/S090744490804362XSearch in Google Scholar PubMed PubMed Central
