Crystal structure of tetrakis(μ3-2-(N-(2-hydroxyethyl)amino)ethoxo)-tetrachloro-tetra-cobalt(II) methanol solvate, C17H44Cl4Co4N4O9

  • Guo Yuhua , Yu Youzhu EMAIL logo , Shi Weiyun , Wei Aimin and Wang Fengli
Published/Copyright: June 24, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 4

Abstract

C17H44Cl4Co4N4O9, triclinic, P1̅ (no. 2), a = 10.918(14) Å, b = 11.899(15) Å, c = 13.327(17) Å, α = 91.286(13)°, β = 91.755(14)°, γ = 111.673(13)°, V = 1607(4) Å3, Z = 2, Rgt(F) = 0.0308, wRref(F2) = 0.1257, T = 293(2) K.

CCDC no.:: 1554087

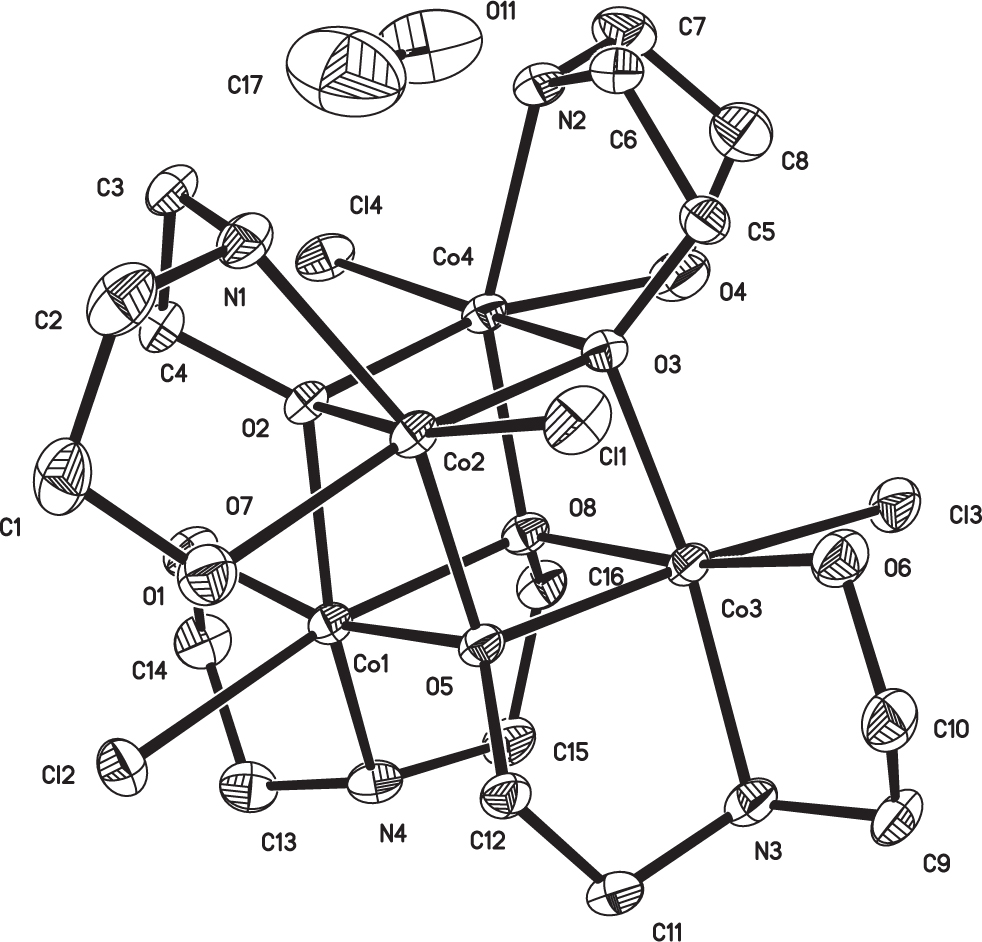

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Red block
Size:0.15 × 0.13 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:24.1 cm−1
Diffractometer, scan mode:Bruker APEX2, φ and ω
2θmax, completeness:52°, >97%
N(hkl)measured, N(hkl)unique, Rint:40621, 6179, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5670
N(param)refined:343
Programs:Bruker [8], SHELX [9], [10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co10.74728(4)0.72262(4)0.18724(3)0.02577(13)
Co20.47158(4)0.67519(4)0.27845(3)0.02595(13)
Co30.72137(4)0.86328(4)0.39842(3)0.02657(13)
Co40.64563(4)0.94054(4)0.18769(3)0.02663(13)
O10.4344(3)0.4832(2)0.23426(19)0.0415(6)
H1AA0.48120.44010.26330.050*
O20.5729(2)0.74993(19)0.14904(15)0.0261(4)
O30.5544(2)0.86680(18)0.32173(15)0.0260(4)
O40.7509(3)1.1291(2)0.2526(2)0.0530(7)
H4C0.84041.16060.27080.064*
O50.6584(2)0.68699(18)0.32948(15)0.0257(4)
O60.5918(3)0.8067(2)0.53207(17)0.0404(5)
H6C0.51570.82330.54010.048*
O70.8076(2)0.7774(2)0.03144(18)0.0403(6)
H7C0.74810.7772−0.02010.048*
O80.8015(2)0.90059(19)0.24975(16)0.0276(4)
O110.0622(4)0.6036(4)0.3198(3)0.0885(12)
H11D0.14260.62970.34030.106*
N10.3032(3)0.6298(3)0.1724(2)0.0361(6)
H1AB0.24540.66110.19740.043*
N20.4922(3)1.0146(3)0.1855(2)0.0371(6)
H1AC0.44320.98880.12710.044*
N30.8317(3)0.7874(2)0.4935(2)0.0337(6)
H1AD0.91860.83520.49160.040*
N40.9589(3)0.7705(3)0.1999(2)0.0357(6)
H1AE0.97590.71790.24150.043*
C10.3325(4)0.4311(3)0.1575(3)0.0494(9)
H1A0.28760.34520.16720.059*
H1B0.37050.44130.09190.059*
C20.2356(4)0.4948(4)0.1640(3)0.0516(10)
H2A0.17710.47330.10450.062*
H2B0.18210.46710.22190.062*
C30.3511(3)0.6896(3)0.0761(2)0.0352(7)
H3A0.34780.77000.07770.042*
H3B0.29390.64320.02060.042*
C40.4929(3)0.6989(3)0.0599(2)0.0307(6)
H4A0.49400.61920.04450.037*
H4B0.52780.74970.00360.037*
C50.4778(3)0.9336(3)0.3591(2)0.0327(7)
H5A0.53551.00730.39420.039*
H5B0.41500.88550.40590.039*
C60.4045(3)0.9645(3)0.2706(3)0.0367(7)
H6A0.33160.89210.24700.044*
H6B0.36821.02330.29330.044*
C70.5551(4)1.1485(3)0.1854(3)0.0501(9)
H7A0.48891.18320.19700.060*
H7B0.58991.17230.11980.060*
C80.6638(5)1.1976(4)0.2633(4)0.0593(11)
H8A0.71251.28290.25390.071*
H8B0.62841.18830.32980.071*
C90.7902(4)0.7903(4)0.5982(3)0.0457(9)
H9A0.82620.87290.62530.055*
H9B0.82540.74210.63930.055*
C100.6408(4)0.7421(4)0.6033(3)0.0441(8)
H10A0.60440.65600.58640.053*
H10B0.61560.75480.67050.053*
C110.8147(3)0.6645(3)0.4525(3)0.0344(7)
H11A0.82070.61530.50720.041*
H11B0.88470.67130.40720.041*
C120.6818(3)0.6032(3)0.3963(2)0.0300(6)
H12A0.68150.53260.35830.036*
H12B0.61230.57690.44400.036*
C131.0035(4)0.7529(4)0.0983(3)0.0433(8)
H13A0.97480.66700.08170.052*
H13B1.09910.78690.09860.052*
C140.9478(4)0.8134(4)0.0184(3)0.0444(8)
H14A0.99070.90070.02570.053*
H14B0.96350.7884−0.04830.053*
C151.0211(3)0.8951(3)0.2469(3)0.0403(8)
H15A1.10640.93570.21860.048*
H15B1.03530.88930.31850.048*
C160.9355(3)0.9707(3)0.2300(3)0.0342(7)
H16A0.96731.04250.27410.041*
H16B0.94130.99640.16110.041*
Cl10.33997(8)0.62193(8)0.42471(6)0.0418(2)
Cl20.69837(9)0.51180(7)0.14353(7)0.0412(2)
Cl30.83190(9)1.06927(7)0.46498(7)0.0427(2)
Cl40.71411(8)0.99727(8)0.01694(6)0.0403(2)
C17−0.0297(6)0.4788(6)0.3360(6)0.098(2)
H17A−0.11510.46710.30650.148*
H17B0.00280.42200.30570.148*
H17C−0.03670.46650.40690.148*

Source of material

All reagents and solvents employed were commercially available and used as received without further purification. A mixture of CoCl2⋅6H2O (1 mmol, 0.238 g), diethanolamine(H2L) (2 mmol, 0.212 g) and sodium methoxide (2 mmol, 0.108 g) were mixed in methanol (10 mL) and heated at 413 K for 2 days in a sealed 15 mL Teflon-lined stainless steel vessel under autogenous pressure. After cooling to room temperature at a rate of 10 K ⋅ h−1, red block crystals were isolated, washed with methanol and then dried in air in 37% yield.

Experimental details

H atoms were treated as riding atoms with Uiso in the range 1.2–1.5Ueq.

Discussion

With the discovery of the first single-molecule magnet (SMM) [1], [Mn12O12(O2CR)16(H2O)4], research on SMMs has been one of the most active fields in the past decade, and is still developing rapidly. SMMs can provide almost ideal systems for investigating the coexistence of classic and quantum effects, and are hopeful for applications in information storage and quantum computing in the future [2], [3], [4]. To date, several oxo-bridged Mn(III)- or Fe(III)-based SMMs have been reported. As a large anisotropic ion, Co(II) might be another possible candidate ion for SMMs, and its strong Ising-type anisotropic contribution has been demonstrated in some single-chain magnets (SCMs) [5, 6] , However, among the abundant Co(II)-based clusters, only a few behave as SMMs [2, 7] . To extend the research field of Co(II)-based clusters, we report here the synthesis and crystal structure of a new {Co4O4} core complex.

The title structure consists of a distorted {Co4O4} cubane. The four alkoxide groups of the mono-deprotonated diethanolamine ligands provide four μ3-O donors. Each amine group and the remaining four O atoms of the diethanolamine ligands are monodentate. The final site of each cobalt(II) centre are filled by a terminal Cl ligand. The coordination environment at each cobalt is distorted octahedral due to the imposed ligand bite angles. Each Co4 cubane is hydrogen-bonded to four neighbouring cubanes through two N—H⋯Cl contacts [N-H⋯Cl distances = 3.428(4) and 3.451(5) Å, respectively].

Acknowledgement

This work was supported by the Foundation of Anyang Institute of Technology.

References

Sessoli, R.; Tsai, H. L.; Schake, A. R.; Wang, S.; Vincent, J. B.; Folting, K.; Hendrickson, D. N.: High-spin molecules: High-spin molecules:[Mn12O12(O2CR)16(H2O)4]. J. Am. Chem. Soc. 115 (1993) 1804–1816.10.1021/ja00058a027Search in Google Scholar

Zhang, Y. Z.; Wernsdorfer, W.; Pan, F.; Wang, Z. M.; Gao, S.: An azido-bridged disc-like heptanuclear cobalt (II) cluster: towards a single-molecule magnet. Chem. Commun. 31 (2006) 3302–3304.10.1039/b605459eSearch in Google Scholar

Murugesu, M.; Wernsdorfer, W.; Abboud, K. A.; Christou, G.: New structural motifs in manganese single–molecule magnetism from the use of triethanolamine ligands. Angew. Chem. Int. Ed. 44 (2005) 892–896.10.1002/anie.200461703Search in Google Scholar

Song, Y.; Zhang, P.; Ren, X. M.; Shen, X. F.; Li, Y. Z.; You, X. Z.: Octacyanometallate-based single-molecule magnets: CoII9MV6(M = W, Mo). J. Am. Chem. Soc. 127 (2005) 3708–3709.10.1021/ja042334kSearch in Google Scholar

Caneschi, A.; Gatteschi, D.; Lalioti, N.; Sangregorio, C.; Sessoli, R.; Venturi, G.; Novak, M. A.: Cobalt (II)–nitronyl nitroxide chains as molecular magnetic nanowires. Angew. Chem. Int. Ed. 40 (2001) 1760–1763.10.1002/1521-3773(20010504)40:9<1760::AID-ANIE17600>3.0.CO;2-USearch in Google Scholar

Pardo, E.; Ruiz–García, R.; Lloret, F.; Faus, J.; Julve, M.; Journaux, Y.; Ruiz–Pérez, C.: Cobalt (II)–copper (II) bimetallic chains as a new class of single–chain magnets. Adv. Mater. 16 (2004) 1597–1600.10.1002/adma.200400253Search in Google Scholar

Langley, S. J.; Helliwell, M.; Sessoli, R.; Rosa, P.; Wernsdorfer, W.; Winpenny, R. E.: Slow relaxation of magnetisation in an octanuclear cobalt (II) phosphonate cage complex. Chem. Commun. 40 (2005) 5029–5031.10.1039/b510106aSearch in Google Scholar

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar
