A numerical analysis of the rotational flow of a hybrid nanofluid past a unidirectional extending surface with velocity and thermal slip conditions

Nomenclature

K p

porosity parameter

u , v , w

velocity along x - , y - and z - axis

x , y , z

coordinates of axis

Ec

Eckert number

M

magnetic parameter

Q t

heat generation parameter

Ω

angular velocity

γ 1

velocity slip parameter

γ 2

thermal slip parameter

a

constant number

μ

dynamic viscosity

k

thermal conductivity

B 0

strength of the magnetic field

T , T ∞

fluid and ambient temperatures

Pr

Prandtl number

Sk x

skin friction coefficient

C , C ∞

fluid and ambient concentrations

Nu n

Nusselt number

Re

Reynolds number

( C p )

specific heat

Sc

Schmidt number

σ

electrical conductivity

C w

surface concentration

Rd

thermal radiation

σ ⁎

Stefan–Boltzmann constant

ρ

density

f

base fluid

nf

nanofluid

hnf

hybrid nanofluid

1 Introduction

Nanofluid is a colloidal suspension comprising nanometer-sized solid particles, typically metal or oxide nanoparticles, dispersed within a base fluid. These engineered fluids exhibit unique thermophysical features, including enhanced thermal conductivity and heat transfer efficiency as first introduced by Choi [1]. The preparation involves scattering nanoparticles in a base fluid through two-step or one-step methods [2]. The effect of nanofluid flow on heat transfer is significant, primarily due to the engineered enhancement of thermophysical properties caused by mixing nanoparticles with pure fluid [3,4]. This heightened heat transfer efficiency is especially crucial in applications like coolant purposes for heat exchangers and electronic devices, etc. [5]. The increased heat-carrying capacity and improved thermal properties of nanofluids contribute to more efficient energy exchange and thermal management, making them highly desirable for escalating thermal transference in a variety of industrial processes and technological applications. Khan et al. [6] mixed nanoparticles of gold in blood to improve the thermal flow features of the resultant nanofluid and noticed that an upsurge in volume fractions of nanoparticles and permeability factor has declined in velocity characteristics and escalated the thermal distribution. Hybrid nanofluid flow involves the incorporation of multiple types of nanoparticles or a combination of nanoparticles with other additives in a base fluid [7]. The purpose is to exploit synergistic effects and enhance specific properties tailored to the desired application. The impression of hybrid nanofluid flow on thermal transference is multifaceted. By combining different nanoparticles, researchers aim to achieve optimized thermophysical features and improved stability of pure fluids [8]. Additionally, hybrid nanofluids offer the flexibility to tailor the fluid’s properties to suit diverse applications, ranging from electronics cooling to industrial heat exchangers [9]. Ali et al. [10] investigated computationally trihybrid nanofluid flow with thermal slip effects on an elongating sheet. Nagaraja et al. [11] examined mass and thermal transportations to assess opposing radiative trihybrid nanofluid flow on exponentially elongating surfaces. By adding nonlinear thermal radiation over the exponentially extensible surface, Darvesh et al. [12] investigated the global warming effect using magnetohydrodynamic (MHD) nanofluid. Their research led them to the conclusion that increased radiation is amplifying the effects of both global warming and solar power. Using the cross model’s infinite shear rate viscosity, Tag EI Din et al. [13] investigated the energy melting process impacted by the cross nanofluid’s inclined magnetic field across the wedge’s geometry. The researchers discovered that as the magnetic and viscosity parameters increase, the velocity profile becomes more distinct. The behavior of the stagnation point flow of Carreau nanofluid that was attached to a slanted magnetic effect was studied by EI Din et al. [14]. In order to obtain the numerical result, they utilized the spectrum relaxation approach. The quadratic multiple regression model was utilized in order to ascertain the rate of heat transition concerning the Nusselt number during the process.

MHD is a field of science that studies the dynamics of electrically conductive fluids under the impact of magnetic fields [15]. The collaboration between magnetic fields and fluid dynamics introduces compelling effects on convective heat transfer, particularly in scenarios involving plasmas, liquid metals, and electrolytes [16]. The Lorentz force, a product of the interaction between magnetic fields and electric currents within the fluid, plays a pivotal role in inducing fluid motion. This force alters the velocity distribution, impacting convective heat transfer rates. MHD has notable applications in nuclear power systems, where it is employed to optimize heat transfer and enhance system efficiency [17]. Safdar et al. [18] determined solutions in analytical form for MHD fluid flow for time-dependent thin film on a stretching surface. Challenges associated with MHD-induced heat transfer include increased pressure drop, potential fluid instabilities, and the complex relationship between magnetic fields and fluid flow. Researchers employ numerical simulations and experimental studies to elucidate these phenomena, utilizing computational models rooted in MHD equations [19]. As emerging technologies, such as MHD pumps and generators, continue to develop, MHD’s impact on heat transfer in fluid flow becomes increasingly crucial, with implications for space exploration, advanced power generation, and other innovative applications requiring efficient thermal management in electrically conductive fluids subjected to magnetic fields [20,21]. Understanding and harnessing these MHD effects are fundamental for advancing heat transfer processes across various industrial and scientific domains. An investigation was carried out [22] using numerical methods to determine the infinite shear rate of Carreau nanofluid with an inclined magnetic dipole over a cylindrical channel. In their investigation, they found that the velocity curve was lowered by both magnetic and infinite shear rates.

A porous medium refers to a substance or structure that contains interrelated void spaces, allowing the flow of fluids through such a surface. These void spaces can be filled with a gas, liquid, or a combination of both. Porous media are encountered in various natural and engineered systems, including soils, rocks, foams, and certain types of materials with complex internal structures [23,24]. The presence of pores in a permeable medium significantly influences fluid flow and thermal transference. In the context of heat transfer for fluid flow, the porous structure alters the convective heat transfer process [25]. The complex network of pores creates additional pathways for the fluid to flow, enhancing convective heat transfer coefficients. This increased convective heat transfer is particularly relevant in applications such as geothermal systems, underground heat exchangers, and catalytic converters, where porous media contribute to improved thermal performance and energy efficiency [26,27]. The porous medium’s impact on fluid flow and heat transfer is crucial for optimizing processes in numerous fields, ranging from environmental engineering to industrial applications. Researchers employ mathematical models, numerical simulations, and experimental studies to explore and quantify the heat transfer characteristics within porous media, advancing our comprehension of these complex phenomena and facilitating the design of more efficient thermal systems. A numerical approach was investigated by Darvesh et al. [28] with relation to a variable viscosity-based mixed convective inclined magnetized cross nanofluid that was applied to a spongy surface with varied thermal conductivities. As a result of their investigation, they discovered that the Brownian motion parameter velocity decreased as the suction increased. Rakpakdee et al. [29] examined heat transportation features for the MHD flow of fluid on a permeable media and proved that the velocity panels weakened while thermal panels augmented with escalation magnetic and porosity factors. An investigation on the stagnation point flow over a porous extended surface with slip condition was carried out by Ayub et al. [30]. The spectrum relaxation strategy, which is based on the Gauss–Seidel relaxation method is also utilized in order to solve the ordinary differential equations. Based on the numerical result, it is found that a significant change in the Nusselt number was discovered with the growing values of the thermophoresis factor.

Joule heating is a process in which heat is produced within a conductor or resistive material as a result of the passage of electric current through it [31]. Joule first experimentally demonstrated the relationship between electrical current and heat generation, Joule heating arises for confrontation faced by the electric current as it passes in a conductor, according to Joule’s law. The process involves the exchange of electrical energy into thermal energy within the material, leading to a temperature increase [32]. The impacts of Joule heating on thermal transportation are profound, influencing various technological applications. In electrical systems and devices, such as resistive heating elements and electrical circuits, Joule heating is a crucial consideration as it determines the amount of heat generated during the flow of current [33]. While Joule heating is often an undesirable effect due to potential energy losses and heat dissipation in electronic components, it is also harnessed intentionally in devices such as electric heaters, toasters, and incandescent light bulbs, where the generated heat is the desired outcome. In the field of microelectronics, managing and dissipating Joule heat is critical for preventing overheating and ensuring the reliability of electronic devices [34]. Additionally, Joule heating plays a role in various industrial processes, including welding and material processing, where the controlled application of electrical current induces localized heating for specific purposes. Mitigating the effects of Joule heating is essential for optimizing the effectiveness of electronic and thermal systems, influencing the design and development of technologies that rely on the controlled generation and dissipation of heat through electrical currents. Similar concepts can be studied in refs. [35–39].

Rotational flow, also known as swirling or vortex flow, is a fluid motion pattern characterized by the rotation of fluid elements around an axis [40]. This sort of flow is generally perceived in scenarios where angular momentum is imparted to the fluid, leading to a rotational or swirling motion. The impacts of rotational flow on thermal transportation and velocity distribution are significant, especially in applications such as rotating machinery, heat exchangers, and cyclonic separators [41]. This is particularly advantageous in heat exchangers, where improved thermal transportation efficiency is crucial. The velocity distribution in rotational flow exhibits variations compared to straight or laminar flows [42]. Near the axis of rotation, velocities tend to be higher, creating a central core of faster-moving fluid, while the outer regions experience lower velocities. This velocity profile influences the heat transfer characteristics, as regions with higher velocities typically exhibit enhanced convective heat transfer. Velocity and thermal effects are essential in the scheme and system’s optimization involving rotational flow, allowing engineers to tailor fluid dynamics for improved heat transfer performance [43]. Khan et al. [44] inspected rotary motion for MHD fluid flow on a spinning cylinder and used dissipative effects on fluid flow. Furthermore, the impacts of rotational flow on thermal transportation extend to environmental fluid dynamics, where phenomena like atmospheric vortices and oceanic gyres play a crucial role in heat and energy distribution within the Earth’s atmosphere and oceans [45]. Kumar et al. [46] discussed nanofluid flow with rotational effects on a gyrating sphere using heat absorption and generation.

In the light of above literature, the MHD three-dimensional hybrid nanofluid flows through a spongy extending surface with velocity and thermal boundary conditions in a porous medium. Two different kinds of nanoparticles, i.e., copper and alumina, are mixed into water to produce a hybrid nanofluid. In the current model, velocity and thermal slip constraints are used. The equations that are responsible for the flow are transformed into nonlinear ODEs via the self-similar method. A numerical approach called bvp4c is utilized for the solution of resultant equations. The impacts of several physical factors in the presence and absence of velocity and thermal slip constraints are discussed through graphs and Tables.

2 Mathematical model

Take 3D hybrid nanofluid flow on a permeable extending sheet is examined. Assume that the fluid is viscous and incompressible. The coordinates of the flow are x , y and z along with velocities u , v and w respectively. The fluid moves in the x - direction with velocity u = u w ( = a x ) as illustrated in Figure 1. The fluid is rotating about the z - axis with angular velocity Ω 1 . The surface temperature and concentration are T w and C w while at infinity, their corresponding notations are T ∞ and C ∞ . A transversal magnetic field with B 0 as its strength is applied along z - axis, i.e., perpendicular to both x - and y - axis. The Joule heating, heat source, and thermal radiation are considered in the heat equation. Additionally, supposed that the induced magnetic field is lesser in comparison to the external magnetic field. Furthermore, velocity and thermal slip constraints are considered at the surface [47,48]. By implementing the proposed conditions, we obtain

Figure 1

Geometry of the flow problem.

The boundary constraints are [49]

The similarity transformations are

Here, S 1 and S 2 are the velocity and temperature slip, respectively. A radiative heat flux is taken into consideration, and this may be approximated by utilizing the Rosseland approximation, which is derived from the idea of diffusion. The radiative heat flux q a along the z - direction is defined below [50]:

Taylor series for T 4 is given as

Neglect the higher order term, in above Eq. (8), beyond the 1st degree in ( T − T ∞ ) , we obtain

Putting Eqs. (8) and (9) in Eq. (7), the following result is obtained:

Simplified forms of the equations via similarity transformations are

The subjected constraints at the boundary are

Pr = ϑ f ( ρ C p ) f k f is Prandtl number, γ 1 = S 1 a ϑ f is the velocity slip factor, K p = μ f ρ f a k p is the porosity parameter, Ω = Ω 1 a is the rotation factor, Rd = 4 σ ⁎ T ∞ 3 k ⁎ k f is the radiation factor, M = σ f B 0 2 ρ f a is the magnetic parameter, heat source Q t = Q 0 a ( ρ C p ) f , and Eckert number is Ec = u w 2 ( C p ) f ( T w − T ∞ ) .

Here, A 1 = μ hnf μ f , A 3 = σ hnf σ f , A 2 = ρ hnf ρ f , A 4 = k hnf k f , and A 5 = ( ρ C p ) hnf ( ρ C p ) f .

The thermophysical property of nanoparticles and base fluid are defined as follows:

3 Relevant physical quantities

The physical quantities, which are skin friction and Nusselt number, have great importance in engineering science and industrial process.

The shear stress τ w x and surface heat flux q w are demarcated as follows:

Using Eqs. (6) and (15) the simplified form of Eq. (14) is given by

4 Numerical procedure

Upon the transformation of flow field equations into ODEs, we utilize the bvp4c technique in MATLAB designed for solving first-order ODEs. Consequently, we implement the following transformations to obtain the required equations.

Using Eq. (17), we write the equation from (9) to (12) in the following form:

The new converted boundary circumstances are as follows:

5 Validation of code

Table 2 presents the validation of convergence criteria comparing − f ″ ( 0 ) with earlier published results. The finding in Table 2 indicates a noteworthy consistency between the present outcomes and the result reported by refs. [48,52,53] for several values of Ω discussed in their studies.

6 Discussion of results

Evaluating the set of ODEs, various numerical forms and their corresponding graphical outcomes are obtained. The focus of this paper is on the study of hybrid nanofluid flow within a rotating frame taking into account the simultaneous impact of both thermal and velocity slip boundary conditions. These results are expressed in Figures 2–11 as well as in Tables 3 and 4. The effects of key factors are radiation ( Rd ) , rotation ( Ω ) , magnetic field ( M ) porosity ( K p ) , Eckert number ( Ec ) , thermal slip ( γ 2 ) , velocity slip ( γ 1 ) and heat source ( Q t ) on primary velocity ( f ′ ( ξ ) ) secondary velocity ( g ( ξ ) ) and thermal field ( θ ( ξ ) ) . Eq. (15) represents the theoretical model of hybrid nanofluid. Incorporating fundamental factors like dynamic viscosity ( μ ) fluid density ( ρ ) heat capacitance ( C p ) thermal conductivity ( k ) and electrical conductivity ( σ ) of the fluid. The subscripts ( hnf ) , ( nf ) and ( f ) serve to differentiate between the hybrid, nanofluid and base fluid. Table 1 presents the thermophysical features of pure fluid and nanoparticles. Table 2 shows the comparison of f ″ ( 0 ) with the varying values of Ω . The results are closely matched with the published work [48,52,53].

Figure 2

Fluctuation in f ′ ( ξ ) via M .

Figure 3

Fluctuation in g ( ξ ) via M .

Figure 4

Fluctuation in f ′ ( ξ ) via K p .

Figure 5

Fluctuation in f ′ ( ξ ) via Ω .

Figure 6

Fluctuation in g ( ξ ) via Ω .

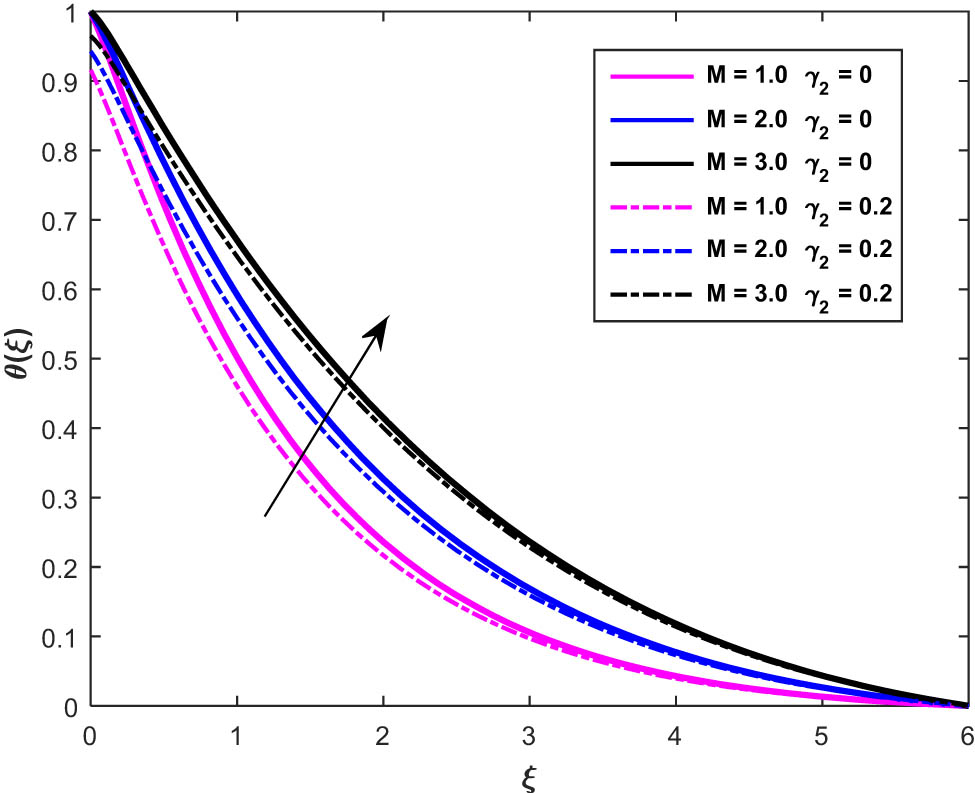

Figure 7

Fluctuation in θ ( ξ ) via M .

Figure 8

Fluctuation in θ ( ξ ) via Ec .

Figure 9

Fluctuation in θ ( ξ ) via Q t .

Figure 10

Fluctuation in θ ( ξ ) via Rd .

Figure 11

Fluctuation in θ ( ξ ) via Ω .

Table 3 illustrates the impact of ( M ) and ( K p ) on the skin friction coefficient under slip ( γ 1 = 0.2 ) and no-slip ( γ 1 = 0 ) conditions. Analysis of Table 3 reveals that for the no-slip condition ( γ 1 = 0 ) , the skin friction coefficient increases with escalation in M and K p . Similarly, for the slip condition ( γ 1 = 0.2 ) , the skin friction coefficient of the hybrid nanofluid also experiences an increase with elevated values of K p and M . This indicates that higher estimates of K p and M contribute to an enhanced skin friction coefficient. In the absence of slip ( γ 1 = 0 ) , fluid flow encounters significant resistance. For escalation in velocity slip factor the flow resistance diminishes leading to a reduction in skin friction. Table 4 represents the result of the hybrid nanofluid Nusselt number under thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions, considering varying values of ( Ec ) , magnetic field, heat source and radiation factors. The findings in Table 4 demonstrate that for the thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions, Nusselt number increases with escalation in Rd . Additionally, Table 4 examines the reduction in Nusselt number for M , Ec , and Q t under thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions. Figure 1 shows the flow geometry. The effect of different physical parameters on velocities (primary f ′ ( ξ ) and secondary g ( ξ ) ) and temperature are shown in Figures 2–11. The impact of M on f ′ ( ξ ) and g ( ξ ) with γ 1 = 0 and γ 1 = 0.2 are portrayed in Figures 2 and 3. It illustrates that when M improved the curves f ′ ( ξ ) dropped. The augmentation of M amplifies the Lorentz force which performs in the opposite direction to fluid flow and induces current within the fluid layers leading to an increase in the resistive force between pure fluid and nanoparticles. This in turn causes a reduction in f ′ ( ξ ) field. It is noteworthy that the decline in f ′ ( ξ ) is more pronounced under the ( γ 1 = 0 ) condition. When ( γ 1 = 0.2 ) condition prevails the resistance to fluid flow is notably high. While direct impact is seen for heightened vales of M on g ( ξ ) . The velocity in the secondary direction g ( ξ ) escalates with M . Table 3 illustrates that raising the magnetic numbers the skin friction enhanced for the no slip ( γ 1 = 0 ) condition as compared to the slip ( γ 1 = 0.2 ) condition. The porosity parameter denoted by K p serves as a dimensionless quantity that characterizes the extent of porosity in a fluid. In Figure 4, the f ′ ( ξ ) profile is depicted for various values of the K p . This shows a reduction in f ′ ( ξ ) with the growing values in K p when γ 1 = 0 and γ 1 = 0.2 . As the permeability parameter enhances there is an associated rise in resistance to fluid motion, leading to a decrease in f ′ ( ξ ) . This phenomenon occurs because escalation in K p heightens the porous layer more for γ 1 = 0 than γ 1 = 0.2 and also reduces the width of the momentum layer at boundary. Figures 5 and 6 illustrate the impact of Ω in the presence and absence of velocity slip parameters on f ′ ( ξ ) and g ′ ( ξ ) . These figures demonstrate that an escalation in the magnitude of Ω causes retardation in f ′ ( ξ ) and g ( ξ ) . In a physical point of view when the fluid rotates centrifugal force acts outward, which opposes the inward flow creating resistance. This resistance declines f ′ ( ξ ) and g ( ξ ) . Furthermore enhanced Ω , augments the viscous effects in the boundary layer. This additional force escalates the friction on the fluid which dissipates kinetic energy and decelerates f ′ ( ξ ) and g ′ ( ξ ) . As a result, elevated Ω values introduce additional resistance to the fluid, causing the velocity components to exhibit a decreasing trend with Ω . Under thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions, Figure 7 elucidates how the hybrid nanofluid temperature θ ( ξ ) responds to the variation in M . Notably, an augmentation in fluid temperature θ ( ξ ) is observed as M fluctuates. The deceleration of fluid motion evident from the velocity profile is a consequence of the heightened M . This diminished fluid motion facilitates the exchange of kinetic energy into heat energy contributing to enrich θ ( ξ ) . Additionally, the thermal and momentum layers at the boundary become thinner with an increased M . This thinning is associated with an inverse relationship between the density of fluid and M . Consequently, elevation M leads to a reduction fluid density and growing θ ( ξ ) . Figure 8 examines the impact of the Ec on θ ( ξ ) under thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions, It is observed that an increase in Ec enhances the temperature of the hybrid nanofluid. This phenomenon can be attributed to the accelerated conversion of mechanical energy into thermal energy, facilitated by the higher Ec , resulting in an overall rise in fluid temperature θ ( ξ ) . Physically, Ec has a relationship between the flow of kinetic energy and heat enthalpy variation. With an increase in Ec , kinetic energy of hybrid nanofluid amplified. Moreover, temperature is commonly defined as the kinetic energy; therefore, the higher values of Ec amplified the θ ( ξ ) of hybrid nanofluid. From the figure, it is also clear that for no slip condition, the temperature is escalated more than slip effect. The reason is that when the thermal slip is present then less heat is transferred from the surface to the liquid. Figure 9 examines the impact of varying values of Q t on θ ( ξ ) under thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) conditions. This figure illustrates that as Q t upsurges, the temperature profile θ ( ξ ) for the slip conditions ( γ 2 = 0.2 ) experiences more amplification than the no-slip condition ( γ 2 = 0 ) . Q > 0 serve as heat generators, leading to substantial thermal energy release from the boundary layer into the flow. This process significantly enhances the energy field. For both cases, θ ( ξ ) graph grows with a higher estimation of Q t . The effect of Rd on θ ( ξ ) in the presence of thermal slip ( γ 2 = 0.2 ) and no-slip ( γ 2 = 0 ) scenario is illustrated in Figure 10. Figure 10 shows that as Rd gets larger, then θ ( ξ ) profile gets decline. Figure 11 illustrates the impact of Ω on θ ( ξ ) . An elevation in Ω corresponds to an increase in θ ( ξ ) . This implies that higher values of Ω lead to a thicker thermal boundary layer. The stretching surface responds to the augmented Ω by rotating at a faster pace, resulting in heightened centrifugal forces acting on the hybrid nanofluid. This increase in centrifugal forces plays a role in converting kinetic energy into thermal energy, consequently raising the temperature. The heating observed may be attributed to the influence of centrifugal force.

7 Conclusion

This article aims to explore the three-dimensional MHD hybrid nanofluid flow across an enlarging porous surface. The investigation incorporates the influences of thermal radiation magnetic field, heat generation viscous dissipation, and joule heating. The chosen scenario involves a hybrid nanofluid flow within a rotating frame accounting for both velocity and thermal slip conditions. The model developed for this study encompasses momentum and energy equations. The key findings of the present study are as follows:

• The skin friction coefficient of the hybrid nanofluid is enhanced with a higher number of magnetic and porosity parameters under slip and no-slip conditions.

• The rotation parameter contributes to elevated surface friction resulting in a decrease in both primary and secondary velocities while amplifying the temperature profile.

• Augmentation of the Eckert number, heat generation parameter, and rotation parameters enhance the temperature profile under both slip and no-slip conditions.

• Under both slip and no-slip conditions, an elevation in the magnetic field parameter is associated with a decrease in primary velocity while simultaneously improving the secondary velocity.

• The primary velocity shows a decreasing trend with the escalating porosity parameter in the presence of slip and no-slip effects.

• The Nusselt number is amplified with radiation parameter while the opposite effect is observed for magnetic and Eckert number and heat source parameter for both thermal slip and no-slip conditions.
