Ultrasonic resonance evaluation method for deep interfacial debonding defects of multilayer adhesive bonded materials

1 Introduction

Multilayer adhesive bonded structure (MABS) has many advantages, such as high specific strength, fatigue resistance, corrosion resistance, and good heat insulation, and is widely used in aerospace and nuclear power fields. For example, solid rocket motor is usually a multilayer structure, in order to make sure the combustion of propellant develops in booked way and prevent the rocket motor from being damaged by the high-temperature nozzle jet, the propellant inside the shell is usually covered by one or more layers of coating (generally consist of insulation layer and liner). The adhesive bonding quality of MABS is affected by humidity, temperature, curing time, and other factors in the manufacturing process, as well as vibration, alternating temperature, and alternating load during storage [1,2]. These inevitable factors can easily lead to porosity, cracks, poor adhesion (“kissing” bonds), and even delamination damage on the bonding surface of multilayer adhesively bonded components [3,4]. Therefore, non-destructive testing of MABS has become a necessary process to ensure manufacturing quality [5,6].

Over the years, ultrasonic non-destructive evaluation for the bonded structures has attracted widespread attention from researchers. Time domain ultrasonics, lamb-wave, ultrasonic impedance and spectroscopy, sonic vibration, and also constant-frequency ultrasonic phase method are applicable for the nondestructive detection of voids, delamination, porosity, cracks, or poor adhesion [7,8,9]. Ultrasonic pulsed echo technology is used to detect debonding defects (DBs) in aluminum-carbon fiber reinforced plastic bonded structures [10]. This inspection method is effective for bonded structures with only two layers, but in the case of inspecting parts from the metal side, the inspection of defect will be more complicated if the defect location in the adhesive is deeper. Jinhao made three kinds of bonded states of ultra-thin metal-silica gel bonding structure, the well-bonded, weakly bonded and debonding composite parts, and established the law between the bonding state with the binding coefficient based on the high-frequency ultrasonic resonance method, and found that the bonding coefficient decreases with the weakening of the bonding strength [11]. Xingguo derives the expressions of the transmission coefficient and the reflection coefficient from longitudinal wave and shear wave in the layered medium by the spring model and the boundary conditions at two interfaces based on the transfer matrix method. The oblique incidence transmission ultrasonic detection method was used to carry out confirmatory experiment, and the numerical solution results were basically consistent with the experiment, which provides a theoretical basis for the ultrasonic detection of the interface quality of composite bonded structures [5]. Sahoo evaluates the adhesive bonded interfaces of GFRP-nitrile-based rubber bonded structure by low frequency single sided portable nuclear magnetic resonance (NMR) technique and compares it with X-ray radiography and ultrasonic (acousto-ultrasonic) methods. NMR can effectively identify the DBs and also enable quantitative measurement of airgap thickness [12]. Elena developed a novel signal post-processing algorithm for reconstruction of the joint area to inspect defect in hybrid metal to composite joints where the metal part has pin arrays [13].

However, for MABS, the large reflectivity and attenuation of ultrasonic energy [14,15] and the presence of aliasing echo waves [16] make the detection of deep interfacial DBs in MABS more difficult. Spytek et al. presented a framework for the evaluation of DBs in adhesively bonded multilayer plates through local wavenumber estimation. And the effectiveness of the method was verified by experiments on a three-layer sample made of different thicknesses of aluminum (bonded by an epoxy adhesive) [4]. Guo proposed a defect identification method based on wavelet packet transform (WPT) and machine learning, which first uses WPT to extract the corresponding energy characteristic signals of different interface DBs, and then uses the obtained energy characteristics as the input vector of the machine learning algorithm (K-nearest neighbor, random forest, and support vector machine) for classification and identification. The accuracy of DBs classification is as high as 95.33% [17]. Loukkal conducted a numerical study on the influence of the properties of different interface layers on guided ultrasonic waves, and deeply analyzed the impact of the adhesive interface layer nature on the reflection coefficient magnitude and the variation law of guided wave dispersion curves, so as to characterize the interface quality in multilayer structures [18]. In order to reduce the impact of high attenuation and aliasing of ultrasonic waves on non-destructive testing of multilayer structures, Baiqiang established a high-power ultrasonic pulse echo detection system, and used the wavelet transform method to extract the characteristic parameters that can represent the sizes and positions of the defect [19].

This study comprehensively analyzes the ultrasonic resonance evaluation method for deep interfacial DBs in MABS based on the ultrasonic resonance theory and the aliasing effect of ultrasonic waves in MABS. The remainder of this study is organized as follows. Section 2 introduces the theoretical basis of ultrasonic resonance evaluation method. Section 3 is a numerical analysis of acoustic properties of MABS. Experimental studies on ultrasonic resonance evaluation of multilayer material structure are presented in Section 4. A Summary is provided in Section 5.

2 Theoretical basis of ultrasonic resonance evaluation method

During ultrasonic wave propagation, reflection and transmission occur at the interface between the two materials, accompanied by changes in signal amplitude and phase. When the thicknesses of the mediums on both sides of the interface are much greater than the wavelengths in them, the reflectivity and transmittance are determined by the acoustic impedances of the mediums. In the bonding structure, if there is an adhesive layer between the two media, when the thickness of the adhesive layer is much smaller than the ultrasonic wavelength inside it, the influence of the adhesive layer on the ultrasonic propagation law can be ideally ignored [20]. Therefore, this study will ignore the influence of the adhesive layer and analyze the ultrasonic propagation law in the three-layer medium. As shown in Figure 1, assume that the ultrasonic sound pressure P i incident into the medium I is 1 and the main frequency is f . The reflected sound wave P R is formed by the superposition of P 1 , P 2 , P 3 until P m

Figure 1

Schematic diagram of ultrasonic propagation in layered model.

where r and t represent the reflectance coefficient and the transmission coefficient, respectively. The corner numbers indicate the direction of ultrasound propagation in the two media. r 12 = − r 21 , t 12 = 1 − r 12 , t 21 = 1 + r 12 . m is the number of times the wave is reflected at the interface II. α is the attenuation coefficient of medium II. d is the thickness of medium II. k 2 z is the wave number in the z direction in medium II, and exp ⁡ ( 2 i k 2 z d ) represents the change in phase of the wave after a round trip in medium II.

The reflection coefficient of the sound pressure of medium 2 can be expressed as

The amplitude and phase of the reflection coefficient of the sound pressure can be expressed as

As can be seen from the above equation, when f = n c 2 / 4 d ( n = 1,2,3 … ) , the amplitude of the reflected sound pressure will appear at extreme value (maximum or minimum) and the phase spectrum will appear at zero point. This phenomenon is called resonance, and f and n are the resonant frequency and the order of the resonant frequency, respectively. At this frequency, if interface II has a DB, the amplitude of the reflected wave will increase rapidly under resonance effect.

3 Numerical analysis of acoustic properties of MABS

In Section 2, the ultrasonic propagation model in MABSs was briefly analyzed, but there are many factors affecting the ultrasonic propagation law in MABSs, and it is very difficult to establish an accurate ultrasonic propagation mathematical model. This section reveals the main propagation laws of ultrasonic waves in an ideal model of MABS by the finite element method.

Three finite element models of multilayer bonded structures were established according to the actual situation using COMSOL multiphysics software. All the models consist of three different layers of materials, the first of which is high-strength steel with thickness of 1.5 mm or 2.0 mm (ST: thickness of the steel layer); the second layer is ethylene propylene diene monomer (EPDM) with thickness of 1.5 or 2.0 mm (ET: thickness of the EPDM layer); the third layer is a rubber-like composite material with a thickness of 25 mm (RT: thickness of the rubber-like composite material layer). Considering the symmetry of the model, the three-dimensional problem is simplified to a two-dimensional problem to reduce the amount of computation. The geometry of the multilayer adhesive bonded material and the boundary condition settings are shown in Figure 2. And a 4 mm bulge on the model is used to simulate the ultrasonic wedge of the actual inspection. For different scenarios in the frequency domain and time domain, frequency domain sampling point (FSP) and time domain sampling point (TSP) are set in different areas of the model. Frequency domain analysis is mainly to obtain the frequency response of the second layer, so the FSP is set in the second layer of the structure. The time domain analysis is mainly to obtain the change process of the ultrasonic signal during the whole detection process, so the TSP is set in the wedge region of the structure model.

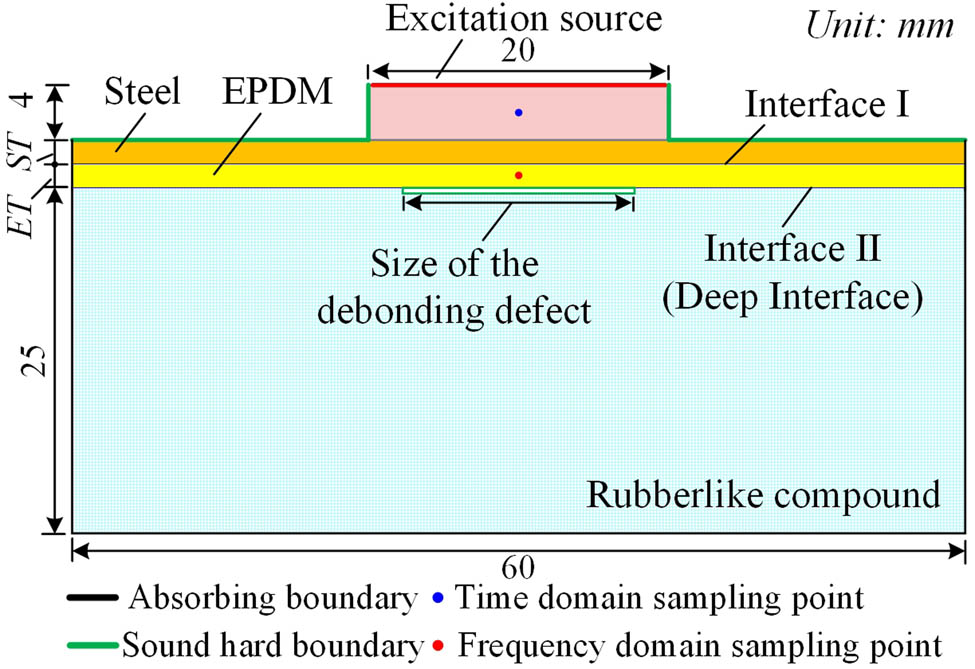

Figure 2

The geometry of the MABS.

3.1 Analysis of frequency domain characteristics

Frequency domain analysis is mainly to obtain modal parameters of a structure, such as vibration frequencies, mode shapes, and damping. Vibration frequencies and mode shapes are the intrinsic properties of a structure, depending on stiffness and mass of the structure and their distributions. DBs changes the original stiffness and mass state of a structure and hence resulting in differences in vibration frequencies and mode shapes between defect-free structure and structures that contain defects or have been damaged [7]. Therefore, three sizes finite element models were established using the Solid Mechanics Module in COMSOL, in which the STs and ETs are 1.5 and 1.5 mm, 1.5 and 2.0 mm, and 2.0 and 2.0 mm, respectively, for frequency domain analysis. And each model includes two cases of debonding defect (DB) and perfect bond (PB).

Given the fact that the frequency of ultrasonic resonance evaluation in actual engineering is usually lower than 1 MHz, the frequency range of the solution is set to 0.01–1 MHz during the finite element simulation, and the step size is set to 0.01 MHz. The maximum grid size is set to 0.3 mm. The frequency response curves at the FSPs for DB and PB cases of the three size models were extracted, as shown in Figure 3. For readability, the amplitudes of these curves are normalized.

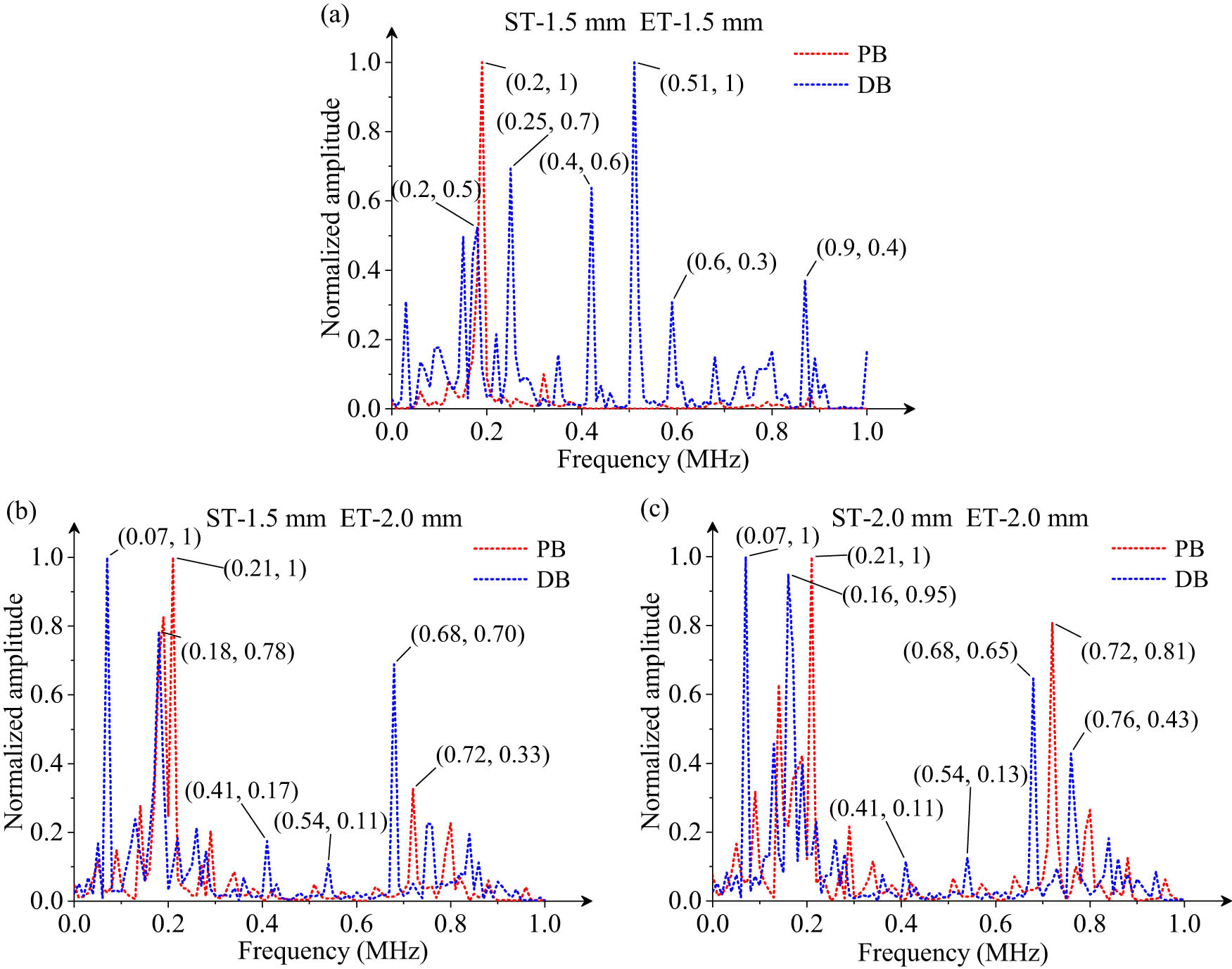

Figure 3

Frequency response curves of MABS models. (a) ST-1.5 mm, ET-1.5 mm, (b) ST-1.5 mm, ET-2.0 mm, and (c) ST-2.0 mm, ET-2.0 mm.

As can be seen from Figure 3(a), for a sample with ST and ET of 1.5 and 1.5 mm, respectively, the frequency response at the sampling point is mainly around 200 kHz when PB. However, when there is a defect in the interface II of the model, the frequency response changes significantly, and the response curve appears multiple peaks at frequencies 200, 250, 400, 510 kHz, etc. The maximum peak occurs at 510 kHz, that is, 510 kHz is the optimal frequency for detecting defects in the II-interface for a workpiece with this size. Generally, ultrasonic transducer/probe has a certain bandwidth, so ultrasonic probe with a frequency of 500 kHz is recommended for engineering inspection of MABS of this size. Similarly, for the sample of ST and ET of 1.5 and 2.0 mm, respectively, Figure 3(b), the maximum amplitude is at 70 kHz. And for the sample of ST and ET of 2.0 and 2.0 mm, respectively, Figure 3(c), the maximum amplitude is also at 70 kHz. In addition, both the frequency response curves of the latter two sizes of DB models have sub-peaks around 180 kHz and considering the detection accuracy and the bandwidth of the commercial probe, it is recommended to use a 250 kHz probe for the inspection experiments.

3.2 Analysis of time domain characteristics

For the analysis of time domain characterization, a multi-physics model with ST and ET of 1.5 and 1.5 mm was established using the “Pressure Acoustics, Transient” interface in COMSOL. The boundary conditions for this model are shown in Figure 2. The ultrasonic excitation signal is a single-frequency sinusoidal signal (500 kHz, 5 cycles) modulated by the Hanning window, as shown in Figure 4(a). Because this signal can effectively suppress the frequency dispersion phenomenon of ultrasonic wave, eliminate high-frequency interference and energy spectrum leakage problems, and the modulation signal has a large bandwidth and high longitudinal resolution compared to the sine wave signal, a better excitation signal is ensured. By solving the transient solution of the established finite element model, the progressive propagation process of ultrasonic waves in the model can be observed. The internal sound pressure distribution of the model at 18 μs is shown in Figure 4(b). The reflected and diffracted waves of the defect are clearly depicted in the image.

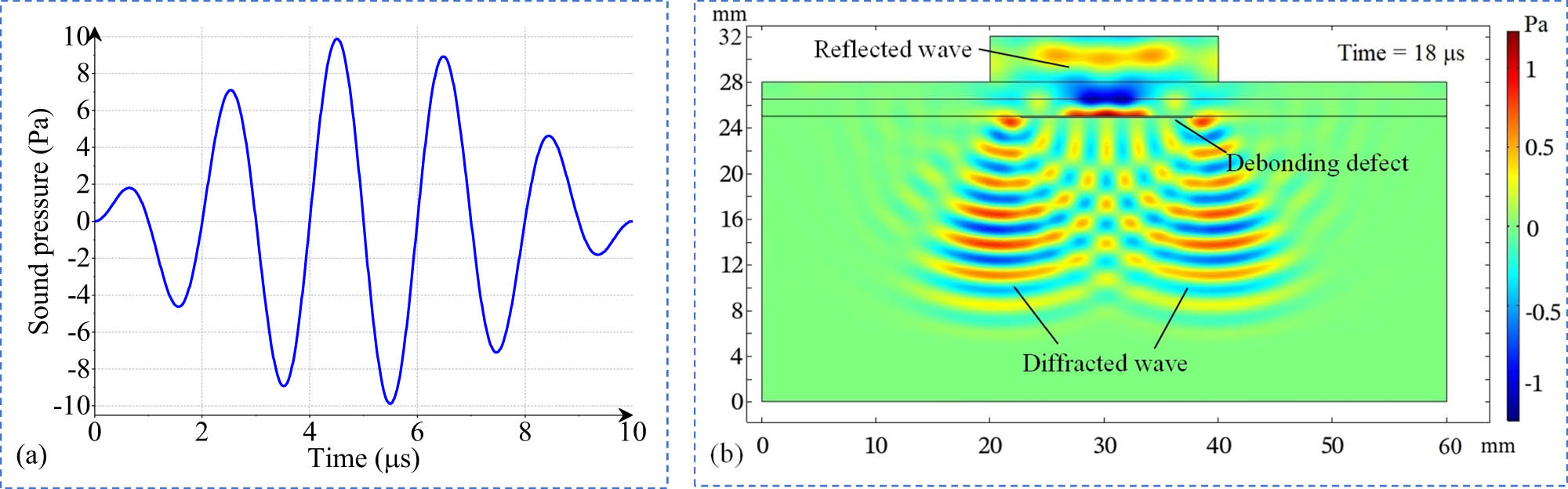

Figure 4

Excitation signal (a) and sound pressure distribution inside the MABS model (b).

For a more detailed time domain signal, time domain responses at TSP with defect sizes of 15, 10 mm, and defect-free are extracted, as shown in Figure 5. On the time axis, ultrasonic waves within about 12 μs are the initial arrival waves (excitation waves). For this simulation model, ultrasonic waves after 12 μs is the region of interest. The upper envelope curves of the three ultrasonic waves and the local enlarged view clearly show that the signal is attenuated to an indistinguishable level in a short time when there is no defect, and that the amplitude of the ultrasonic signal in the period of interest becomes larger and the oscillation time becomes longer due to resonance and reflection when the model contains a DB.

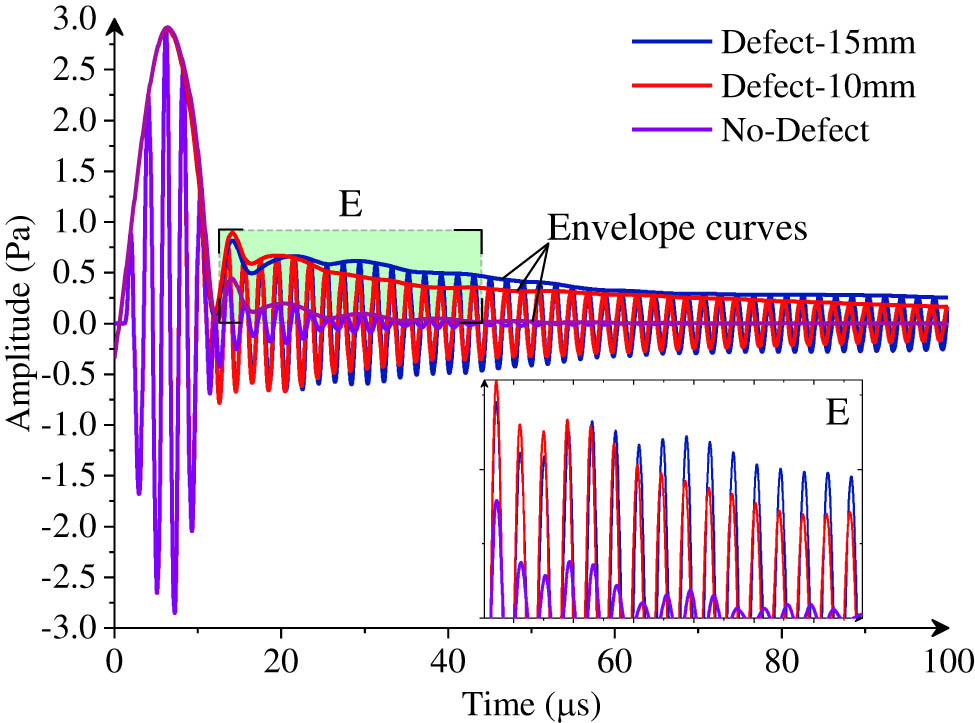

Figure 5

Ultrasound signals in time domain under different defect sizes.

4 Experimental studies on ultrasonic resonance evaluation of MABS

4.1 Production of artificial defect samples and the ultrasonic instrument

The materials and parameters of the artificial defect samples are consistent with the actual products. All the three artificial defect samples are made by bonding three layers of materials, the materials are steel, EPDM, and one type of rubber-like composite material. The STs and ETs of these samples are 1.5 and 1.5 mm (Sample A), 1.5 and 2.0 mm (Sample B), 2.0 and 2.0 mm (Sample C), respectively. The RTs of all the samples are 3 mm. The production of the first size artificial defect sample and the ultrasonic instrument is shown in Figure 6. As shown in Figure 6(a), there are two interfaces between the three layers of this structure. The interface between the first layer of material and the second layer of material is called interface I. The interface between the second layer of material and the third layer of material is called interface II. Interface II and the interfaces below it can generally be called the deep interfaces. Three artificial defects (L = 10 mm, L = 15 mm, L = 20 mm in size) are placed between the second and third layers, as shown in Figure 6(a)–(c). Artificial defects are three-layer printer papers bonded by packaging tape. Figure 6(d) is the portable ultrasonic instrument used for these evaluation experiments. The remaining two sizes of artificial defect samples are made using the same process.

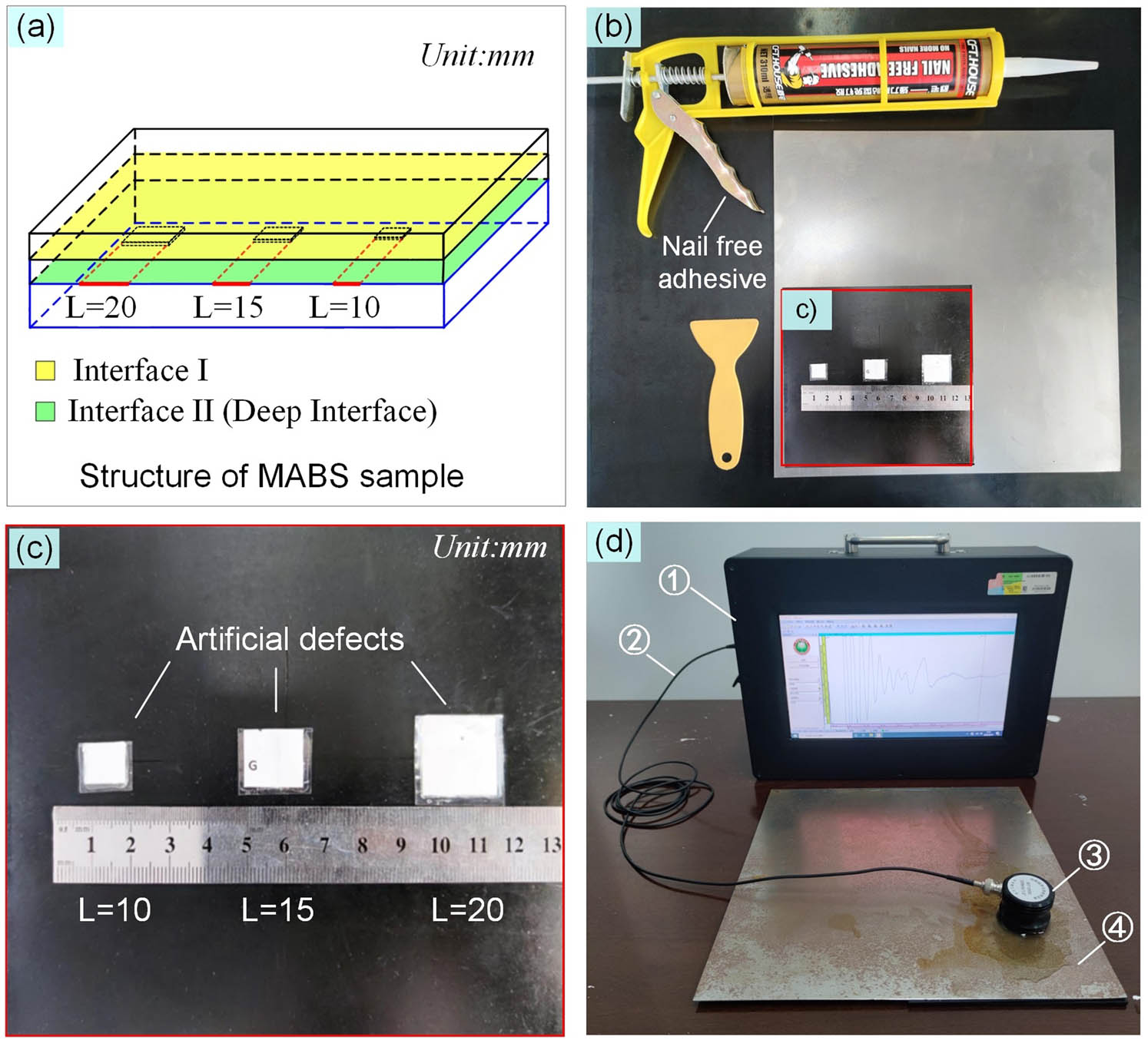

Figure 6

Production of artificial defect sample and the ultrasonic instrument. (a) The structure of artificial defect sample, (b) The manufacturing process of artificial defect sample, (c) The sizes of the artificial defects, and (d) Configuration of the test experiment, ① Portable ultrasonic testing instrument, ② coaxial cable, ③ ultrasonic transducer (ultrasonic probe), and ④ artificial defect sample.

4.2 Validation experiments and analysis of A-scan signals

In this section, verification experiments for deep interfacial debonding defects based on ultrasonic resonance effect are carried out first. In these experiments, Sample A was first subjected to ultrasonic nondestructive testing. Section 3.1 shows that the optimal inspection frequency for sample A is 500 kHz and an amplitude value of 0.7 is also present at 250 kHz, so, two ultrasonic transducers of 500 and 250 kHz are used for these experiments. Ultrasonic signals in three conditions and two excitation voltages are acquired by the instrument. The three conditions are: the transducer is located in the area of PB, half of the transducer is in the area of PB and half is in the area of DB (transition area of DB, TDB), and the transducer is completely above the DB. When using the 500 kHz ultrasonic transducer, the excitation voltages are set to 150 and 250 V, respectively. When using the 250 kHz ultrasonic transducer, as the frequency reduction reduces the attenuation coefficient of the ultrasonic wave, the excitation voltage is set to 75 and 100 V, respectively. A-scan signals of Sample A under these different conditions are shown in Figure 7.

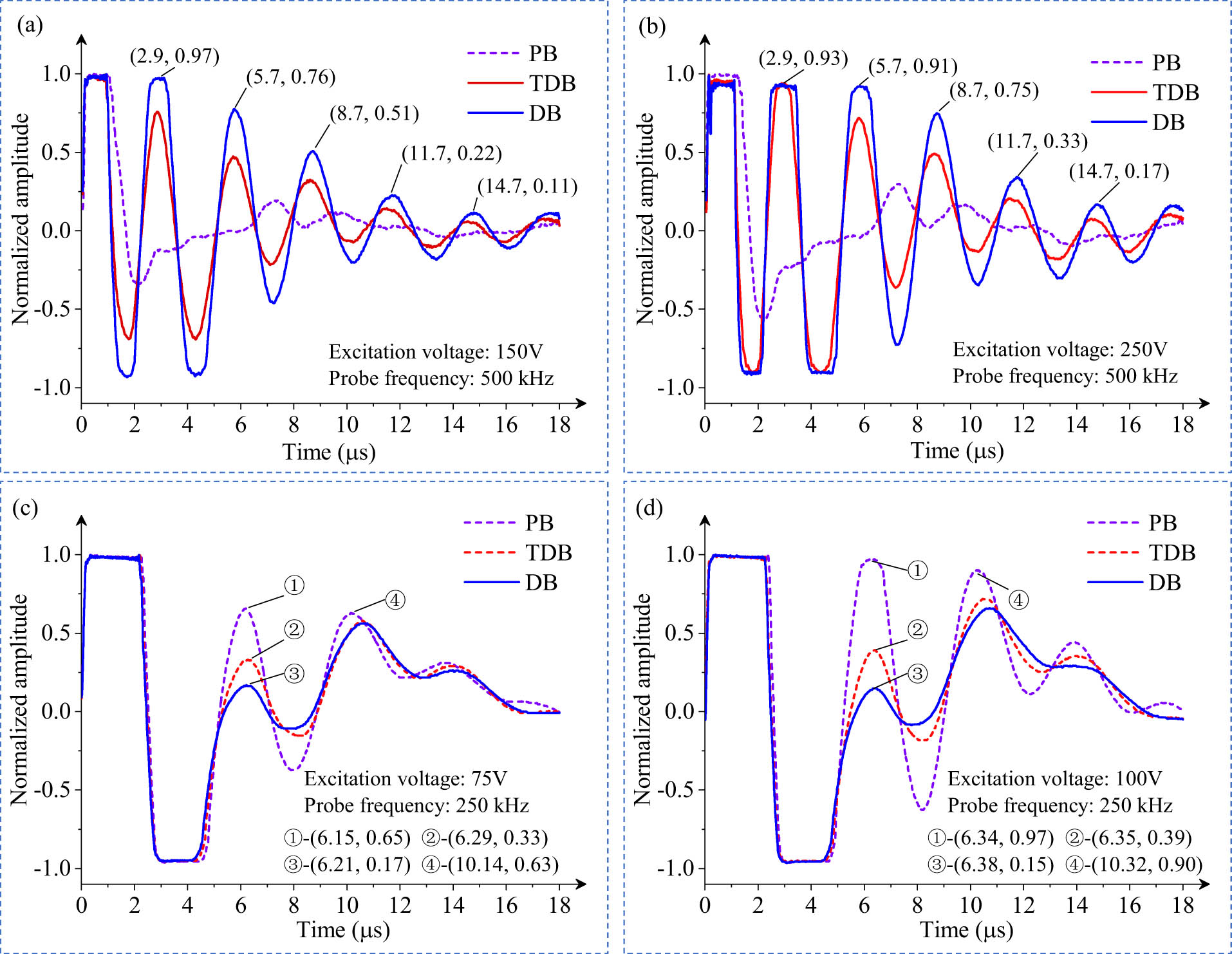

Figure 7

Scan signals for sample A under different conditions. PB – perfect bond, TDB – transition area of DB, DB – debonding defect. (a) Excitation voltage 150 V, frequency 500 kHz, (b) Excitation voltage 250 V, frequency 500 kHz, (c) Excitation voltage 75 V, frequency 250 kHz, and (d) Excitation voltage 100 V, frequency 250 kHz.

As can be seen from Figure 7(a) and (b), both sets of curves have the same trend. There is no resonance effect in the PB area, and the A-scan signal has almost no complete vibration cycle. There is a visible resonance effect in both the TDB and DB regions, the A-scan signals have a significant vibration for more than five cycles. And the closer the transducer is to the defect center or the greater the excitation voltage, the greater the resonance amplitude. Specifically, the amplitude of the fourth cycle of the A-scan signal at an excitation voltage of 250 V and the amplitude of the third cycle at an excitation voltage of 150 V are basically equal. That is to say, as the excitation voltage increases, the amplitude of the A-scan signal becomes larger and the vibration time is longer. This feature is very helpful for engineers to determine whether there is a deep interfacial debonding defect. However, when we focus on Figure 7(c) and (d), a completely opposite phenomenon emerges. There is a visible resonance effect in the PB region, and the closer the transducer is to the defect center or the lower the excitation voltage, the lower the resonance amplitude. This is because as the frequency decreases, the ultrasonic wavelength becomes longer, and these waves penetrate directly through the material of the second layer to the backwall of the third layer (thickness 3 mm), causing a resonance effect throughout sample A. This novel phenomenon provides a new perspective for the inspection of ultra-thin MABS parts.

Experiments on the universality of the method were then carried out. Samples B and C were used to perform the experiments. As can be seen from Section 3.1, the recommended detection frequency for samples B and C is 250 kHz. As can be seen in Figure 3(b) and (c), there are two small peaks at 410 and 540 kHz, so the 500 kHz ultrasonic probe was used to perform the corresponding comparison experiments. In these experiments, A-scan signals at different excitation voltages at probe frequencies of 500 and 250 kHz were acquired for the PB and DB regions, respectively. The configurations of the inspection experiments and the A-scan signals under different conditions are shown in Figure 8.

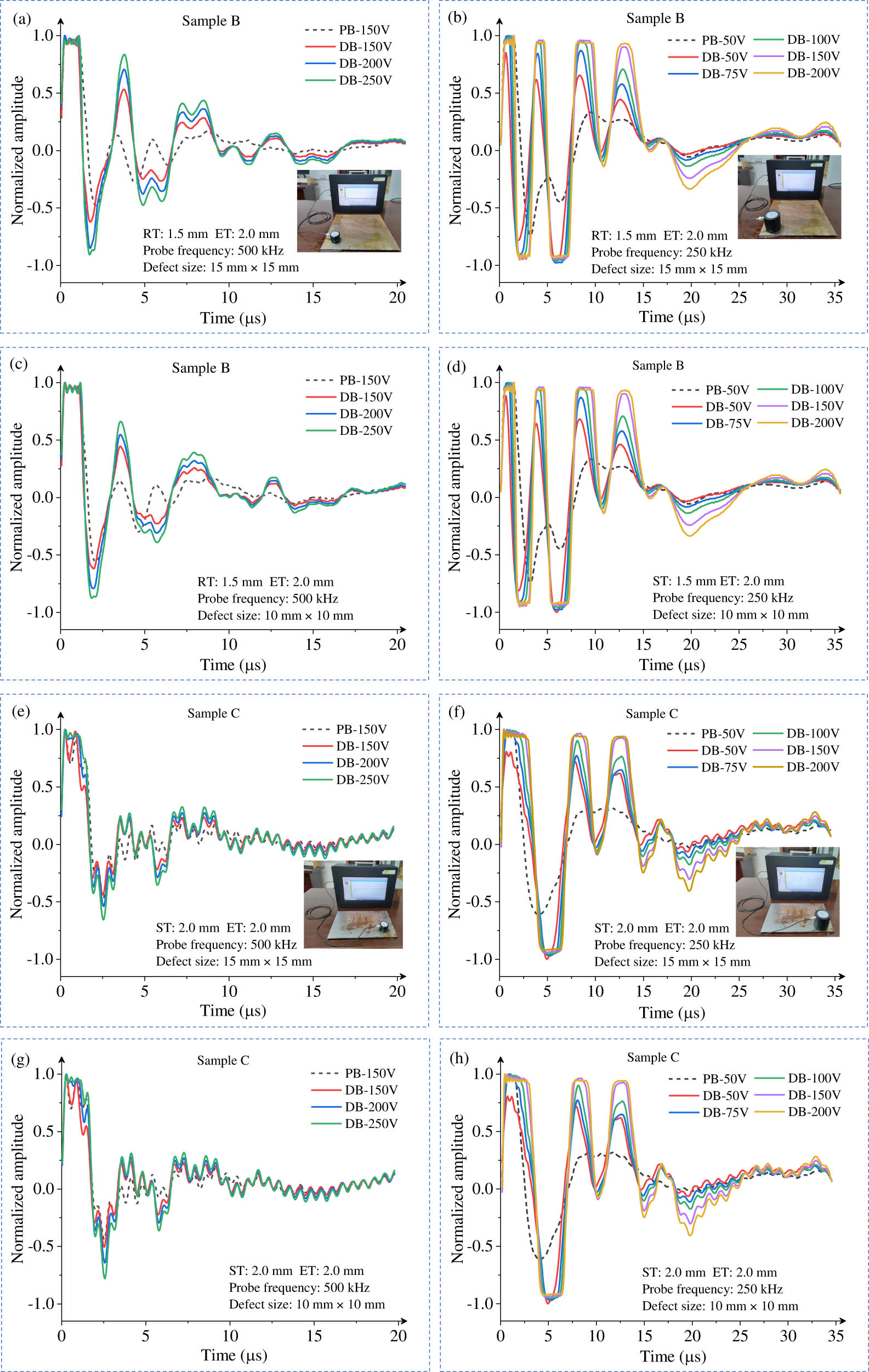

Figure 8

Verification experiments of universality of the method and A-scan signals under different conditions. (a) Sample B: Frequency-500 kHz, Defect size-15 mm × 15 mm, (b) Sample B: Frequency-250 kHz, Defect size-15 mm × 15 mm, (c) Sample B: Frequency-500 kHz, Defect size-10 mm × 10 mm, (d) Sample B: Frequency-250 kHz, Defect size-10 mm × 10 mm, (e) Sample C: Frequency-500 kHz, Defect size-15 mm × 15 mm, (f) Sample C: Frequency-250 kHz, Defect size-15 mm × 15 mm, (g) Sample C: Frequency-500 kHz, Defect size-10 mm × 10 mm, and (h) Sample C: Frequency-250 kHz, Defect size-10 mm × 10 mm.

As can be seen from Figure 8, the trends of the A-scan signals are the same for different excitation voltages in each graph. As the excitation voltage increases, the resonance effect gradually increases (the amplitude of the wave increases). The simulation results of Section 3.1 show that 500 kHz is not in the optimal inspection frequency range compared to 250 kHz for Samples B and C. Several sets of experimental results reinforce this fact once again. For example, by comparing Figure 8(a) and (b) or (e) and (f), it is clear that the resonance effect is more pronounced when performing the inspection experiment with 250 kHz ultrasonic transducer. Comparing Figure 8(a) and (e) or (c) and (g), it can be seen that as the thickness of ST increases, its resonance effect is further suppressed. This result is consistent with the results presented in Figure 3(b) and (c). In addition, each of Figure 8 shows that the frequency of ultrasonic waves changes significantly when resonance occurs. In the configuration of Figure 8(b), the frequency of the resonant wave (compared to the wave of PB) becomes significantly higher and the wave vibration period becomes shorter. However, when the RT is 2 mm and other parameters and configurations are the same as in Figure 8(b), the frequency of the resonant wave decreases as shown in Figure 8(f). These experiments show that non-destructive testing of deep interfacial debonding defects based on resonance effects is indeed feasible. It is only necessary to select the corresponding inspection frequency according to the thickness parameters of each layer of the MABS workpiece.

4.3 Research on C-scan imaging method of ultrasonic resonant evaluation

Compared with A-scan signal, the more readable and intuitive C-scan image is more expected by engineers. Therefore, a rectangular area (12 cm × 7 cm) containing the three artificial defects in Sample A was subjected to ultrasonic C-scan inspection with sampling interval and step increment of 1 cm. A total of 84 sets of A-scan data were acquired. Taking into account the characteristics of the A-scan signal, the integrations of the signal and the signal envelope, the maximum amplitude of the FFT (Fast Fourier Transform) of the signal, and the signal energy are used to draw the C-scan images to observe the contrast ratio between the PB area and the DB area. C-scan images for the four imaging modalities are shown in Figure 9.

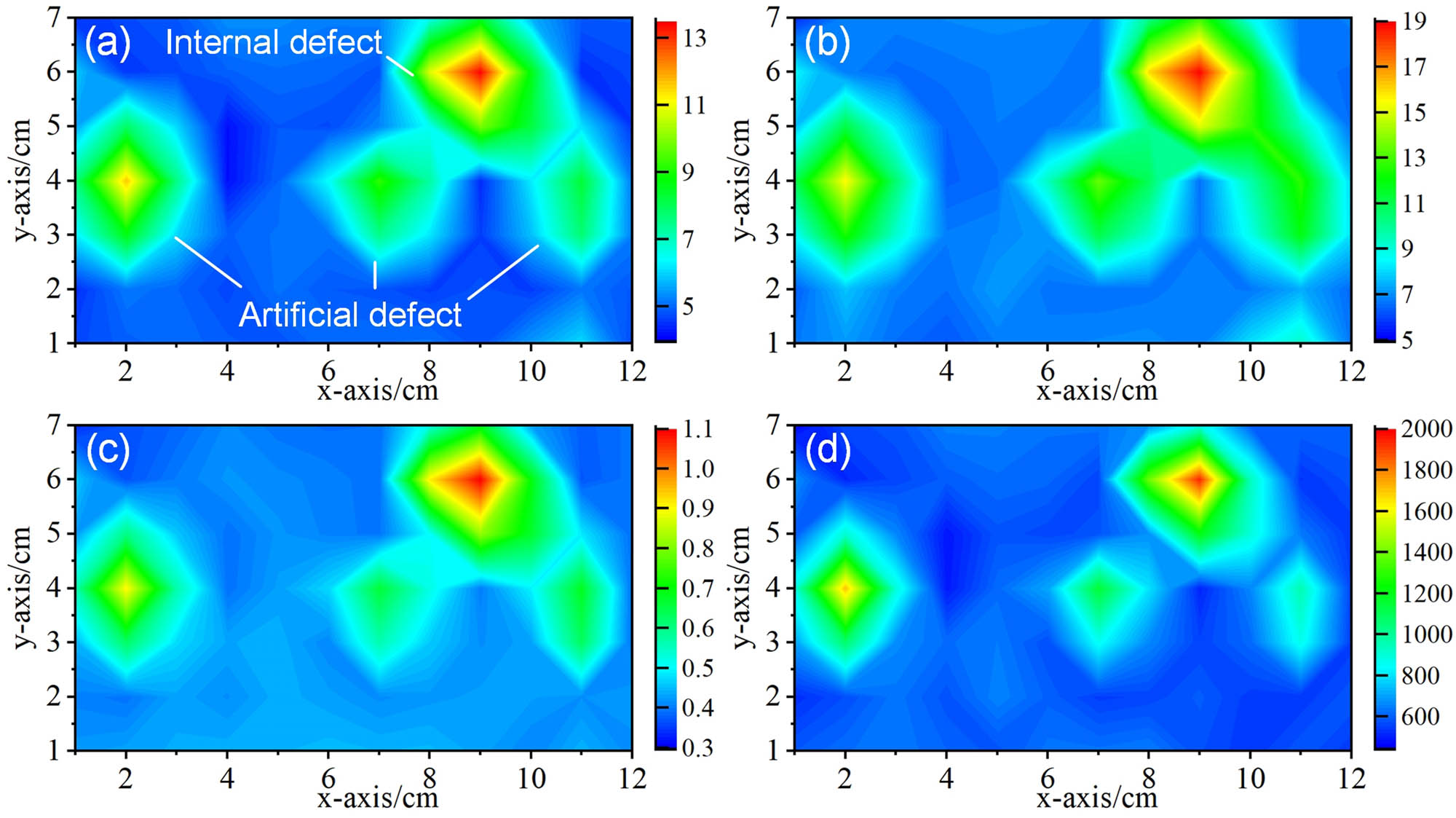

Figure 9

C-scan images for the four imaging modalities. (a) C-scan image of signal integration, (b) C-scan image of signal envelope integration, (c) C-scan image of the maximum amplitude of the FFT of the signal, and (d) C-scan image of signal energy.

As can be seen from Figure 9, in terms of the legibility of the image alone, the four images are almost identical. All the three artificial defects (20, 15, and 10 mm) can be clearly visualized by the four imaging methods, and one internal natural defect in the sample is also detected. Relatively speaking, Figure 9(d) is more legible, and the outline of each defect can be easily distinguished, while the artificial defects and internal natural defect of the other three images are conjoined. In engineering, the signal energy imaging method can be preferred when using ultrasonic resonance method to inspect the deep interfacial debonding defects of MABS. In addition, in order to present a variety of C-scan images, the four sets of data obtained by the above imaging methods are normalized, and then the four sets of normalized data are used to draw the C-scan images. Taking column data normalization as an example, the C-scan images of the four imaging methods are shown in Figure 10.

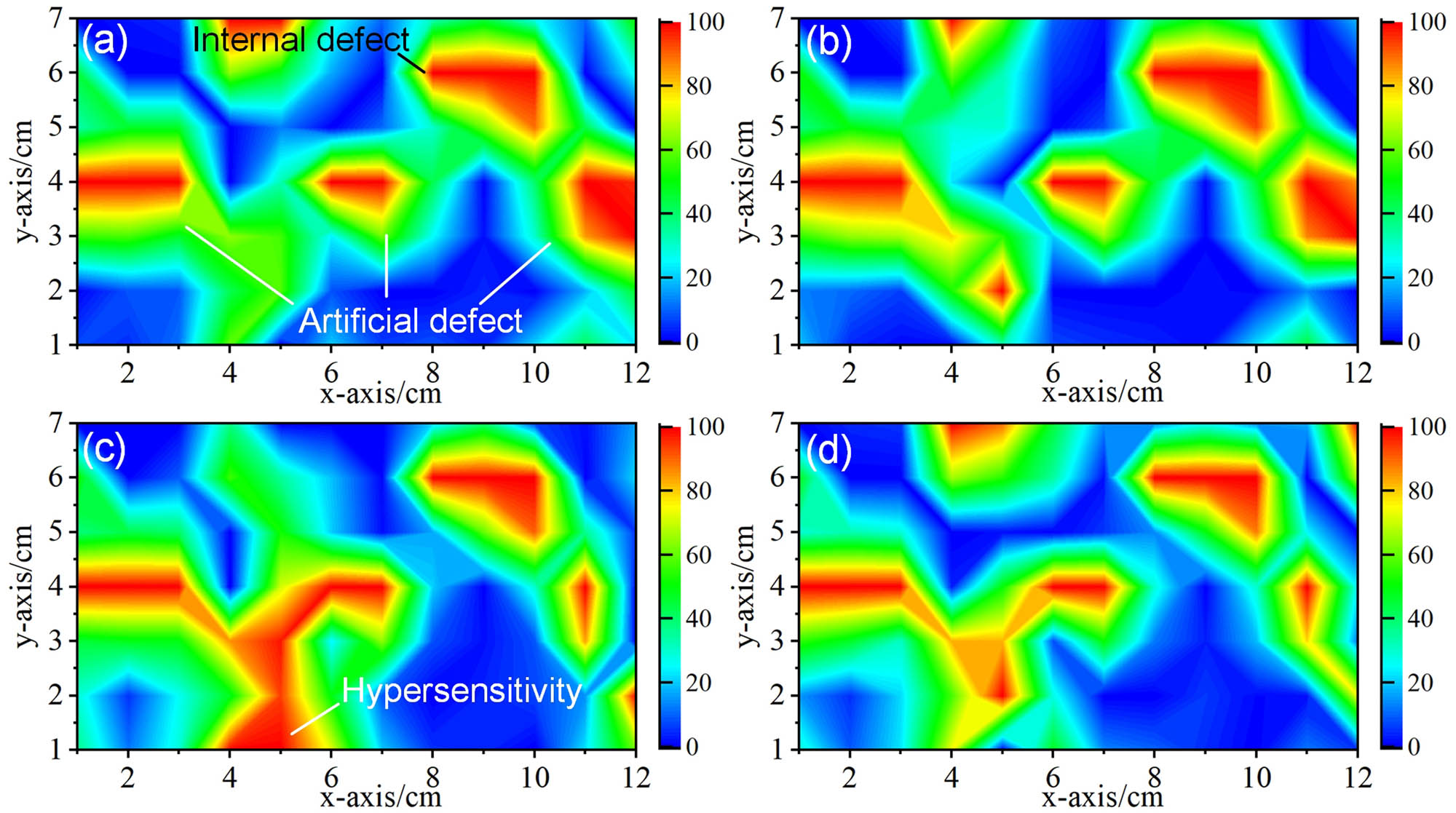

Figure 10

Normalized C-scan images for the four imaging modalities. (a) C-scan image of normalized signal integration, (b) C-scan image of normalized signal envelope integration, (c) C-scan image of the normalized maximum amplitude of the FFT of the signal, and (d) C-scan image of normalized signal energy.

The four sets of images in Figures 9 and 10 have a one-to-one correspondence. By comparing the images, it can be found that the normalized C-scan images have higher sensitivity, which not only improves the contrast ratio of the defect area, but also highlights the weak change in signal outside the defect area. However, some areas of the normalized C-scan images are overly sensitive, such as the “Hypersensitive” area in Figure 10(c). In general, the imaging quality of Figure 10(a) is slightly better. Due to the high sensitivity of normalized imaging method, the combined application of normalized imaging method and non-normalized imaging method will greatly improve the accuracy of engineers’ judgment of inspection results.

5 Conclusion

In this study, a nondestructive evaluation method for deep interfacial debonding defects of MABS is proposed based on the ultrasonic resonance theory and the aliasing effect of ultrasonic waves in MABS, which realizes the accurate non-destructive inspection of II-interfacial debonding defects of MABS. First, the relationship between the thickness of a specific layer of MABS and the frequency of ultrasonic wave when the resonance effect generated is determined based on the acoustic wave theory, which lays a theoretical foundation for the subsequent simulation and experimental research. Second, according to the actual condition, three MABS finite element models of different sizes were established by COMSOL, and these three models were used for frequency domain analysis and simulation to obtain the corresponding optimal inspection frequency. Next one of these models is used for the time domain analysis to obtain the time domain responses of the region of PB and the region with different defect sizes. Simulation and verification experiments show that the optimal inspection frequency for II-interfacial debonding defects is 500 kHz when the shell thickness is 1.5 mm and the EPDM thickness is 1.5 mm, and the optimal inspection frequency is 250 kHz when the shell thickness is 1.5 mm or 2.0 mm and the EPDM thickness is 2.0 mm. The presence of defect causes a resonance effect, and in the same inspection configuration, the larger the defect size, the more pronounced this effect is. This resonance effect is manifested in the time domain as an increase in the amplitude of the A-scan signal and an increase in the vibration time. The resonance effect also causes a pronounced change in the frequency of the received ultrasonic wave. The inspection experiments on the artificial defect samples show that it is indeed feasible to realize the non-destructive testing of the deep interface debonding defects of multilayer material bonded structural parts with different parameters based on resonance effect and the increase in the excitation voltage further highlights the ultrasonic resonance effect. The studies of C-scan imaging method of ultrasonic resonance inspection showed that all the four C-scan imaging methods – the integrations of the signal and the signal envelope curve, the maximum amplitude of the FFT of the signal, and the signal energy – can clearly show the sizes and locations of artificial defects and internal natural defect. Normalized C-scan imaging method can further highlight the weak changes in signal (defect areas). In practice, it is recommended to use both C-scan imaging and normalized C-scan imaging to improve the accuracy of the analysis of the results. Furthermore, binarization of the above C-scan images will facilitate the quantitative evaluation of C-scan results.

Finally, the acoustic response of multilayered structures is much more complex than mono-material flat plates and its natural frequencies depend on the material properties (density, elastic properties), the geometry of the specimen, the thickness of the adhesive and adherend layers, and the boundary conditions. In future work, more in-depth research can be carried out on these factors.
