Crystal structure of 3-(2-dimethylaminoethyl)-2,3-dihydro-2-thioxoquinazolin-4(1H)-one, C12H15N3OS

  • Xian-Jie Mao , Ling-Ling Yan , Hong-Xin Cai EMAIL logo und Yuan Wang
Veröffentlicht/Copyright: 9. Dezember 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 1

Abstract

C12H15N3OS, monoclinic, P21/c (no. 14), a = 7.9840(18) Å, b = 11.331(3) Å, c = 14.428(3) Å, β = 105.702(4)°, V = 1256.5(5) Å3, Z = 4, Rgt(F) = 0.0639, wRref(F2) = 0.1293, T = 296K.

CCDC no.: 1587583

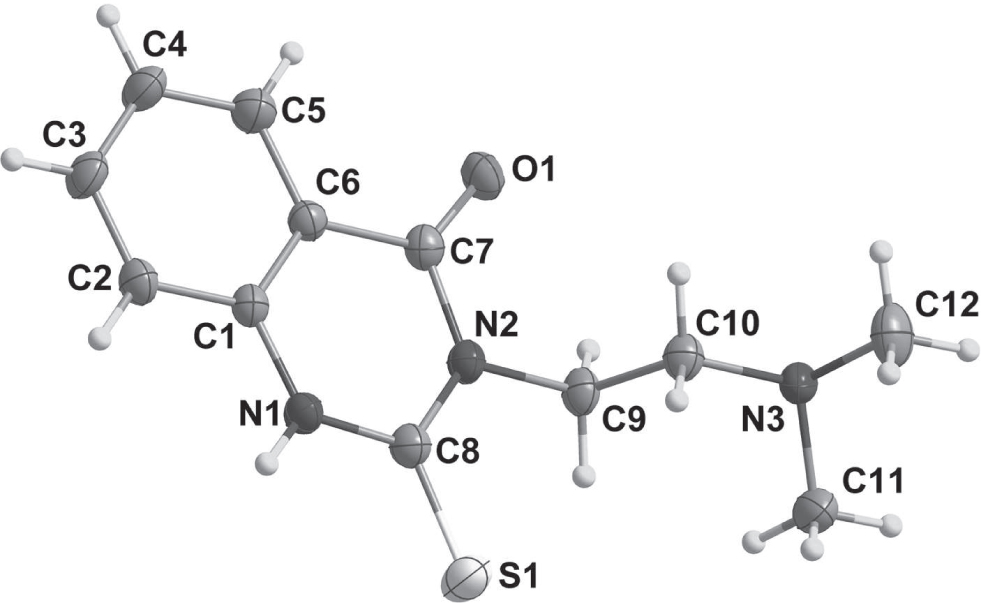

The crystal asymmetric unit of the title structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.12 × 0.10 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.25 mm−1
Diffractometer, scan mode:CCD area detector, φ and ω-scans
θmax, completeness:27.5°, >98%
N(hkl)measured, N(hkl)unique, Rint:7350, 2832, 0.069
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1311
N(param)refined:155
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.57030(15)1.11873(11)0.21409(9)0.0687(4)
O10.9680(3)0.8639(2)0.45619(17)0.0486(7)
C10.5051(4)0.8952(3)0.4105(2)0.0359(9)
C20.3622(4)0.8552(3)0.4407(3)0.0439(10)
H2A0.2507690.8823730.4106900.053*
C30.3882(5)0.7765(3)0.5141(3)0.0516(11)
H3A0.2937250.7500040.5344570.062*
C40.5545(5)0.7347(4)0.5595(3)0.0606(12)
H4A0.5702380.6808700.6098020.073*
C50.6945(5)0.7729(3)0.5301(3)0.0523(11)
H5A0.8052800.7445170.5598900.063*
C60.6703(4)0.8547(3)0.4550(2)0.0366(9)
C70.8196(5)0.8984(3)0.4233(3)0.0396(9)
C80.6117(5)1.0219(3)0.3034(3)0.0432(9)
C90.9268(4)1.0319(3)0.3199(3)0.0417(9)
H9A1.0283021.0348250.3749700.050*
H9B0.8999591.1118340.2965700.050*
C100.9672(5)0.9571(3)0.2411(3)0.0438(10)
H10A0.9897440.8766150.2638770.053*
H10B0.8664940.9562670.1854920.053*
C111.0824(5)1.1182(4)0.1667(3)0.0652(13)
H11A1.1827971.1453820.1484920.098*
H11C0.9852741.1125570.1105820.098*
H11D1.0553761.1728520.2114640.098*
C121.1605(5)0.9175(4)0.1441(3)0.0634(13)
H12C1.2591530.9456750.1245420.095*
H12D1.1872660.8420460.1747340.095*
H12A1.0625220.9098630.0885750.095*
N10.4818(4)0.9755(3)0.3365(2)0.0420(8)
H1A0.3772110.9979610.3091110.050*
N20.7782(4)0.9832(3)0.3500(2)0.0403(8)
N31.1185(4)1.0018(2)0.2121(2)0.0399(8)

Source of material

The title compound was synthesized according to the literature known method [5]. The crystal suitable for single X-ray diffraction was obtained by recrystallization from acetonitrile solution at room temperature.

Experimental details

The hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Discussion

Quinazoline derivatives have been paid much attention primarily due to their wide variety of pharmacological activities [4], [5], [6]. Our previous work report the structure of 3-methyl-2,3-dihydro-2-thioxoquinazolin-4(1H)-one [7]. As one of its structurally analogous, the structure of the title compound is presented in this paper.

In the title compound, the bond lengths are comparable with those found in our previous work [7]. In the crystal, intermolecular N—H⋯N hydrogen bonds link the molecules into one dimentional chains along a axis.

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Suche in Google Scholar

Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Kadi, A. A.: Synthesis and antimicrobial activity of some new quinazolin-4(3H)-one derivatives. J. Saudi Chem. Soc. 15 (2011) 95–100.10.1016/j.jscs.2010.06.001Suche in Google Scholar

Abdel-Megeed, M. F.; Azaam, M. M.; El-Hiti, G. A.: A simple procedure for synthesis of 3H-quinazolin- 4-one hydrazones under mild conditions. J. Saudi Chem. Soc. 18 (2014) 1022–1027.10.1016/j.jscs.2011.12.009Suche in Google Scholar

Peng, H.-D.; Yang, J.-H.; Yang, G.-C.; Chen, Z.-X.: Synthesis of 2-thioquinazolin-4-ones. J. Hebei Univ., Nat. Sci. 28 (2006) 282–284, 292.Suche in Google Scholar

Yan, L.-L.; Cai, H.-X.: Crystal structure of 3-benzyl-2,3-dihydro-2-thioxoquinazolin-4(1H)-one, Z. Kristallogr. NCS 232 (2017) 811–812.10.1515/ncrs-2017-0054Suche in Google Scholar

Received: 2017-10-13
Accepted: 2017-11-25
Published Online: 2017-12-9
Published in Print: 2018-1-26

©2018 Xian-Jie Mao et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
