A Corey lactone: crystal structure of (3aR,4R,5R,6aS)-5-benzoyloxy-4(hydroxymethyl)hexahydro-2H-cyclopenta[b]furan-2-one, C15H16O5

  • Kun-Yan Wang EMAIL logo , Pengfei Wei and Xiao-Li Yang
Published/Copyright: December 22, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C15H16O5, monoclinic, P21, a = 7.9178(8) Å, b = 10.8496(12) Å, c = 7.9804(8) Å, β = 95.491(3)° V = 682.41(12) Å3, Z = 2, Rgt(F) = 0.0646, wRref(F2) = 0.1323, T = 296(2) K.

CCDC no.: 1587529

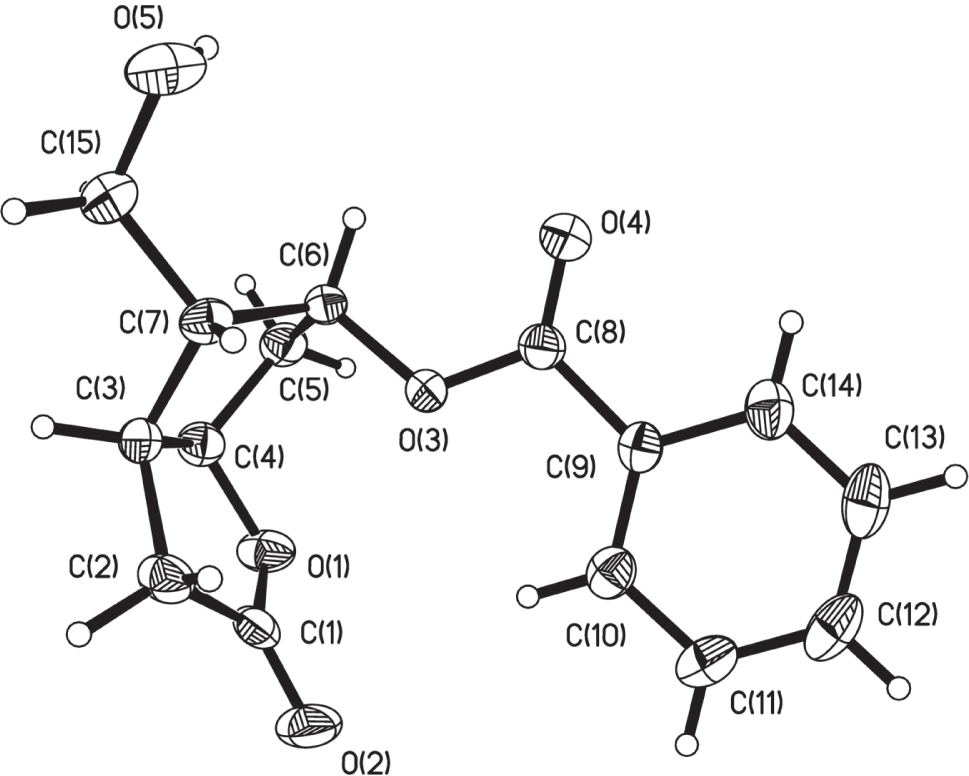

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Column, colorless
Size:0.26 × 0.15 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:PHOTON 100, ω-scans
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:10741, 2551, 0.085
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1701
N(param)refined:184
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.3985(5)0.5218(5)0.9757(5)0.0595(13)
O20.6436(5)0.6212(6)0.9878(6)0.0777(16)
O30.1954(5)0.7476(4)0.8590(5)0.0547(12)
O4−0.0046(6)0.8488(6)0.7054(7)0.095(2)
O5−0.1562(6)0.7842(5)1.2084(8)0.0715(14)
H5−0.221(8)0.746(7)1.135(8)0.086*
C10.5095(8)0.6043(7)1.0439(7)0.0514(17)
C20.4464(7)0.6652(6)1.1919(8)0.0528(17)
H2A0.45000.75411.18040.063*
H2B0.51440.64171.29450.063*
C30.2643(6)0.6209(6)1.1951(7)0.0422(14)
H30.24790.58721.30640.051*
C40.2439(7)0.5186(6)1.0629(8)0.0479(15)
H40.22910.43811.11510.057*
C50.0916(7)0.5519(6)0.9422(8)0.0506(17)
H5A−0.00920.50970.97220.061*
H5B0.11070.52990.82770.061*
C60.0728(7)0.6900(5)0.9594(7)0.0440(16)
H6−0.04330.71750.92530.053*
C70.1250(7)0.7166(5)1.1432(7)0.0407(14)
H70.17190.80001.15580.049*
C80.1402(8)0.8206(6)0.7337(7)0.0437(15)
C90.2763(8)0.8635(5)0.6314(7)0.0390(14)
C100.4409(8)0.8218(6)0.6569(7)0.0487(16)
H100.47150.76560.74250.058*
C110.5605(9)0.8635(6)0.5553(9)0.060(2)
H110.67180.83540.57290.073*
C120.5163(11)0.9458(7)0.4291(9)0.069(2)
H120.59730.97280.36030.082*
C130.3527(11)0.9885(7)0.4035(8)0.068(2)
H130.32351.04530.31830.082*
C140.2318(9)0.9479(6)0.5033(8)0.0552(18)
H140.12090.97660.48530.066*
C15−0.0224(7)0.7020(6)1.2511(8)0.0498(16)
H15A−0.06530.61831.23950.060*
H15B0.01890.71441.36820.060*

Source of material

The compound we report here, can be easily synthesized by a known patent [3]. Evaporation at room temperature yielded colourless crystals.

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The hydrogen atoms were placed in calculated positions with the help of the SHELX program (AFIX 23, 13, 43, or 137 option) [2], with Uiso(H) = k × Ueq(N,C), where k = 1.5 for CH3 H atoms and k = 1.2 for other H atoms.

Discussion

The title compound, we report here is an important derivative of corey lactone. Corey lactone is the most important raw material for the synthesis of prostaglandins [3]. Prostaglandins are found in most tissues and organs. They are produced by almost all nucleated cells. They are autocrine and paracrine lipid mediators that act upon platelets, endothelium, uterine and mast cells. They are synthesized in the cell from the essential fatty acids (EFAs).

The molecular structure of the title compound is shown in the figure. The bond lengths and angles are within normal ranges [4]. In the title compound are 3 rings, phenyl ring A (C9—C10—C11—C12—C13—C14), ring B (O1—C1—C2—C3—C4) and ring C (C3—C4—C5—C6—C7), they are not coplanar. The dihedral angles between the ring A and ring B is 85.7(2)°. The dihedral angles between the ring A and ring C is 83.1(3)°. The dihedral angles between the ring C and ring B is 70.3(2)°. In the crystal of the title compound, C—H⋯O intramolecular hydrogen bonds seem to be very weak. Meanwhile, molecules are linked via O—H⋯O intermolecular hydrogen bonds to form a chain structure.

Acknowledgements

This work is supported by Jiangsu Provincial Natural Science Foundation for Youths (Grant No. BK20170118).

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Verney, L. S. B.; Mark, R. H. A.; Peter, G. K.; Klimko, P. Z.: 11-Halo prostaglandins for the treatment of glaucoma or ocular hypertension. US 6353000 B1.Search in Google Scholar

Allen, F. H.; Kennard, O.; Watson, D. G.; Brammer, L.; Orpen, A. G.; Taylor, R.: Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 2 (1987) S1–S19.10.1039/p298700000s1Search in Google Scholar

Received: 2017-7-31
Accepted: 2017-11-24
Published Online: 2017-12-22
Published in Print: 2018-1-26

©2018 Kun-Yan Wang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
