Crystal structure of 3-(3-dimethylaminopropyl)-2,3-dihydro-2-thioxoquinazolin-4(1H)-one, C13H17N3OS

  • Peng Yang , Ling-Ling Yan EMAIL logo and Hong-Xin Cai
Published/Copyright: December 16, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C13H17N3OS, monoclinic, P21/c (no. 14), a = 9.3721(9) Å, b = 15.3783(14) Å, c = 9.1684(9) Å, β = 96.698(2)°, V = 1312.4(2) Å3, Z = 4, Rgt(F) = 0.0371, wRref(F2) = 0.0826, T = 296 K.

CCDC no.:: 1587582

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.16 × 0.15 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.24 mm−1
Diffractometer, scan mode:CCD area detector φ and ω-scans
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:7855, 2980, 0.023
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2259
N(param)refined:166
Programs:Bruker programs [1], SHELX [2, 3]

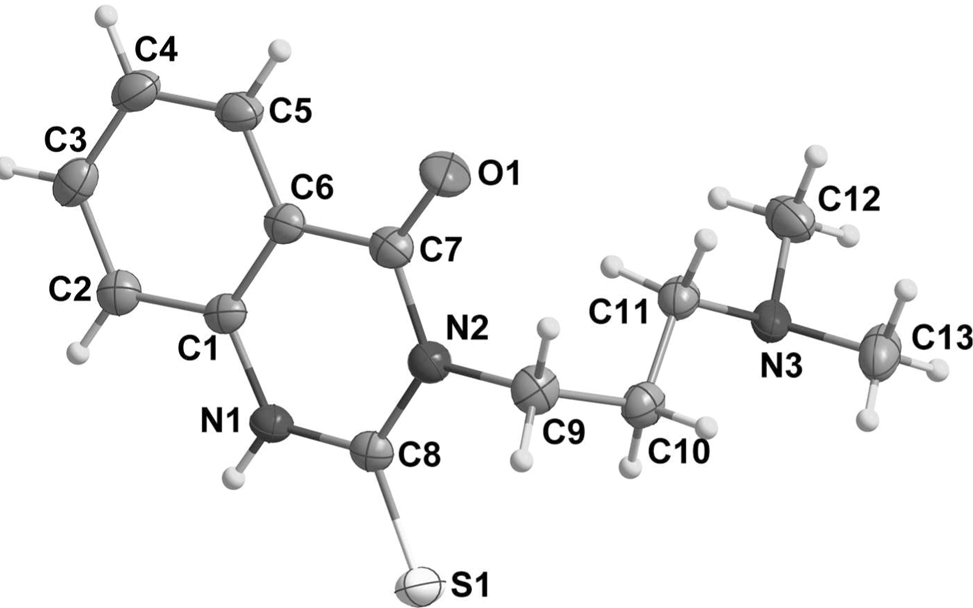

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.07009(5)0.10208(3)0.34148(5)0.05670(15)
O10.34313(13)0.09853(8)0.83937(12)0.0617(3)
N10.25681(12)−0.01528(8)0.44693(13)0.0387(3)
H1A0.239607−0.0385240.3613710.046*
N20.21947(12)0.09631(8)0.60980(13)0.0385(3)
N3−0.17075(13)0.10887(9)0.82569(14)0.0465(3)
C10.35413(14)−0.05643(9)0.54872(15)0.0365(3)
C20.42504(16)−0.13200(10)0.51235(18)0.0447(4)
H2A0.407333−0.1553750.4184310.054*
C30.52112(17)−0.17150(11)0.6164(2)0.0517(4)
H3A0.568438−0.2216980.5922270.062*
C40.54852(17)−0.13748(12)0.7572(2)0.0564(4)
H4A0.612837−0.1651510.8271150.068*
C50.48035(16)−0.06301(12)0.79260(17)0.0506(4)
H5A0.498752−0.0401010.8867980.061*
C60.38318(14)−0.02103(10)0.68818(16)0.0396(3)
C70.31673(15)0.06085(10)0.72224(16)0.0428(3)
C80.18701(15)0.05862(9)0.47217(16)0.0389(3)
C90.15533(17)0.18161(9)0.63925(18)0.0478(4)
H9A0.1590180.2186660.5541560.057*
H9B0.2132360.2087470.7214150.057*
C100.00138(17)0.17670(10)0.67355(18)0.0470(4)
H10A−0.0339380.2353370.6846890.056*
H10B−0.0568170.1503790.5907560.056*
C11−0.01826(15)0.12554(10)0.81037(17)0.0452(4)
H11A0.0317280.0704390.8075650.054*
H11B0.0247360.1574140.8956790.054*
C12−0.18215(19)0.04915(14)0.94797(19)0.0646(5)
H12A−0.137344−0.0051510.9288130.097*
H12B−0.2816130.0394140.9584740.097*
H12C−0.1349670.0739811.0368630.097*
C13−0.2473(2)0.18967(14)0.8510(2)0.0724(6)
H13A−0.2429580.2282140.7693200.109*
H13B−0.2031810.2169740.9391390.109*
H13C−0.3458250.1767030.8612900.109*

Source of material

The title compound was synthesized according to a literature known method [5]. The crystal suitable for single X-ray diffraction was obtained by recrystallization from acetonitrile solution at room temperature.

Experimental details

The hydrogen atoms were placed at calculated positions and refined as riding atoms with fixed isotropic displacement parameters.

Discussion

Quinazoline derivatives exhibit a wide variety of pharmacological activities [4], [5], [6], and they are important intermediates in the synthesis of a variety of valuable heterocyclic compounds [5]. In fact, the structure of 3-methyl-2,3-dihydro-2-thioxoquinazolin-4(1H)-one has been demonstrated in our previous work [7]. As one of its structurally analogous, the title compound is reported here.

In the title compound, the bond lengths are comparable with those found in the literature [7]. In the crystal, pairs of intermolecular N—H⋯N hydrogen bonds link two molecules into a centrosymmetric dimer.

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Kadi, A. A.: Synthesis and antimicrobial activity of some new quinazolin-4(3H)-one derivatives. J. Saudi Chem. Soc. 15 (2011) 95–100.10.1016/j.jscs.2010.06.001Search in Google Scholar

Abdel-Megeed, M. F.; Azaam, M. M.; El-Hiti, G. A.: A simple procedure for synthesis of 3H-quinazolin- 4-one hydrazones under mild conditions. J. Saudi Chem. Soc. 18 (2014) 1022–1027.10.1016/j.jscs.2011.12.009Search in Google Scholar

Peng, H.-D.; Yang, J.-H.; Yang, G.-C.; Chen, Z.-X.: Synthesis of 2-thioquinazolin-4-ones. J. Hebei Univ., Nat. Sci. 28 (2006) 282–284, 292.Search in Google Scholar

Yan, L.-L.; Cai, H.-X.: Crystal structure of 3-benzyl-2,3-dihydro-2-thioxoquinazolin-4(1H)-one, Z. Kristallogr. NCS 232 (2017) 811–812.10.1515/ncrs-2017-0054Search in Google Scholar

Received: 2017-10-14
Accepted: 2017-11-25
Published Online: 2017-12-16
Published in Print: 2018-1-26

©2018 Peng Yang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
