The crystal structure of (E)-2-((2-(o-tolylcarbamothioyl)hydrazono)methyl)benzoic acid, C16H15N3O2S

  • Tai Xi-Shi EMAIL logo , Li Peng-Fei and Liu Qing-Yun
Published/Copyright: December 14, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C16H15N3O2S, triclinic, P1̄ (no. 2), a = 7.6394(15) Å, b = 9.2445(18) Å, c = 11.428(2) Å, α = 98.75(3)°, β = 106.34(3)°, γ = 91.18(3)°, V = 763.7(3) Å3, Z = 2, Rgt(F) = 0.0548, wRref(F2) = 0.1411, T = 293(2) K.

CCDC no.:: 1587438

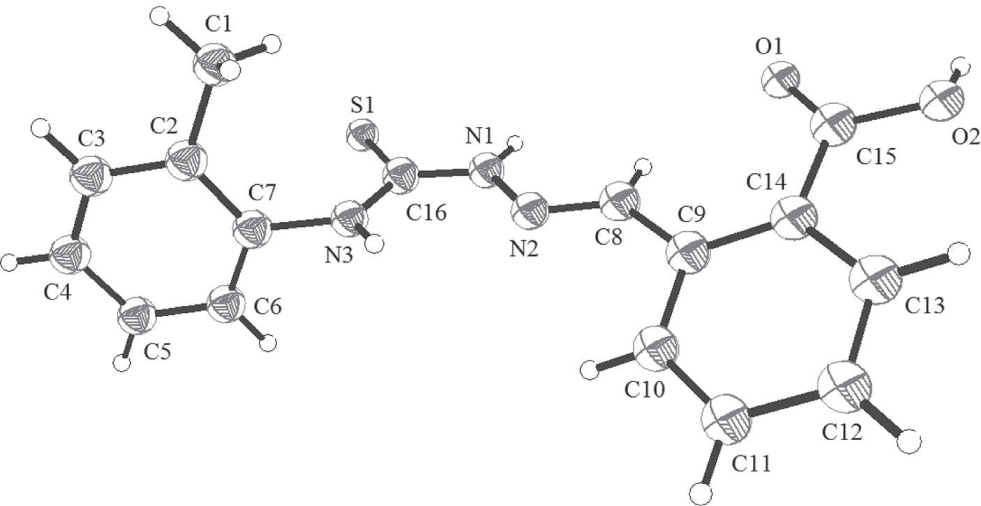

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.19 × 0.18 × 0.170 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.22 mm−1
Diffractometer, scan mode:Bruker, APEX2, ω and ϕ scans
2θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:7428, 3461, 0.029
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3139
N(param)refined:200
Programs:Bruker programs [1], SHELX [2], OLEX2 [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.48227(5)0.73308(4)0.15236(4)0.04350(16)
O11.18235(17)0.35086(12)0.03524(13)0.0519(3)
O21.37644(17)0.17585(15)0.05773(13)0.0582(4)
H21.40950.20880.00410.087*
N10.69310(17)0.51243(14)0.14418(11)0.0372(3)
H10.71430.54310.08180.045*
N20.77189(16)0.38893(13)0.18398(11)0.0340(3)
N30.55869(18)0.53450(14)0.30140(11)0.0384(3)
H30.61320.45810.32290.046*
C10.7095(3)0.7827(3)0.4965(2)0.0654(5)
H1A0.79200.71590.53580.098*
H1B0.72480.87490.55100.098*
H1C0.73530.79750.42150.098*
C20.5154(2)0.71973(18)0.46684(14)0.0425(3)
C30.3989(3)0.7791(2)0.53331(16)0.0532(4)
H3A0.44240.85780.59720.064*
C40.2198(3)0.7232(2)0.50625(16)0.0557(5)
H40.14450.76470.55170.067*
C50.1535(2)0.6077(2)0.41326(17)0.0550(4)
H50.03330.57010.39530.066*
C60.2664(2)0.54647(19)0.34554(15)0.0463(4)
H60.22180.46770.28190.056*
C70.4450(2)0.60240(15)0.37252(13)0.0357(3)
C80.87311(18)0.32873(15)0.12093(13)0.0332(3)
H80.89410.37060.05670.040*
C90.95591(18)0.19169(14)0.15207(12)0.0307(3)
C100.8632(2)0.09791(16)0.20312(14)0.0395(3)
H100.75200.12340.21570.047*
C110.9334(2)−0.03187(17)0.23523(16)0.0468(4)
H110.8701−0.09200.27000.056*
C121.0975(3)−0.07247(17)0.21568(16)0.0470(4)
H121.1450−0.15960.23740.056*
C131.1900(2)0.01715(16)0.16386(14)0.0401(3)
H131.3004−0.01040.15100.048*
C141.12161(18)0.14855(14)0.13020(12)0.0312(3)
C151.22646(19)0.23649(15)0.06986(13)0.0342(3)
C160.58289(18)0.58518(15)0.20315(13)0.0327(3)

Source of materials

0.9013 g 4-(2-methylphenyl)-3-thiosemicarbazide (0.5 mmol) and 0.7506 g 2-carboxybenzaldehyde (0.5 mmol) were dissolved in 15 mL 95% C2H5OH. Then the mixture was heated at 60 °C for 4 h and cooled to room temperature. The solution was evaporated to obtain block crystals within 20 days. Elemental analysis calc. for C16H15N3O2S: C, 61.27, H, 4.79, N, 13.40(%); Found: C, 61.39, H, 4.56, N, 13.20(%).

Experimental details

Coordinates of hydrogen atoms were refined without any constraints or restraints. Their Uiso values were set to 1.2Ueq of the parent atoms.

Comment

The bond lengths of C16—S1 and C8—N2 are 1.6825(14) Å and 1.2791(18) Å, respectively. The N—N bond length is shorter than in structures with hydrazinyl moieties [5, 6] , and the C—S distance is also shorter than a typical C—S single bond. The geometric parameters excellently fit with a directly related structure [7]. In the crystal structure, the dihedral angles between benzene ring 1 (C2—C3—C4—C5—C6—C7) and ring 2 (C9—C10—C11—C12—C13—C14) is 68.3°. There are weak intermolecular hydrogen bonds and π–π stacking interactions.

Acknowledgements

This project was supported by the National Natural Science Foundation of China (No. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the project of Shandong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXTL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 3.2. Crystal Impact, Bonn, Germany (2012).Search in Google Scholar

Tai, X.-S.; Wang, X.: Synthesis, structural characterization and antitumor activity of a Ca(II) coordination polymer based on 4-formyl-1,3-benzenedisulfonate-2-furoic acid hydrazide ligands. Crystallogr. Rep. 62 (2017) 242–245.10.1134/S1063774517020286Search in Google Scholar

Amr, A.-E.; Khalifa, N.-M.; Al-Omar, M.-A.; Ghabbour, H.-A.: Crystal structure of N2,N6-bis(1-hydrazinyl-2-methyl-1-oxopropan-2-yl)pyridine-2,6-dicarboxamide, C15H23N7O4. Z. Kristallogr. NCS 232 (2017) 537–539.10.1515/ncrs-2016-0294Search in Google Scholar

Madanhire, T.; Abrahams, A.; Hosten, E. C.; Betz, R.: Crystal structure of 4-(4-bromophenyl)-1-(propan-2-ylidene)thiosemicarbazide, C10H12BrN3S. Z. Kristallogr. NCS 230 (2015) 67–68.10.1515/ncrs-2014-9025Search in Google Scholar

Received: 2017-9-2
Accepted: 2017-11-24
Published Online: 2017-12-14
Published in Print: 2018-1-26

©2018 Tai Xi-Shi et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
