Home Physical Sciences Hydrothermal synthesis and crystal structure of poly[aqua-(μ2-1,3-bis(4-pyridyl)propane-κ2N:N′)-(μ2-1,4,5,6,7,7-hexachlorobicyclo[2.2.1]hept-5-ene-2,3-dicarboxylato-κ2O:O′)manganese(II) hydrate, C22H20Cl6N2O6Mn
Article Open Access

Hydrothermal synthesis and crystal structure of poly[aqua-(μ2-1,3-bis(4-pyridyl)propane-κ2N:N′)-(μ2-1,4,5,6,7,7-hexachlorobicyclo[2.2.1]hept-5-ene-2,3-dicarboxylato-κ2O:O′)manganese(II) hydrate, C22H20Cl6N2O6Mn

  • Li Gui-Lian EMAIL logo , Shen Jia and He Yu-Ying
Published/Copyright: December 14, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C22H20Cl6N2O6Mn, monoclinic, P21/c (no. 14), a = 12.0080(7) Å, b = 14.9289(8) Å, c = 15.2997(8) Å, β = 103.590(2)°, V = 2665.9(3) Å3, Z = 4, Rgt(F) = 0.0428, wRref(F2) = 0.1147, T = 296 K.

CCDC no.:: 1583824

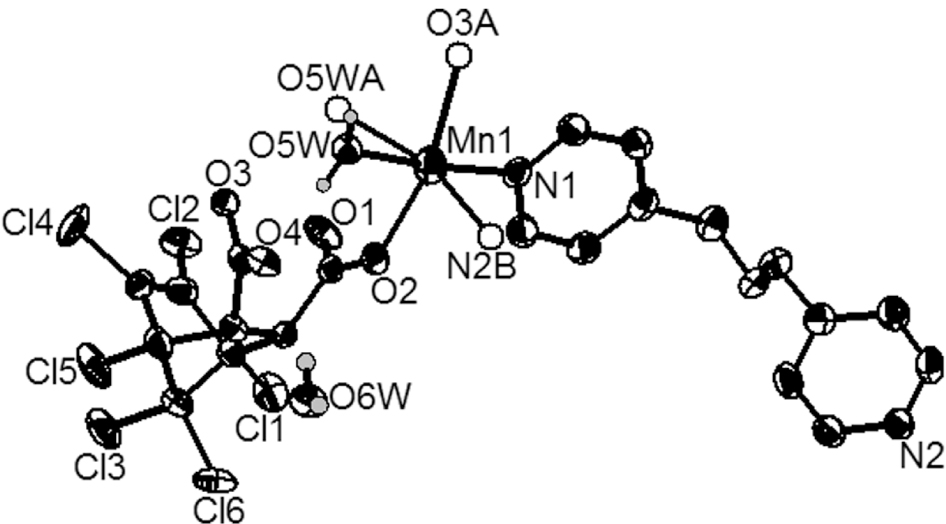

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.43 × 0.36 × 0.29 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.14 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
2θmax, completeness:25.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:17205, 4870, 0.047
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3725
N(param)refined:334
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn1−0.03103(4)0.51665(3)0.10778(3)0.02432(15)
N1−0.1423(3)0.60346(19)0.17483(18)0.0302(7)
N2−0.0562(3)0.54301(19)0.75843(19)0.0317(7)
O10.0520(2)0.72189(16)0.03397(18)0.0377(6)
O20.1088(2)0.60709(15)0.12725(15)0.0322(6)
O30.1775(2)0.56227(15)−0.04814(15)0.0288(5)
O40.2823(2)0.47397(15)0.05850(18)0.0378(6)
C1−0.0998(3)0.6783(2)0.2183(2)0.0360(9)
H1−0.03340.70270.20680.043*
C2−0.1498(3)0.7207(2)0.2793(2)0.0372(9)
H2−0.11700.77270.30760.045*
C3−0.2481(3)0.6868(2)0.2988(2)0.0297(8)
C4−0.2931(3)0.6107(2)0.2517(2)0.0357(9)
H4−0.36030.58560.26110.043*
C5−0.2392(3)0.5718(3)0.1911(2)0.0369(9)
H5−0.27190.52100.16020.044*
C6−0.3016(3)0.7294(2)0.3685(2)0.0355(9)
H6A−0.37970.70800.35990.043*
H6B−0.30470.79370.35930.043*
C7−0.2370(3)0.7099(2)0.4653(2)0.0327(8)
H7A−0.15990.73370.47520.039*
H7B−0.27510.74000.50630.039*
C8−0.2309(3)0.6102(2)0.4857(2)0.0349(9)
H8A−0.19050.58070.44580.042*
H8B−0.30800.58620.47330.042*
C9−0.1710(3)0.5889(2)0.5824(2)0.0321(8)
C10−0.0536(3)0.5933(3)0.6106(3)0.0415(10)
H10−0.01020.61200.57100.050*
C11−0.0001(3)0.5700(3)0.6978(2)0.0395(9)
H110.07940.57340.71500.047*
C12−0.1706(3)0.5416(2)0.7314(2)0.0373(9)
H12−0.21240.52420.77260.045*
C13−0.2296(3)0.5644(3)0.6464(2)0.0387(9)
H13−0.30920.56350.63170.046*
C140.2528(3)0.7016(2)0.0997(2)0.0239(7)
H140.28390.70840.16460.029*
C150.3263(3)0.6295(2)0.0643(2)0.0264(7)
H150.38680.60870.11500.032*
C160.3823(3)0.6849(2)0.0006(3)0.0343(8)
C170.2908(4)0.7196(3)−0.0776(2)0.0390(10)
C180.2303(3)0.7812(2)−0.0477(2)0.0347(9)
C190.2790(3)0.7887(2)0.0529(2)0.0266(7)
C200.4071(3)0.7755(2)0.0538(2)0.0322(8)
C210.2571(3)0.5480(2)0.0210(2)0.0259(7)
C220.1265(3)0.6766(2)0.0843(2)0.0264(7)
Cl10.25004(9)0.88878(6)0.10369(7)0.0421(3)
Cl20.12265(11)0.84501(8)−0.10694(9)0.0696(4)
Cl30.46410(10)0.86032(7)−0.00383(8)0.0524(3)
Cl40.27637(15)0.68444(9)−0.18500(7)0.0768(5)
Cl50.50094(11)0.63207(8)−0.02473(10)0.0670(4)
Cl60.49859(9)0.76513(7)0.16193(8)0.0544(3)
O5W0.0688(2)0.42052(15)0.03827(15)0.0295(5)
H1W0.04550.36820.02110.044*
H2W0.14140.42360.04900.044*
O6W0.4549(5)0.4764(4)0.2287(4)0.164(3)
H4W0.47950.42600.25110.246*
H3W0.39430.48360.18760.246*

Source of material

The mixtures of chlorendic acid (H2clda, 38.9 mg, 0.1 mmol), 1,3-bis(4-pyridyl)propane (bpp, 39.8 mg, 0.2 mmol) Mn(OAc)2⋅4H2O (49.1 mg, 0.2 mmol), and H2O (7 mL) was placed in a 23 mL teflon-lined autoclave at 393 K for 4 days, then cooled to room temperature. Colourless block crystals were obtained in ca. 62% yield. Elemental analysis calcd. (%) for C22H20Cl6N2O6Mn: C, 39.12; H, 3.02; N, 4.16. Found: C, 39.09; H, 2.98; N, 4.14.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

The coordination polymers assembled by metal ions, multicarboxylate ligands and N-donor coligands are rapidly increasing not only owing to their versatile intriguing architectures but also for their potential applications in many areas [3], [4], [5], [6], [7], [8], [9]. In multi-carboxylate ligands, rigid benzene multicarboxylate ligands have been widely applied for the synthesis and assembly of various coordination polymers. Recently, the steric, non-coplanar backbone carboxylate ligands for the formation of coordination polymers has been some investigated [10], [11], [12]. Among them, chlorendic acid (H2clda), which can display biological activity with the steric and non-coplanar features is rarely reported as an educt of a dicarboxylate ligand. Furthermore, the six Cl atoms in the chlorendic acid may alter its spatial conformation and steric hindrance and further influence coordination modes. Therefore, we select chlorendic acid (H2clda), as a precusor of the main ligand and the bpp (1,3-di(4-pyridyl)propane) as a N-donor auxiliary linker [13, 14] to construct the target compound.

The crystal structure determination reveals that the compound features a one-dimensional chain structure. The asymmetric unit contains one Mn(II) ion, one clda dianion, one bpp molecule, one coordinated water and one free water molecule (A: −x, 1 − y, −z; B: −x, 1 − y, 1 − z) (cf. the figure). The Mn(II) ion shows a six-coordinated environment with distorted octahedral manner [MnN2O4] by two N atoms from two symmetry-related bpp ligands (N1, N2B), four oxygen atoms (O2, O3A, O5W, O5WA) from two symmetry-related clda dianions and two coordinating water molecules. The Mn-O bond lengths are in the range of 2.120(2) to 2.367(2) Å, and the Mn-N bond lengths are 2.252(3) and 2.272(3) Å, respectively. Two Mn(II) neighbours are connected by two clda dianions adopting monodentate coordination mode (cf. the figure). The μ2-bridging mode of the dianionic dicarboxylato ligand is a well known feature for such ligands [15]. Two coordinated water molecules adopt a bridging-coordination mode to form one dinuclear unit with the Mn⋯Mn distance of 3.5825(7) Å. The adjacent dinuclear moieties are extended along the c direction by paired bpp co-ligands to produce a 1D coordination polymer with the Mn⋯Mn separation of 11.8592(9) Å. In the complex, as the result of the presence of one coordinated water molecule, there exist intra-chain hydrogen bonding interactions between the coordinated water and the carboxylate oxygen atoms of the clda dianions (O(5W)-H(1W)⋯O(1): d = 2.663(3) Å and O(5W)-H(2W)⋯O(4): d = 2.663 Å). The adjacent chains are interlinked by inter-chain hydrogen bonds via the participation of the O atoms from free water molecules and carboxylate O atom and Cl atom from clda anion (O(6W)-H(3W)⋯O(4): d = 2.923(6) Å and O(6W)-H(4W)⋯Cl(6): d = 3.552(6) Å) to form a three-dimensional supramolecular structure.

Acknowledgements

This work was supported by the Foundation of Science and Technology of Henan Province (grant no. 162102210304).

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

Xuan, W. M.; Zhu, C. F.; Liu, Y.; Cui, Y.: Mesoporous metal-organic framework materials. Chem. Soc. Rev. 41 (2012) 1677–1695.10.1039/C1CS15196GSearch in Google Scholar

Zhu, Q. L.; Xu, Q.: Metal-organic framework composites. Chem. Soc. Rev. 43 (2014) 5468–5512.10.1039/C3CS60472ASearch in Google Scholar

McGuirk, C. M.; Katz, M. J.; Stern, C. L.; Sarjeant, A. A.; Hupp, J. T.; Farha, O. K.; Mirkin, C. A.: Turning on catalysis: incorporation of a hydrogen-bond-donating squaramide moiety into a Zr metal-organic framework. J. Am. Chem. Soc. 137 (2015) 919–925.10.1021/ja511403tSearch in Google Scholar

Xie, S. L.; Wang, H. F.; Liu, Z. H.; Dai, R.; Huang, L. Z.: Fluorescent metal-organic framework based on pyrene chromophore for sensing of nitrobenzene. RSC Adv. 5 (2015) 7121–7124.10.1039/C4RA10835CSearch in Google Scholar

Li, G. L.; Yin, W. D.; Liu, G. Z.; Ma, L. F.; Wang, L. Y.: Syntheses, structures and magnetic properties of four coordination polymers based on nitrobenzene dicarboxylate and various N-donor coligands. J. Solid State Chem. 220 (2014) 1–8.10.1016/j.jssc.2014.08.007Search in Google Scholar

Wang, Y. L.; Fu, J. H.; Wei, J. J.; Xu, X.; Li, X. F.; Liu, Q. Y.: New thiolated nitrophenylhydrazone crystals for nonlinear optics. Cryst. Growth Des. 12 (2012) 4663–4668.10.1021/cg300889xSearch in Google Scholar

Tang, Q.; Zhou, Z.; Chen, Z. F.: Single-layer [Cu2Br(IN)2]n coordination polymer (CP): electronic and magnetic properties, and implication for molecular sensors. J. Phys. Chem. C 116 (2012) 4119–4125.10.1021/jp211779wSearch in Google Scholar

Zhang, J.; Chen, S. M.; Nieto, R. A.; Wu, T.; Feng, P. Y.; Bu, X. H.: A tale of three carboxylates: Cooperative asymmetric crystallization of a three-dimensional microporous framework from achiral precursors. Angew. Chem. Int. Ed. 49 (2010) 1267–1270.10.1002/anie.200906248Search in Google Scholar

Geraghty, M.; Sheridan, V.; McCanna, M.; Devereuxb, M.; McKee, V.: Synthesis and anti-candida activity of copper(II) and manganese(II) carboxylate complexes: X-ray crystal structures of [Cu(sal)(bipy)]⋅C2H5OH⋅H2O and [Cu(norb)(phen)2]⋅6⋅5H2O (salH2 = salicylic acid; norbH2 = cis-5-norbornene-endo-2,3-dicarboxylic acid; bipy = 2,2′-bipyridine; phen = 1,10-phenanthroline). Polyhedron 18 (1999) 2931–2939.10.1016/S0277-5387(99)00201-6Search in Google Scholar

Xin, L. Y.; Liu, G. Z.; Ma, L. F.; Wang, L. Y.: Coligand-regulated assembly, fluorescence, and magnetic properties of Co(II) and Cd(II) complexes with a non-coplanar dicarboxylate. J. Solid State Chem 206 (2013) 233–241.10.1016/j.jssc.2013.08.010Search in Google Scholar

Li, G. L.; Liu, G. Z.; Xin, L. Y.; Li, X. L.; Ma, L. F.; Wang, L. Y.: Syntheses, structures and fluorescence properties of four Zn/Cd(II) coordination polymers with 3-nitrobenzene-1,2-dicarboxylate and dipyridyl-typed coligands. J. Inorg. Organomet. Polym. 25 (2015) 694–701.10.1007/s10904-014-0147-4Search in Google Scholar

Li, G. L.; Liu, G. Z.; Huang, L. L.; Li, L.; Zhang, X.: Ancillary ligand-mediated syntheses, structures and fluorescence of three Zn/Cd(II) coordination polymers based on nitrobenzene dicarboxylate. J. Inorg. Organomet. Polym. 24 (2014) 617–623.10.1007/s10904-014-0024-1Search in Google Scholar

Wu, H.-X.; Zhang, H.-Y.; Xin, L.-Y.: Crystal structure of diaquabis(bicyclo[2.2.1]hept-5-ene-2,3-dicarboxylate-κ4O,O′:O′′,O′′′)bis(2,2′-bipyridine-κ2N,N′)dicadmium(II) hydrate. Z. Kristallogr. NCS 231 (2016) 101–103.10.1515/ncrs-2015-0051Search in Google Scholar

Received: 2017-7-1
Accepted: 2017-11-3
Published Online: 2017-12-14
Published in Print: 2018-1-26

©2018 Li Gui-Lian et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
