Crystal structure of 1-(4-fluorophenyl)-N-(5-((triphenylstannyl)thio)thiophen-2-yl)methanimine, C27H20FN3S2Sn

  • Fankun Meng EMAIL logo , Junying Jia und Hongsheng Liu
Veröffentlicht/Copyright: 8. November 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 1

Abstract

C27H20FN3S2Sn, monoclinic, P21/n (no. 14), a = 15.631(4) Å, b = 9.865(3) Å, c = 17.256(3) Å β = 108.335(11)°, V = 2525.8(10) Å3, Z = 4, Rgt(F) = 0.0398, wRref(F2) = 0.0917, T = 298 K.

CCDC no.:: 1580160

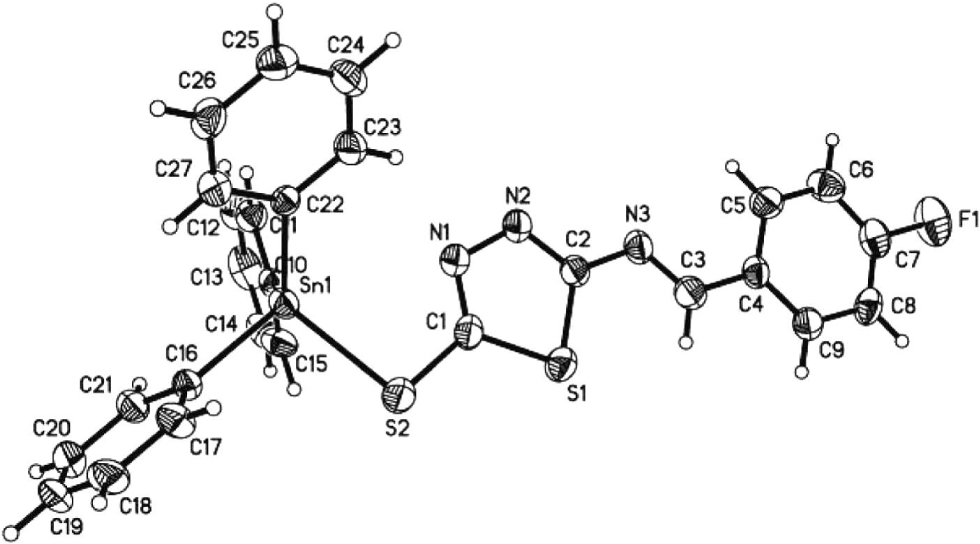

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.53 × 0.40 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.21 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
2θmax, completeness:25.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:12919, 4492, 0.050
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2906
N(param)refined:307
Programs:Bruker programs [1], SHELX [2], [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Sn10.82025(2)0.05801(3)1.01054(2)0.04710(13)
F1−0.0347(2)0.0918(4)0.5827(2)0.1067(12)
N10.6184(3)0.0176(4)0.9125(3)0.0567(11)
N20.5385(3)−0.0112(4)0.8507(3)0.0587(11)
N30.3837(3)0.0447(4)0.7970(3)0.0579(11)
S10.49583(9)0.16322(14)0.94241(9)0.0625(4)
S20.69500(9)0.16156(15)1.04966(9)0.0673(4)
C10.6069(3)0.1040(5)0.9647(3)0.0538(13)
C20.4691(3)0.0567(5)0.8562(3)0.0526(12)
C30.3178(4)0.1190(5)0.8003(3)0.0635(15)
H30.32860.18170.84250.076*
C40.2262(3)0.1117(5)0.7417(3)0.0526(13)
C50.2038(4)0.0220(5)0.6771(4)0.0681(16)
H50.2479−0.03520.66970.082*
C60.1168(4)0.0151(6)0.6228(4)0.0760(17)
H60.1024−0.04550.57930.091*
C70.0524(4)0.1001(6)0.6350(4)0.0688(16)
C80.0703(4)0.1903(6)0.6965(4)0.0650(15)
H80.02580.24730.70320.078*
C90.1588(4)0.1951(5)0.7499(3)0.0635(15)
H90.17260.25700.79270.076*
C100.8191(3)0.1434(5)0.8970(3)0.0452(12)
C110.8398(3)0.0702(5)0.8372(3)0.0578(13)
H110.8486−0.02290.84350.069*
C120.8476(4)0.1322(7)0.7686(4)0.0746(17)
H120.86230.08100.72930.090*
C130.8342(4)0.2671(8)0.7578(4)0.0793(19)
H130.83940.30910.71120.095*
C140.8130(4)0.3405(6)0.8158(4)0.0782(18)
H140.80360.43340.80860.094*
C150.8051(4)0.2804(5)0.8847(3)0.0625(15)
H150.79020.33250.92350.075*
C160.9315(3)0.1498(5)1.1032(3)0.0464(12)
C170.9495(4)0.1265(5)1.1854(3)0.0593(14)
H170.91270.06801.20310.071*
C181.0221(4)0.1893(6)1.2425(3)0.0713(16)
H181.03350.17141.29780.086*
C191.0768(4)0.2768(6)1.2187(4)0.0719(17)
H191.12490.31841.25740.086*
C201.0603(4)0.3027(5)1.1375(4)0.0691(16)
H201.09690.36231.12050.083*
C210.9887(3)0.2395(5)1.0808(3)0.0549(13)
H210.97820.25731.02570.066*
C220.8271(3)−0.1574(4)1.0250(3)0.0389(11)
C230.7565(3)−0.2417(5)0.9883(3)0.0580(14)
H230.7022−0.20620.95510.070*
C240.7664(4)−0.3796(5)1.0008(4)0.0716(16)
H240.7190−0.43780.97540.086*
C250.8474(4)−0.4313(5)1.0517(4)0.0692(15)
H250.8539−0.52441.06020.083*
C260.9184(4)−0.3465(6)1.0897(3)0.0642(15)
H260.9724−0.38171.12360.077*
C270.9080(3)−0.2097(5)1.0767(3)0.0558(13)
H270.9551−0.15121.10240.067*

Source of materials

The ligand: 5-((4-fluorobenzylidene)amino)thiophene-2-thiol was synthesized by 4-fluorobenzaldehyde and 5-aminothiophene-2-thiol by refluxing in ethanol for 2 h (yellow solid). The organic ligand and triphenyltin chloride were added to benzene and sodium ethoxide, refluxed for 2 h and filtered off. The solution is evaporated to dryness and recrystallization was done in dichloromethane. The resulting colorless block-shaped crystals were obtained by slow cooling. The yield is 78% and elemental analysis: calc. for C27H20FN3S2Sn: C 55.12, H 3.44, N 7.14; found: C 55.31, H 3.69, N 6.53. The elemental analyses were performed with PERKIN ELMER 2400 SERIES II.

Experimental details

The Uiso(H) values were set at 1.2Ueq(C—H) for all the H atoms from benzene ring and the C atom of C=N moiety.

Comment

Metal thiolato complexes have been extensively studied because of their ability to adopt various nuclearities and their relevance in biology, since they form the inorganic part of the biologically active centers of some metalloproteins and enzymes [5, 6] . Recently, attention has been paid to the coordination chemistry of heterocyclic thiol/thione donors, which can give potential access to new complexes with unusual structures and reactivities [7]. The Schiff base ligand also exibits biological activity [8]. However, the organotin complexes also exhibit the biological and commercial applications [9]. To aid in understanding their biochemical action, it was felt that the coordination chemistry of tin(IV) toward S and N-containing ligands requires further exploration.

The title complex shows a four-coordinated Sn(IV) metal center. The distances of S—Sn is 2.4826(14) Å and N—Sn 3.102(4) Å, which is close to the sum of the covalent radii (2.42) [10] and similar to the parameters in Ph3Sn(SC2H2N3) [11].

Acknowledgements

This work was supported by the Fund Project of Daqing Normal University (11ZR01) of Heilongjiang Province.

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

Sheldrick, G. M.: SADABS. Program for Empirical Absorption Correction of Area Detector Data, University of Göttingen, Germany (1996).Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar

Sheldrick, G. M.: SHELXTL V5.1 Software Reference Manual, Bruker AXS, Inc., Madison, WI, USA (1997b).Suche in Google Scholar

Rasper, E. S.: Complexes of heterocyclic thionates part 2: complexes of bridging ligands. Coord. Chem. Rev. 165 (1997) 475–567.10.1016/S0010-8545(97)90167-3Suche in Google Scholar

Krebs, B.; Henkel, G.: Transition-metal thiolates: from molecular fragments of sulfidic solids to models for active centers in biomolecules. Angew. Chem. Int. Ed. 30 (1991) 769–788.10.1002/anie.199107691Suche in Google Scholar

Jones, C. J.: Transition metals as structural components in the construction of molecular containers. Chem. Soc. Rev. 27 (1998) 289–300.10.1039/a827289zSuche in Google Scholar

Zoubi, W. A.: Biological activities of schiff bases and their complexes: a review of recent works. Inter. J. Org. Chem. 3 (2013) 73–95.10.4236/ijoc.2013.33A008Suche in Google Scholar

Speziali, N.; Guimaraes, B. G.; Silva, R. M.; Duarte, P. H.; Aguiar, S. R.: (Benzenethiolato-κS)triphenyltin(IV), [Sn(C6H5S)(C6H5)3] (I), and bis(benzenethiolato-κS)diphenyltin(IV), [Sn(C6H5S)2(C6H5)2] (II). Acta. Crystallogr. C50 (1994) 1059.10.1107/S0108270193014088Suche in Google Scholar

Huheey, J. E.: Inorganic Chemistry, third ed., Harper Int, Cambridge (1983).Suche in Google Scholar

Ma, C. L.; Zhang, J. H.; Zhang, R. F.: Syntheses, characterizations and crystal structures of new triorgano-tin or -germanium complexes with 1H-5-mercapto-1,2,3-triazolato. Polyhedron 23 (2004) 1981–1986.10.1016/j.poly.2004.05.005Suche in Google Scholar

Received: 2017-8-9
Accepted: 2017-10-16
Published Online: 2017-11-8
Published in Print: 2018-1-26

©2018 Fankun Meng et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
