Crystal structure of bis((1-(((4-(((benzyloxy)imino)methyl)phenyl)imino)methyl)naphthalen-2-yl)oxy-κ2O,N)copper(II), C52H42CuN4O4

  • Jing Li , Bin Yu , Hao-Ran Jia and Yin-Xia Sun EMAIL logo
Published/Copyright: December 29, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C52H42CuN4O4, monoclinic, I12/c1 (no. 15), a = 21.8573(13) Å, b = 5.8605(4) Å, c = 33.683(2) Å, β = 97.428(5)°, Z = 4, V = 4278.4(5) Å3, Rgt(F) = 0.0554, wRref(F2) = 0.1255, T = 293(2) K.

CCDC no.: 1561290

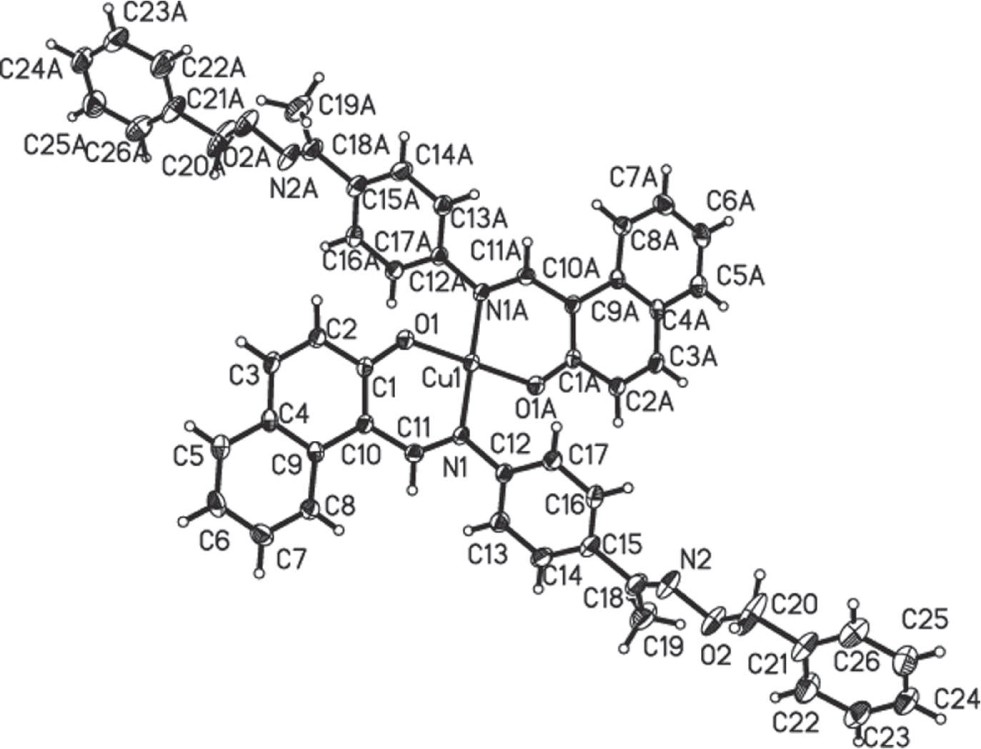

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, clear light brown
Size:0.24 × 0.15 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.56 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:26°, >99%
N(hkl)measured, N(hkl)unique, Rint:8438, 4218, 0.045
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2896
N(param)refined:278
Programs:CrysAlisPRO [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.50000.50000.50000.03460(18)
O10.46444(9)0.7736(4)0.47887(6)0.0422(6)
O20.62223(13)−0.0490(5)0.74322(8)0.0789(9)
N10.46770(11)0.5559(4)0.55213(7)0.0341(6)
N20.60089(16)0.0964(6)0.71063(9)0.0698(10)
C10.42302(13)0.9011(6)0.49173(9)0.0336(7)
C20.40384(13)1.0974(6)0.46836(9)0.0387(8)
H20.42041.12380.44470.046*
C30.36219(13)1.2459(6)0.47977(10)0.0407(8)
H30.35221.37580.46440.049*
C40.33357(13)1.2083(5)0.51439(9)0.0350(7)
C50.28910(14)1.3604(6)0.52522(10)0.0459(9)
H50.28061.49330.51040.055*
C60.25800(15)1.3174(7)0.55703(11)0.0520(10)
H60.22871.42010.56380.062*
C70.27061(15)1.1176(7)0.57931(10)0.0511(9)
H70.24901.08610.60070.061*
C80.31459(14)0.9681(6)0.56979(9)0.0410(8)
H80.32230.83600.58490.049*
C90.34831(12)1.0098(5)0.53772(9)0.0330(7)
C100.39682(13)0.8618(5)0.52729(9)0.0334(7)
C110.42365(13)0.7000(6)0.55586(9)0.0363(7)
H110.40770.69700.58020.044*
C120.48849(13)0.4214(6)0.58685(9)0.0353(7)
C130.44734(14)0.2988(6)0.60657(9)0.0428(8)
H130.40530.30530.59760.051*
C140.46849(16)0.1670(7)0.63956(10)0.0514(9)
H140.44040.08390.65230.062*
C150.53028(16)0.1566(6)0.65387(10)0.0483(9)
C160.57119(15)0.2822(6)0.63410(10)0.0495(9)
H160.61310.27850.64350.059*
C170.55077(14)0.4114(6)0.60103(10)0.0445(9)
H170.57890.49260.58810.053*
C180.55336(18)0.0142(7)0.68942(11)0.0553(10)
C190.5222(2)−0.2064(8)0.69651(13)0.0856(15)
H19A0.5514−0.30830.71100.128*
H19B0.5064−0.27380.67130.128*
H19C0.4888−0.17860.71180.128*
C200.6785(3)0.0454(9)0.76209(14)0.116(2)
H20A0.67040.19070.77420.139*
H20B0.70620.07190.74230.139*
C210.7079(2)−0.1151(8)0.79360(12)0.0717(13)
C220.6761(2)−0.2899(9)0.80915(13)0.0837(15)
H220.6341−0.30910.80080.100*
C230.7068(2)−0.4371(9)0.83726(13)0.0842(15)
H230.6853−0.55490.84770.101*
C240.7683(2)−0.4106(10)0.84966(13)0.0838(15)
H240.7888−0.51140.86810.101*
C250.7995(2)−0.2355(10)0.83485(14)0.0861(15)
H250.8412−0.21440.84380.103*
C260.7696(2)−0.0887(9)0.80656(13)0.0817(14)
H260.79150.02860.79630.098*

Source of material

Synthesis of the ligand HL: ({4-Amino}phenyl)ethanone O-benzyloxime was synthesized according to an analogous method reported previously in the literature [3]. To an ethanol solution (4 mL) of ({4-amino}phenyl)ethanone O-benzyloxime (240.0 mg, 1.0 mmol) was added 2-hydroxy-1-naphthaldehyde (172.2 mg, 1.0 mmol). The mixture was stirred at 334 K for 18 h. After cooling to room temperature, the formed precipitate was filtered and washed successively with ethanol and ethanol/n-hexane (1:4), respectively. The product was dried in vacuo and purified by recrystallization from ethanol to yield 327.3 mg of solid. Yield, 79.4%. m.p. 400–402 K. Elemental analysis − Anal. calculated for C25H20N2O2 (%): C, 79.05; H, 5.30; N, 6.93. Found (%): C, 79.83; H, 5.01, N, 6.78.

Synthesis of the Cu(II) complex: A methanol solution (4 mL) of copper acetate monohydrate (1.3 mg, 0.007 mmol) was added dropwise to a dichloromethane solution (5 mL) of the aforementioned ligand (1.9 mg, 0.005 mmol) at room temperature. The solution turned to yellow immediately and the filtrate was allowed to stand at room temperature for about 1 week. Brown-red block crystals were obtained. Elemental analysis − Anal. calculated for C52H42CuN4O4(%): C, 73.44; H, 4.98; N, 6.59. Found (%): C, 73.82; H, 4.66; N, 6.89.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

It is well known that some Schiff bases and their metal complexes are intensively investigated [4], [5], [6], [7], [8], [9]. Especially the synthesis and crystal structure of oxime-type Schiff base compounds and their derivatives [10], [11], [12], [13], [14]. These compounds are an important class of organic compounds because of their applications in many fields of organic, biological, analytical chemistry and material science [15], [16], [17], [18]. Herein, a new copper(II) complex with Schiff base ligand (4-(((2-hydroxynaphthalen-1-yl)methylene)amino)benzaldehyde O-benzyl oxime) is reported.

The crystal structure is built up by a mononuclear Cu(II) complex, which constitutes the symmetric unit [Cu(L)2]. As shown in the figure, the Cu(II) center is coordinated by a pair of N,O chelates from a pair of ligand units L−. The coordination geometry of the Cu(II) center can be described as a slightly distorted plane square involving N2O2 donor sets. In the crystal structure, the complex molecules are linked into an infinite 2D-layer supramolecular structure via C—H⋯π interactions.

Acknowledgements

The supports by Program for Excellent Team of Scientific Research in Lanzhou Jiaotong University (201706) are gratefully acknowledged.

References

Agilent Technologies: CrysAlisPRO Software system, version 1.171.37.33, Agilent Technologies UK Ltd, Oxford, UK (2014).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Sun, Y. X.; Lu, R. E.; Li, X. R.; Zhao, Y. Y.; Li, C. Y.: A Schiff base ligand containing oxime group and its Cu(II) complex: syntheses and supramolecular structures. Chinese J. Inorg. Chem. 31 (2015) 1055–1062.Search in Google Scholar

Sun, Y. X.; Li, C. Y.; Yang, C. J.; Zhao, Y. Y.; Guo, J. Q.; Yu, B.: Two Cu(II) complexes with Schiff base ligands: synthesis, crystal structure, spectroscopic properties, and substituent effect. Chinese J. Inorg. Chem. 32 (2016) 327–335.Search in Google Scholar

Wu, H. L.; Wang, C. P.; Wang, F.; Peng, H. P.; Zhang, H.; Bai, Y. C.: A new manganese(III) complex from bis(5-methylsalicylaldehyde)-3-oxapentane-1,5-diamine: synthesis, characterization, antioxidant activity and luminescence. J. Chin. Chem. Soc. 62 (2015) 1028–1034.10.1002/jccs.201500121Search in Google Scholar

Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Search in Google Scholar

Wu, H. L.; Pan, G. L.; Bai, Y. C.; Wang, H.; Kong, J.; Shi, F.; Zhang, Y. H.; Wang, X. L.: Preparation, structure, DNA-binding properties, and antioxidant activities of a homodinuclear erbium(III) complex with a pentadentate schiff base ligand. J. Chem. Res. 38 (2014) 211–217.10.3184/174751914X13933417974082Search in Google Scholar

Zhao, L.; Dong, X. T.; Chen, Q.; Zhao, J. X.; Wang, L.: Synthesis, crystal structure and spectral properties of a 2D supramolecular copper(II) complex with 1-(4-{[(E)-3-ethoxyl-2-hydroxybenzylidene]amino}phenyl)ethanone oxime. Synth. React. Inorg. Met-Org. Nano-Met. Chem. 43 (2013) 1241–1246.10.1080/15533174.2012.757236Search in Google Scholar

Song, X. Q.; Peng, Y. J.; Chen, G. Q.; Wang, X. R.; Liu, P. P.; Xu, W. Y.: Substituted group- directed assembly of Zn(II) coordination complexes based on two new structural related pyrazolone based salen ligands: syntheses, structures and fluorescence properties. Inorg. Chim. Acta 427 (2015) 13–21.10.1016/j.ica.2014.12.008Search in Google Scholar

Dong, X. Y.; Liu, J. C.: Crystal structure of 4-bromo-2-(8-(3-ethoxy-2-hydroxyphenyl)-3,6-dioxa-2,7-diazaocta-1,7-dien-1-yl)phenol, C18H19BrN2O5. Z. Kristallogr. NCS 231 (2016) 805–807.10.1515/ncrs-2015-0275Search in Google Scholar

Xu, L.; Zhu, L. C.; Ma, J. C.; Zhang, Y.; Zhang, J.; Dong, W. K.: Syntheses, structures and spectral properties of mononuclear CuII and dimeric ZnII complexes based on an asymmetric Salamo-type N2O2 ligand. Z. Anorg. Allg. Chem. 641 (2015) 2520–2524.10.1002/zaac.201500619Search in Google Scholar

Ma, J. C.; Dong, X. Y.; Dong, W. K.; Zhang, Y.; Zhu, L. C.; Zhang, J. T.: An unexpected dinuclear Cu(II) complex with a bis(salamo) chelating ligand: synthesis, crystal structure, and photophysical properties. J. Coord. Chem. 69 (2016) 149–159.10.1080/00958972.2015.1108410Search in Google Scholar

Akine, S.; Taniguchi, T.; Nabeshima, T.: Synthesis and characterization of novel ligands 1,2-bis(salicylideneaminooxy)ethanes. Chem. Lett. 30 (2001) 682–683.10.1246/cl.2001.682Search in Google Scholar

Dong, Y. J.; Dong, X. Y.; Dong, W. K.; Zhang, Y.; Zhang, L. S.: Three asymmetric salamo-type copper(II) and cobalt(II) complexes: syntheses, structures, fluorescent properties. Polyhedron 123 (2017) 305–315.10.1016/j.poly.2016.12.010Search in Google Scholar

Dong, W. K.; Li, X. L.; Wang, L.; Zhang, Y.; Ding, Y. J.: A new application of Salamo-type bisoximes: as a relay-sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators B 229 (2016) 370–378.10.1016/j.snb.2016.01.139Search in Google Scholar

Wu, H. L.; Pan, G. L.; Wang, H.; Wang, X. L.; Bai, Y. C.; Zhang, Y. H.: Study on synthesis, crystal structure, antioxidant and DNA-binding of mono-, di- and poly-nuclear lanthanides complexes with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Photochem. Photobiol. B 135 (2014) 33–43.10.1016/j.jphotobiol.2014.04.005Search in Google Scholar PubMed

Song, X. Q.; Liu, P. P.; Liu, Y. A.; Zhou, J. J.; Wang, X. L.: Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: synthesis, structure, luminescence and magnetic properties. Dalton Trans. 45 (2016) 8154–8163.10.1039/C6DT00212ASearch in Google Scholar PubMed

Dong, W. K.; Zhu, L. C.; Ma, J. C.; Sun, Y. X.; Zhang, Y.: Two novel mono- and heptanuclear Ni(II) complexes constructed from new unsymmetric and symmetric salamo-type bisoximes-synthetic, structural and spectral studies. Inorg. Chim. Acta 453 (2016) 402–408.10.1016/j.ica.2016.08.050Search in Google Scholar

Received: 2017-7-10
Accepted: 2017-11-24
Published Online: 2017-12-29
Published in Print: 2018-1-26

©2018 Jing Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
