Abstract

C38H38Co2N2O14, monoclinic, P21/n (no. 14), a = 9.7459(5) Å, b = 7.9026(7) Å, c = 24.0622(15) Å, β = 100.260(5)°, Z = 2, V = 1823.6(2) Å3, Rgt(F) = 0.0576, wRref(F2) = 0.1201, T = 293(2) K.

CCDC no.: 1544021

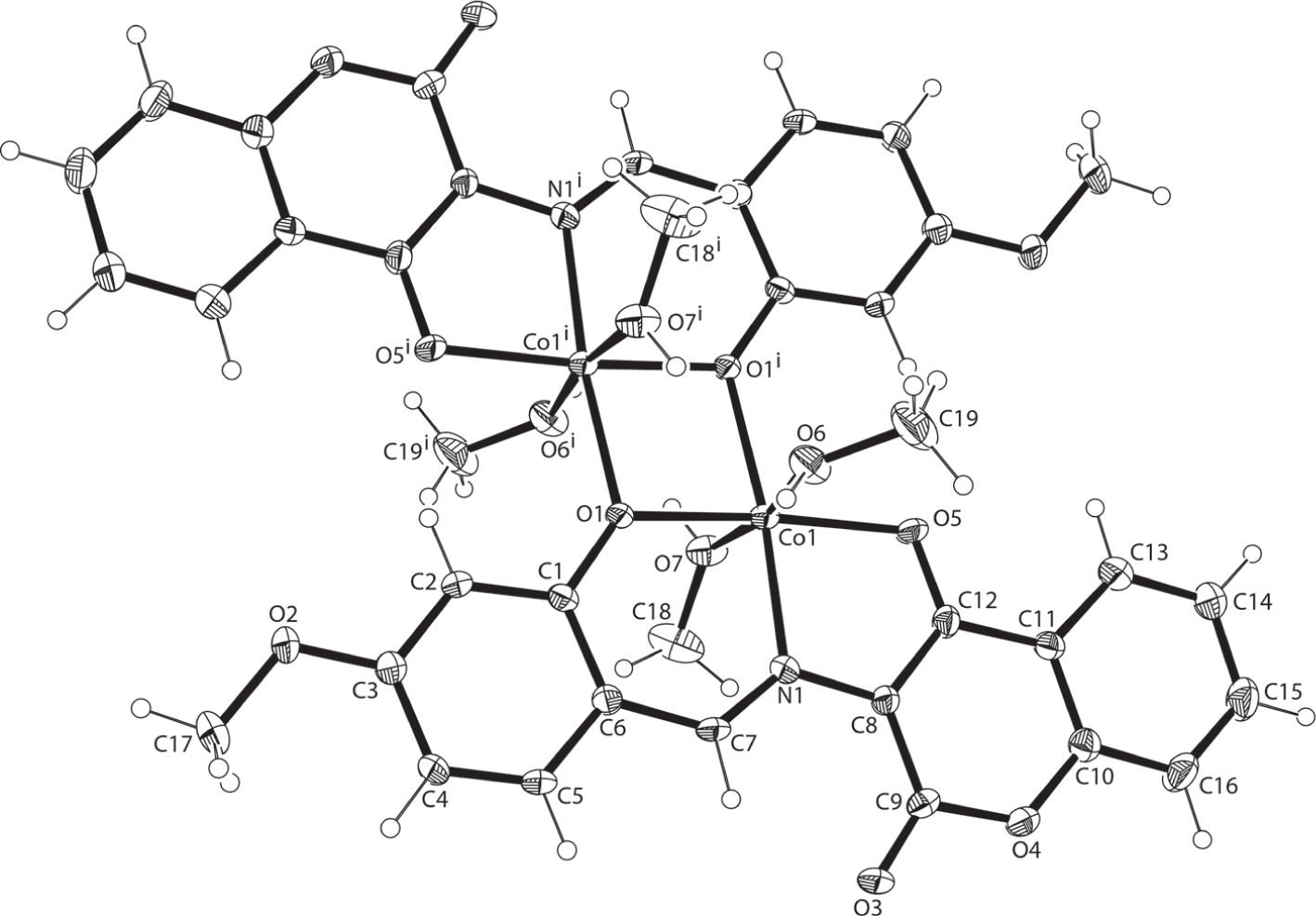

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, dark brown
Size:0.34 × 0.31 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.98 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
2θmax, completeness:26°, >99%
N(hkl)measured, N(hkl)unique, Rint:6511, 3575, 0.059
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2288
N(param)refined:262
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co10.61056(5)0.39372(8)0.47557(2)0.0303(2)
O10.6012(2)0.5407(4)0.54338(10)0.0292(7)
O20.7196(3)0.7569(5)0.72685(12)0.0488(9)
O31.1047(3)0.2039(4)0.51123(11)0.0388(8)
O41.0502(3)0.0907(4)0.42672(12)0.0380(8)
O50.6488(3)0.2636(4)0.40732(11)0.0397(9)
O60.6628(3)0.6404(4)0.43577(12)0.0423(9)
H60.727(3)0.706(3)0.4536(8)0.063*
O70.5442(3)0.1843(4)0.51906(13)0.0447(9)
H70.4611(15)0.186(4)0.5268(14)0.067*
N10.8197(3)0.3452(5)0.50275(13)0.0290(9)
C10.7005(4)0.5610(5)0.58934(16)0.0256(10)
C20.6689(4)0.6497(6)0.63508(16)0.0293(10)
H20.58010.69530.63270.035*
C30.7654(4)0.6727(6)0.68439(17)0.0329(11)
C40.9002(4)0.6084(6)0.68777(17)0.0366(12)
H40.96700.62480.72010.044*
C50.9319(4)0.5217(6)0.64313(17)0.0342(11)
H51.02200.47980.64590.041*
C60.8368(4)0.4913(6)0.59292(16)0.0270(10)
C70.8900(4)0.3949(6)0.55073(17)0.0308(11)
H7A0.98390.36550.55870.037*
C80.8733(4)0.2476(6)0.46262(16)0.0271(10)
C91.0129(4)0.1860(6)0.46979(17)0.0287(10)
C100.9592(4)0.0560(6)0.37721(18)0.0334(11)
C110.8228(4)0.1158(6)0.36909(17)0.0296(10)
C120.7759(4)0.2119(6)0.41354(16)0.0296(10)
C130.7363(4)0.0790(6)0.31712(18)0.0410(12)
H130.64450.11700.31010.049*
C140.7868(5)−0.0123(7)0.27683(19)0.0467(14)
H140.7293−0.03540.24250.056*
C150.9229(5)−0.0707(7)0.2868(2)0.0507(14)
H150.9558−0.13360.25930.061*
C161.0099(5)−0.0365(7)0.3370(2)0.0492(14)
H161.1014−0.07530.34360.059*
C170.8102(5)0.7603(7)0.78035(17)0.0519(14)
H17A0.88940.83050.77800.078*
H17B0.84110.64750.79080.078*
H17C0.76110.80520.80830.078*
C180.6281(5)0.0846(7)0.5613(2)0.0687(18)
H18A0.70120.03150.54560.103*
H18B0.5715−0.00070.57440.103*
H18C0.66830.15570.59230.103*
C190.6654(5)0.6589(8)0.37690(19)0.0690(18)
H19A0.58680.60120.35540.103*
H19B0.75000.61120.36860.103*
H19C0.66100.77690.36720.103*

Source of material

Synthesis of the ligand HL: The ligand was synthesized according to a method reported previously [3, 4] . To an ethanol solution (5 mL) of 2-hydroxy-4-methoxybenzaldehyde (152.2 mg, 1 mmol) was added an ethanol solution (5 mL) of 3-amino-4-hydroxy-2H-chromen-2-one (177.2 mg, 1 mmol). The solution was stirred under reflux conditions at 434 K for 6 h. After cooling to room temperature, the precipitate was filtered and washed with ethanol and hexane. The product was dried under vacuum obtaining a yellow solid (yield 71.8%, m.p. 460–461 K). Anal. calcd. For C17H13NO5 (%): C, 65.59; H, 4.21; N, 4.50. Found (%): C, 66.47; H, 4.13; N, 4.85.

Synthesis of the cobalt(II) complex: To a solution of the aforementioned organic ligand (4.4 mg, 0.014 mmol) in 5 mL dichloromethane was added a few drops of triethylamine solution, and the mixture was added dropwise to a methanol solution (4 mL) of cobalt acetate tetrahydrate (12.5 mg, 0.05 mmol) at room temperature. The mixing solution turned to red-brown immediately and the filtrate was allowed to stand at room temperature for about two weeks. Dark brown block single crystals were obtained. Elemental Analysis-Anal. calcd. for C38H38Co2N2O14: C, 52.79; H, 4.43; N, 3.24. Found(%): C, 52.81; H, 4.35; N, 3.36.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Azomethine group (—C=N—) containing compounds, typically known as Schiff bases, have been synthesized via condensation of primary amines with active carbonyls, as a class of ligands and are known to coordinate with metal ions through the azomethine nitrogen atom [5, 6] . And they can form all kinds of stable metal complexes [7], [8], [9], [10], which are considered more and more important because their novelty structural, topological and widely using in the fields of biochemistry [11, 12] , magnetic properties [13, 14] , photophysical properties [15, 16] , molecular recognition [17], supramolecular architectures [18]. Herein, a new cobalt(II) complex with coumarin-Schiff base ligand ((E)-4-hydroxy-3-((2-hydroxy-4-methoxybenzylidene) amino)-2H-chromen-2-one) is reported.

The single crystal structure of the title Co(II) complex reveals a symmetric dinuclear structure. It crystallizes in the monoclinic space group P21/n, and consists of two Co(II) ions, two tridentate ligand units L2−, and four coordinated methanol ligands. The Co(II) center (Co1 or Co1a) is coordinated by one N1 and two O (O5, O1) atoms from a tridentate ligand unit, and two methanol molecules to obtain two [CoL(MeOH)2] symmetry dependent moieties. The [CoL(MeOH)2] moieties are bridged via the μ2-phenolate oxygen atom (O1) to form a binuclear structure. The coordination geometry of the Co(II) center can be described as a slightly distorted octahedron.

Acknowledgements

The supports by Program for Excellent Team of Scientific Research in Lanzhou Jiaotong University (201706) are gratefully acknowledged.

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA, 2009.Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Xu, L.; Li, N.; Zhao, L.: Crystal structure of 4-chloro-4′,6′-dichloro-2,2′-[propane-1,3-diyldioxybis(nitrilomethylidyne)]diphenol, C17H14Cl3N2O4. Z. Kristallogr. NCS 231 (2016) 967–968.10.1515/ncrs-2016-0025Suche in Google Scholar

Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino)phenyl) ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Suche in Google Scholar

Dong, W. K.; Zhu, L. C.; Dong, Y. J.; Ma, J. C.; Zhang, Y.: Mono, di and heptanuclear metal(II) complexes based on symmetric and asymmetric tetradentate Salamo-type ligands: Syntheses, structures and spectroscopic properties. Polyhedron 117 (2016) 148–154.10.1016/j.poly.2016.05.055Suche in Google Scholar

Sun, Y. X.; Zhao, Y. Y.; Li, C. Y.; Yu, B.; Guo, J. Q.; Li, J.: Supramolecular cobalt(II) and copper(II) complexes with schiff base ligand: syntheses, characterizations and crystal structures. Chinese J. Inorg. Chem. 32 (2016) 913–920.Suche in Google Scholar

Wang, P.; Zhao, L.: Synthesis, structure and spectroscopic properties of the trinuclear cobalt(II) and nickel(II) complexes based on 2-hydroxynaphthaldehyde and bis(aminooxy)alkane. Spectrochim. Acta, Part A 135 (2015) 342–350.10.1016/j.saa.2014.06.129Suche in Google Scholar PubMed

Dong, W. K.; He, X. N.; Yan, H. B.; Lv, Z. W.; Chen, X.; Zhao, C. Y.; Tang, X. L.: Synthesis, structural characterization and solvent effect of copper(II) complexes with a variational multidentate Salen-type ligand with bisoxime groups. Polyhedron 28 (2009) 1419–1428.10.1016/j.poly.2009.03.017Suche in Google Scholar

Dong, W. K.; Duan, J. G.; Guan, Y. H.; Shi, J. Y.; Zhao, C. Y.: Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 362 (2009) 1129–1134.10.1016/j.ica.2008.05.028Suche in Google Scholar

Cozzi, P. G.: Metal-Salen Schiff base complexes in catalysis: practical aspects. Chem. Soc. Rev. 33 (2004) 410–421.10.1039/B307853CSuche in Google Scholar PubMed

Wu, H. L.; Yuan, J. K.; Bai, Y.; Jia, F.; Liu, B.; Kou, F.; Kong, J.: Synthesis, structure, DNA-binding properties, and antioxidant activity of copper(II) and cobalt(II) complexes with bis(N-allylbenzimidazol-2-ylmethyl)benzylamine. Trans. Met. Chem. 36 (2011) 819–827.10.1007/s11243-011-9536-5Suche in Google Scholar

Wu, H. L.; Bai, Y. C.; Zhang, Y. H.; Li, Z.; Wu, M. C.; Chen, C. Y.; Zhang, J. W.: Synthesis, crystal structure, antioxidation and DNA-binding properties of a dinuclear copper(II) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Coord. Chem. 67 (2014) 3054–3066.10.1080/00958972.2014.959507Suche in Google Scholar

Song, X. Q.; Liu, P. P.; Liu, Y. A.; Zhou, J. J.; Wang, X. L.: Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: Synthesis, structure, luminescence and magnetic properties. Dalton Trans. 45 (2016) 8154–8163.10.1039/C6DT00212ASuche in Google Scholar

Dong, W. K.; Ma, J. C.; Dong, Y. J.; Zhu, L. C.; Zhang, Y.: Di- and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: Syntheses, structures and magnetic properties. Polyhedron 115 (2016) 228–235.10.1016/j.poly.2016.05.017Suche in Google Scholar

Wang, L.; Ma, J. C.; Dong, W. K.; Zhu, L. C.; Zhang, Y.: A novel self-assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: Synthesis, structure, and photophysical properties. Z. Anorg. Allg. Chem. 642 (2016) 834–839.10.1002/zaac.201600125Suche in Google Scholar

Dong, W. K.; Ma, J. C.; Zhu, L. C.; Sun, Y. X.; Sunday, F. A.; Zhang, Y.: A series of heteromultinuclear zinc(II)-lanthanide(III) complexes based on 3-MeOsalamo: syntheses, structural characterizations, and luminescent properties. Cryst. Growth Des. 14 (2016) 6903–6914.10.1021/acs.cgd.6b01067Suche in Google Scholar

Dong, W. K.; Sunday, F. A.; Zhang, Y.; Sun, Y. X.; Dong, X. Y.: A reversible ’turn-on’ fluorescent sensor for selective detection of Zn2+. Sens. Actuators B 238 (2017) 723–734.10.1016/j.snb.2016.07.047Suche in Google Scholar

Dong, W. K.; Sun, Y. X.; Zhao, C. Y.; Dong, X. Y.; Xu, L.: Synthesis, structure and properties of supramolecular Mn(II), Co(II), Ni(II) and Zn(II) complexes containing Salen-type bisoxime ligands. Polyhedron 29 (2010) 2087–2097.10.1016/j.poly.2010.04.006Suche in Google Scholar

Received: 2017-4-16
Accepted: 2017-10-17
Published Online: 2017-11-15
Published in Print: 2018-1-26

©2018 Hao-Ran Jia et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
