Crystal structure of (E)-2-chloro-6-(((1,3-dihydroxy-2-(oxidomethyl)propan-2-yl)imino)methyl)phenolate-κ3N,O,O’)manganese(IV), C22H24Cl2MnN2O8

  • Xindi Xu , Xia Wang , Hui Tian , Man Wang und Qiong Wu ORCID logo EMAIL logo
Veröffentlicht/Copyright: 23. Dezember 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 2

Abstract

C22H24Cl2MnN2O8, monoclinic, C2/c (no. 15), a = 11.0944(4) Å, b = 18.2945(9) Å, c = 11.9283(5) Å, β = 114.3299(12)°, V = 2206.03(16) Å3, Z = 4, Rgt(F) = 0.0305, wRref(F2) = 0.0791, T = 150.0 K.

CCDC no.: 2043238

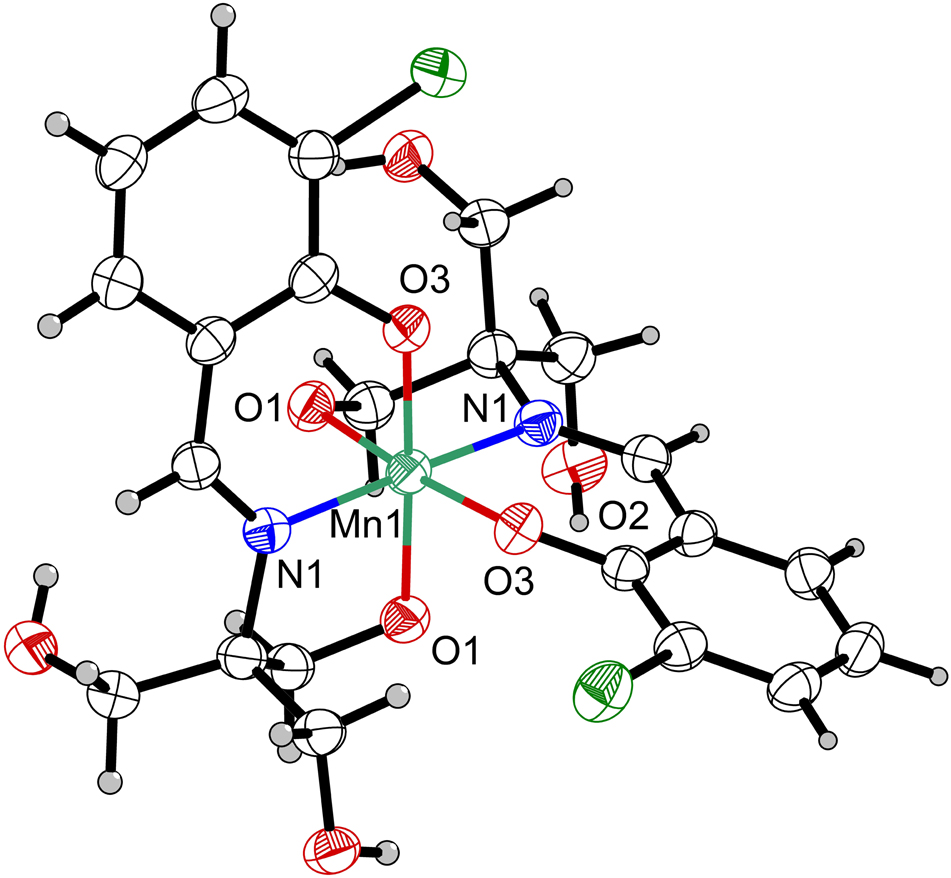

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Brown block
Size:0.18 × 0.16 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.90 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:33,565, 2266, 0.066
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1872
N(param)refined:161
Programs:CrysAlisPRO [1], Olex2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.5000000.58763 (2)0.2500000.02567 (13)
Cl10.42717 (6)0.74463 (3)0.53136 (5)0.04014 (16)
O10.50247 (14)0.51668 (8)0.13874 (13)0.0290 (3)
O20.88166 (17)0.43913 (9)0.39627 (16)0.0397 (4)
H20.8397440.4529770.4371830.060*
O30.51244 (14)0.66304 (8)0.36365 (13)0.0288 (3)
O40.74017 (15)0.53306 (9)0.03484 (14)0.0341 (4)
H40.6615790.522199−0.0109450.051*
N10.69543 (16)0.57920 (10)0.31713 (16)0.0268 (4)
C10.6089 (2)0.67305 (11)0.47273 (19)0.0275 (4)
C20.5859 (2)0.71179 (12)0.5648 (2)0.0306 (5)
C30.6852 (2)0.72576 (12)0.6789 (2)0.0330 (5)
H30.6658390.7513800.7388080.040*
C40.8135 (2)0.70245 (12)0.7067 (2)0.0337 (5)
H4A0.8823340.7127240.7849300.040*
C50.8402 (2)0.66445 (12)0.6201 (2)0.0315 (5)
H50.9281580.6488490.6390910.038*
C60.7398 (2)0.64828 (11)0.50422 (19)0.0276 (4)
C70.7762 (2)0.60517 (11)0.42172 (19)0.0281 (4)
H70.8675830.5950260.4465790.034*
C80.7371 (2)0.52962 (12)0.2398 (2)0.0286 (4)
C90.8714 (2)0.49276 (13)0.3074 (2)0.0326 (5)
H9A0.8967360.4697810.2451300.039*
H9B0.9373740.5313760.3486930.039*
C100.7426 (2)0.57699 (12)0.1344 (2)0.0314 (5)
H10A0.6661710.6108360.1041920.038*
H10B0.8244040.6067210.1663590.038*
C110.6217 (2)0.47526 (12)0.1890 (2)0.0299 (5)
H11A0.6301800.4443720.1245220.036*
H11B0.6214900.4430940.2556910.036*

Source of material

3-Chlorosalicylaldehyde 0.0156 g (1.0 mmol) and 0.1210 g phenylenediamine (1.0 mmol) were successively added to 30 ml methanol solution, the obtained yellow suspension was then stirred at room temperature for 2 h. After this, 0.245 g Mn(OAc)2⋅4H2O (0.1 mmol) was added to the aforementioned solution and the resulting dark brown mixture was further stirred for another 2 h and filtered. The acquired black filtrate was sealed in a beaker with cling film and kept undisturbed at room temperature. Black block crystals of the title compound were afforded after 10 days by slow evaporation.

Experimental details

The structure was solved with the Olex2 program [2] as an interface togetherwith the SHELXT and SHELXL programs [3], [4]. All H atoms were placed in geometrically idealized positions and refined using a riding model, with O–H = 0.84 (phenolic hydroxyl), 0.95 Å (aryl), and with Uiso(H) = 1.2 Ueq(C).

Comment

The introduction of multidentate Schiff-base ligands that can both chelate and bridge metal ions, represents a promising route for the isolation of novel metallic complexes. So far, a number of complexes with unexpected geometries and properties have been synthesized via the combination of different multidentate Schiff-base ligands and 3d/4f metal ions [5], [6]. However, related research on halogenated multidentate ligands is still at an early stage. As a part of our current research interest on the exploration of the regulating effect of Schiff base ligands on transition metal complexes [7], [8], [9], we report herein a new manganese complex constructed by a halogenated multidentate ligand.

Single-crystal X-ray diffraction reveals that the title compound crystallizes in the monoclinic space group C2/c (no. 15). The asymmetric unit of the title structure contains one half of a mononuclear Mn(IV) complex. In this complex, hexa-coordinated Mn is located on a twofold axis (see the figure), and is coordinated by four O atoms and two N atom derived from two crystallographically dependent ligands. The bond lengths of Mn–O(N) are in the range of 1.8598(16)–1.9835(18) Å, and the bond angles of O(N)–Mn–O vary from 84.03(7) to 174.57(7)°.

Corresponding author: Qiong Wu, Department of Chemical Science and Technology, Kunming University, Kunming, Yunnan65200, P.R. China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 31760257

Funding source: Yunnan Local Undergraduate Universities

Award Identifier / Grant number: 2017FH001-002

Funding source: The Reserve Academic and Technical Leaders of Yunnan Province

Award Identifier / Grant number: 2019HB098

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Fund for Less Developed Regions of the National Natural Science Foundation of China (No. 31760257); Joint Basic Research Program (partial) of Yunnan Local Undergraduate Universities (2017FH001-002). The Reserve Academic and Technical Leaders of Yunnan Province (2019HB098).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPRO Software System; Agilent Technologies UK Ltd: Oxford, UK, 2015.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

5. Miyasaka, H., Saitoh, A., Abe, S. Magnetic assemblies based on Mn(III) salen analogues. Coord. Chem. Rev. 2007, 251, 2622–2664. https://doi.org/10.1016/j.ccr.2007.07.028.Suche in Google Scholar

6. Kachi-Terajima, C., Ishii, R., Tojo, Y., Fukuda, M., Kitagawa, Y., Asaoka, M., Miyasaka, H. Ferromagnetic exchange coupling in a family of MnIII salen-type Schiff-base out-of-plane dimers. J. Phys. Chem. C 2017, 121, 12454–12468. https://doi.org/10.1021/acs.jpcc.7b03336.Suche in Google Scholar

7. Li, Y., Wu, Q., Lecren, L., Clérac, R. Synthesis, structure and magnetism of new polynuclear transition metal aggregates assembled with Schiff-base ligand and anionic N-donor ligands. J. Mol. Struct. 2008, 890, 339–345. https://doi.org/10.1016/j.molstruc.2008.05.044.Suche in Google Scholar

8. Wu, Q., Tang, Y., Liu, D., Zi, Q., Liu, F., Xiao, J. Crystal structure of bis(6,6′-((ethane-1,2-diylbis(azanylylidene))bis(methanylylidene))bis(2,4-diiodophenolato)-κ4N,N′,O,O′)cer(IV), C32H20CeI8N4O4. Z. Kristallogr. NCS 2019, 234, 1–2.10.1515/ncrs-2017-0241Suche in Google Scholar

9. Yuan, G., Dengwu, W., Xiaoping, H., Liguo, Y., Cuihong, Z. Crystal structure of bis(5-ethoxy-2-(((1-hydroxy-2-methyl-3-oxidopropan-2-yl)imino)methyl)phenolato-κ3N,O,O′)manganese(IV)-methanol (1/1), C27H38MnN2O9. Z. Kristallogr. NCS 2020, 235, 977–978. https://doi.org/10.1515/ncrs-2020-0134.Suche in Google Scholar

Received: 2020-11-14
Accepted: 2020-12-04
Published Online: 2020-12-23
Published in Print: 2021-03-26
