The crystal structure of (E)-2-(2-((2-picolinoylhydrazono)methyl)phenoxy)acetic acid dihydrate, C15H17N3O6

  • Tai Xi-Shi ORCID logo , Ren Zhen , Liu Li-Li , Zhang Ai-Ling EMAIL logo and Wang Li-Hua
Published/Copyright: December 3, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 2

Abstract

C15H17N3O6, triclinic, P1‾ (no. 2), a = 7.2155(8) Å, b = 10.7519(8) Å, c = 10.8562(8) Å, α = 107.910(7), β = 97.087(8), γ = 100.409(7) V = 773.69(12) Å3, Z = 2, Rgt(F) = 0.0500, wRref(F2) = 0.1238, T = 150(1) K.

CCDC no.: 2043966

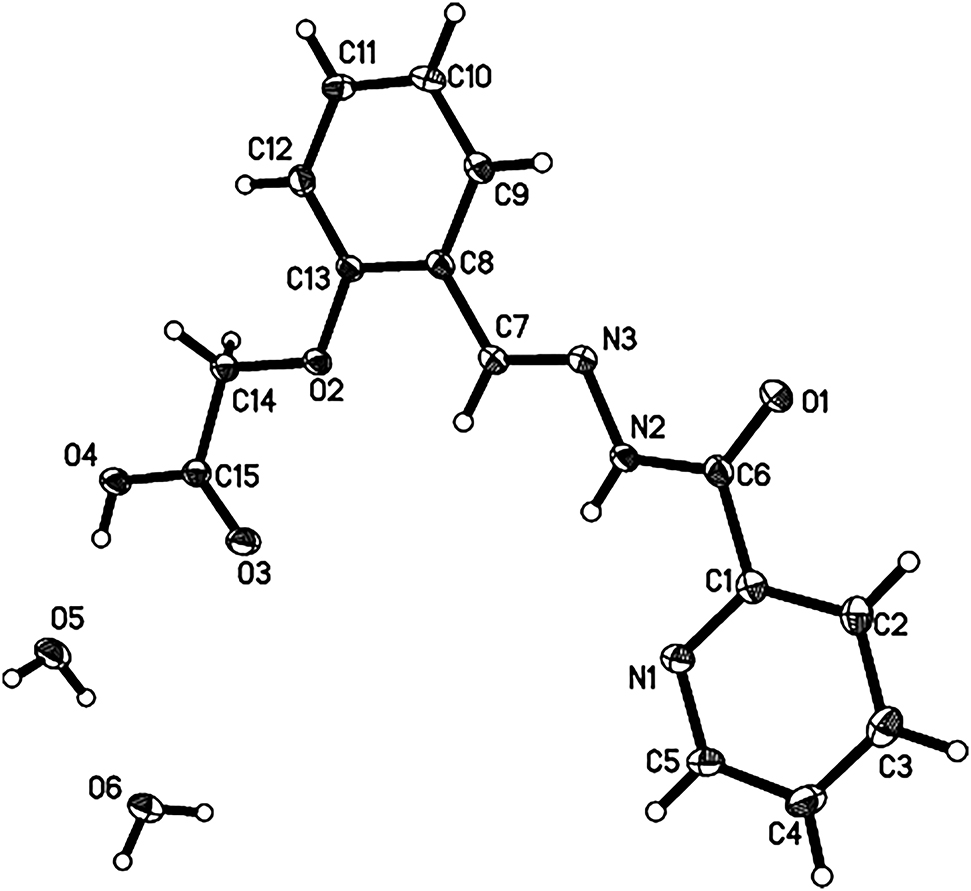

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.12 × 0.10 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.11 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:5320, 2732, 0.042
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1836
N(param)refined:224
Programs:Bruker [1], Olex2 [2], SHELX [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.6069 (3)0.83791 (15)0.51295 (15)0.0343 (5)
O20.8323 (2)0.24274 (14)0.43498 (14)0.0276 (4)
O30.8027 (3)0.11628 (15)0.18016 (15)0.0361 (5)
O40.9119 (3)−0.05242 (15)0.21748 (15)0.0328 (5)
H40.895523−0.0820090.1367620.049*
N10.5153 (3)0.65522 (18)0.17074 (18)0.0302 (5)
N20.6282 (3)0.62735 (17)0.39873 (17)0.0235 (5)
H20.6065170.5657280.3226610.028*
N30.7051 (3)0.60268 (18)0.50855 (17)0.0231 (5)
C10.5115 (3)0.7574 (2)0.2787 (2)0.0249 (6)
C20.4448 (4)0.8691 (2)0.2737 (2)0.0296 (6)
H2A0.4447820.9379790.3506670.036*
C30.3783 (4)0.8755 (2)0.1516 (3)0.0345 (7)
H30.3315820.9486890.1446310.041*
C40.3822 (4)0.7720 (3)0.0404 (3)0.0379 (7)
H4A0.3390040.774163−0.0431000.046*
C50.4511 (4)0.6653 (3)0.0550 (2)0.0371 (7)
H50.4528590.595767−0.0208400.044*
C60.5864 (3)0.7461 (2)0.4083 (2)0.0246 (6)
C70.7509 (3)0.4901 (2)0.4857 (2)0.0226 (6)
H70.7293950.4320380.3991530.027*
C80.8361 (3)0.4496 (2)0.5918 (2)0.0221 (5)
C90.8820 (4)0.5367 (2)0.7218 (2)0.0281 (6)
H90.8557930.6214960.7413770.034*
C100.9652 (4)0.4996 (2)0.8219 (2)0.0318 (6)
H100.9956370.5590810.9081660.038*
C111.0035 (4)0.3734 (2)0.7935 (2)0.0294 (6)
H111.0596750.3480530.8610000.035*
C120.9590 (4)0.2849 (2)0.6659 (2)0.0262 (6)
H120.9842940.1999230.6475990.031*
C130.8768 (3)0.3223 (2)0.5652 (2)0.0215 (5)
C140.8914 (4)0.1193 (2)0.4014 (2)0.0267 (6)
H14A0.8162430.0571630.4349230.032*
H14B1.0256640.1345070.4397760.032*
C150.8618 (4)0.0624 (2)0.2544 (2)0.0247 (6)
O50.8818 (3)−0.1644 (2)−0.03305 (16)0.0407 (5)
H5A0.979458−0.145209−0.0659530.061*
H5B0.780487−0.180286−0.0896710.061*
O60.5732 (3)−0.2216 (2)−0.23826 (17)0.0445 (5)
H6A0.472136−0.191659−0.2334320.067*
H6B0.607254−0.223954−0.3109320.067*

Source of material

The title compound has been synthesized according to the following method: a mixture of 0.0895 g 2-formyl phenoxyacetic acid (0.5 mmol), 0.0685 g pyridine-2-carbohydrazide (0.5 mmol) and 0.020 g sodium hydroxide (0.5 mmol) were stirred and dissolved in 10 mL ethanol-water (v:v = 1:1). After complete dissolution, 0.0595 g calcium perchlorate hydrate (0.25 mmol) was added to the above solution. The reaction mixture was stirred for 3 h at 70 °C, cooled to room temperature and filtered. The colorless crystals of the title compound were obtained from the solution after 25 days.

Experimental details

The hydrogen atoms were positioned geometrically (C-H = 0.93–0.97 Å, N-H = 0.86 Å and O-H = 0.82–0.85 Å). Their Uiso values were set to 1.2Ueq or 1.5Ueq of the parent atoms.

Comment

Hydrazones and their metal complexes have found considerable applications in catalysis [5], and some show anticancer and antimicrobial activities [6], [7], or are used as electrochemical sensors [8]. Our research group has been devoted to the study of hydrazones [9], [10], [11].

The title compound consists of one (E)-2-(2-((2-picolinoylhydrazono)methyl)phenoxy)acetic acid molecule and two lattic water molecules (the Figure). The bond distance of C7-N3 is 1.272(2) Å, which is shortest among those of C6-N2 (1.341(2) Å), C1-N1 (1.344(3) Å) and C5-N1 (1.328(3) Å), showing that the C7-N3 bond is a double bond [12], [13]. The bond distances of C6-O1 (1.226(3) Å) and C15-O3 (1.208(2) Å) are shorter than that of C15-O4 (1.307(2) Å), showing that the C6-O1 and C15-O3 bonds are also double bonds. The dihedral angle between the benzene ring (C8-C9-C10-C11-C12-C13) and pyridine ring (C1-C2-C3-C4-C5-N1) is 8.0°, indicating that the whole hydrazone molecule is almost coplanar. In the crystal packing, the chain structure was formed by intermolecular O-H⋯O hydrogen bonds.

Corresponding author: Zhang Ai-Ling, College of Chemistry and Chemical Engineering, Weifang University, Weifang, Shandong, 261061, P.R. China, E-mail:

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21171132

Funding source: Natural Science Foundation of Shandong

Award Identifier / Grant number: ZR2014BL003

Funding source: the project of Shandong Province Higher Educational Science and Technology Program

Award Identifier / Grant number: J14LC01

Funding source: Science Foundation of Weifang

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: the National Natural Science Foundation of China (No. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the project of Shandong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Search in Google Scholar

5. Taghizadeh, M.-J., Karimi, H., Mirzaie, A. Zeolite-encapsulated Mn(II) complex: a new nano catalyst for the synthesis of modafinil and its derivatives. Lett. Org. Chem. 2019, 16, 541–549; https://doi.org/10.2174/1570178615666180622123944.Search in Google Scholar

6. Muluk, M.-B., Dhumal, S.-T., Rehman, N.-N.-M.-A., Dixit, P.-P., Kharat, K.-R., Haval, K.-P. Synthesis, anticancer and antimicrobial evaluation of new (E)-N′-benzylidene-2-(2-ethylpyridin-4-yl)- 4-methylthiazole-5-carbohydrazides. ChemistrySelect 2019, 4, 8993–8997; https://doi.org/10.1002/slct.201902030.Search in Google Scholar

7. Aradhyula, B.-P.-R., Joshi, N., Poluri, K.-M., Kollipara, M.-R. Synthesis and antibacterial studies of rhodium and iridium complexes comprising of dipyridyl hydrazones. J. Mol. Struct. 2018, 1164, 191–199; https://doi.org/10.1016/j.molstruc.2018.03.058.Search in Google Scholar

8. Ling, L., Hu, J.-F., Zhang, H. Ferrocene containing N-tosyl hydrazones as optical and electrochemical sensors for Hg2+, Cu2+ and F− ions. Tetrahedron 2019, 75, 2472–2481; https://doi.org/10.1016/j.tet.2019.03.023.Search in Google Scholar

9. Tai, X.-S., Meng, Q.-G., Liu, L.-L. Synthesis, crystal structure, and cytotoxic activity of a novel eight-coordinated dinuclear Ca(II)-schiff base complex. Crystals 2016, 6, 109; https://doi.org/10.3390/cryst6090109.Search in Google Scholar

10. Tai, X.-S., Wang, L.-H, Liu, L.-L., Zhou, X.-J. The crystal structure of (E)-N′-((2-hydroxynaphthalen-1-yl)methylene)-2- phenylacetohydrazide, C19H16O2N2. Z. Kristallogr. NCS 2019, 234, 723–724. https://doi.org/10.1515/ncrs-2019-0074.Search in Google Scholar

11. Tai, X.-S., Li, P.-F. The crystal structure (E)-4-methyl- N′-(2-nitrobenzylidene)benzenesulfonohydrazide, C14H13N3O4S. Z. Kristallogr. NCS 2017, 232, 1031–1032. https://doi.org/10.1515/ncrs-2017-0166.Search in Google Scholar

12. Liu, B.-Y., Liu, Z., Wang, G.-R. 2-(2-{[2-(2–Pyridylcarbonyl)hydrazono] methyl}phenoxy)acetic acid. Acta Crystallogr. 2010, E66, o26; https://doi.org/10.1107/s160053680905082x.Search in Google Scholar

13. Xia, J.-H., Liu, B.-Y., Liu, Z. 2-(2-{[2-(4–Pyridylcarbon-yl)hydrazinyl idene]methyl}phenoxy)acetic acid. Acta Crystallogr. 2010, E66, o1341; https://doi.org/10.1107/s1600536810017083.Search in Google Scholar

Received: 2020-10-12
Accepted: 2020-11-12
Published Online: 2020-12-03
Published in Print: 2021-03-26

© 2020 Tai Xi-Shi et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
