The crystal structure of 4-hydroxybenzene-1,3-diaminium dichloride, C6H10Cl2N2O

  • Kina Muller , Eric C. Hosten ORCID logo und Richard Betz ORCID logo EMAIL logo
Veröffentlicht/Copyright: 23. November 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 2

Abstract

C6H10Cl2N2O, triclinic, P1‾ (no. 2), a = 4.8274(4) Å, b = 8.0556(7) Å, c = 12.0648(10) Å, α = 71.237(4)°, β = 78.739(4)°, γ = 72.950(4)°, V = 422.06(6) Å3, Z = 2, Rgt(F) = 0.0225, wRref(F2) = 0.0614, T = 190 K.

CCDC no.: 2042540

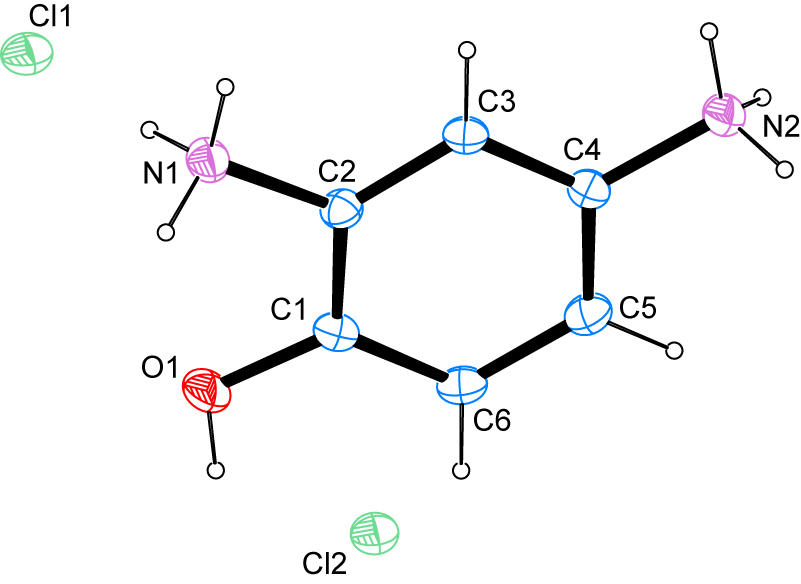

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless rod
Size:0.52 × 0.19 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.71 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:7218, 2091, 0.022
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2025
N(param)refined:104
Programs:Bruker [1], [2], SHELX [3], WinGX/ORTEP [4], Mercury [5], PLATON [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomXyzUiso*/Ueq
Cl10.36516 (9)0.80272 (5)0.40539 (3)0.02232 (10)
Cl20.79378 (8)0.87456 (5)0.90263 (3)0.02083 (9)
O10.2879 (3)0.81061 (16)0.71567 (10)0.0231 (2)
H10.1492260.8166300.7696550.035*
N10.7883 (3)0.78913 (17)0.57529 (11)0.0193 (3)
H1A0.9752520.7690810.5403520.029*
H1B0.7434850.8919810.5981600.029*
H1C0.6651460.8016480.5232160.029*
N21.1613 (3)0.17191 (17)0.82886 (11)0.0192 (3)
H2A1.3099170.1739630.7693990.029*
H2B1.0832910.0778230.8375100.029*
H2C1.2303540.1582240.8970760.029*
C10.4947 (3)0.6551 (2)0.75050 (13)0.0171 (3)
C20.7577 (3)0.6362 (2)0.67816 (12)0.0160 (3)
C30.9794 (3)0.4806 (2)0.70059 (13)0.0163 (3)
H31.1555940.4686490.6491110.020*
C40.9365 (3)0.3419 (2)0.80084 (12)0.0162 (3)
C50.6817 (4)0.3589 (2)0.87694 (13)0.0188 (3)
H50.6593230.2634980.9463160.023*
C60.4599 (3)0.5149 (2)0.85182 (13)0.0188 (3)
H60.2840570.5265280.9035270.023*

Source of material

The compound was obtained commercially (Merck). Crystals were taken directly from the provided product.

Experimental details

Carbon-bound H atoms were placed in calculated positions (C–H 0.95 Å) and were included in the refinement in the riding model approximation, with U(H) set to 1.2Ueq(C). The H atoms of the ammonium groups were allowed to rotate with a fixed angle around the N–C bond to best fit the experimental electron density (HFIX 137 in the SHELX program [3]), with U(H) set to 1.5Ueq(N). The H atom of the hydroxyl groups was allowed to rotate with a fixed angle around the C–O bond to best fit the experimental electron density (HFIX 147 in the SHELX program [3]), with U(H) set to 1.5Ueq(O). The compound was refined as a twin with a ratio of 83.2:16.8 (Twin law: 1 0 0 1 −1 0 1 0 −1).

Comment

The effect of size and steric pretense of large ions on chemical and spectroscopic properties of compounds have been a focus of research for many decades. Among the many effects that can be attributed to the spatial requirements of counterions have been the glass transition temperature in ionomers [7], surfactant modifying properties [8], the charge transfer in radical ions [9] and polymer-modified electrodes [10] as well as the structural and vibrational spectroscopic behaviour of DNA building blocks [11]. Furthermore, the benefit of choosing the adequate size of counterions to crystallize ionic compounds has been confirmed on many occasions [12]. In continuation of our interest in metrical features of large cations [13], [14], [15] the title structure has been determined. Furthermore, the molecular and crystal structure of meta-phenylene diamine has been determined earlier [16].

The structure shows the presence of a hydroxy-substituted meta-phenylenediamine with the latter being present as its diammonium cation. The charge is counterbalanced by two chloride ions. C–N bond lengths are found at 1.4598(18) Å and 1.4634(19)Å which is in good agreement with other anilinium derivatives deposited with the Cambridge Structural Database [17]. Intracyclic C–C–C angles cover a range of 118.75(14)–122.22(13)° with the largest angle found on the ammonium-group bearing carbon atom in ortho position to the hydroxyl group and the smallest angle present on the carbon atom in between the two ammonium-group bearing carbon atom. The molecule is essentially planar with the least-squares plane as defined by all non-hydrogen atoms showing the largest deviation for the oxygen atom with only −0.057(1) Å.

In the crystal, classical hydrogen bonds of the O–H⋯Cl and the N–H⋯Cl type are observed next to C–H⋯Cl contacts whose range falls by more than 0.1 Å below the sum of van-der–Waals radii of the atoms participating in them. The classical hydrogen bonds involve all hydrogen atoms bonded to the heteroatoms as donors and both chloride anions as acceptors. In terms of graph-set analysis [18], the descriptor for these contacts is DDDDDDD on the unary level. The C–H⋯Cl contacts are supported by both C–H groups and employ the two different chloride anions present in the asymmetric unit as acceptors. Their graph-set descriptor on the unary level is determined as DD. In total, the entities of the crystal structure are connected to a three-dimensional network.

Corresponding author: Richard Betz, Department of Chemistry, Nelson Mandela University, Summerstrand Campus (South) University Way, Summerstrand, PO Box 77000, Port Elizabeth, 6031, South Africa, E-mail: .

Funding source: National Science Foundation

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: National Research Foundation.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Suche in Google Scholar

2. Bruker. SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Suche in Google Scholar

3. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Suche in Google Scholar

5. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez–Monge, L., Taylor, R., van de Streek, J., Wood, P. A. Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470; https://doi.org/10.1107/s0021889807067908.Suche in Google Scholar

6. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Suche in Google Scholar

7. Enokida, J. S., Hu, W., Fang, H., Morgan, B. F., Beyer, F. L., Winter, H. H., Coughlin, E. B. Modifying the structure and dynamics of ionomers through counterion sterics. Macromolecules 2020, 53, 1767–1776; https://doi.org/10.1021/acs.macromol.9b02116.Suche in Google Scholar

8. Oh, S. G., Shah, D. O. Effect of counterions on the interfacial tension and emulsion droplet size in the oil/water/dodecyl sulfate system. J. Phys. Chem. 1993, 97, 284–286; https://doi.org/10.1021/j100104a003.Suche in Google Scholar

9. Piotrowiak, P., Miller, J. R. Counterion effects in intramolecular charge transfer in radical anions. J. Phys. Chem. 1993, 97, 13052–13060; https://doi.org/10.1021/j100152a004.Suche in Google Scholar

10. Mathias, M. F., Haas, O. Effect of counterion type on charge transport at redox polymer-modified electrodes. J. Phys. Chem. 1993, 97, 9217–9225; https://doi.org/10.1021/j100138a025.Suche in Google Scholar

11. Minguirbara, A., Vamhindi, B. S. D. R., Koyambo–Konzapa, S. J., Nsangou, M. Effects of counterions and solvents on the geometrical and vibrational features of dinucleoside-monophosphate (dNMP): case of 3′,5′-dideoxycytidine-monophosphate (dDCMP). J. Mol. Model. 2020, 26, article #99.10.1007/s00894-020-04369-6Suche in Google Scholar PubMed

12. Roof, L. C., Kolis, J. W. New developments in the coordination chemistry of inorganic selenide and telluride ligands. Chem. Rev. 1993, 93, 1037–1080; https://doi.org/10.1021/cr00019a010.Suche in Google Scholar

13. Hosten, E. C., Betz, R. Redetermination of the crystal structure of benzyltriethylammoniumchloride monohydrate at 200 K – localization of hydrogen atoms, C13H24ClNO. Z. Kristallogr. NCS 2015, 230, 21–22; https://doi.org/10.1515/ncrs-2014-9024.Suche in Google Scholar

14. Abrahams, A., van Brecht, B., Betz, R. Bis(pyridin-2-ylmethyl)ammonium nitrate. Acta Crystallogr. 2013, E69, o661; https://doi.org/10.1107/s1600536813008593.Suche in Google Scholar

15. Betz, R., Gerber, T., Hosten, E., Siddaraju, B. P., Yathirajan, H. S. Opipramol dihydrochloride. Acta Crystallogr. 2011, E67, o2994–o2995; https://doi.org/10.1107/s1600536811042280.Suche in Google Scholar

16. Betz, R., Klüfers, P., Mayer, P. m‐Phenylenediamine. Acta Crystallogr. 2008, E64, o2501; https://doi.org/10.1107/s1600536808039950.Suche in Google Scholar

17. Allen, F. H. The Cambridge Structural Database: a quarter of a million crystal structures and rising. Acta Crystallogr. 2002, B58, 380–388; https://doi.org/10.1107/s0108768102003890.Suche in Google Scholar

18. Bernstein, J., Davis, R. E., Shimoni, L., Chang, N.‐L. Patterns in hydrogen bonding: functionality and graph set analysis in crystals. Angew. Chem. Int. Ed. Engl. 1995, 34, 1555–1573; https://doi.org/10.1002/anie.199515551.Suche in Google Scholar
