Crystal structure of poly[(μ2-1,1′-(oxybis(4,1-phenylene)bis(1H-imidazole)-κ2N,N′)(μ2-1,3-benzenecarboxylato-κ3O,O′:O′′)zinc(II)] dihydrate, C26H22N4O7Zn

  • Bo-Tao Xu , Ze-Jun Mao , Li-Xiang He , Sheng-Cong Guo und Guo-Dong Zhang EMAIL logo
Veröffentlicht/Copyright: 22. Mai 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 5

Abstract

C26H22N4O7Zn, monoclinic, P21/c (no. 14), a = 9.1134(4) Å, b = 16.0238(7) Å, c = 17.8763(7) Å, β = 103.376(7)°, V = 2539.7(2) Å3, Z = 4, Rgt(F) = 0.0465, wRref(F2) = 0.0990, T = 293 K.

CCDC no.: 1911675

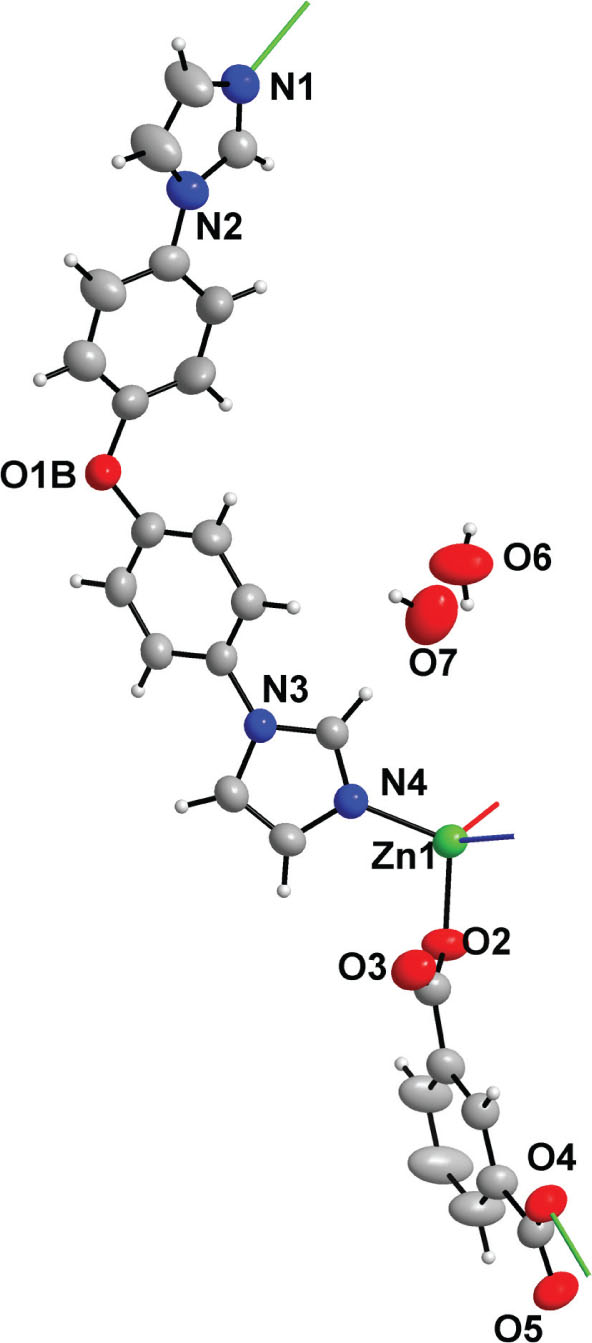

A part of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.28 × 0.22 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.02 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:39449, 5816, 0.060
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4311
N(param)refined:359
Programs:CrysAlisPRO [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.72498(3)0.61683(2)0.21061(2)0.04372(10)
O1Ba−0.2265(10)0.8226(11)−0.0412(5)0.071(2)
O1Ab−0.198(2)0.8557(16)−0.0411(9)0.073(3)
O20.8947(2)0.56790(11)0.17520(12)0.0571(5)
O30.7786(2)0.44453(13)0.16023(13)0.0653(6)
O41.1878(2)0.22390(11)0.25052(11)0.0533(5)
O51.4101(2)0.23970(13)0.22231(12)0.0623(5)
O60.3042(3)0.77922(17)0.2960(2)0.0960(9)
H6A0.3917970.7727630.2878620.144*
H6B0.2927130.8298290.3077140.144*
O70.1999(4)0.61475(19)0.2821(2)0.1144(10)
H7A0.2177640.6668340.2860660.172*
H7B0.1116080.6067560.2546500.172*
N1−0.6983(3)1.04238(15)0.20429(14)0.0552(6)
N2−0.6043(3)0.96479(15)0.12571(15)0.0572(6)
N30.3343(2)0.67437(13)0.05063(12)0.0447(5)
N40.5508(2)0.63327(14)0.12200(13)0.0491(5)
C1−0.3079(4)0.8629(2)0.00555(18)0.0712(9)
C2−0.2525(4)0.9058(3)0.0724(2)0.1019(15)
H2−0.1468240.9130370.0905490.122*
C3−0.3501(4)0.9385(3)0.1134(2)0.0879(13)
H3−0.3118500.9663990.1607220.105*
C4−0.5005(4)0.93041(18)0.08562(18)0.0560(7)
C5−0.5559(4)0.8892(2)0.0168(2)0.0683(9)
H5−0.6616230.884803−0.0033070.082*
C6−0.4578(4)0.8546(2)−0.0225(2)0.0671(8)
H6−0.4953340.825041−0.0690580.081*
C7−0.7541(4)0.9445(3)0.1151(2)0.0857(12)
H7−0.8080480.9044710.0801020.103*
C8−0.8089(4)0.9918(3)0.1636(2)0.0847(12)
H8−0.9101760.9905020.1689850.102*
C9−0.5772(3)1.02479(17)0.18004(17)0.0536(7)
H9−0.4820961.0509550.1983570.064*
C10−0.0805(3)0.7960(2)−0.01229(17)0.0650(8)
C11−0.0407(3)0.7575(2)0.05788(18)0.0640(8)
H11−0.1069820.7581510.0918160.077*
C120.0965(3)0.71794(18)0.07851(16)0.0527(7)
H120.1263830.6922680.1275820.063*
C130.1905(3)0.71523(16)0.02897(14)0.0436(6)
C140.1497(3)0.75301(18)−0.04217(15)0.0502(7)
H140.2147450.750801−0.0766940.060*
C150.0144(3)0.7937(2)−0.06229(16)0.0589(8)
H15−0.0144020.820490−0.1108830.071*
C160.4260(3)0.67430(17)0.12114(15)0.0491(7)
H160.4034180.7005850.1647790.059*
C170.5392(3)0.60610(19)0.04809(16)0.0551(7)
H170.6133390.5744580.0309760.066*
C180.4073(3)0.63108(18)0.00381(16)0.0549(7)
H180.3711700.620828−0.0496340.066*
C190.8900(3)0.48879(17)0.16214(16)0.0506(7)
C201.0342(3)0.45187(16)0.15294(16)0.0506(7)
C211.1231(4)0.49422(19)0.1121(2)0.0722(10)
H211.0891590.5458390.0881310.087*
C221.2604(5)0.4622(2)0.1060(3)0.0902(13)
H221.3193380.4910630.0769390.108*
C231.3123(4)0.3880(2)0.1422(2)0.0742(10)
H231.4081440.3668360.1391940.089*
C241.2247(3)0.34457(17)0.18268(16)0.0500(7)
C251.0855(3)0.37625(16)0.18707(15)0.0477(6)
H251.0242260.3457780.2138210.057*
C261.2812(3)0.26454(17)0.22092(16)0.0496(6)

  1. Occupancy: a = 0.64(3), b = 0.36(3).

Source of material

A mixture of C18H14N4O (2.6 mg), C8H6O4 (1.4 mg), Zn(NO3)2.6H2O (0.20 mg) and distilled H2O (5.0 mL) were introduced and sealed in a Teflon-lined stainless steel vessel (25 mL), which was heated to 130 oC for 48 h and then cooled to room temperature at a rate of 2 oC/h. Colorless rod crystals of the title compound yield (based on C18H14N4O) were prepared by filtration and dried in the air.

Experimental details

H atoms bonded to C atoms from organic ligands were positioned geometrically and refined using a riding model, with C—H = 0.93 Å, with Uiso(H) = 1.2 times Ueq(C).

Discussion

Nowadays, employing various metal cations and N-containing ligands or/and O-containing ligands to construct new coordination polymer had become an important method in synthesis. These coordination compounds always exhibit structural features and fuctions [4], [5], [6]. Up to data, many coordination compounds have been synthesized and used for ablation of human esophagus cancer cells.

The molecular structural unit of the title structure consists of one Zn(II) cation, one 1,1′-(oxybis(4,1-phenylene)bis(1H-imidazole) ligand, one 1,3-benzenecarboxylate anion and two isloated water molecules. In the structure, the Zn(II) cation is coordinated by two N atoms from two different neutral N-based ligands, and three O atoms from two carboxylato ligands. The bond distances of Zn(II)-N and Zn(II)-O are in the range of 1.950−1.965 Å to 1.984−1.992 Å. These neighboring molecular structural units are linked into a two-dimensional layered structure. The structural features of the title compound are similar those of [Ni(C18H14N4O)(C8H4O4)(H2O)2]n and [Mn(C18H14N4O)(C8H4O4)(H2O)]n [7]. The title compound and the above two known compounds exhibit two-dimensional layered structures.

References

1. Oxford Diffraction; CrysAlis PRO, Agilent Technologies, Version 1.171.35.15.Suche in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. 71 (2015) C3–C8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Song, X.-Q.; Peng, Y.-Q.; Cheng, G.-Q.; Wang, X.-R.; Liu, P.-P.; Xu, W.-Y.: Substituted group-directed assembly of Zn(II) coordination complexes based on two new structural related pyrazolone based Salen ligands: Syntheses, structures and fluorescence properties. Inorganica Chim. Acta. 427 (2015) 13–21.10.1016/j.ica.2014.12.008Suche in Google Scholar

5. Zhang, N.; Su, M.; Xu, G.; Li, H. Crystal structure of bis(N-(1-(pyrazin-2-yl)ethylidene)nicotinohydrazonato-κ3N,N′,O)cadmium(II) – methanol (1/1), C26H28N10O4Zn. Z. Kristallogr. NCS 233 (2018) 799–800.10.1515/ncrs-2017-0431Suche in Google Scholar

6. Xiao-Ling, L.; Ru-Meng, Z.; Li, L.: Crystal structure of diaqua-bis(5-carboxy-1-methyl-1H-imidazole-4-carboxylato-κ2N,O)zinc(II), C12H14N4O10Zn, Z. Kristallogr. NCS 233 (2018) 833–834.10.1515/ncrs-2018-0042Suche in Google Scholar

7. Hu, J.-S.; Shang, Y.-J.; Yao, X.-Q.; Qin, L.;Li, Y.-Z.; Guo, Z.-J.; Zheng, H.-G.; Xue, Z.-L.: Syntheses, structures, and photochemical properties of six new metal-organic frameworks based on aromatic dicarboxylate acids and V-shaped imidazole ligands. Cryst. Growth Des. 10 (2010) 4135–4142.10.1021/cg1008208Suche in Google Scholar

Received: 2019-03-14
Accepted: 2019-04-23
Published Online: 2019-05-22
Published in Print: 2019-09-25

©2019 Bo-Tao Xu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
