Crystal structure of dibromidobis(4-bromobenzyl)tin(IV), C14H12Br4Sn

  • See Mun Lee , Kong Mun Lo and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: June 19, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C14H12Br4Sn, monoclinic, I2/a (no. 15), a = 12.6379(2) Å, b = 4.9674(1) Å, c = 26.1845(4) Å, β = 94.507(1)°, V = 1638.71(5) Å3, Z = 4, Rgt(F) = 0.0142, wRref(F2) = 0.0358, T = 100 K.

CCDC no.: 1905383

The molecular structure of the title complex is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless prism
Size:0.07 × 0.03 × 0.02 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:23.7 mm−1
Diffractometer, scan mode:XtaLAB Synergy, ω
θmax, completeness:67.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:10027, 1450, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1418
N(param)refined:87
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Sn0.250000−0.00473(4)0.5000000.01254(7)
Br10.39552(2)0.32357(5)0.52646(2)0.01689(7)
Br20.41779(2)0.70829(5)0.27602(2)0.02498(8)
C10.29003(19)−0.1656(5)0.42709(7)0.0202(5)
H1A0.350663−0.2910590.4328520.024*
H1B0.228858−0.2686880.4113260.024*
C20.31845(18)0.0518(5)0.39113(8)0.0163(4)
C30.42172(17)0.1525(5)0.39318(7)0.0188(5)
H30.4732170.0860320.4184480.023*
C40.45068(18)0.3473(5)0.35910(8)0.0193(5)
H40.5213380.4139150.3608040.023*
C50.37503(19)0.4434(5)0.32252(8)0.0179(4)
C60.27165(18)0.3493(5)0.31938(8)0.0195(5)
H60.2206050.4167880.2940060.023*
C70.24382(18)0.1548(5)0.35391(7)0.0189(5)
H70.1728560.0903810.3522470.023*

Source of material

The melting point (uncorrected) was measured on an Mel-Temp II melting point apparatus. 1H and 13{1H}C NMR spectra were recorded in DMSO-d6 solution on a Bruker Ascend 400 MHz NMR (Billerica, MA, USA) spectrometer.

Di(4-bromobenzyl)tin dibromide was prepared from the direct reaction of 4-bromobenzyl bromide (Merck, 0.50 g, 2.0 mmol) and metallic tin powder (Sigma-Aldrich, 0.12 g, 1.0 mmol) in toluene according to a literature procedure [5]. After refluxing for 5 h, fine white powders were observed in the mixture and the contents of the reaction vessel became grey. The obtained slurry was filtered after cooling and the residue was extracted with acetone/toluene. Colourless crystals suitable for crystallographic studies were obtained from the slow evaporation of the filtrate. Yield: 0.32 g (52%). M. pt: 453−455 K. 1H NMR (DMSO-d6, p.p.m.): δ 7.19−7.21 (d, 4H, PhH, 3J = 8.32 Hz), 7.38−7.40 (d, 4H, PhH, 3J = 8.32 Hz), 3.10 (s, 4H, Ph—CH2). 13C{1H} NMR (DMSO-d6, p.p.m.): δ 50.8 (–CH2), 118.1, 139.9, 132.1, 139.4 (Ph—C).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95−0.99 Å) and refined as riding with Uiso(H) = 1.2Ueq(C).

Comment

Interest in diorganotin dihalido molecules similar to the title compound [6], [7] relate to the ability of the diorganotin centre to increase its coordination number via intra- and intermolecular Sn⋯X secondary [8] interactions. Besides structural consequences, the formation of intramolecular Sn⋯X interactions has implications for the stability and function of organotin species investigated as potential anti-tumour agents [9].

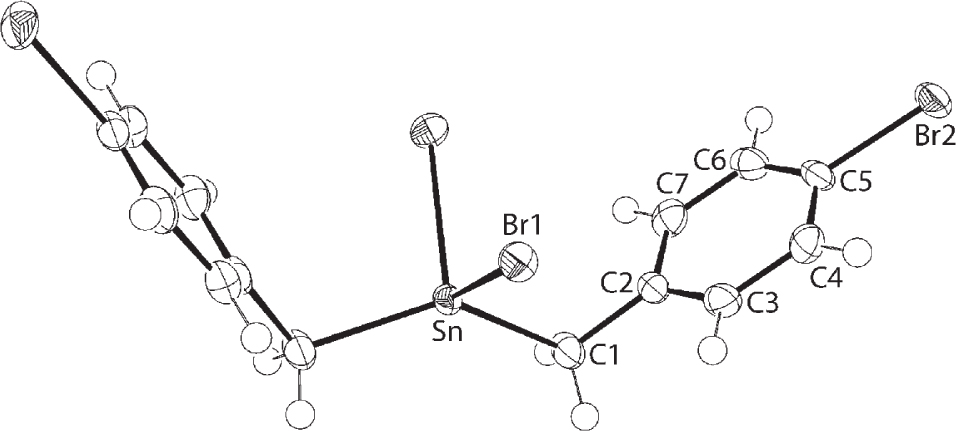

The molecule is illustrated in the figure (70% displacement ellipsoids; unlabelled atoms are related by the symmetry operation (i) 1/2 − x, y, 1 − z). The title complex has crystallographic two-fold symmetry with the tin atom lying on the two-fold axis. The tin atom is tetrahedrally coordinated by two bromido atoms [Sn—Br1 = 2.5143(2) Å] and two methylene-carbon ligands [2.166(2) Å] derived from the 4-bromobenzyl substituents. The resulting Br2C2 donor set exhibits significant deviations from the regular tetrahedral geometry with the angles correlating with steric effects. Thus, the narrowest angle of 99.125(12)° is subtended by the bromido atoms and the widest angle of 136.70(12)° by the methylene-carbon atoms. From symmetry, the phenyl rings are orientated towards the same side of the molecule but, are splayed as seen in the dihedral angle between them of 88.7(5)°.

In the molecular packing, a three-dimensional architecture is sustained by a combination of side-on C—Br⋯π, secondary Sn⋯Br interactions and Br⋯Br halogen bonding. Globally, molecules assemble into columns parallel to the b-axis, with connections between them being of the type C—Br⋯π [C5—Br2⋯Cg(C2—C7)ii: Br2⋯Cg(C2—C7)ii = 3.5754(10) Å with angle at Br2 = 92.65(7)° for symmetry operation (ii) x, 1 + y, z] and Sn⋯Br [Sn⋯Brii = 3.8464(3) Å]. Interactions between columns to form layers in the ab-plane involve the coordinated bromido ligands [Br1⋯Br1iii = 3.5414(4) Å for (iii): 1 − x, 1 − y, 1 − z]. The layers are connected along the c-axis by bromo⋯bromo interactions [Br2⋯Br2iv = 3.5761(4) Å for (iv): 1 − x, −1/2 + y, 1/2 − z].

The crystal structure of the isostructural all-chloro derivative of the title compound is known [10]. The Cl—Sn—Cl and C—Sn—C angles in the literature known compound are 98.68(3) and 136.15(12)°, respectively, both marginally smaller than in the present structure.

Acknowledgements

Sunway University is thanked for supporting studies in organotin chemistry.

References

1. Agilent Technologies. CrysAlisPRO. Agilent Technologies, Santa Clara, CA, U.S.A. (2017).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Sisido, K.; Takeda, Y.; Kinugawa, Z.: Direct synthesis of organotin compounds I. di- and tribenzyltin chlorides. J. Am. Chem. Soc. 83 (1961) 538–541.10.1021/ja01464a008Search in Google Scholar

6. Buntine, M. A.; Kosovel, F. J.; Tiekink, E. R. T.: Supramolecular Sn⋯Cl associations in diorganotin dichlorides and their influence on molecular geometry as studied by ab initio molecular orbital calculations. CrystEngComm 5 (2003) 331–336.10.1039/B308922CSearch in Google Scholar

7. Vargas-Pineda, D. G.; Guardado, T.; Cervantes-Lee, F.; Metta-Magana, A. J.; Pannell, K. H.: Intramolecular chalcogen-tin interactions in [(o-MeEC6H4)CH2]2SnPh2-nCln (E = S, O, CH2; n = 0, 1, 2) and intermolecular chlorine-tin interactions in the meta- and para-methoxy isomers. Inorg. Chem. 49 (2010) 960–968.10.1021/ic901800cSearch in Google Scholar PubMed PubMed Central

8. Tiekink, E. R. T.: Supramolecular assembly based on emerging intermolecular interactions of particular interest to coordination chemists. Coord. Chem. Rev. 345 (2017) 209–228.10.1016/j.ccr.2017.01.009Search in Google Scholar

9. Holloway, L. N.; Pannell, K. H.; Whalen, M. M.: Effects of a series of triorganotins on ATP levels in human natural killer cells. Environ. Toxicol. Pharmacol. 25 (2008) 43–50.10.1016/j.etap.2007.08.008Search in Google Scholar PubMed PubMed Central

10. Kuang, D.-Z.; Feng, Y.-L.: Synthesis and crystal structure of bis(p-chlorobenzyl)tin dichloride. Chin. J. Inorg. Chem. 16 (2000) 603–606.Search in Google Scholar

Received: 2019-03-03
Accepted: 2019-03-25
Published Online: 2019-06-19
Published in Print: 2019-09-25

©2019 Lee See Mun et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
