The crystal structure of N-(7-(4-fluorobenzylidene)-3-(4-fluorophenyl)-3,3a,4,5,6,7-hexahydro-2H-indazole-2-carbonothioyl)benzamide, C28H23F2N3OS

  • Mohammad Hayal Alotaibi , Bakr F. Abdel-Wahab , Obaid Fahad Aldosari , Amany S. Hegazy , Benson M. Kariuki EMAIL logo and Gamal A. El-Hiti EMAIL logo
Published/Copyright: July 19, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C28H23F2N3OS, monoclinic, I2/a (no. 15), a = 20.3481(8) Å, b = 10.2647(4) Å, c = 23.6975(11) Å, β = 105.317(5)°, V = 4773.8(4) Å3, Z = 8, Rgt(F) = 0.0489, wRref(F2) = 0.1543, T = 296(2) K.

CCDC no.: 1920669

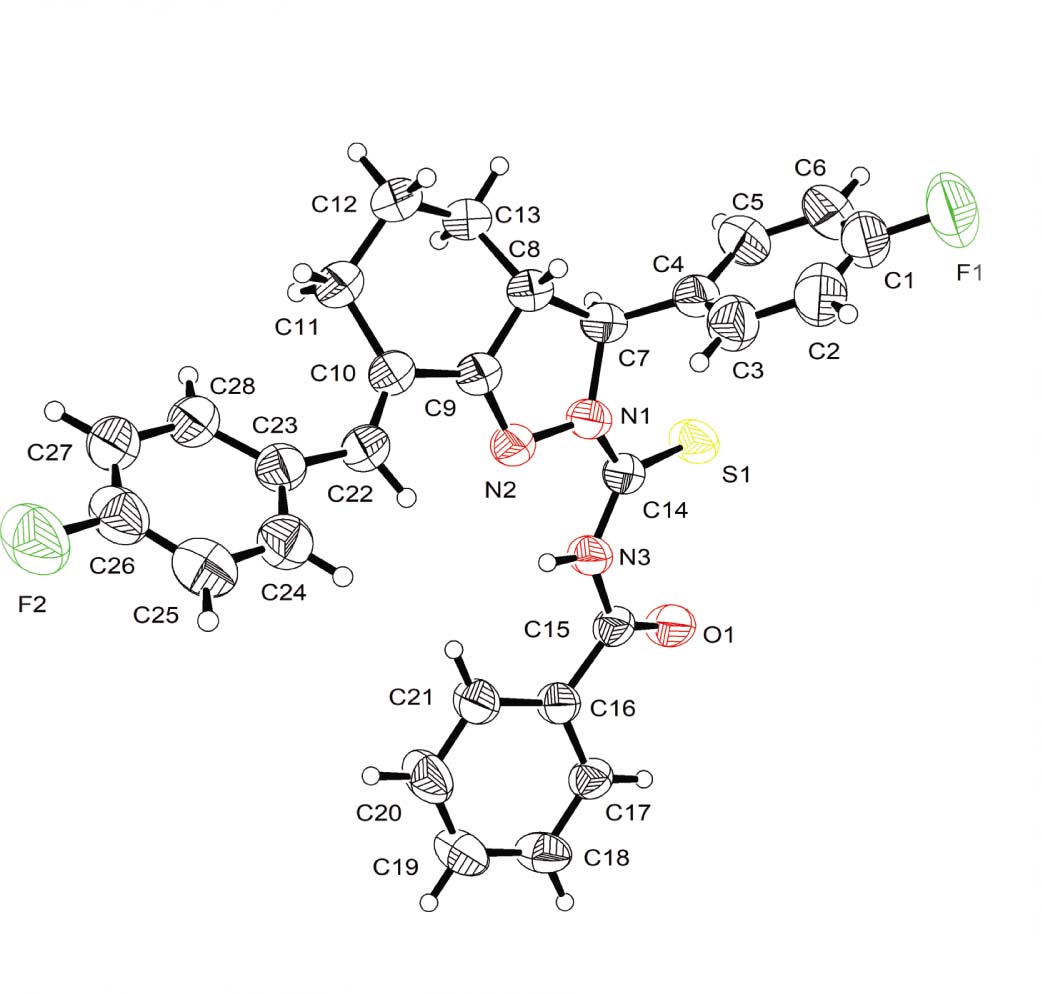

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.27 × 0.26 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.18 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:29.7°, >93% (up to 25.2, >99%)
N(hkl)measured, N(hkl)unique, Rint:39559, 6270, 0.032
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3722
N(param)refined:264
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX and ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.29286(13)−0.5248(3)0.24724(15)0.1024(9)
C20.30439(13)−0.3979(3)0.25847(12)0.0997(8)
H20.303263−0.3629850.2944250.120*
C30.31807(12)−0.3193(3)0.21515(11)0.0848(6)
H30.326086−0.2309240.2224490.102*
C40.32004(10)−0.3690(2)0.16194(10)0.0709(5)
C50.30884(14)−0.5001(2)0.15249(13)0.0966(8)
H50.310596−0.5365000.1169860.116*
C60.29482(16)−0.5791(3)0.19591(17)0.1128(10)
H60.286958−0.6677870.1894780.135*
C70.33851(10)−0.28349(19)0.11630(9)0.0673(5)
H70.334939−0.3336950.0804340.081*
C80.41031(9)−0.2236(2)0.13749(9)0.0687(5)
H80.426561−0.2372760.1798330.082*
C90.39820(9)−0.08113(19)0.12669(9)0.0656(5)
C100.45453(9)0.0119(2)0.13546(9)0.0672(5)
C110.52028(10)−0.0441(2)0.12734(11)0.0796(6)
H11A0.5581280.0008160.1536530.095*
H11B0.522371−0.0258310.0876940.095*
C120.52988(10)−0.1910(2)0.13815(11)0.0801(6)
H12A0.566937−0.2210340.1227790.096*
H12B0.542544−0.2072320.1799590.096*
C130.46581(10)−0.2688(2)0.10973(10)0.0767(6)
H13A0.452123−0.2532470.0678750.092*
H13B0.474220−0.3612450.1163970.092*
C140.22965(9)−0.16202(18)0.07109(9)0.0630(5)
C150.14029(8)0.00507(18)0.03167(9)0.0616(5)
C16a0.1329(3)0.1480(3)0.0181(3)0.061(2)
C17a0.0671(2)0.1981(6)0.0045(4)0.064(2)
H17a0.0305410.1438610.0045470.076*
C18a0.05606(16)0.3294(6)−0.0090(3)0.081(4)
H18a0.0120570.362997−0.0180940.097*
C19a0.1107(2)0.4106(4)−0.0090(2)0.0849(16)
H19a0.1033390.498396−0.0181250.102*
C20a0.17651(17)0.3604(3)0.0045(2)0.0951(17)
H20a0.2131060.4146610.0044870.114*
C21a0.18759(17)0.2291(3)0.0181(2)0.0785(14)
H21a0.2315920.1955250.0271290.094*
C16Ab0.1313(3)0.1489(5)0.0294(4)0.0619(19)
C17Ab0.0700(3)0.1954(8)−0.0060(5)0.067(2)
H17Ab0.0383560.137217−0.0279680.080*
C18Ab0.0557(3)0.3266(8)−0.0090(4)0.081(4)
H18Ab0.0147290.356630−0.0330240.097*
C19Ab0.1018(3)0.4130(5)0.0235(3)0.0840(17)
H19Ab0.0914790.5013910.0221230.101*
C20Ab0.1631(2)0.3696(4)0.0580(3)0.0930(19)
H20Ab0.1949480.4288090.0788340.112*
C21Ab0.1774(2)0.2374(4)0.0616(3)0.0762(15)
H21Ab0.2184330.2080390.0859590.091*
C220.44478(10)0.1351(2)0.15006(9)0.0687(5)
H220.4006940.1531650.1521230.082*
C230.49145(10)0.2462(2)0.16333(8)0.0669(5)
C240.47536(12)0.3456(2)0.19732(9)0.0787(6)
H240.4355380.3392540.2093830.094*
C250.51670(14)0.4534(2)0.21371(11)0.0895(7)
H250.5052550.5187070.2365920.107*
C260.57466(13)0.4613(2)0.19542(11)0.0864(7)
C270.59160(11)0.3698(2)0.16056(11)0.0842(6)
H270.6308730.3791940.1478880.101*
C280.55015(10)0.2624(2)0.14399(10)0.0762(6)
H280.5614290.2000440.1196460.091*
N10.29616(7)−0.16351(15)0.10253(7)0.0657(4)
N20.33473(7)−0.04890(15)0.10742(7)0.0660(4)
N30.20597(7)−0.03631(15)0.05803(7)0.0664(4)
H3A0.2360860.0242240.0675740.080*
O10.09265(7)−0.06788(14)0.01683(8)0.0878(5)
S10.18611(3)−0.29703(5)0.05185(3)0.0797(2)
F10.27951(10)−0.6031(2)0.28933(9)0.1500(8)
F20.61599(8)0.56611(15)0.21233(8)0.1208(6)

  1. Occupancies: a = 0.521(5), b = 0479(5).

Source of materials

The title compound was synthesized from reaction of an equimolar mixture of 7-(4-fluorobenzylidene)-3-(4-fluorophenyl)-3,3a,4,5,6,7-hexahydro-2H-indazole and benzoyl isothiocyanate in anhydrous ethanol under reflux for 2 h. The crude product was recrystallized from dimethylformamide to give colourless crystals in 82% yield (Mp. 246–248 °C).

Experimental details

All hydrogen atoms were placed in calculated positions and refined using a riding model. The N—H bond was fixed at 0.86 Å (AFIX 43 instruction in SHELXL [2], [3]), with displacement parameters set to 1.2 times Ueq(N). C—H distances for sp2 carbon atoms were set to 0.93 Å (AFIX 43) and Uiso(H) set to 1.2 times Ueq(C). The methine C—H distance was set to 0.98 Å (AFIX 13) and Uiso(H) set to 1.2 times Ueq(C). The methylene C—H distances were set to 0.97 Å (AFIX 23) and Uiso(H) set to 1.2 times Ueq(C). The phenyl ring is disordered and was refined with restrained geometry to form regular hexagons and restrained displacement parameters (DFIX,SIMU) to give final occupancies of 0.479(5) and 0.521(5) for the two components.

Discussion

Many pyrazole derivatives have been synthesized and found to display antimicrobial, antiviral, anti-inflammatory, insecticidal and herbicidal activities [5], [6], [7], [8]. The structure of the title compound has been obtained as part of a study of these materials [9].

The asymmetric unit consists of one molecule of the title compound (see the figure). The molecule consists of two fluorophenyl groups [A (F1, C1—C6) and D (F2, C23—C28)], a hexahydroindazolyl group [B (N1, N2, C7—C13)] and a phenyl group [C (C16—C21)]. Ring C is disordered by a rotation of 35.3(3)° about the C15—C16 bond. The cyclohexane segment (C8—C13) of B assumes a chair conformation. The pyrazolyl ring of B is planar with a maximum deviation of 0.037(3) Å from the least squares plane of the ring. Related structures include cis-1-benzoyl-2-chloroacetyl-4,5-hexamethylenepyrazolidine [10] and 2-benzyl 3-ethyl 6a-methyl 1-(benzoylcarbamothioyl)hexahydrocyclopenta[c] pyrazole-2,3,6a(1H)-tricarboxylate [11] in which the pyrazolyl rings are in envelope conformation. An intramolecular N—H⋯N contact is observed (N3⋯N2 distance of 2.575(2) Å; N3—H3A⋯N2 angle of 112.8°). Two molecules related by inversion symmetry are linked by weak non-classical C—H⋯O interactions (C17⋯O1 distance of 3.427(3) Å and C17—H17⋯O1 angle of 158.4°) to form R22(10) rings. Comparably weak C—H⋯S interactions also occur in the structure with C27⋯S1 distances of 3.676(3) Å and C27—H27⋯S1 angles of 139.7°.

Acknowledgements

The authors would like to thank the Deanship of Scientific Research at Majmaah University for supporting this work under Project Number No. 1440-127, and to Cardiff University for continued support.

References

1. Rigaku Oxford Diffraction. CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England (2015).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Cryst. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Naim, M. J.; Alam, O.; Nawaz, F.; Alam, M. J.; Alam, P.: Current status of pyrazole and its biological activities. J. Pharm. Bioallied Sci. 8 (2016) 2–17.10.4103/0975-7406.171694Search in Google Scholar

6. Sayed, G. H.; Azab, M. E.; Anwer, K. E.; Abdel Raouf, M.; Negm, N. A.: Pyrazole, pyrazolone and enaminonitrile pyrazole derivatives: Synthesis, characterization and potential in corrosion inhibition and antimicrobial applications. J. Mol. Liq. 252 (2018) 329–338.10.1016/j.molliq.2017.12.156Search in Google Scholar

7. Sidduri, A.; Budd, D. C.; Fuentes, M. E.; Lambros, T.; Ren, Y.; Roongta, V.; Schoenfeld, R. C.; Gillespie, P.; Stevenson, C. S.; Truitt, T.; Qian, Y.: Discovery of novel non-carboxylic acid 5-amino-4-cyanopyrazole derivatives as potent and highly selective LPA1R antagonists. Bioorg. Med. Chem. Lett. 24 (2014) 4450–4454.10.1016/j.bmcl.2014.08.001Search in Google Scholar

8. Faria, J. V.; Vegi, P. F.; Miguita, A. G. C.; Dos Santos, M. S.; Boechat, N.; Bernardino, A. M. R.: Recently reported biological activities of pyrazole compounds. Bioorg. Med. Chem. 25 (2017) 5891–5903.10.1016/j.bmc.2017.09.035Search in Google Scholar

9. Alotaibi, M. H.; Hanan, M. A.; Bakr, F. A.-W.; Amany, H. S.; Kariuki, B. M.; El-Hiti, G. A.: Crystal structure of 5-(5-(4-chlorophenyl)-1-phenyl-1H-pyrazol-3-yl)-N-phenyl-2-amine, C23H16ClN5O. Z. Kristallogr. NCS 234 (2019) 543–545.10.1515/ncrs-2018-0546Search in Google Scholar

10. Kapor, A.; Rakic, S.; Stancic, M.; Simon, L.; Talpas, G. S.; Bernath, G.; Engel, P.: Structure and conformation of cis-benzoyl-2-chloroacetyl-4,5-hexamethylenepyrazolidine: an x-ray study. J. Mol. Struct. 380 (1996) 85–91.10.1016/0022-2860(96)09206-XSearch in Google Scholar

11. Gergely, J.; Morgan, J. B.; Overman, L. E.: Stereocontrolled synthesis of functionalized cis-cyclopentapyrazolidines by 1,3-dipolar cycloaddition reactions of azomethine imines. J. Org. Chem. 71 (2006) 9144–9152.10.1021/jo061537jSearch in Google Scholar PubMed PubMed Central
