Isolation and crystal structure of bufotalinin — methanol (1/1), C25H34O7

  • Guo-Qiang Li , Yi-Ting Zhao , Qing-Peng Xu , Hai-Yan Tian , Peng-ran Guo and Fu-wang Wu EMAIL logo
Published/Copyright: May 13, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C25H34O7, monoclinic, P21 (no. 4), a = 9.24730(10) Å, b = 9.9061(2) Å, c = 12.5907(2) Å, β = 101.264(2)°, V = 1131.15(3) Å3, Z = 2, Rgt(F) = 0.0380, wRref(F2) = 0.1025, T = 173 K.

CCDC no.: 1908020

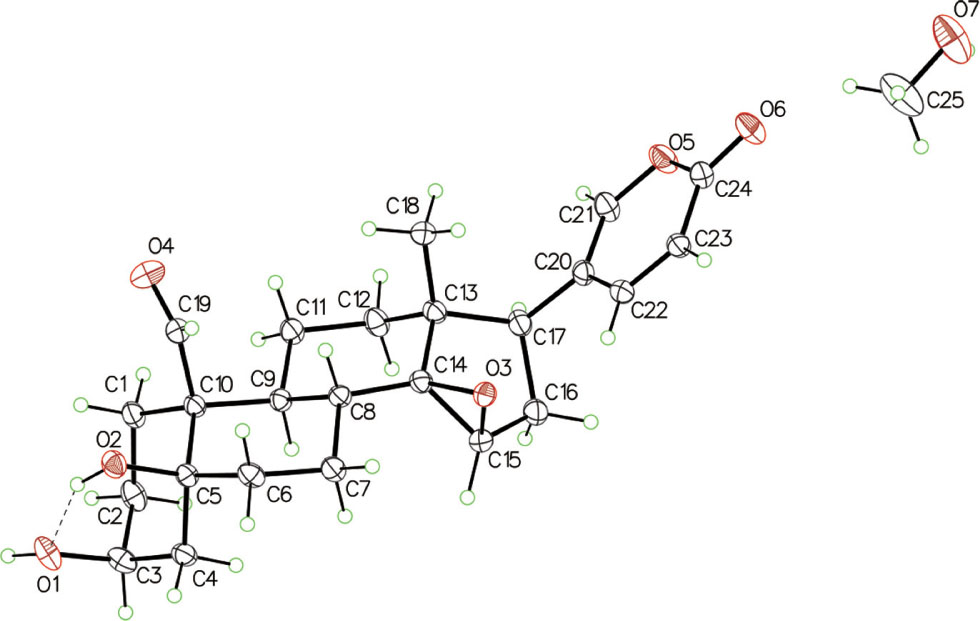

The molecular structure and the solvate molecule methanol is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.28 × 0.26 × 0.20 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:0.78 mm−1
Diffractometer, scan mode:Gemini S ultra, ω
θmax, completeness:62.8°, 99%
N(hkl)measured, N(hkl)unique, Rint:17729, 3544, 0.026
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3516
N(param)refined:297
Programs:CrysAlisPRO [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.0734(3)1.0505(3)−0.06854(19)0.0414(6)
H1−0.023(7)1.091(7)−0.077(5)0.098(19)*
O20.2639(2)0.8830(2)0.04728(17)0.0330(5)
H20.18130.90980.01380.049*
O30.8950(2)1.1349(2)0.27709(15)0.0309(5)
O40.2733(3)0.9575(3)0.3296(2)0.0546(7)
O51.1480(3)1.3115(3)0.67529(18)0.0419(6)
O61.3620(3)1.2062(3)0.72423(19)0.0484(6)
C10.1910(3)1.1351(3)0.1577(2)0.0317(7)
H1A0.11251.06560.14750.038*
H1B0.18381.18730.22350.038*
C20.1638(3)1.2303(3)0.0600(3)0.0363(7)
H2A0.06351.26890.05130.044*
H2B0.23541.30570.07330.044*
C30.1792(4)1.1577(3)−0.0432(2)0.0351(7)
H30.16641.2234−0.10460.042*
C40.3304(3)1.0925(3)−0.0286(2)0.0296(7)
H4A0.40611.1644−0.01920.035*
H4B0.33721.0421−0.09530.035*
C50.3647(3)0.9964(3)0.0677(2)0.0256(6)
C60.5187(3)0.9367(3)0.0758(2)0.0302(7)
H6A0.52820.85630.12340.036*
H6B0.53040.90650.00300.036*
C70.6421(3)1.0358(4)0.1202(2)0.0312(7)
H7A0.63991.11230.06930.037*
H7B0.73870.99010.12720.037*
C80.6230(3)1.0883(3)0.2306(2)0.0249(6)
H80.62051.00820.27860.030*
C90.4736(3)1.1625(3)0.2205(2)0.0243(6)
H90.47181.23640.16610.029*
C100.3428(3)1.0640(3)0.1755(2)0.0249(6)
C110.4597(3)1.2286(3)0.3279(2)0.0305(7)
H11A0.36921.28460.31640.037*
H11B0.44881.15710.38070.037*
C120.5918(3)1.3170(3)0.3756(3)0.0337(7)
H12A0.57711.35440.44560.040*
H12B0.59701.39370.32610.040*
C130.7393(3)1.2390(3)0.3936(2)0.0272(6)
C140.7476(3)1.1778(3)0.2846(2)0.0264(6)
C150.8403(3)1.2640(4)0.2313(3)0.0347(7)
H150.81601.27580.15090.042*
C160.8972(4)1.3815(4)0.3022(3)0.0392(8)
H16A0.84421.46530.27510.047*
H16B1.00391.39480.30460.047*
C170.8683(3)1.3443(3)0.4158(2)0.0307(7)
H170.82931.42710.44590.037*
C180.7484(3)1.1350(3)0.4840(2)0.0329(7)
H18A0.74761.18130.55260.049*
H18B0.83981.08300.48990.049*
H18C0.66361.07390.46740.049*
C190.3435(3)0.9536(4)0.2589(2)0.0327(7)
H190.40310.87640.25490.039*
C201.0066(3)1.3021(3)0.4951(2)0.0285(6)
C211.0272(3)1.3449(4)0.5990(3)0.0356(7)
H210.95401.40080.61980.043*
C221.1207(3)1.2213(3)0.4674(2)0.0315(7)
H221.11171.18940.39520.038*
C231.2416(3)1.1892(3)0.5418(2)0.0287(6)
H231.31671.13640.52040.034*
C241.2598(3)1.2321(3)0.6514(3)0.0332(7)
O71.7878(4)1.1263(4)0.8885(3)0.0737(10)
H71.78531.21110.88940.111*
C251.7137(6)1.0812(5)0.7918(4)0.0723(14)
H25A1.73571.13930.73400.108*
H25B1.60761.08320.79100.108*
H25C1.74420.98850.78030.108*

Source of material

The ChanSu crude drug was purchased from Guangzhou qingping medicine market, Guangdong, China. Powder of ChanSu (100 g) was dissolved in water and extracted three times with acetate at room temperature. The extracts were concentrated in vacuum to give a residue (25 g). The obtained solid was purified by silica gel column chromatography with petroleum ether-acetone as mobile phase and preparative liquid chromatography. Then the title compound (systematic name: (1R,3aS,5aS,7S,9aS,11aR)-5a,7-dihydroxy-11a-methyl-1-(2-oxo-2H-pyran-5-yl)tetradecahydronaphtho[1′,2′:6,7]indeno[1,7a-b]oxirene-9a(1H)-carbaldehyde was obtained and crystallized in methanol. The title compound is a 1/1 cocrystal of the organic target molecule and methanol (cf. the figure).

Experimental details

The C-bound H atoms were positioned geometrically and were included in the refinement in the riding-model approximation. The crystal structure was solved by direct method and refined by full-matrix least-squares refinement with SHELX program [2]. The Flack-Parsons parameter was −0.01(6) based on 1593 quotients [(I+)−(I−)]/[(I+)+(I−)] [2].

Comment

ChanSu is a valuable medicinal material produced from the skin secretions of Bufo gargarizans Cantor or Bufo melanostictus Schneider. Earlier studies have demonstrated bufadienolides were the main active ingredients in ChanSu [3], [4], [5], [6]. These compounds have a δ-lactone at C17 position and possess multiple biological activities such as antivirus and anticancer [7], [8], [9], [10], [11].

The crystals of title compound, bufotalinin methanol monosolvate, were obtained by slow evaporation from a methanol solution. The title compound is composed of five rings, one five-numbered and four six-numbered. The torsion angles of O1—C1—C2—C3 and O2—C5—C10—C19 are 61.4(3), 165.1(2)° respectively. The dihedral angle between the planes of the lactone ring (mean deviation 0.0071 Å) and the epoxy group is 74.6(1)°. A short intramolecular interaction between the C5 hydroxy and C3 hydroxy is present [O2—H2⋯O1 = 1.90 Å, 147°]. The bond lengths and in general all geometric parameters are in the expected ranges [12], [13].

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 31701670

Funding source: Natural Science Foundation of Guangdong Province

Award Identifier / Grant number: 2016A030310079

Funding statement: This work was supported financially by the National Natural Science Foundation of China (31701670) and the Natural Science Foundation of Guangdong Province (Grant 2016A030310079), Postgraduate demonstration course construction foundation of Guangdong Education Department (2016SFKC-43), the Fundamental Research Funds for the Central Universities (Grant gg040971), the Student academic fund of Foshan University.

References

1. Agilent Technologies. CrysAlisPRO Software system. Agilent Technologies UK Ltd, Oxford, UK (2015).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3. Xin, X. L.; Lan, R.; Huang, J.; Wang, X. J.; Jia, J. M.: A new cytotoxic bufadienolide from Chinese medicine Chansu. Chin. Chem. Lett. 19 (2008) 1445–1446.10.1016/j.cclet.2008.09.037Search in Google Scholar

4. Sun, Y. S.; Bi, J. J.; Zhuang, L.; Ye, B. X.: Ultrasound-assisted extraction of three bufadienolides from Chinese medicine ChanSu. Ultrason. Sonochem. 19 (2012) 1150–1154.10.1016/j.ultsonch.2012.03.003Search in Google Scholar

5. Ye, M.; Guo, H.; Guo, H. Z.; Han, J.; Guo, D. A.: Simultaneous determination of cytotoxic bufadienolides in the Chinese medicine ChanSu by high-performance liquid chromatography coupled with photodiode array and mass spectrometry detections. J. Chromatogr. B 838 (2006) 86–95.10.1016/j.jchromb.2006.04.042Search in Google Scholar

6. Tian, H. Y.; Wang, L.; Zhang, X. Q.; Wang, Y.; Zhang, D. M.; Jiang, R. W.; Liu, Z.; Liu, J. S.; Li, Y. L.; Ye, W. C.: Bufogargarizins A and B: two novel 19-norbufadienolides with unprecedented skeletons from the venom of Bufo bufo gargarizans. Chem. Eur. J. 16 (2010) 10989–10993.10.1002/chem.201000847Search in Google Scholar

7. Zhao, Y. Z.; Zhang, Y. Y.; Han, H.; Fan, R. P.; Hu, Y.; Zhong, L.; Kou, J. P.; Yu, B. Y.: Advances in the antitumor activities and mechanisms of action of steroidal saponins. Chin. J. Nat. Med. 16 (2018) 732–748.10.1016/S1875-5364(18)30113-4Search in Google Scholar

8. Tian, H. Y.; Yuan, X. F.; Jin, L.; Li, J.; Luo, C.; Ye, W. C.; Jiang, R. W.: A bufadienolide derived androgen receptor antagonist with inhibitory activities against prostate cancer cells. Chem. Biol. Interact. 207 (2014) 16–22.10.1016/j.cbi.2013.10.020Search in Google Scholar PubMed

9. Tian, H. Y.; Wang, L.; Zhang, X. Q.; Zhang, D. M.; Wang, Y.; Liu, Z.; Liu, J. S.; Jiang, R. W.; Ye, W. C.: New bufadienolides and C23 steroids from the venom of Bufo bufo gargarizans. Steroids 75 (2010) 884–890.10.1016/j.steroids.2010.05.013Search in Google Scholar PubMed

10. Tian, H. Y.; Luo, S. L.; Liu, J. S.; Wang, L.; Wang, Y.; Zhang, D. M.; Liu, Z.; Zhang, X. Q.; Jiang, R. W.; Ye, W. C.: C23 Steroids from the venom of Bufo bufo gargarizans. J. Nat. Prod. 76 (2013) 1842–1847.10.1021/np400174fSearch in Google Scholar PubMed

11. Zhang, P.-W.; Tian, H.-Y.; Nie, Q.-L.; Wang, L.; Zhou, S.-W.; Ye, W.-C.; Zhang, D.-M.; Jiang, R.-W.: Structures and inhibitory activity against breast cancer cells of new bufadienolides from the eggs of toad Bufo bufo gargarizans. RSC Adv. 6 (2016) 93832–93841.10.1039/C6RA18676ASearch in Google Scholar

12. Kalman, A.; Fulop, V.; Argay, G.; Ribar, B.; Lazar, D.; Zivanov-Stakic, D.; Vladimirov, S.: Structures of two bufadienolides:bufotalin (3β,14-dihydroxy-16β-acetoxy-5β,14β-bufa-20,22-dienolide) and cinobufotalin (3β,5β-dihydroxy-14,15β-epoxy-16β-acetoxy-5β,14β-bufa-20,22-dienolide). Acta Crystallogr. C 44 (1988) 1634–1638.10.1107/S0108270188005724Search in Google Scholar

13. Argay, G.; Kalman, A.; Ribar, B.; Vladimirov, S.; Zivanov-Stakic, D.: Structures of two related bufadienolides: gamabufotalin (3β,11α,14-trihydroxy-5β,14β]-bufa-20,22-dienolide) and arenobufagin (3β,11α,14-trihydroxy-12-oxo-5β,14β-bufa-20,22-dienolide). Acta Crystallog. C 45 (1987) 922–926.10.1107/S0108270187093569Search in Google Scholar
