Crystal structure of 2-oxo-1-(pyrimidin-5-ylmethyl)-3-(3-(trifluoromethyl)phenyl)-1,2-dihydro-5l4-pyrido[1,2-a]pyrimidin-4-olate, C20H13F3N4O2

  • Shi Yun-lian , Huang Tao , Nie Xu-Liang , Zhang Feng-Rong , Peng Da-Yong EMAIL logo , Shi Xu-Gen EMAIL logo und Li Bao-Tong
Veröffentlicht/Copyright: 19. Juni 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 5

Abstract

C20H13F3N4O2, triclinic, P1̄ (no. 2), a = 11.3525(10) Å, b = 12.7530(11) Å, c = 13.1926(12) Å, α = 83.894(1)°, β = 69.314(1)°, γ = 84.720(1)°, V = 1773.7(3) Å3, Z = 4, Rgt(F) = 0.0477, wRref(F2) = 0.1433, T = 296(2) K.

CCDC no.: 1920649

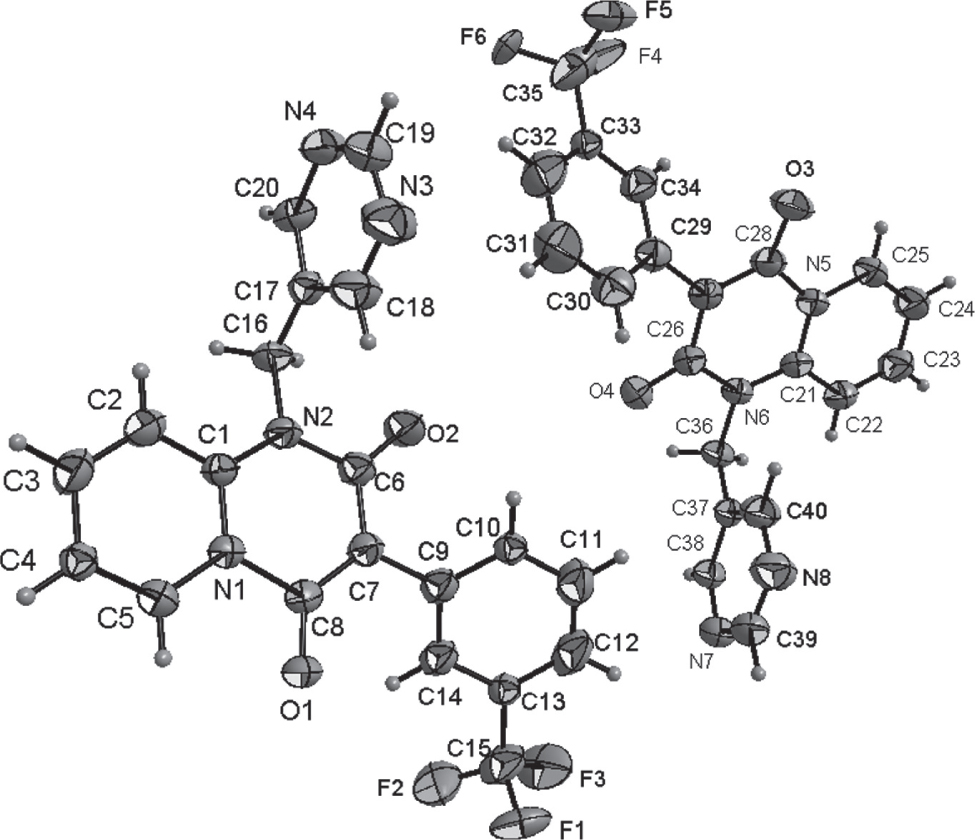

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.16 × 0.14 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.12 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:13789, 6557, 0.018
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4729
N(param)refined:524
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N10.64548(15)0.61208(12)−0.02771(13)0.0359(4)
N20.60039(16)0.79195(13)−0.05909(13)0.0402(4)
N30.4451(2)0.9377(2)−0.2909(2)0.0761(7)
N40.5802(2)1.07862(17)−0.32960(15)0.0583(5)
N50.28673(17)0.71963(13)0.74578(14)0.0426(4)
N60.16724(16)0.82321(14)0.65745(13)0.0419(4)
N70.1696(2)1.15172(17)0.43342(18)0.0611(6)
N80.2367(2)1.14491(18)0.5847(2)0.0712(6)
O10.51386(14)0.51400(11)0.11790(12)0.0476(4)
O20.42007(16)0.87504(12)0.04180(14)0.0603(5)
O30.21238(17)0.68711(15)0.93115(13)0.0666(5)
O4−0.02772(15)0.89287(13)0.74796(13)0.0546(4)
F10.1578(3)0.46935(15)0.47081(18)0.1224(8)
F20.3103(2)0.53887(18)0.48375(14)0.1027(6)
F30.1282(2)0.60544(18)0.55855(14)0.1252(9)
F4−0.1767(4)0.5352(2)1.16110(19)0.1722(14)
F5−0.1498(3)0.6141(2)1.2769(2)0.1437(11)
F6−0.3229(2)0.6230(3)1.2607(3)0.1748(14)
C10.67559(19)0.70382(15)−0.09094(15)0.0358(4)
C20.7812(2)0.70287(18)−0.18643(18)0.0484(5)
H20.80050.7638−0.23300.058*
C30.8556(2)0.61269(19)−0.21097(19)0.0543(6)
H30.92640.6123−0.27400.065*
C40.8263(2)0.52106(18)−0.14232(19)0.0523(6)
H40.87850.4598−0.15760.063*
C50.7214(2)0.52231(17)−0.05343(18)0.0442(5)
H50.70010.4606−0.00840.053*
C60.4833(2)0.79085(16)0.02807(17)0.0421(5)
C70.4508(2)0.69391(16)0.09154(16)0.0400(5)
C80.52883(19)0.60225(16)0.06985(16)0.0376(5)
C90.3300(2)0.69155(16)0.18443(17)0.0430(5)
C100.2207(2)0.74638(18)0.1770(2)0.0540(6)
H100.22330.78540.11270.065*
C110.1088(3)0.7433(2)0.2643(3)0.0686(8)
H110.03720.78120.25840.082*
C120.1017(3)0.6850(2)0.3597(2)0.0697(8)
H120.02580.68260.41780.084*
C130.2088(2)0.62991(18)0.36827(19)0.0557(6)
C140.3223(2)0.63378(17)0.28196(17)0.0474(5)
H140.39400.59740.28930.057*
C150.1999(3)0.5625(2)0.4691(2)0.0702(8)
C160.6417(2)0.89679(15)−0.11010(17)0.0419(5)
H16A0.73290.8924−0.14370.050*
H16B0.61980.9456−0.05380.050*
C170.5861(2)0.94077(16)−0.19411(16)0.0393(5)
C180.4933(3)0.8965(2)−0.2154(2)0.0617(7)
H180.46190.8344−0.17530.074*
C190.4937(3)1.0261(2)−0.3447(2)0.0642(7)
H190.46341.0545−0.39930.077*
C200.6247(2)1.03481(18)−0.25337(17)0.0482(5)
H200.68521.0695−0.23930.058*
C210.2768(2)0.76818(16)0.65200(16)0.0403(5)
C220.3796(2)0.75795(19)0.55549(19)0.0516(6)
H220.37570.79190.49070.062*
C230.4852(2)0.6985(2)0.5560(2)0.0621(7)
H230.55320.69180.49160.074*
C240.4918(2)0.6478(2)0.6526(2)0.0642(7)
H240.56320.60610.65330.077*
C250.3932(2)0.65997(18)0.7453(2)0.0534(6)
H250.39770.62710.81030.064*
C260.0642(2)0.83797(17)0.75605(17)0.0435(5)
C270.0771(2)0.78767(17)0.85265(17)0.0438(5)
C280.1863(2)0.72968(17)0.85416(17)0.0464(5)
C29−0.0294(2)0.79774(19)0.95717(18)0.0483(5)
C30−0.0955(3)0.8940(2)0.9842(2)0.0640(7)
H30−0.07190.95410.93700.077*
C31−0.1959(3)0.9013(3)1.0808(2)0.0856(10)
H31−0.23960.96621.09760.103*
C32−0.2319(3)0.8139(3)1.1524(2)0.0827(9)
H32−0.29920.81931.21740.099*
C33−0.1672(2)0.7182(2)1.12660(19)0.0615(7)
C34−0.0667(2)0.7098(2)1.03022(18)0.0533(6)
H34−0.02360.64471.01400.064*
C35−0.2035(3)0.6248(3)1.2050(2)0.0790(9)
C360.1484(2)0.87329(17)0.55879(17)0.0453(5)
H36A0.06270.86400.56350.054*
H36B0.20510.83800.49670.054*
C370.17099(19)0.98893(17)0.54056(16)0.0414(5)
C380.1503(2)1.04929(19)0.45452(18)0.0495(6)
H380.12121.01650.40890.059*
C390.2129(2)1.1930(2)0.5001(2)0.0639(7)
H390.22831.26440.48550.077*
C400.2136(3)1.0427(2)0.6042(2)0.0590(6)
H400.22711.00590.66430.071*

Source of materials

The synthesis of triflumezopyrim was carried out using 2-[3-(trifluoromethyl)phenyl]malonic acid and N-(pyrimidin-5-ylmethyl)pyridin-2-amine as start material, using a modified literature known reaction [3], [4], [5]. The educt 2-[3-(trifluoromethyl)phenyl]malonic acid (0.36 g, 1.45 mmol) was dissolved in dichloromethane (20 mL), oxalyl chloride (0.37 mL, 2.9 mmol) and two drops of DMF was added. The reaction was stirred for 1 h at room temperature. The mixture was concentrated under reduced pressure, 10 mL dichloromethane was added for next step use. And then triethylamine (1.1 mL, 7.94 mmol) and N-(pyrimidin-5-ylmethyl)pyridin-2-amine (0.27 g, 1.45 mmol) in 10 mL CH2Cl2 was slowly added to the above solution at 0 °C and then stirred at room temperature. The reaction was monitored by TLC. After completion of the reaction, the solvent was removed under reduced pressure, and the residue was purified by column chromatography to give the title compound (0.15 g), Yield 26%. The product was recrystallized from acetone. m.p. 182–184 °C. Elemental Anal. Calcd. (%) for C20H13F3N4O2 (398.38): C, 60.30; H, 3.29; Found. (%). C, 60.13; H, 3.56.

Experimental details

All H atoms were included in calculated positions and refined as riding atoms, with C—H = 0.93 Å with Uiso(H) = 1.5 Ueq(C) for methyl H atoms and 1.2 Ueq(C) for all other H atoms.

Comment

The title compound Triflumezopyrim is a novel mesoionic insecticide, which has a good internal absorption conduction activity and is the only inhibitory compound in insecticides acting on nicotinic acetylcholine receptors (nAChRs) [6], [7], [8]. It mainly controls rice planthoppers and cicadellidae, and has good control effect on various pests such as lepidoptera and homoptera. It can be used in crops like cotton, rice, corn and soybeans [9], [10]. It is used in non-agricultural fields and has a broad market [6]. Herein we report the crystal structure of triflumezopyrim, which makes this kind of compound better understood and paves the way for the development of more novel mesoionic compounds.

There are two crystallographic independent molecules in the asymmetric unit (shown in the figure). There are a pair of external racemate trifluorabrimidine in the figure. In the molecule of the title compound bond lengths and angles are very similar to those given in the literature for 2,4-diphenyl-4,5,6,7-tetrahydro-4,7a,12b-triazadibenzo(e,g)azulene-1,3,8-trione [11]. In the title structure, all the non-hydrogen atoms in pyrido[1,2-a]pyrimidine-2,4(3H)-dione ring are approximately coplanar. The dihedral angles of pyrido[1,2-a]pyrimidine-2,4(3H)-dione ring, pyrimidine ring and benzene ring are 80.4, 40.5 and 55.7°, respectively.

Acknowledgements

X-ray data were collected at Instrumental Analysis Center Nanchang Hangkong University, Nanchang, 330063, People’s Republic of China. This research has been supported by the China National Key R and D Program during the 13th Five-year Plan Period (Grant No. 2017YFD0301604), The National Natural Science Foundation of China (Grant Nos. 2156200, 31660527), The Natural Science Foundation of Jiangxi Province (Grant No. 20181BAB203015), The Research Foundation of Educational Department of Jiangxi Province [GJJ180204, GJJ160379].

References

1. Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Zhang, W.: Mesoionic Pyrido[1,2a]pyrimidinone insecticides: from discovery to tri umezopyrim and dicloromezotiaz. Acc. Chem. Res. 50 (2017) 2381–2388.10.1021/acs.accounts.7b00311Suche in Google Scholar PubMed

4. Zhang, W.; Caleb, W. H. Jr.; James, B.; Robert, M. L.; Daniel, C.; Daniel, R. V.; Kenneth, A. H.; My-Hanh, T. T.; Stephen, F.; Xu, M.; Twyla, A. B.; Thomas, F. P.; George, P. L.: Mesoionic pyrido[1,2-a]pyrimidinones: a novel class of insecticides inhibiting nicotinic acetylcholine receptors. Bioorg. Med. Chem. Lett. 26 (2016) 5444–5449.10.1016/j.bmcl.2016.10.031Suche in Google Scholar PubMed

5. Shi, Y. L.; Huang, T.; Nie, X. L.; Peng, D. Y.; Liu, J. C.; Li, B. T.: Crystal structure of bis(2,4,6-trichlorophenyl)malonate, C15H6Cl6O4. Z. Kristallogr. NCS 2 (2019) 331–332.Suche in Google Scholar

6. Gu, L. L.: Market prospects of three insecticides acting on nicotinic acetylcholine receptors. Pestic Market Inform. 24 (2018) 33.Suche in Google Scholar

7. Zhu, Y. J.; Gu, L. L.: Development and progress of new insecticides on nicotinic acetylcholine receptor. Modern Agro. 4 (2018) 1–7.Suche in Google Scholar

8. Daniel, C.; Eric, A. B.; Mark, E. S.; Caleb, W. H. Jr.; Zhang, W.; Thomas, F. P.; Robert, M. L.; Daniel, R. V.; Jason, C. H.: Mode of action of triflumezopyrim: a novel mesoionic insecticide which inhibits the nicotinic acetylcholine receptor. Insect Biochem. Mol. Biol. 74 (2016) 32–41.10.1016/j.ibmb.2016.04.008Suche in Google Scholar PubMed

9. Ying, J. W.; Lei, G. Y.; Song, Y. Q.: Synthesis and bioactivity of triflumezopyrim. Modern Agro. 2 (2017) 14–16.Suche in Google Scholar

10. Li, R. X.; Xu, X. D.; Gao, Z.: Preliminary report of control effect of triflunezopyrim on rice planthopper. Hunan Agric. Sci. 8 (2017) 61–63.Suche in Google Scholar

11. Schmidt, A.; Shilabin, A. G.; Namyslo, J. C.; Nieger, M.; Hemmen, S.: Pyrimidine-annulated pyrrolobenzodiazepines. A new ring system related to aspergillus alkaloids. Eur. J. Org. Chem. 9 (2005) 1781–1789.10.1002/chin.200535190Suche in Google Scholar

Received: 2019-04-21
Accepted: 2019-06-04
Published Online: 2019-06-19
Published in Print: 2019-09-25

©2019 Shi Yun-lian et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
